儿童腰椎管及椎弓根形态特征的数字化与解剖学特征

王  星1，2，史  君3，张少杰1，2，李志军1，2，张元智2，刘红伟1，马世峰1，张志峰4

  1. 内蒙古医科大学，1基础医学院解剖教研室，2数字医学中心，3基础医学院生理教研室， 4第二附属医院关节科，内蒙古自治区呼和浩特市  010059
  • 收稿日期:2014-01-03 出版日期:2014-03-26 发布日期:2014-03-26
  • 通讯作者: 李志军，硕士，教授，博士生导师，内蒙古医科大学基础医学院解剖教研室，数字医学中心，内蒙古自治区呼和浩特市 010059
  • 作者简介:王星，男，1979年生，内蒙古自治区巴彦淖尔市人，汉族，硕士，助教，主要从事脊柱的应用解剖学研究。 并列第一作者：史君，女，1980年生，内蒙古自治区五原县人，汉族，硕士研究生，讲师，主要从事心血管及运行生理学研究。
  • 基金资助:

    国家自然科学基金(81260269)；内蒙古自然科学基金(2012MS1149)；内蒙古医科大学青年创新基金(YKD2013QNCX018)资助

Digital and anatomical study about morphological characteristics of children’s lumbar vertebral canal and pedicle

Wang Xing1, 2, Shi Jun3, Zhang Shao-jie1, 2, Li Zhi-jun1, 2, Zhang Yuan-zhi2, Liu Hong-wei1, Ma Shi-feng1, Zhang Zhi-feng4

  1. 1Department of Anatomy, Basic Medical College, 2Digital Medical Center, 3Department of Physiology, Basic Medical College, 4Joint Surgical Department, the Second Affiliated Hospital, Inner Mongolia Medical University, Hohhot 010059, Inner Mongolia Autonomous Region, China
  • Received:2014-01-03 Online:2014-03-26 Published:2014-03-26
  • Contact: Li Zhi-jun, Master, Professor, Doctoral supervisor, Department of Anatomy, Basic Medical College, Inner Mongolia Medical University, Hohhot 010059, Inner Mongolia Autonomous Region, China; Digital Medical Center, Inner Mongolia Medical University, Hohhot 010059, Inner Mongolia Autonomous Region, China
  • About author:Wang Xing, Master, Teaching assistant, Department of Anatomy, Basic Medical College, Inner Mongolia Medical University, Hohhot 010059, Inner Mongolia Autonomous Region, China; Digital Medical Center, Inner Mongolia Medical University, Hohhot 010059, Inner Mongolia Autonomous Region, China Shi Jun, Master, Lecturer, Department of Physiology, Basic Medical College, Inner Mongolia Medical University, Hohhot 010059, Inner Mongolia Autonomous Region, China Wang Xing and Shi Jun contributed equally to this paper.
  • Supported by:

    the National Natural Science Foundation of China, No. 81260269; the Natural Science Foundation of Inner Mongolia Autonomous Region, No. 2012MS1149; the Youth Innovation Foundation of Inner Mongolia Medical University, No. YKD2013QNCX018

PDF

515

被引次数

3

摘要：

背景：对于儿童脊柱损伤的外科治疗适应证及治疗方式等尚存在争议。
目的：通过利用薄层CT影像资料并三维重建后测量，分析6-11周岁儿童腰椎椎弓根的形态、发育规律和增龄特征。
方法：选取无脊柱外伤、畸形及神经症状的6-11周岁儿童60例，行多排螺旋CT薄层扫描(0.625-1.25 mm)，范围为T12至S1，将原始数据以DICOM格式导入三维重建软件进行相关指标测量，并按不同节段进行统计分析。
结果与结论：①椎管横径与矢径随年龄和椎序增加呈递增趋势。②椎弓根宽和高随年龄的增加呈递增趋势，椎弓根宽随椎序的增加呈递增趋势，而椎弓根高则随椎序的增加则呈缓慢递减趋势，椎弓根高大于椎弓根宽。③钉道长随年龄的增加呈递增趋势，在腰椎处整体呈“波浪”型，且各椎间无显著性差异。④e角随椎序的增加呈递增趋势，而f角则随椎序的增加则呈“波浪状”递减趋势。说明儿童腰椎椎管横径、矢径、椎弓根宽、高、钉道长、e角和f角与椎弓根螺钉置入有着密切的关系，临床应用中应根据儿童椎弓根的特征选取最佳的治疗方案。


中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程


全文链接：

关键词: 植入物, 数字化骨科, 腰椎, 椎弓根, 形态特征, 三维重建测量, 儿童, 解剖, 国家自然科学基金

Abstract:

BACKGROUND: Indications and therapeutic method of surgical treatment for Children’s spinal injury are still controversial.
OBJECTIVE: To analyze the morphology, development regularities and age characteristics of lumbar pedicle of children aged 6 to 11 years old by using thin layer CT image data and three dimensional reconstruction.

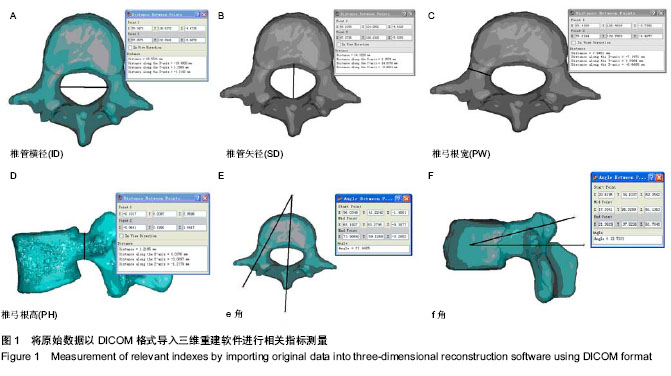

METHODS: A total of 60 children at the age of 6 to 11 years without spine trauma, deformity and neurological symptoms were selected, and were scanned with multi-row spiral CT (0.625-1.25 mm) from T12 to S1. The original data were imported into three-dimensional reconstruction software by DICOM format, and related index was measured. The data were statistically analyzed according to different segments.

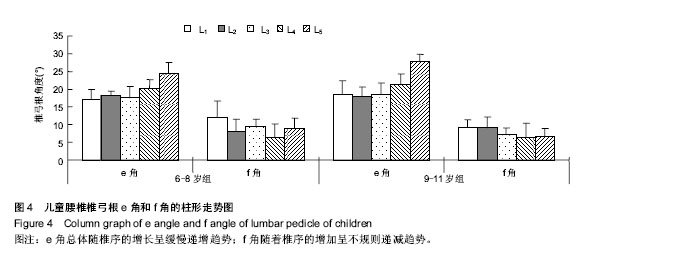

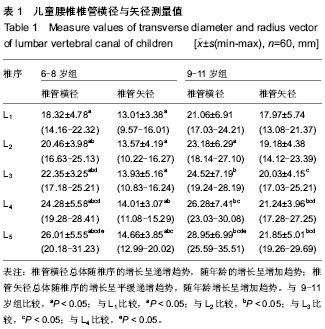

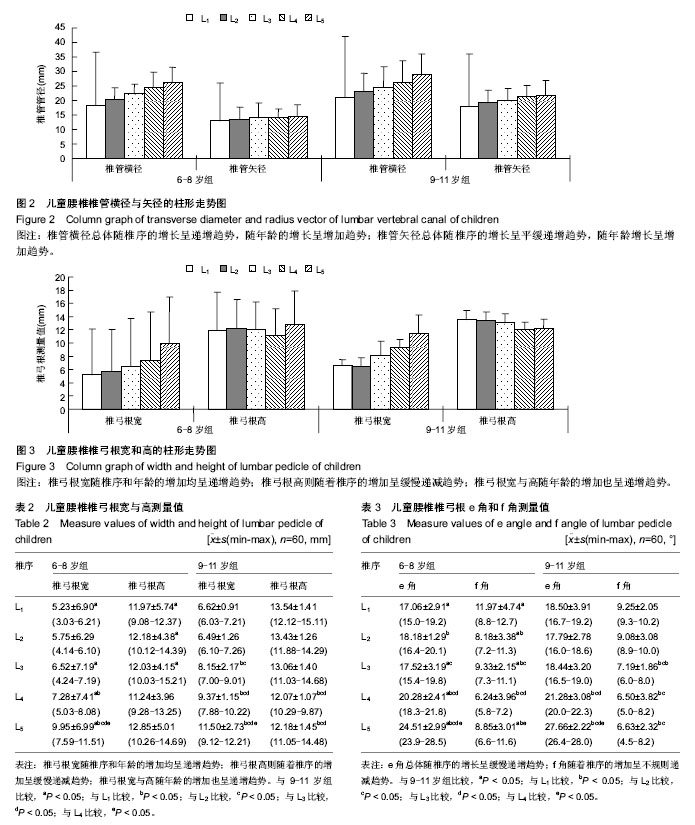

RESULTS AND CONCLUSION: ①With increasing age and vertebral levels, transverse diameter and radius vector of the spinal canal had an increasing trend. ②With the increase of age, the pedicle width and height had an increasing trend. With the increase of vertebral levels, the pedicle width had an increasing trend, but pedicle height had a slowly decreasing trend. The pedicle height was greater than pedicle width. ③With the increase of age, the nail path length had an increasing trend. In the lumbar vertebra, nail path presented “waves” on the
whole, and there was no significant difference between each vertebra. ④With the increase of vertebral levels, e angle had an increasing trend, but the f angle presented decreasing “wavy” trend. These results indicated that transverse diameter, radius vector, width and height of pedicle, nail path length, e angle and f angle were strongly associated with pedicle screw implantation. In clinical application, we should choose an optimal therapeutic method according to the features of pedicle of children.


中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程


全文链接：

Key words: lumbar vertebrae, imaging, three dimensional, spinal canal, dissection
