能谱CT成像中测量位置与校正系数的关系

盖立平1,刘爱连2,刘义军2,孙美玉2,刘静红2,浦仁旺2,孙敏芹2,丁晓东1,王 礼1

  1. 1大连医科大学物理教研室,辽宁省大连市 116044;2大连医科大学附属第一医院放射科,辽宁省大连市 116011
  • 修回日期:2016-05-06 出版日期:2016-07-22 发布日期:2016-07-22
  • 通讯作者: 刘爱连,博士,教授,博士生导师,大连医科大学附属第一医院放射科,辽宁省大连市 116011
  • 作者简介:盖立平,女,1970年生,吉林省四平市人,汉族,1995年东北师范大学毕业,硕士,教授,主要从事从事医学影像物理学的教学和研究工作。
  • 基金资助:

    2014年国家自然基金项目一般课题(2015-01/2016-12),课题批准号:81470078

Relationship of correction coefficient and measuring position in spectral CT imaging

Gai Li-ping1, Liu Ai-lian2, Liu Yi-jun2, Sun Mei-yu2, Liu Jing-hong2, Pu Ren-wang2, Sun Min-qin2, Ding Xiao-dong1, Wang Li1

  1. 1Department of Physics, Dalian Medical University, Dalian 116044, Liaoning Province, China; 2Department of Radiology, First Affiliated Hospital, Dalian Medical University, Dalian 116011, Liaoning Province, China
  • Revised:2016-05-06 Online:2016-07-22 Published:2016-07-22
  • Contact: Liu Ai-lian, M.D., Professor, Doctoral supervisor, Department of Radiology, First Affiliated Hospital, Dalian Medical University, Dalian 116011, Liaoning Province, China
  • About author:Gai Li-ping, Master, Professor, Department of Physics, Dalian Medical University, Dalian 116044, Liaoning Province, China
  • Supported by:

    the General Program of National Natural Science Foundation of China in 2014 (2015-01/2016-12), No. 81470078

摘要:

文章快速阅读:



文题释义:
能谱成像扫描序列:不同的扫描参数组合,构成不同的扫描序列,如序列GSI-56(转速0.6 s/r,管电流275 mA,视野Medium,螺距0.984,层厚5 mm。实验采用不同的扫描数据测量水模,共测量数据552组。
测量位置校正:测量数据读取选取大小2个测量区域,ROI1和ROI2。测量位置选取中心点和上下左右4个方向的数据,并都中心点数据进行对比。不同位置测量数据结果有差别,且不同位置影响各不相同,利用非线性统计模型可以得到不同位置的校正函数。

摘要

背景:能谱CT成像研究中,扫描参数的选择是大多数研究者容易考虑的,而针对测量位置对成像的影响往往被忽略。实际测量发现不同的测量位置对测量结果有显著影响。通过大量数据的测量和数学模型可以对测量位置带来的结果差异进行校正,结果与真实数据吻合度较高。

目的:探讨能谱CT成像不同测量位置对测量结果的影响,优化校正系数。

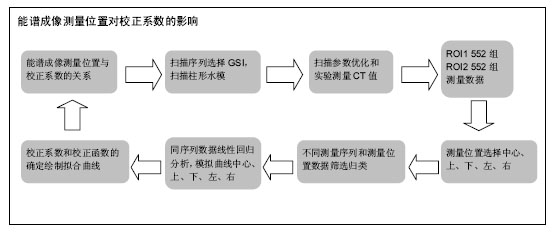

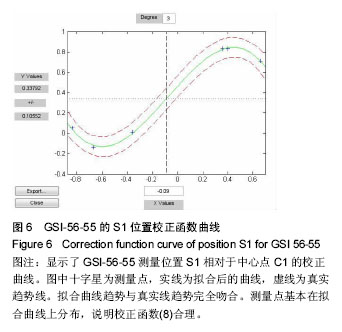

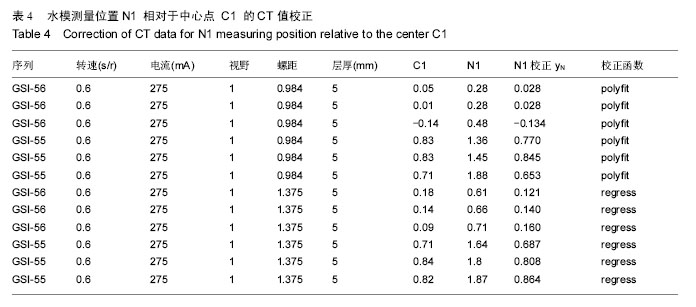

方法:采用GE公司标准水模,5个扫描参数有序组合,测量552组数据。测量方法分为大小两个测量范围,分别为ROI1和ROI2。水模上选取中心、上北、下南、左西、右东10个测量点测量CT值。归类筛选相同测量序列的ROI1和ROI2测量数据。建立数学模型,利用概率统计分析法,校正位置系数,建立校正函数,绘制实验模拟曲线。
结果与结论:①能谱CT水模成像ROI1方法测量好于ROI2方法测量;②不同的扫描序列测量结果不同。相同的扫描序列,不同的测量位置对测量结果有显著影响,且不同位置影响效果不同;③但通过建立数学模型,采用统计分析法可以获得不同位置的校正函数;④结果提示,通过能谱CT扫描参数的理论模型和实验数据结合分析,可以校正位置系数,优化测量结果。

中国组织工程研究杂志出版内容重点:人工关节;骨植入物;脊柱骨折;内固定;数字化骨科;组织工程

ORCID:
0000-0002-1682-2645(盖立平)

关键词: 骨科植入物, 数字化骨科, 能谱成像, 水模, 位置校正系数, 非线性回归分析, 国家自然科学基金

Abstract:

BACKGROUND: In spectral CT imaging study, the selection of scanning parameters is considered by most researchers, but the effects of measuring position are often overlooked. Actual measurement found that different measurement location had significant impact on the result of the measurement. Through measurement and mathematical model of a large amount of data, we can correct the measurement results of different location. The results with real data alignment are higher.

OBJECTIVE: To explore effects of different measuring positions on results in spectral CT imaging, and to optimize correction coefficients.
METHODS: GE standard water phantom was applied to orderly obtain 5 combined scanning parameters with 552 groups of data. Size measurement method was divided into two measuring range: ROI1 and ROI2. We selected 10 points to measure CT value, including Center, North, South, West and East. The measurement data of ROI1 and ROI2 were classified and screened based on the same sequence. Mathematical modeling and probability statistics analysis were used to optimize correction coefficient, get calibration function and draw experimental simulation curve.
RESULTS AND CONCLUSION: (1) Measuring methods of ROI1 were superior to the ROI2’s on water phantom in spectrum CT. (2) To different scanning sequences, the measuring results were different. To the same scanning sequences, the measurements for different positions on water phantom in spectrum CT had remarkable influence on the measuring results, which varied from points to points. (3) Through setting up mathematical modeling, using method of statistical analysis, we could get the correction function on different measuring positions. (4) Above results confirmed that compared with the theoretical model and the experimental data of spectral CT scanning parameters, the coefficients of position can be adjusted, which can optimize the measuring results.

中国组织工程研究杂志出版内容重点:人工关节;骨植入物;脊柱骨折;内固定;数字化骨科;组织工程

Key words: Regression Analysis, Tissue Engineering
