不同尺寸及材料NiTi丝在不同矫治技术下的摩擦力对比

马啸宙1，李洪发1，赵艳红1，武 杰1，张明灿2，赵 伟1

  1. 1天津医科大学口腔医院正畸科，天津市 300070；2天津市滨海新区塘沽口腔医院，天津市 300450
  • 收稿日期:2018-05-31 出版日期:2018-08-08 发布日期:2018-08-08
  • 通讯作者: 李洪发，主任医师，天津医科大学口腔医院正畸科，天津市 300070
  • 作者简介:马啸宙，女，1995年生，宁夏回族自治区中卫市人，回族，在读硕士，主要从事正畸三维数字化和正畸生物力学研究。
  • 基金资助:

    天津市滨海新区卫生局科技项目资助(2013Bwky023)；天津医科大学口腔医院科研基金(2014YKYQ02)

Frictional force of different ligations with NiTi archwires of different sizes

Ma Xiao-zhou1, Li Hong-fa1, Zhao Yan-hong1, Wu Jie1, Zhang Ming-can2, Zhao Wei1

  1. 1Department of Orthodontics, Stomatological Hospital of Tianjin Medical University, Tianjin 300070, China; 2Stomatological Hospital of Tanggu, Tianjin 300450, China
  • Received:2018-05-31 Online:2018-08-08 Published:2018-08-08
  • Contact: Li Hong-fa, Chief physician, Department of Orthodontics, Stomatological Hospital of Tianjin Medical University, Tianjin 300070, China
  • About author:Ma Xiao-zhou, Master candidate, Department of Orthodontics, Stomatological Hospital of Tianjin Medical University, Tianjin 300070, China
  • Supported by:

    the Scientific Support Project of the Health Department of Binhai New Area of Tianjin, No. 2013Bwky023; the Scientific Research Foundation of the Stomatological Hospital of Tianjin Medical University, No. 2014YKYQ02

PDF

395

摘要：

文章快速阅读：


文题释义：
低摩擦矫正技术：自锁托槽因能降低摩擦力可称为低摩擦矫正技术，在传统托槽中应用松结扎可通过降低结扎丝对弓丝的正压力和弓丝与托槽、结扎丝的接触面积而降低摩擦力，相对于传统托槽矫正技术来说，松结扎也应包括在低摩擦矫正技术中。

3D模型：可分为3D数字化模型和3D打印模型，数字化模型是通过扫描仪器间接扫描石膏模型然后转化为数据信息，再通过软件生成立体的三维图像，此类数字化模型可运用计算机进行测量、分析和对比等，具有更好的实操性。3D打印模型是以3D数字化模型为基础由3D打印仪器得到，与石膏模型相比变形性小，不会因灌模、翻模的过程增加组间的微量误差，可重复性强，较石膏模型的存储性能高。



背景：临床正畸治疗已证明，将传统结扎转变为松结扎可缩短牙齿初期排齐时间，但有关不同NiTi弓丝配合松结扎技术与自锁托槽、传统结扎技术摩擦力差异的报道较少。
目的：对比不同NiTi弓丝、不同入槽方式、不同种类托槽的滑动摩擦力，探讨不同矫治技术摩擦阻力的特点。

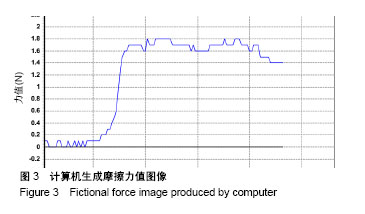

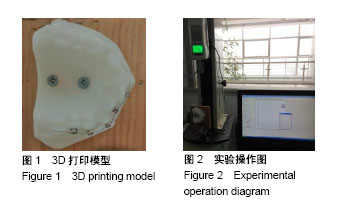

方法：随机选择1例牙列中度拥挤病例石膏模型并做十字标记进行托槽定位，通过三维扫描及三维打印技术制作出完全相同的牙列模型，分别将不同托槽粘接在十字定位标记上，托槽有陶瓷自锁托槽(Damon Clear、Habit)，金属自锁托槽(Damon 3MX、AO)、3M传统MBT直丝金属托槽和Habit传统四翼单晶体陶瓷托槽，每种托槽分别配以0.012英寸超弹NiTi丝(A)、0.014英寸超弹NiTi丝(B)、0.014英寸热激活NiTi丝(C)和0.014英寸Cu-NiTi丝(D)，其中3M传统托槽、Habit传统托槽分别配合弓丝紧结扎和松结扎，使用微机伺服测力仪检测弓丝-托槽间的滑动摩擦力。
结果与结论：①在3M传统托槽配合弓丝松结扎技术中，不同NiTi弓丝间的滑动摩擦力：A<C<B<D(P < 0.01)；在Habit传统托槽配合弓丝松结扎技术中，不同NiTi弓丝间的滑动摩擦力：C<A<B<D(P < 0.01)；②当使用A(或B)弓丝时，3M传统托槽-松结扎组的滑动摩擦力高于3MX自锁托槽组、AO自锁托槽组(P < 0.01)，低于3M传统托槽-传统结扎组(P < 0.01)；当使用C(或D)弓丝时，3M传统托槽-松结扎组的滑动摩擦力高于AO自锁托槽组(P < 0.01)，低于3M传统托槽-传统结扎组(P < 0.01)；③使用任一弓丝时，Habit传统托槽-松结扎组的滑动摩擦力高于Damon Clear自锁托槽组、Habit自锁托槽组(P < 0.01)，低于Habit传统托槽-传统结扎组(P < 0.01)；④结果表明松结扎技术可降低临床正畸治疗中普通托槽传统结扎的摩擦力，但与自锁托槽相比仍偏高，应配以小尺寸、低摩擦性能较高的弓丝。



ORCID: 0000-0001-5510-5086(马啸宙)

关键词: 镍钛弓丝, 松结扎, 自锁, 传统结扎, 摩擦力, 生物材料

Abstract:

BACKGROUND: Clinical evidence has proved that loose ligation can shorten the initial alignment time of the tooth compared with traditional ligation, but little is reported on the difference among loose ligation with NiTi archwires, self-ligation and traditional ligation.

OBJECTIVE: To explore the frictional force of different orthodontic technologies by comparing the sliding frictional force of different ligations, brackets, and NiTi wires.
METHODS: A plaster model with moderately crowded teeth was randomly and the bonding bracket was labeled using a cross mark. A corresponding dentition model was then copied by three-dimensional scanning and three-dimensional printing techniques. Different brackets, ceramic self-ligating brackets (Damon Clear, Habit), metal self-ligating brackets (Damon 3MX, AO), metal conventional bracket (3M) and ceramic conventional bracket (Habit) were bonded to the cross mark of the model. For each bracket, there were TiNi wires with four sizes, 0.012 (A) and 0.014 inch (B) hyperelastic NiTi, 0.014 inch thermally activated NiTi (C), and 0.014 inch Cu-NiTi (D). Tight and loose ligations were performed using two conventional brackets, and the sliding frictional force between the wire and the bracket was detected using a microcomputer servo dynamometer.

RESULTS AND CONCLUSION: (1) For the loose ligation using the 3M conventional bracket, the sliding frictional force of different NiTi was ranked as A < C < B < D (P < 0.01); for the loose ligation using the Habit conventional bracket, the sliding frictional force of different NiTi was ranked as C < A < B < D (P < 0.01). (2) When using wire A or B, the sliding frictional force of 3M conventional bracket with loose ligation was higher than that of 3M self-ligating bracket and AO self-ligating bracket (P < 0.01) and was lower than that of 3M convention bracket with tight ligation (P < 0.01). When using wire C or D, the sliding frictional force of 3M conventional bracket with loose ligation was higher than that of AO self-ligating bracket (P < 0.01), but lower than that of 3M conventional bracket with tight ligation (P < 0.01). (3) When using any wire, the sliding frictional force of Habit conventional bracket with loose ligation was higher than that of Damon Clear self-ligating bracket and Habit self-ligating bracket (P < 0.01), and lower than that of Habit conventional bracket with tight ligation (P < 0.01). These experimental results reveal that loose ligation can reduce the frictional force of conventional brackets compared to traditional ligation, but it is still inferior to self-ligating brackets. Therefore, small-size and low-friction wires are recommended to further reduce the frictional force.

Key words: Orthodontics, Corrective, Orthodontic Wires, Friction, Tissue Engineering
