中国组织工程研究 ›› 2025, Vol. 29 ›› Issue (21): 4445-4451.doi: 10.12307/2025.148

• 骨与关节生物力学Bone and joint biomechanics • 上一篇    下一篇

峡部裂腰椎滑脱患者椎旁肌对脊柱-骨盆矢状面的影响:肌肉数量和质量的评估

宋汉林,胡天宇,高浩然,史耀洲,高  啸,冯  虎

  1. 徐州医科大学附属医院,江苏省徐州市   221000
  • 收稿日期:2024-01-16 接受日期:2024-02-29 出版日期:2025-07-28 发布日期:2024-12-05
  • 通讯作者: 冯虎,教授,硕士生导师,徐州医科大学附属医院,江苏省徐州市 221000
  • 作者简介:宋汉林,男,1997年生,江苏省邳州市人,汉族,徐州医科大学毕业,硕士,医师,主要从事骨科学方面的研究。
  • 基金资助:
    徐州市科技项目(XZSYSKF2023004),项目负责人:高啸

Influence of paravertebral muscles on spinopelvic sagittal plane in patients with isthmic spondylolisthesis: an evaluation of muscle quantity and quality

Song Hanlin, Hu Tianyu, Gao Haoran, Shi Yaozhou, Gao Xiao, Feng Hu

  1. Affiliated Hospital of Xuzhou Medical University, Xuzhou 221000, Jiangsu Province, China
  • Received:2024-01-16 Accepted:2024-02-29 Online:2025-07-28 Published:2024-12-05
  • Contact: Feng Hu, Professor, Master’s supervisor, Affiliated Hospital of Xuzhou Medical University, Xuzhou 221000, Jiangsu Province, China
  • About author:Song Hanlin, Master, Physician, Affiliated Hospital of Xuzhou Medical University, Xuzhou 221000, Jiangsu Province, China
  • Supported by:
    Xuzhou Science and Technology Project, No. XZSYSKF2023004 (to GX)

摘要:

文题释义:

矢状面平衡:是一种个体能够以最小的肌肉努力保持稳定的站立姿势的情况,由于椎旁肌在维持脊柱稳定性方面起着重要作用,因此椎旁肌的萎缩可能会影响脊柱的矢状面平衡。
腰椎压痕值:将左右腰椎旁肌沟作为评价椎旁肌退变的一个简单指标,该指标受到椎旁肌功能和腰椎前凸维持的影响很大,容易测量凹槽的深度。为了量化椎旁肌之间沟的深度,腰椎压痕值被定义为肌肉隆起到棘突附着处的长度。

摘要
背景:横截面积和脂肪浸润为量化椎旁肌的标准参数,但是太过繁琐和费时,需要引入新的量化指标。
目的:探讨峡部裂性腰椎滑脱患者椎旁肌和脊柱-骨盆矢状面参数测量值之间的关系,以及腰椎压痕值对矢状面平衡的预测价值。

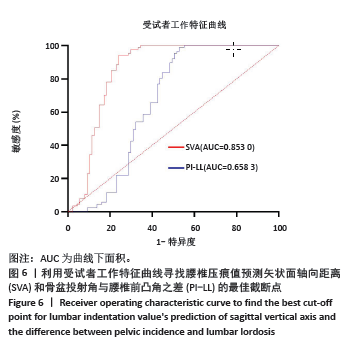

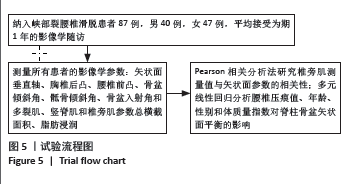

方法:选择诊断为峡部裂性腰椎滑脱的患者87例,均为Meyerding分型Ⅱ度滑脱,男40例,女47例,平均年龄(51.4±9.1)岁。测量患者脊柱-骨盆矢状面参数矢状面轴向距离、骨盆入射角、骨盆倾斜角、骶骨倾斜角、腰椎前凸角、胸椎后凸角、骨盆投射角与腰椎前凸角之差,以及腰椎旁肌的总横截面积、功能横截面积和脂肪浸润。使用Pearson相关分析法探讨矢状面参数与椎旁肌测量值的相关性;使用多元线性回归分析腰椎压痕值、年龄、性别和体质量指数对脊柱骨盆矢状面平衡的影响。通过受试者工作特征曲线寻找腰椎压痕值的最佳截断点,评价矢状面轴向距离和骨盆投射角与腰椎前凸角之差的关系。

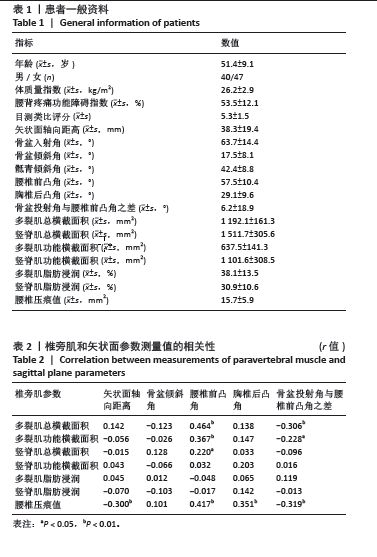

结果与结论:①根据Pearson相关分析结果,多裂肌总横截面积与腰椎前凸角(r=0.464,P < 0.01)和骨盆投射角与腰椎前凸角之差(r=

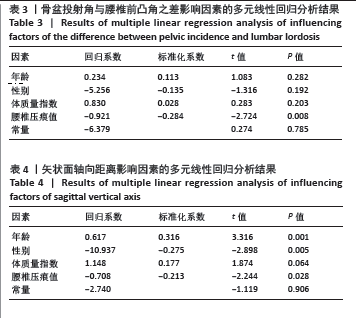

-0.306,P < 0.01)显著相关;多裂肌功能横截面积与腰椎前凸角(r=0.367,P < 0.01)和骨盆投射角与腰椎前凸角之差(r=-0.228,P < 0.05)存在显著相关性;腰椎压痕值与矢状面轴向距离(r=-0.300,P < 0.01)、腰椎前凸角(r=0.417,P < 0.01)、胸椎后凸角(r=0.351,P < 0.01)和骨盆投射角与腰椎前凸角之差(r=-0.319,P < 0.01)有显著相关性;②根据多元线性回归分析结果,腰椎压痕值和骨盆投射角与腰椎前凸角之差以及矢状面轴向距离独立相关;腰椎压痕值≤11.5 mm的患者矢状面轴向距离≤50 mm发生率为55%(11/20),而腰椎压痕值> 11.5 mm的患者矢状面轴向距离≤50 mm发生率为96%(64/67);骨盆投射角与腰椎前凸角之差≤11.5 mm的患者骨盆投射角与腰椎前凸角之差≤10°的发生率为30%(6/20),而腰椎压痕值> 11.5 mm的患者骨盆投射角与腰椎前凸角之差≤10°的发生率为66%(44/67);③提示多裂肌总横截面积和功能横截面积均与腰椎前凸角和骨盆投射角与腰椎前凸角之差显著相关;腰椎压痕值作为评价椎旁肌退变的新指标,与矢状面轴向距离和骨盆投射角与腰椎前凸角之差独立相关,对术后矢状面矫正有一定的预测价值,是一种简单实用的评估脊柱-骨盆矢状面和椎旁肌退变的方法;椎旁肌的退变与脊柱-骨盆矢状面平衡有关。

中国组织工程研究杂志出版内容重点:人工关节;骨植入物;脊柱骨折;内固定;数字化骨科;组织工程

关键词: 峡部裂性腰椎滑脱, 横截面积, 腰椎压痕值, 脊柱-骨盆矢状面参数, 椎旁肌, 脂肪浸润

Abstract: BACKGROUND: Cross-sectional area and fat infiltration are the standard parameters for quantifying paravertebral muscle, but it is too cumbersome and time-consuming to introduce new quantifying indicators.
OBJECTIVE: To investigate the relationship between paravertebral muscle and spinopelvic sagittal parameters and the predictive value of lumbar indentation value for sagittal balance in patients with isthmic spondylolisthesis.
METHODS: The study included 87 patients diagnosed with spondylolisthesis, all of whom had grade II spondylolisthesis according to Meyerding classification, including 40 males and 47 females, with a mean age of (51.4±9.1) years. The sagittal vertical axis, pelvic incidence angle, pelvic inclination angle, sacral inclination angle, lumbar lordosis, thoracic kyphosis, and the difference between pelvic incidence and lumbar lordosis were measured. The total cross-sectional area, functional cross-sectional area, and fat infiltration of lumbar paracolateral muscles were measured. Pearson correlation analysis was used to investigate the correlation between sagittal parameters and paravertebral muscle measurements. Multiple linear regression was used to analyze the effects of lumbar indentation value, age, sex, and body mass index on spinopelvic sagittal balance. The receiver operating characteristic curve was used to find the best cut-off point of the indentation value of the lumbar spine, and the relationship of sagittal vertical axis and pelvic incidence with lumbar lordosis was evaluated.
RESULTS AND CONCLUSION: (1) According to Pearson correlation analysis, the total cross-sectional area of the multifidus muscle was significantly correlated with lumbar lordosis (r=0.464, P < 0.01) and the difference between pelvic incidence and lumbar lordosis (r=-0.306, P < 0.01). The functional cross-sectional area of multifidus muscle was significantly correlated with lumbar lordosis (r=0.367, P < 0.01) and the difference between pelvic incidence and lumbar lordosis (r=-0.228, P < 0.05). The indentation value of lumbar spine was significantly correlated with the sagittal vertical axis (r=-0.300, P < 0.01), lumbar lordosis (P=0.417, P < 0.01), thoracic kyphosis (r=0.351, P < 0.01), and the difference between pelvic incidence and lumbar lordosis (r=-0.319, P < 0.01). (2) According to multiple linear regression analysis, the indentation value of lumbar spine was independently correlated with the difference between pelvic incidence and lumbar lordosis and the sagittal vertical axis. 55% (11/20) of patients with lumbar indentation value ≤11.5 mm had sagittal vertical axis ≤ 50 mm, while 96% (64/67) of patients with lumbar indentation value > 11.5 mm had sagittal vertical axis ≤ 50 mm. 30% (6/20) of patients with the difference between pelvic incidence and lumbar lordosis ≤ 11.5 mm had the difference between pelvic incidence and lumbar lordosis ≤ 10°, while 66% (44/67) of patients with lumbar indentation value > 11.5 mm had the difference between pelvic incidence and lumbar lordosis ≤ 10°. (3) It is concluded that both total cross-sectional area and functional cross-sectional area were significantly correlated with lumbar lordosis and the difference between pelvic incidence and lumbar lordosis. Lumbar indentation value, as a new indicator for the evaluation of paravertebral degeneration, was independently correlated with the sagittal vertical axis and the difference between pelvic incidence and lumbar lordosis, and had certain predictive value for postoperative sagittal plane correction. It was a simple and practical method for the evaluation of spinopelvic sagittal plane and paravertebral muscle degeneration. The degeneration of the paravertebral muscle is related to spinopelvic sagittal balance.

中国组织工程研究杂志出版内容重点:人工关节;骨植入物;脊柱骨折;内固定;数字化骨科;组织工程

Key words: isthmic spondylolisthesis, cross-sectional area, lumbar indentation value, spinopelvic sagittal parameter, paravertebral muscle, fat infiltration

中图分类号:
