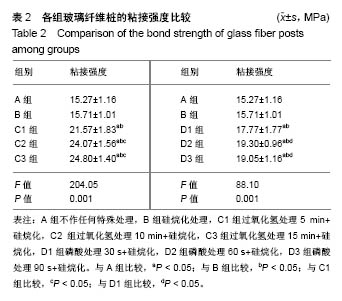

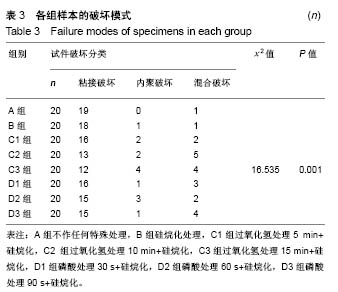

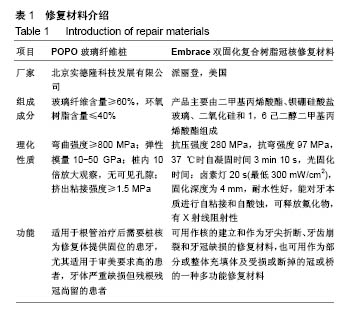

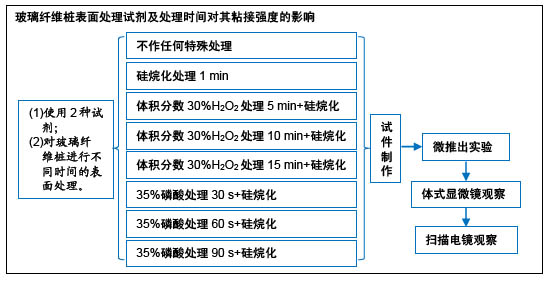

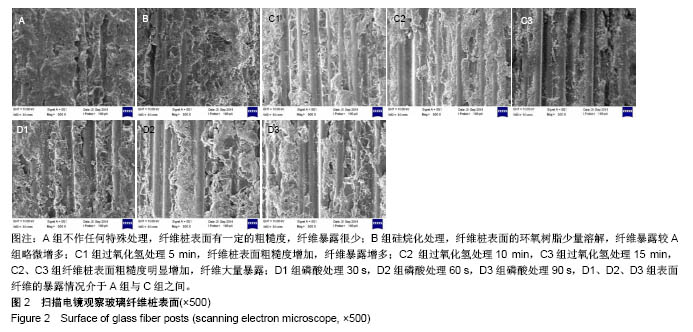

[1]Shafiei F,Saadat M,Jowkar Z.Effect of laser heat treatment on Pull-out bond strength of fiber posts treated with different silanes.J Clin Exp Dent.2018;10(5):e413-e418.[2]Lamichhane A,Xu C,Zhang FQ.Dental fiber-post resin base material: a review.J Adv Prosthodont. 2014;6(1):60-65.[3]申林,汪婷婷,于淑玲,等.玻璃纤维桩经不同表面处理修复牙体缺损的临床效果[J].中国组织工程研究, 2018,22(22): 3485-3490.[4]Savychuk A,Manda M,Galanis C,et al.Stress generation in mandibular anterior teeth restored with different types of post-and-core at various levels of ferrule. J Prosthet Dent. 2018; 119(6): 965-974.[5]Par M,Tarle Z,Hickel R,et al.Dentin bond strength of experimental composites containing bioactive glass: changes during aging for up to 1 year.J Adhes Dent. 2018;20(4): 325-334.[6]Belwalkar VR,Gade J,Mankar NP.Comparison of the effect of shear bond strength with silane and other three chemical presurface treatments of a glass fiber- reinforced post on adhesion with a resin- based luting agent:An in vitro study.Contemp Clin Dent.2016;7(2):193-197.[7]郑虎,郭建青,张献芳.不同表面处理方法对纤维桩与树脂黏结强度的影响[J].上海口腔医学,2014,23(6):689-694. [8]王静,王建鸿,郭菁,等.不同浓度H_2O_2的桩表面处理对玻璃纤维桩与树脂水门汀黏结强度的影响[J].上海口腔医学, 2013, 22(5):508-513.[9]盛敏,石宁.不同化学溶剂的桩表面处理对玻璃纤维桩与树脂水门汀粘接强度的影响[J].临床口腔医学杂志, 2017,33(12): 711-714.[10]Garcia PP,da Costa RG,Garcia AV,et al.Effect of surface treatments on the bond strength of CAD/CAM fiberglass posts.J Clin Exp Dent.2018;10(6):e591-e597.[11]Khoroushi M,Mazaheri H,Tarighi P,et al.Effect of antioxidants onpush- out bond strength of hydrogen peroxide treated glass fiber posts bonded with two types of resin cement.Restor Dent Endod.2014;39(4):303-309.[12]Reza F,Ibrahim NS. Effect of ultraviolet light irradiation on bond strength of fiber post: Evaluation of surface characteristic and bonded area of fiber post with resin cement.Eur J Dent. 2015’9(1):74-79.[13]Aksornmuang J,Nakajima M,Foxton RM,et al.Regional bond strengths of a dual-cure resin core material to translucent quartz fiber post.Am J Dent.2006;19(1):51-55.[14]Shirinzad M,Ebadi SH,Shokripour M,et al.An In vitro Evaluation of the Effect of Four Dentin Bonding System on the Bond Strength between Quartz Fiber Post and Composite Core.J Dent (Shiraz).2014;15(1): 22-27. [15]Wrbas KT,Altenburger MJ,Schirrmeister JF,et al. Effect of adhesive resin cements and post surface silanization on the bond strengths of adhesively inserted fiber posts. J Endod. 2007;33(7):840-843.[16]Liu C,Liu H,Qian YT,et al.The influence of four dual-cure resin cements and surface treatment selection to bond strength of fiber post.Int J Oral Sci.2014;6(1):56-60.[17]Machado FW,Bossardi M,Ramos Tdos S,et al.Application of resin adhesive on the surface of a silanized glass fiber-reinforced post and its effect on the retention to root dentin.J Endod.2015;41(1): 106-110.[18]Sahafi A,Peutzfeldt A,Asmussen E,et al. Bond strength of resin cement to dentin and to surface-treated posts of titanium alloy, glass fiber, and zirconia.J Adhes Dent. 2003;5(2): 153-162.[19]Vano M,Goracci C,Monticelli F,et al.The adhesion between fibre posts and composite resin cores: The evaluation of microtensile bond strength following various surface chemical treatments to posts. Int Endod J.2006;39(1):31-39.[20]Cecchin D,Farina AP,Vitti RP,et al.Acid Etching and Surface Coating of Glass-Fiber Posts: Bond Strength and Interface Analysis.Braz Dent J.2016;27(2):228-233. [21]Braga NM, Souza-Gabriel AE, Messias DC, et al.Flexural properties, morphology and bond strength of fiber-reinforced posts: influence of post pretreatment.Braz Dent J. 2012;23(6): 679-685.[22]de Sousa Menezes M,Queiroz EC,Soares PV,et al.Fiber post etching with hydrogen peroxide: effect of concentration and application time.J Endod.2011;37(3):398-402.[23]陈兰竹,谢伟丽,孙亚杰,等.H2O2溶液表面处理对纤维桩和树脂水门汀粘接强度的影响[J].口腔医学,2015,35(12):1032-1035. |
