Bone mass change and aesthetic outcomes in the upper anterior tooth area after immediate-delayed implantation

doi:10.3969/j.issn.2095-4344.2015.29.016

Abstract

Abstract:

BACKGROUND: A large amount of apicocoronal and buccolingual bone resorption occur in alveolar bone after tooth extraction, leading to the distinct shortage of bone mass of alveolar bone in tooth-missing area, which has a certain effect on the stability of early implantatiion and postoperative aesthetic outcomes and greatly affects the long-term success rate of denture implantation. Therefore, immediate-delayed implantation can shorten the time of repair.
OBJECTIVE: To evaluate the effect of implant repair after immediate-delayed implantation and application of guided bone regeneration technique in anterior maxilla area.
METHODS: Nineteen patients (28 teeth lost) with maxillary anterior tooth loss and labial one-walled bone defects were selected. Twenty-eight OSSTEM implants were implanted at 4 weeks after tooth extraction. Guided bone regeneration technique was applied concurrently in labial bone defect area. The secondary repair was performed after 6 months.

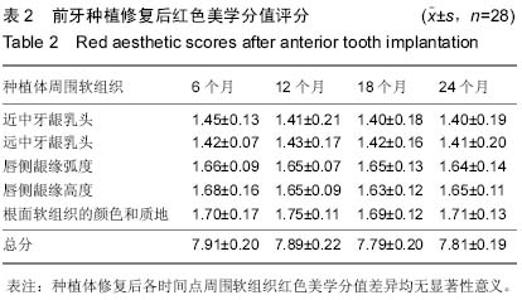

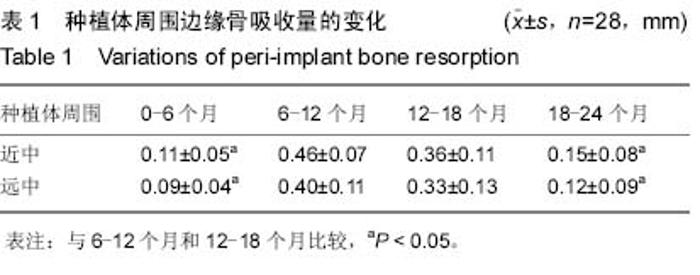

RESULTS AND CONCLUSION: The success rate of these 28 implants was 100% at 24 months after denture implantation. The peri-implant bone height loss at 6, 12 and 24 months was 0.1, 0.6 and 0.11 mm, respectively. Red aesthetic scores were satisfactory. Immediate-delayed implantation combined with application of guided bone regeneration technique for treatment of maxillary anterior tooth loss and mild bone defect can restore the height and width of peri-implant bone and acquire stable vertical bone resorption and satisfactory gingival aesthetic outcomes .

中国组织工程研究杂志出版内容重点：组织构建；骨细胞；软骨细胞；细胞培养；成纤维细胞；血管内皮细胞；骨质疏松；组织工程

Key words: Dental Implants, Bone Regeneration, Esthetics, Dentistry

CLC Number:

R318

Zhang Ning, Yao Xi, Du Wen-hua, Li Hong-mei, Li Yun-sheng. Bone mass change and aesthetic outcomes in the upper anterior tooth area after immediate-delayed implantation[J]. Chinese Journal of Tissue Engineering Research, 2015, 19(29): 4672-4676.

Figures/Tables 2

References

[1] 邓春富,赵宝红,张翀.上颌前牙缺失常规种植修复的临床美学评价[J].中国实用口腔科杂志,2008,1(2):83-85.

[2] Nir-Hadar O, Palmer M, Soskolne WA. Delayed im- mediate implant: alveolar bone changes during the healing period. Clin Oral Implants Res.1998;9(1):26-33. ?

[3] Nemcovsky CE, Artzi Z, Moses O, et al. Healing of ?marginal defects at implants placed in fresh extrac- tion sockets or after 4-6 weeks of healing. A com-parativestudy. Chin Oral Implant Res.2002;13(4):410-419.

[4] Albrektsson T, Zard G, Worthington P, et al. The long-term efficacy of currently us ed dental implants:a review and proposed criteria of success.Int J Oral Maxillofac Implants. 1986;1(1):11-25.

[5] Belser UC,Gruter L,Vailati F,et al.Outcome evaluation of early placed maxilary anterior single-tooth implants using objective esthetic criteria:a cros sectional retrospective study in 45patients with a 2to 4year folow up using pink and white esthetic scores.J Periodontol.2009;80(1):140-151.

[6] Urban IA, Jovanovic SA, Lozada JL. Vertical ridge augmentation using guided bone regeneration (GBR) in three clinical scenarios prior to implant placement: a retrospective study of 35 patients 12 to 72 months after loading.Int J Oral Maxillofac Implants.2009;24(3): 502-510.

[7] Chiapasco M,Zaniboni M.Clinical outcomes of GBR procedures to correct peri-implant dehiscences and fenestrations: a systematic review. Clin Oral Implants Res. 2009;20 Suppl 4:113-23.

[8] Iasella JM,Greenwell H,Miller RL,et al.Ridge preservation with freeze-dried bone allograft and a collagen membrane compared to extraction alone for implant site development:a clinical and histologic study in humans.JPeriodontol. 2003; 74(7):990-999?.

[9] Cordioli G, Majzoub Z, Riachi F. Postloading behavior of regenerated tissues in GBR-treated implant sites.Int J Periodontics Restorative Dent.1999;19(1):44-55.

[10] Fugazzotto PA. Immediate implant placement and GBR in humans: a case report and histologic evaluation.Int J Periodontics Restorative Dent.1999;19(5):457-463.

[11] Ueda M,Yamada Y,Kagami H,et al. Injectable bone applied for- ridge augmentation and dental implant placement: human progress study[J]. Implant Dent,2008,17(1):82-90.

[12] 李卫国,吴新中,赖英荣,等.新型溶胶-凝胶生物活性玻璃联合钛膜修复即刻种植体周骨缺损[J].中山大学学报:医学科学版, 2009,30(1):113-116.

[13] Jang ES,Park JW,Kweon H,et al. Restoration of periimplant de- fects in immediate implant installationsby Choukroun platelet-rich fi- brin and silk fibroin powder combination graft. Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 2010; 109(6):831-836.

[14] 王慧明.骨增量技术在牙槽骨严重缺损再造复合种植修复中的应用[J].中国口腔种植学杂志,2013,18(2):62.

[15] 康非吾,卢军,潘可风.种植区骨皮质厚度对种植体骨界面应力分布的影响[J].同济大学学报:医学版,2006, 27(1):31-33.?

[16] Sjostrom M,Lundgren S,Nilson H,et al. Monitoring of implant sta-bility in grafted bone using resonance frequency analysis. A clinical study from implant placement to 6 months of loading. Int J Oral Maxillofac Surg.2005;34(1):45-51.

[17] Oh TJ,Shotwell J,Billy E,et al. Flapless implant surgery in the es-theticregion: advantages and precautions. Int J Periodontics Re-storative Dent.2007;27(1):27-33.

[18] Choquet V, Hermans M, Adriaenssens P, et al. Clinical and radiographic eva-luation of the papilla level adjacent to single-tooth dental implants.A retrosp- ective study the maxillary anterior region. JPerioontol.2001;72 (10):1364 -1371.

[19] Boyne PJ,James PA.Grafting of the maxillary sinus floor with autogenous marrow and bone. Oral Surg. 1980;38(3): 613-616.

[20] Danan M,Degrange M,Vaideanu T,et al.Immediate replace-

ment of a maxilary central incisor asociated with severe facial bone lose:use of Bio-Oss? Colagen-case report. Int J Periodont Restor Dent.2003；23(5):491-497.

[21] Park JB.Increasing the width of keratinized mucosa around endoseous implant using acelular dermal matrix alograft. Implant Dent.2006;15:275-281.

[22] Grifin TJ,Cheung WS,Hirayama H.Hard and soft tisue augmentation in implant therapy using acelular dermal matrix.Int J Periodont Restore Dent.2004,24(4):352-361.

[23] 宿玉成.种植外科中的软组织处理及其美学效果[J].中华口腔医学杂志,2006,41(3):148-150.

[24] Akimoto K, Becker W, Persson R, et al. Evaluation of titanium implants placed into simulated extraction sockets: a study in dogs. Int J Oral Maxillofac Implants.1999;14(3):351-360.

[25] Smukler H,Casteluci F,Capri D.The role of the implant housing in obtaining aesthetics:generation of peri-implant gingivae and papilae-part 1.Pract Proced Aesthet Dent. 2003；15(2):141-149.

[26] Philips K,Kois JC.Aesthetic perimplant site development. There storative connection.Dent Clin North Am.1998;42 (1):57-70.

[27] Block MS,Kent JN. Placement of endosseous implants into tooth extractionsites. J Oral Maxillofac Surg.1991;49(12): 1269- 1276 .

[28] Bornstein MM,Al Nawas B,Kuchler U,et al. Consensus state- ments and recommended clinical procedures regarding contemporary surgical and radiographic techniques in implant dentistry. Int J Oral Maxillofac Implants.2014;29(Suppl): 78-82.

[29] Kois J.Altering gingival levels:the restorative connection. Part I:biologic variables.Esthet Dent.1994;6(1):3-9.

[30] Jemt T, Ahlberg G, Henriksson K, et al. Changes of anterior clinical crown height in patients provided with single-implant restorations after more than 15 years of follow-up. Int J Prosthodont. 2006; 19(5):455-61.

[31] 黄倩,梁星,黄兰,等.种植义齿修复牙列缺损的牙龈美学效果评价. [J]华西口腔医学杂志,2004,22(4):295-297.

[32] Chang M, Wennstrom JL, Odman P,et al. Implant supported single tooth replacements compared to contralateral natural teeth. Crown and soft tissue dimensions.Clin Oral Implant Res.1999;10(3):185-194.
