Adipose-derived stem cells integrated with concentrated growth factors prevent bisphosphonate-related osteonecrosis of the jaws in SD rats

doi:10.3969/j.issn.2095-4344.3529

Abstract

Abstract:

BACKGROUND: Bisphosphonate-related osteonecrosis of jaw may involve invasive dental surgery, infection, jaw injury, immunosuppressive agents and chemotherapeutic drugs, and its potential mechanism and treatment are not clear. Prevention is the main clinical proposition.
OBJECTIVE: To explore the preventive effect of concentrated growth factors integrated with adipose-derived stem cells on bisphosphonate-related osteonecrosis of jaw.

METHODS: Forty Sprague-Dawley rats were randomly assigned to four groups: control group, zoledronic acid group, concentrated growth factor group, and adipose-derived stem cells combined with concentrated growth factor group (n=10 per group). Except the control group, rats in the other three groups were injected with zoledronic acid (80 μg/kg) through the tail vein once a week for 12 consecutive weeks to establish a bisphosphonate-related osteonecrosis of jaw model. Rats in the control group were injected with 0.1 mL of saline through the tail vein. The right mandibular first molar was extracted at the 8th week. In the concentrated growth factor group, 0.5 cm × 0.5 cm concentrated growth factors were implanted immediately after tooth extraction. In the adipose-derived stem cells combined with concentrated growth factor group, 0.5 cm × 0.5 cm concentrated growth factor/adipose-derived stem cell complex was implanted into the extraction socket immediately after tooth extraction. The control group and zoledronic acid group were not treated after tooth extraction. The rats were killed 8 weeks after extraction. The gingival regeneration and bone tissue regeneration around the extraction wound were detected by observation of tooth extraction wound, Micro-CT and hematoxylin-eosin staining.
RESULTS AND CONCLUSION: Compared with other three groups, concentrated growth factor/adipose-derived stem cell complex significantly promoted the healing of soft tissue and new bone formation around tooth extraction, reduced the dead bone formation, and effectively prevented the occurrence of bisphosphonate-related osteonecrosis of jaw.

Key words: stem cells, adipose derived stem cells, bisphosphonates, jaw bone, osteonecrosis, concentrated growth factor, bone regeneration, rats

CLC Number:

Zhang Shengmin, Cao Changhong, Liu Chao. Adipose-derived stem cells integrated with concentrated growth factors prevent bisphosphonate-related osteonecrosis of the jaws in SD rats[J]. Chinese Journal of Tissue Engineering Research, 2021, 25(19): 2982-2987.

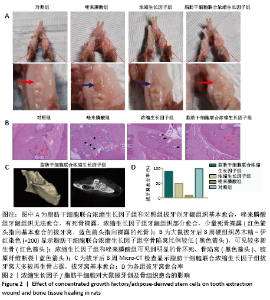

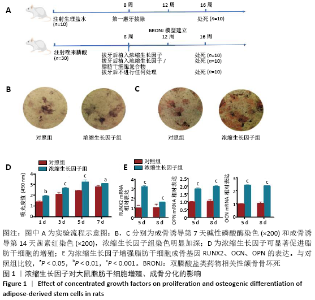

Figures/Tables 2

References

[1] ADVISORY TASK FORCE ON BISPHOSPHONATE-RELATED OSTENONECROSIS OF THE JAWS, AMERICAN ASSOCIATION OF ORAL AND MAXILLOFACIAL SURGEONS. American Association of Oral and Maxillofacial Surgeons position paper on bisphosphonate-related osteonecrosis of the jaws. J Oral Maxillofac Surg. 2007;65(3):369-376.
[2] MAVROKOKKI T, CHENG A, STEIN B, et al. Nature and frequency of bisphosphonate-associated osteonecrosis of the jaws in Australia. J Oral Maxillofac Surg. 2007;65(3):415-423.
[3] SAKAGUCHI O, KOKURYO S, TSURUSHIMA H, et al. Lipopolysaccharide aggravates bisphosphonate-induced osteonecrosis in rats. Int J Oral Maxillofac Surg. 2015;44(4):528-534.
[4] MARX RE, SAWATARI Y, FORTIN M, et al. Bisphosphonate-induced exposed bone (osteonecrosis/osteopetrosis) of the jaws: risk factors, recognition, prevention, and treatment. J Oral Maxillofac Surg. 2005; 63(11):1567-1575.
[5] FLIEFEL R, TRÖLTZSCH M, KÜHNISCH J, et al. Treatment strategies and outcomes of bisphosphonate-related osteonecrosis of the jaw (BRONJ) with characterization of patients: a systematic review. Int J Oral Maxillofac Surg. 2015;44(5):568-585.
[6] MATSUMOTO A, SASAKI M, SCHMELZEISEN R, et al. Primary wound closure after tooth extraction for prevention of medication-related osteonecrosis of the jaw in patients under denosumab. Clin Oral Investig. 2017;21(1):127-134.
[7] RISTOW O, RÜCKSCHLOß T, BODEM J, et al. Double-layer closure techniques after bone surgery of medication-related osteonecrosis of the jaw - A single center cohort study. J Craniomaxillofac Surg. 2018;46(5):815-824.
[8] NONNENMÜHLEN N, BURNIC A, BARTELLA A, et al. Comparison of mucosal and mucoperiosteal wound cover for the treatment of medication-related osteonecrosis of the jaw lesions: a retrospective cohort study. Clin Oral Investig. 2019;23(1):351-359.
[9] HASEGAWA T, KAWAKITA A, UEDA N, et al. A multicenter retrospective study of the risk factors associated with medication-related osteonecrosis of the jaw after tooth extraction in patients receiving oral bisphosphonate therapy: can primary wound closure and a drug holiday really prevent MRONJ? Osteoporos Int. 2017;28(8):2465-2473.
[10] LIU SS, LIN TY, FU E, et al. Immediate hyperbaric oxygen after tooth extraction ameliorates bisphosphonate-related osteonecrotic lesion in rats. J Periodontol. 2019;90(12):1449-1456.
[11] SILVA ML, TASSO L, AZAMBUJA AA, et al. Effect of hyperbaric oxygen therapy on tooth extraction sites in rats subjected to bisphosphonate therapy-histomorphometric and immunohistochemical analysis. Clin Oral Investig. 2017;21(1):199-210.
[12] VOSS PJ, MATSUMOTO A, ALVARADO E, et al. Treatment of stage II medication-related osteonecrosis of the jaw with necrosectomy and autologous bone marrow mesenchymal stem cells. Odontology. 2017;105(4):484-493.
[13] OGATA K, KATAGIRI W, OSUGI M, et al. Evaluation of the therapeutic effects of conditioned media from mesenchymal stem cells in a rat bisphosphonate-related osteonecrosis of the jaw-like model. Bone. 2015;74:95-105.
[14] VALENTE NA, CHATELAIN S, ALFONSI F, et al. Medication-Related Osteonecrosis of the Jaw: The Use of Leukocyte-Platelet-Rich Fibrin as an Adjunct in the Treatment. J Craniofac Surg. 2019;30(4):1095-1101.
[15] CARDOSO CL, CURRA C, CURI MM, et al. Treatment of bisphosphonate-related osteonecrosis using platelet-rich plasma: microtomographic, microscopic, and immunohistochemical analyses. Braz Oral Res. 2019; 33:e050.
[16] QIAO J, AN N, OUYANG X. Quantification of growth factors in different platelet concentrates. Platelets. 2017;28(8):774-778.
[17] ZHANG S, MA B, LIU F, et al. Polylactic Acid Nanopillar Array-Driven Osteogenic Differentiation of Human Adipose-Derived Stem Cells Determined by Pillar Diameter. Nano Lett. 2018;18(4):2243-2253.
[18] ALONSO-RODRIGUEZ E, GONZÁLEZ-MARTÍN-MORO J, CEBRIÁN-CARRETERO JL, et al. Bisphosphonate-related osteonecrosis. Application of adipose-derived stem cells in an experimental murine model. Med Oral Patol Oral Cir Bucal. 2019;24(4):e529-e536.
[19] ZANG X, HE L, ZHAO L, et al. Adipose-derived stem cells prevent the onset of bisphosphonate-related osteonecrosis of the jaw through transforming growth factor β-1-mediated gingival wound healing. Stem Cell Res Ther. 2019;10(1):169.
[20] 陈霞. 自体浓缩生长因子(CGF)促进BMSCs成骨的研究[D].上海:上海交通大学,2017.
[21] HEUFELDER MJ, HENDRICKS J, REMMERBACH T, et al. Principles of oral surgery for prevention of bisphosphonate-related osteonecrosis of the jaw. Oral Surg Oral Med Oral Pathol Oral Radiol. 2014;117(6):e429-435.
[22] OTTO S, TRÖLTZSCH M, JAMBROVIC V, et al. Tooth extraction in patients receiving oral or intravenous bisphosphonate administration: A trigger for BRONJ development? J Craniomaxillofac Surg. 2015;43(6):847-854.
[23] KIM TH, KIM SH, SÁNDOR GK, et al. Comparison of platelet-rich plasma (PRP), platelet-rich fibrin (PRF), and concentrated growth factor (CGF) in rabbit-skull defect healing. Arch Oral Biol. 2014;59(5):550-558.
[24] SOHN DS, HEO JU, KWAK DH, et al. Bone regeneration in the maxillary sinus using an autologous fibrin-rich block with concentrated growth factors alone. Implant Dent. 2011;20(5):389-395.
[25] CHEN X, WANG J, YU L, et al. Effect of Concentrated Growth Factor (CGF) on the Promotion of Osteogenesis in Bone Marrow Stromal Cells (BMSC) in vivo. Sci Rep. 2018;8(1):5876.
[26] YU B, WANG Z. Effect of concentrated growth factors on beagle periodontal ligament stem cells in vitro. Mol Med Rep. 2014;9(1): 235-242.
[27] HONG S, CHEN W, JIANG B. A Comparative Evaluation of Concentrated Growth Factor and Platelet-rich Fibrin on the Proliferation, Migration, and Differentiation of Human Stem Cells of the Apical Papilla. J Endod. 2018;44(6):977-983.
[28] ELÇIN AE, PARMAKSIZ M, DOGAN A, et al. Differential gene expression profiling of human adipose stem cells differentiating into smooth muscle-like cells by TGFβ1/BMP4. Exp Cell Res. 2017;352(2):207-217.
[29] GALLEGO-MUÑOZ P, IBARES-FRÍAS L, VALSERO-BLANCO MC, et al. Effects of TGFβ1, PDGF-BB, and bFGF, on human corneal fibroblasts proliferation and differentiation during stromal repair. Cytokine. 2017; 96:94-101.
[30] CARANO RA, FILVAROFF EH. Angiogenesis and bone repair. Drug Discov Today. 2003;8(21):980-989.
[31] RINDONE AN, KACHNIARZ B, ACHEBE CC, et al. Heparin-Conjugated Decellularized Bone Particles Promote Enhanced Osteogenic Signaling of PDGF-BB to Adipose-Derived Stem Cells in Tissue Engineered Bone Grafts. Adv Healthc Mater. 2019;8(10):e1801565.
[32] WINET H. The role of microvasculature in normal and perturbed bone healing as revealed by intravital microscopy. Bone. 1996;19(1 Suppl): 39S-57S.
[33] SURESH V, WEST JL. 3D Culture Facilitates VEGF-Stimulated Endothelial Differentiation of Adipose-Derived Stem Cells. Ann Biomed Eng. 2020; 48(3):1034-1044.
[34] MASUKI H, OKUDERA T, WATANEBE T, et al. Growth factor and pro-inflammatory cytokine contents in platelet-rich plasma (PRP), plasma rich in growth factors (PRGF), advanced platelet-rich fibrin (A-PRF), and concentrated growth factors (CGF). Int J Implant Dent. 2016;2(1):19.
[35] PARK HC, KIM SG, OH JS, et al. Early Bone Formation at a Femur Defect Using CGF and PRF Grafts in Adult Dogs: A Comparative Study. Implant Dent. 2016;25(3):387-393.
[36] RODELLA LF, FAVERO G, BONINSEGNA R, et al. Growth factors, CD34 positive cells, and fibrin network analysis in concentrated growth factors fraction. Microsc Res Tech. 2011;74(8):772-777.
[37] BONAZZA V, HAJISTILLY C, PATEL D, et al. Growth Factors Release From Concentrated Growth Factors: Effect of β-Tricalcium Phosphate Addition. J Craniofac Surg. 2018;29(8):2291-2295.
[38] POURGONABADI S, MOUSAVI SH, TAYARANI-NAJARAN Z, et al. Effect of zoledronate, a third-generation bisphosphonate, on proliferation and apoptosis of human dental pulp stem cells. Can J Physiol Pharmacol. 2018;96(2):137-144.
[39] KUROSHIMA S, NAKAJIMA K, SASAKI M, et al. Systemic administration of quality- and quantity-controlled PBMNCs reduces bisphosphonate-related osteonecrosis of jaw-like lesions in mice. Stem Cell Res Ther. 2019;10(1):209.
[40] GLOWACKI J. Angiogenesis in fracture repair. Clin Orthop Relat Res. 1998;(355 Suppl):S82-89.
