Comparison of the effects of topical application of
zoledronic acid and silver nanoparticles on osseointegration of immediate
implant

doi:10.3969/j.issn.2095-4344.2227

Abstract

Abstract:

BACKGROUND: Some studies have shown that topical application of zoledronic acid and topical application of silver nanoparticles can promote bone formation, but the difference between two methods has not been reported.

OBJECTIVE: To investigate the effect of topical application of zoledronic acid versus topical application of silver nanoparticles on rabbit tooth extraction socket immediate implantation of titanium screw bonding.

METHODS: Twenty-four New Zealand white rabbits were randomly divided into zoledronic acid and silver nanoparticles groups (n=12/group). After removing four incisors of the upper and lower jaws, the mixture of nanometer silver and nanometer hydroxyapatite and nanometer zoledronic acid hydroxyapatite were respectively filled in the tooth extraction pit of the two groups, and titanium screw was implanted at the same time. The isolated specimens of the upper and lower mandibles were taken at 4, 8 and 12 weeks after surgery. The data reflecting the osseointegration around the implant were obtained through gross observation, torque test, bone density test and histomorphological observation. The study was approved by the Ethical Committee of the Third Hospital of Hebei Medical University in December 2015, approval No. Z2015-021-1.

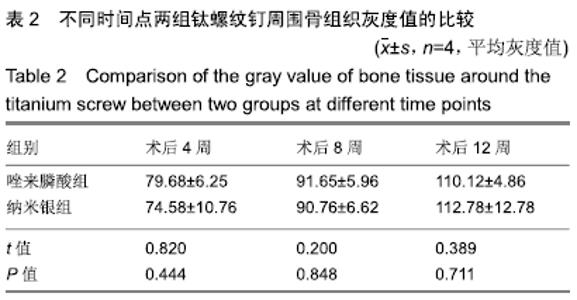

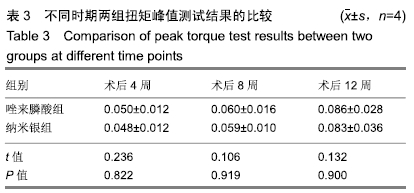

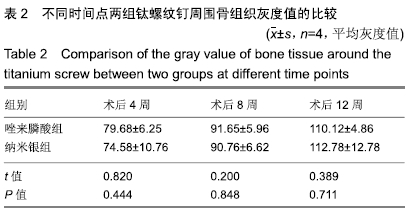

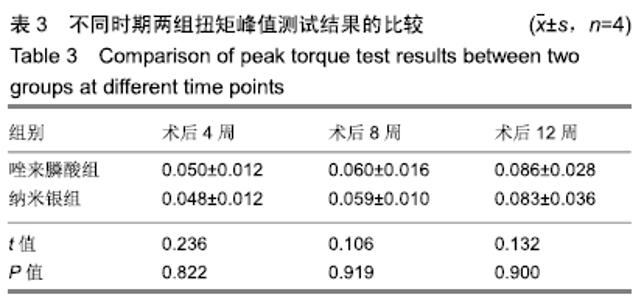

RESULTS AND CONCLUSION: (1) The test results of torque mechanics showed that the average torque peak value of all titanium nails increased with the extension of time (the average value of torque peak value) and reached the maximum value at 12 weeks (the average value of torque peak value). At 4, 8 and 12 weeks after surgery, the torque peak value of titanium screw in the zoledronic acid group was higher than that in the silver nanoparticles group, and the stability of titanium screw in zoledronic acid group was better than that in silver nanoparticles group, but the difference was insignificant (P > 0.05). (2) General observation and histological observation showed that at 4, 8 and 12 weeks after surgery, the hardness and structure of bone around the implants in the zoledronic acid group were significantly better than those in the silver nanoparticles group. (3) Bone mineral density analysis results showed that, at 4, 8 and 12 weeks after surgery, the gray value of bone tissue around the titanium screw in the zoledronic acid group was higher than that in the silver nanoparticles group at the same period (P > 0.05). (4) These results suggest that the osseointegration of immediate implantation using nanometer zoledronic acid hydroxyapatite is better than that of the mixture of nanometer silver and nanometer hydroxyapatite.

Key words: zoledronic acid, nanometer silver, bone union, immediate implantation, nanometer hydroxyapatite, biomaterial, oral biomaterial, topical application, bone regeneration, osseointegration

CLC Number:

Fan Shifeng, Qie Hui, Zhang Wenxuan, Hou Xiaowei, Wang Lijie, Zheng Yu. Comparison of the effects of topical application of zoledronic acid and silver nanoparticles on osseointegration of immediate implant[J]. Chinese Journal of Tissue Engineering Research, 2020, 24(10): 1547-1552.

Figures/Tables 4

References

[1] 翁升欣,赵旭,关岳锋,等.口腔种植体抗菌涂层材料研究进展[J].中国实用口腔科杂志,2016,9(1):49-53.
[2] 张玉梅.浅谈钛种植体抗菌涂层[J].口腔材料器械杂志,2012, 21(2):61-64.
[3] XIU ZM, ZHANG QB. Negligible particle-specific antibacterial activity of silver nanoparticles. Nano Lett. 2012;12(8): 4271-4275.
[4] 冯玉霞,邱宜农.钛种植体表面载银抗菌涂层研究进展[J].中国实用口腔杂志,2015,8(12):747-750.
[5] GODOY-GALLARDO M, GUILLEM-MARTI J, SEVILLA P, et al. Anhydride- functional silane immobilized onto titanium surfaces induces osteoblast cell differentiation and reduces bacterial adhesion and biofilm formation. Mater SciEng C Mater BiolAppl. 2016;59(2):524-532.
[6] XU C, SU P, WANG Y, et al. A novel biomimetic composite scaffold hybridized with mesenchymal stem cells in repair of rat bone defects models. Biomed Mater Res A. 2010;95(2): 495-503.
[7] 宋华,任向前,未东兴.纳米羟基磷灰石对缺损骨再生的影响[J].中国组织工程研究,2015,19(8):1155-1159.
[8] HEGDE V, JO JE, ANDREOPOULOU P, et al. Effect of osteoporosis medications on fracture healing. Osteoporos Int. 2016;27:861-871.
[9] BOGOCH ER, ELLIOT-GIBSON V, BEATON D, et al. Fracture prevention in the orthopaedicen vironment: outcomes of a coordinator-based fracture liaison service. J Bone Joint Surg Am. 2017;99:820-831.
[10] SUGIE-OYA A, TAKAKURA A, TAKAO-KAWABATA R, et al. Comparison of treatment effects of teriparatide and the bisphosphonate risedronate in an aged, osteopenic, ovariectomized rat model under various clinical conditions. J Bone Miner Metab. 2016;34:303-314.
[11] HUANG S, LIN H, ZHU X, et al. Zoledronic acid increases bone mineral density and improves health-related quality of life over two years of treatment in Chinese women with, postmenopausal osteoporosis. Endokrynol Pol. 2014;65(2): 96-104.
[12] GAO Y, LUO E, HU J, et al. Effect of combined local treatment with zoledronic acid and basic fibroblast growth factor on implant fixation in ovariectomized rats. Bone. 2009;44(2): 225-232.
[13] YOSHINARI M, ODA Y, INOUE T, et al. Bone response to calcium phosphate -coated and bisphosphonate immobilized titanium implants. Biomaterials. 2002;23(14):2879-2885.
[14] 张宇博.维生素D影响双磷酸盐类药物治疗抗骨质疏松效果的研究进展[J].东南国防医药,2018,20(3):271-275.
[15] IWATA A, KANAYAMA M, OHA F, et al. Effect of teriparatide (rh-PTH 1-34) versus bisphosphonate on the healing of osteoporotic vertebral compression fracture: a retrospective comparative study. BMC Musculoskelet Disord. 2017;18:148.
[16] WANG L, GUO TZ, WEI T, et al. Bisphosphonates inhibit pain, bone loss, and inflammation in a rat tibia fracture model of complex regional pain syndrome. Anesth Analg. 2016;123: 1033-1045.
[17] HAO Y, WANG X, WANG L, et al. Zoledronic acid suppresses callus remodeling but enhances callus strength in an osteoporotic rat model of fracture healing. Bone. 2015;81: 702-711.
[18] KATES SL, ACKERT-BICKNELL CL. How do bisphosphonates affect fracture healing? Injury. 2016;47: S65-S68.
[19] SANDBERG O, BERNHARDSSON M, ASPENBERG P. Earlier effect of alendronate in mouse metaphyseal versus diaphyseal bone healing. J Orthop Res. 2017;35:793-799.
[20] LI Y, HU Z, ZHOU C, et al. Intermittent parathyroid hormone (PTH) promotes cementogenesis and alleviates the catabolic effects of mechanical strain in cementoblasts. BMC Cell Biol. 2017;18:19.
[21] RUSSELL R. Bisphosphonates: the first 40 years. Bone. 2011; 49:12-19.
[22] CREMERSS, PAPAPOULOS S. Pharmacology of bi sphosphonates. Bone. 2011;49(1):42-49.
[23] ROGERS MJ, CROCKET T JC, COXON FP, et al. Biochemical and m olecular mechanisms of action of bisphosphonates. Bone. 2011;49(1):34-41.
[24] BOANINI E, TORRICELLI P, GAZZANO M, et al. The effect of alendronatedoped Calcium phosphates on bonecells activity. Bone. 2012;51(5):944-952.
[25] BELLIDO T, PLOTKIN LI. Novel actions of bisphosphonates in bone: preservation of osteoblast and osteocyte viability. Bone. 2011;49(1):50-55.
[26] XIONG Y, YANG HJ, FENG J, et al. Effects of alendronate on theproliferation and osteogenic differentiation of MG-63 cells. J Int Med Res. 2009;37(2):407-416.
[27] KIM HK, KIM JH, ABBAS AA, et al. Alendronate enhances osteogenic differentiation of bone marrow stromal cells:a preliminary study. Clin Orthop Relat Res.2009;467(12): 3121-3128.
[28] TATLI U, USTÜN Y, KÜRKÇÜ M, et al. Effect of zoledronic acid on healing of mandibular fractures: an experimentalstudy in rabbits. J Oral Maxillofac Surg. 2011;69(6):1726-1735.
[29] ROSHAN-GHIAS A, ARNOLDI J, PROCTER P, et al. In vivo assessment of local effects after application of bone screws delivering bisphosphonates into a compromised cancellous bone site. Clin Biomech (Bristol, Avon). 2011;26(10): 1039-1043.
[30] 郝宇飞,何东宁.种植体周围感染危险因素的研究进展[J].中国当代医药,2016,23(1):17-19.
[31] 刘中林,彭澜,王晖,等.盐酸米诺环素软膏在种植体周围感染中的应用效果及对炎症反应的控制作用研究[J].中华医院感染学杂志,2017,27(6):1363-1365.
[32] SHIPRA T, MEHROTRA GK. Chitosan-silver oxide nanocomposite film: preparation and antimicrobial activity. Mater Sci. 2011;34(1):29-35.
[33] HUMBERTO HL, NILDA VA, LILIANA IT. Mode of antiviral action of silver nanoparticles against HIV-1. J Nanobiotechnol. 2010;8(1):21-28.
[34] LI WR, XIE XB, SHI QS, et al. Antibacterial activity and mechanism of silver nanoparticles on Escherichia coli. Appl Microbiol Biotechnol. 2010;85(4):1115-1122.
[35] YOU CG, CHUN MH, XIN GW, et al. The progress of silver nanoparticles in the antibacterial mechanism,clinical application and cytotoxicity. Mol Biol Rep. 2012;39(9): 9193-9201.
[36] 朱玲英,郭大伟,顾宁.纳米银细胞毒性体外检测方法研究进展[J].科学通报,2014,22(59):2145-2152.
[37] SILVER S. Bacterial silver resistance: molecular biology and uses and misuses of silver compounds. FEMS Microbiol Rev. 2013;27(2):341-353.
[38] 张晟,麦理想,柳大烈,等.纳米Ag/TiO_2涂层托槽对牙龈卟啉单胞菌的抗菌性能[J].广东医学,2012,33(9):1220-1222.
[39] SUKUMARAN P, ELDHO KP. Silver nanoparticles: Mechanism of antimicrobial action, synthesis, medical applications, and toxicity effects. Int Nano Lett. 2012;2(32):1-10.
[40] 冯玉霞,邱宜农.钛种植体表面载银抗菌涂层研究进展[J].中国实用口腔科杂志,2015,8(12):747-750.
[41] RUGGIERO SL, DODSON TB, ASSAEL LA, et al. American association of oral and maxillofacial surgeons position paper on bisphosphonate- related osteonecrosis of the jaw-2009 update. Aust Endod J. 2009;35(3):119-130.
