中国组织工程研究 ›› 2026, Vol. 30 ›› Issue (15): 3960-3970.doi: 10.12307/2026.338
• 骨与关节综述 bone and joint review • 上一篇 下一篇
封 涛,殷照阳
接受日期:2025-07-19
出版日期:2026-05-28
发布日期:2025-11-10
通讯作者:
殷照阳,博士,教授,主任医师,硕士生导师,南京医科大学连云港临床医学院,江苏省连云港市 222000
作者简介:封涛,男,2000年生,江苏省连云港市人,汉族,南京医科大学在读硕士,主要从事创伤骨科方向的研究。
基金资助:Feng Tao, Yin Zhaoyang
Accepted:2025-07-19
Online:2026-05-28
Published:2025-11-10
Contact:
Yin Zhaoyang, MD, Professor, Chief physician, Master’s supervisor, Lianyungang Clinical Medical College of Nanjing Medical University, Lianyungang 222000, Jiangsu Province, China
About author:Feng Tao, Master candidate, Lianyungang Clinical Medical College of Nanjing Medical University, Lianyungang 222000, Jiangsu Province, China
Supported by:摘要:
文题释义:
股骨转子间骨折:骨折位于髋关节囊外解剖区域,其损伤范围涵盖股骨颈基底区域并向下延伸至小转子上缘水平,又名股骨粗隆间骨折,被称为“人生最后一次骨折”,多发于骨质疏松性老年人。
中图分类号:
封 涛, 殷照阳. 股骨转子间骨折外侧壁完整性的生物力学功能及临床意义[J]. 中国组织工程研究, 2026, 30(15): 3960-3970.
Feng Tao, Yin Zhaoyang. Biomechanical function and clinical significance of the lateral wall integrity in intertrochanteric fractures of the femur[J]. Chinese Journal of Tissue Engineering Research, 2026, 30(15): 3960-3970.





| [1] GOTFRIED Y. The lateral trochanteric wall: a key element in the reconstruction of unstable pertrochanteric hip fractures. Clin Orthop Relat Res. 2004;(425):82-86. [2] 吴克俭, 汤俊君. 准确理解股骨转子间骨折“外侧壁”[J]. 中国修复重建外科杂志, 2019,33(10):1210-1215. [3] IM GI, SHIN YW, SONG YJ. Potentially unstable intertrochanteric fractures. J Orthop Trauma. 2005;19(1):5-9. [4] PALM H, JACOBSEN S, SONNE-HOLM S, et al. Integrity of the lateral femoral wall in intertrochanteric hip fractures: an important predictor of a reoperation. J Bone Joint Surg Am. 2007;89(3):470-475. [5] HSU CE, SHIH CM, WANG CC, et al. Lateral femoral wall thickness. A reliable predictor of post-operative lateral wall fracture in intertrochanteric fractures. Bone Joint J. 2013;95-B(8):1134-1138. [6] HAQ RU, MANHAS V, PANKAJ A, et al. Proximal femoral nails compared with reverse distal femoral locking plates in intertrochanteric fractures with a compromised lateral wall; a randomised controlled trial . Int Orthop. 2014;38(7): 1443-1449. [7] MA Z, CHANG SM. Letter to the editor: where is the lateral femoral wall? Int Orthop. 2014;38(12):2645-2646. [8] 张英琪, 张世民, 熊文峰, 等. 股骨近端外侧壁的骨折特征地图研究[J]. 中国临床解剖学杂志,2017,35(2):121-125. [9] GAO Z, LV Y, ZHOU F, et al. Risk factors for implant failure after fixation of proximal femoral fractures with fracture of the lateral femoral wall. Injury. 2018;49(2):315-322. [10] 武建超, 师政伟, 李吉鹏, 等. 股骨粗隆间骨折外侧壁损伤的研究进展[J]. 中国修复重建外科杂志,2018,32(12):1605-1610. [11] 武英楷, 宁尚攀, 孙国华, 等. 股骨近端外侧壁厚度及其临床意义[J]. 中国矫形外科杂志,2021,29(18):1680-1682. [12] 张世民,马卓,杜守超,等.股骨近端外侧壁的解剖学研究及其对转子间骨折内固定的意义[J].中国临床解剖学杂志, 2016,34(1):39-42. [13] 张殿英. 基于杠杆-支点平衡理论重新认识股骨近端外侧壁的作用[J]. 中华创伤杂志,2022,38(6):481-486. [14] MEINBERG EG, AGEL J, ROBERTS CS, et al. Fracture and Dislocation Classification Compendium-2018. J Orthop Trauma. 2018; 32 Suppl 1:S1-S170. [15] SUN LL, LI Q, CHANG SM. The thickness of proximal lateral femoral wall. Injury. 2016;47(3):784-785. [16] SREEJITH KP, JYOTHIPRASANTH M, SUNKU N. A comparative study to assess the preoperative thickness of lateral trochanteric wall as a predictor of postoperative lateral wall fracture in intertrochanteric fracture treated by dynamic hip screw . J Bone Rep Recomm. 2017;3:1-9. [17] PRADEEP AR, KIRANKUMAR A, DHEENADHAYALAN J, et al. Intraoperative lateral wall fractures during Dynamic Hip Screw fixation for intertrochanteric fractures-Incidence, causative factors and clinical outcome. Injury. 2018;49(2):334-338. [18] SELIM A, SEOUDI N, ALGEADY I, et al. Reliability of lateral femoral wall thickness for detecting the potential for treatment failure and implant choice in patients with trochanteric hip fractures: a prospective cohort study. Curr Orthop Pract. 2022;33: 363-368. [19] VAN KNEGSEL KP, HSU CE, HUANG KC, et al. Relative lateral wall thickness is an improved predictor for postoperative lateral wall fracture after trochanteric femoral fracture osteosynthesis. Sci Rep. 2023;13(1):17750. [20] 陶金, 熊贵润, 刘蓬然, 等. 股骨转子间骨折外侧壁的临床意义及其损伤的内固定治疗[J]. 中国组织工程研究,2020, 24(30):4854-4859. [21] SHARMA G, SINGH R, GN KK, et al. Which AO/OTA 31-A2 pertrochanteric fractures can be treated with a dynamic hip screw without developing a lateral wall fracture? A CT-based study. Int Orthop. 2016;40(5): 1009-1017. [22] 张世民, 余斌. AO/OTA-2018版股骨转子间骨折分类的解读与讨论[J]. 中华创伤骨科杂志,2018,20(7):583-587. [23] YIN J, MARCANTONIO A J, KOH J, et al. Traction Internal Rotation Radiographs Aid in the Assessment of Lateral Femoral Wall Integrity in Intertrochanteric Hip Fractures. J Surg Orthop Adv. 2025;34(1):20-22. [24] HECHT G, SAIZ AM, SHELTON TJ, et al. CT scans better assess lateral wall morphology of “stable appearing” intertrochanteric (IT) femur fractures and predict early failure of sliding hip screw (SHS) fixation. OTA Int. 2021;4(3):e140. [25] 张世民, 马卓, 杜守超, 等. 股骨近端外侧壁的解剖学研究及其对转子间骨折内固定的意义[J]. 中国临床解剖学杂志, 2016(1):39-42. [26] 张雅淳, 付宇捷, 吴斗. 股骨转子间骨折外侧壁薄弱状态研究进展[J]. 中国修复重建外科杂志,2024,38(3):363-367. [27] LI SJ, CHANG SM, LIU H, et al. Residual lateral wall width predicts a high risk of mechanical complications in cephalomedullary nail fixation of intertrochanteric fractures: a retrospective cohort study with propensity score matching. Int Orthop. 2023;47(7): 1827-1836. [28] DAI J Q, JIN D, ZHANG C, et al. Radiologic predictor of intraoperative lateral wall fractures in treatment of pertrochanteric fractures with cephalomedullary nailing. J Int Med Res. 2020;48(4):300060520920066. [29] ZHANG Y, ZHAO E, ZHU J, et al. Finite element analysis of the effect of residual lateral wall volume on postoperative stability in intertrochanteric fractures. J Orthop Surg Res. 2024;19(1):82. [30] ABRAM SGF, POLLARD TCB, ANDRADE AJMD. Inadequate “three-point” proximal fixation predicts failure of the Gamma nail. Bone Joint J. 2013;95-B(6):825-830. [31] 冯俊超, 高明暄, 骆文远. 股骨转子间骨折外侧壁与内侧壁的意义[J]. 中国矫形外科杂志,2023,31(5):436-440. [32] 卫禛, 张凯, 张世民. 股骨近端外侧壁厚度的概念及研究进展[J]. 中国临床解剖学杂志,2020,38(6):739-742. [33] CHANG SM, WANG ZH, TIAN KW, et al. A sophisticated fracture classification system of the proximal femur trochanteric region (AO/OTA-31A) based on 3D-CT images. Front Surg. 2022;9:919225. [34] 卫禛, 陈时益, 张世民. 股骨转子间骨折治疗中前内侧皮质正性支撑复位的研究进展[J]. 中国修复重建外科杂志,2019, 33(10):1216-1222. [35] 李双, 张世民, 张立智, 等. 不同组合前内侧皮质支撑复位对股骨转子间骨折髓内钉术后稳定性影响的生物力学研究[J]. 中华创伤骨科杂志,2019,21(1):57-64. [36] 刘恒山, 寿康全, 朱长谋. 内侧皮质不同复位支撑在老年股骨转子间骨折的临床应用研究[J]. 实用骨科杂志,2023,29(9): 782-786. [37] 陈文龙, 曾祥鸿, 罗景胜. 老年股骨转子间骨折髓内钉固定中不同复位质量对临床预后的影响: 基于影像学特征分析[J]. 创伤外科杂志,2025,27(4):265-271. [38] 王虎虎, 闫淑芳, 付婷. 股骨转子间骨折InterTan内固定术中内侧皮质不同支撑复位方式的临床效果对比[J]. 中国临床医生杂志,2025,53(4):485-489. [39] AHMAD A, EGELAND EH, DYBVIK EH, et al. Equivalent mortality after operation with sliding hip screw or intramedullary nail for trochanteric AO/OTA A1 and A2 fractures reported in the Norwegian Hip Fracture Register 2008 to 2020. Bone Joint J. 2024;106-B(6):603-612. [40] SHI Z, QIANG M, JIA X, et al. Association of the lateral wall integrity with clinical outcomes in older patients with intertrochanteric hip fractures treated with the proximal femoral nail anti-rotation-Asia. Int Orthop. 2021;45(12):3233-3242. [41] NIE B, CHEN X, LI J, et al. The medial femoral wall can play a more important role in unstable intertrochanteric fractures compared with lateral femoral wall: a biomechanical study. J Orthop Surg Res. 2017;12(1):197. [42] MU JX, XIANG SY, MA QY, et al. Selection of internal fixation method for femoral intertrochanteric fractures using a finite element method. World J Clin Cases. 2021; 9(22):6343-6356. [43] GREVE K, EK S, BARTHA E, et al. Sliding hip screw versus intramedullary nail for trochanteric hip fracture regarding death within 120 days and ability to return to independent living. Bone Jt Open. 2024; 5(10):843-850. [44] VALEN AK, VIBERG B, GUNDTOFT PH, et al. Mortality in patients with trochanteric hip fractures (AO/OTA 31-A) treated with sliding hip screw versus intramedullary nail: a retrospective national registry study of 9547 patients from the Danish Fracture Database. Injury. 2023:S0020-1383(23)00249-8. [45] 顾海伦, 杨军, 王维, 等. 不稳定型股骨转子间外侧壁骨折的治疗策略[J]. 中华创伤骨科杂志,2016,18(8):679-684. [46] MA Z, YAO XZ, CHANG SM. The classification of intertrochanteric fractures based on the integrity of lateral femoral wall: Letter to the editor, Fracture morphology of AO/OTA 31-A trochanteric fractures: A 3D CT study with an emphasis on coronal fragments. Injury. 2017;48(10):2367-2368. [47] BABHULKAR S. Unstable trochanteric fractures: Issues and avoiding pitfalls. Injury. 2017;48(4):803-818. [48] LI J, TANG S, ZHANG H, et al. Clustering of morphological fracture lines for identifying intertrochanteric fracture classification with Hausdorff distance-based K-means approach. Injury. 2019;50(4):939-949. [49] 张志山, 张铁超, 周方, 等. 基于股骨近端外侧壁完整性的股骨近端骨折分型方法:附888例病例分析[J]. 中华骨与关节外科杂志,2020,13(3):196-204. [50] 张世民, 胡孙君, 杜守超, 等. 股骨转子间骨折一种新的综合分类法[J]. 中国修复重建外科杂志,2022,36(9):1056-1063. [51] 崔路宽, 刘浩, 王江静, 等. 股骨转子间骨折新综合分类法有效性验证[J]. 中国修复重建外科杂志,2023,37(4):417-422. [52] 任德新. 股骨近端防旋髓内钉固定治疗累及外侧壁的股骨转子间骨折有限元分析[D]. 沈阳: 中国医科大学, 2018. [53] 戴寿旺, 许兵, 余作取, 等. 髓内固定治疗股骨粗隆间骨折中外侧壁的生物力学意义[J]. 浙江临床医学,2020,22(6): 796-798. [54] FAN J, XU X, ZHOU F. The lateral femoral wall thickness on the risk of post-operative lateral wall fracture in intertrochanteric fracture after DHS fixation: A finite element analysis. Injury. 2022;53(2):346-352. [55] ZHENG L, WONG DWC, CHEN X, et al. Risk of proximal femoral nail antirotation (PFNA) implant failure upon different lateral femoral wall thickness in intertrochanteric fracture: a finite element analysis. Comput Methods Biomech Biomed Eng. 2022;25(5): 512-520. [56] LI S, SU ZH, ZHU JM, et al. The importance of the thickness of femoral lateral wall for treating intertrochanteric fractures: a finite elements analysis. Sci Rep. 2023;13(1): 12679. [57] 林志诚. 内外侧壁缺损对A3.1型股骨转子间骨折PFNA术后力学影响的有限元分析[D]. 广州:南方医科大学,2022. [58] 周龙, 王亮, 徐锐, 等. 股骨转子间骨折不同外侧壁分型髓内钉治疗的有限元分析[J]. 中国组织工程研究,2023,27(29): 4652-4657. [59] 刘玉斌, 林志诚, 李松建. 股骨转子间骨折外侧壁重建PFNA固定的有限元分析[J]. 中国矫形外科杂志,2024,32(20): 1882-1887+1892. [60] SELIM A, PONUGOTI N, NAQVI AZ, et al. Cephalo-medullary nailing versus dynamic hip screw with trochanteric stabilisation plate for the treatment of unstable per-trochanteric hip fractures: a meta-analysis. J Orthop Surg Res. 2021;16(1): 47. [61] 曹源, 吕扬, 周方. 股骨转子间骨折内、外侧壁的理念及研究进展[J]. 中国微创外科杂志,2025,25(1):27-34. [62] ŞENSÖZ E, ERGUN S, KAYAALP ME, et al. The Comparison of Dynamic Condylar Screw Plate to Proximal Femoral Nail in Reverse Oblique and Transverse Intertrochanteric Fractures: A Retrospective Study on 61 Patients. Cureus. 2023;15(3):e36397. [63] 郭天庆, 薛飞, 冯卫. 股骨转子间骨折不同外侧壁分型的内固定治疗策略[J]. 中国组织工程研究,2020,24(6):917-923. [64] 李祖涛, 周文正, 缪晓刚, 等. InterTan、PFNA、Gamma3型髓内钉内固定治疗老年不稳定股骨粗隆间骨折的疗效比较[J]. 中国骨与关节损伤杂志,2018,33(10):1017-1020. [65] 林炳剑, 黄复铭. 累及外侧壁的股骨粗隆间骨折治疗进展[J]. 中国骨与关节损伤杂志,2024,39(8):837-841. [66] DÍAZ VJ, CAÑIZARES ACP, MARTÍN IA, et al. Predictive variables of open reduction in intertrochanteric fracture nailing: a report of 210 cases. Injury. 2016;47 Suppl 3:S51-S55. [67] KULKARNI SG, BABHULKAR SS, KULKARNI SM, et al. Augmentation of intramedullary nailing in unstable intertrochanteric fractures using cerclage wire and lag screws: a comparative study. Injury. 2017;48 Suppl 2:S18-S22. [68] 黄复铭, 谭哲伦, 张京, 等. 外侧壁重建对髓内钉治疗A3型股骨转子间骨折疗效影响的meta分析[J]. 中华骨与关节外科杂志,2024,17(4):361-370. [69] 吴钟汉, 许新忠, 张积森, 等. 粉碎性股骨逆转子间骨折一期重建外侧壁:如何提高修复后骨生物力学稳定性[J]. 中国组织工程研究, 2021, 25(36): 5838-5843. [70] 杨冬松, 王琼, 陈许冬, 等. 股骨近端仿生髓内钉治疗外侧壁破裂型老年股骨转子间骨折的近期疗效观察[J]. 创伤外科杂志,2025,27(1):34-37,42. |
| [1] | 刘文龙, 董 磊, 肖争争, 聂 宇. 骨质疏松患者行固定平台单髁置换后胫骨假体松动的有限元分析[J]. 中国组织工程研究, 2026, 30(9): 2191-2198. |
| [2] | 郑汪杨, 费 冀, 杨 砥, 赵 浪, 王伶俐, 刘 鹏, 李海洋. 有限元分析肱骨外展与前屈运动中冈上肌腱及盂肱关节的受力变化[J]. 中国组织工程研究, 2026, 30(9): 2199-2207. |
| [3] | 蔡其锐, 戴小玮, 郑晓斌, 简思莉, 卢绍平, 刘特熹, 刘国科, 林远方. 龙氏牵引下正骨法对颈椎功能单元的力学影响:头颈生物力学模型定量分析[J]. 中国组织工程研究, 2026, 30(9): 2208-2216. |
| [4] | 饶敬澄, 李豫皖, 郑红兵, 徐 志, 朱爱祥, 史 册, 王 冰, 杨 春, 孔祥如, 朱大伟. 新型股骨近端稳定髓内钉与传统髓内钉生物力学的差异[J]. 中国组织工程研究, 2026, 30(9): 2217-2225. |
| [5] | 陈 龙, 王小阵, 席金涛, 鲁齐林. 短节段置钉联合可扩张聚醚醚酮置换体在骨质疏松椎体中的生物力学性能[J]. 中国组织工程研究, 2026, 30(9): 2226-2235. |
| [6] | 闫相宁, 陈 雷, 陈永欢, 王 超, 李小生. 下蹲动作中不同深度和负荷对膝关节力学和周围肌肉力量特征的影响[J]. 中国组织工程研究, 2026, 30(9): 2236-2247. |
| [7] | 张子峥, 罗 旺, 刘长路. 膝内侧间室骨关节炎单髁置换中有限元分析的应用价值[J]. 中国组织工程研究, 2026, 30(9): 2313-2322. |
| [8] | 张先绪, 马 忠, 刘 欣, 黄 磊, 沈文翔, 罗志强. 腰椎融合联合单侧固定治疗腰椎退行性疾病:生物力学、技术演化及临床应用[J]. 中国组织工程研究, 2026, 30(9): 2334-2342. |
| [9] | 陈惠挺, 曾伟权, 周剑鸿, 王 杰, 庄聪颖, 陈培友, 梁泽乾, 邓伟明. 椎体成形中拖尾锚定治疗伴裂隙征骨质疏松性椎体压缩骨折的有限元分析[J]. 中国组织工程研究, 2026, 30(9): 2145-2152. |
| [10] | 曾 轩, 翁 汭, 叶仕成, 唐佳栋, 莫 凌, 李文超. 两种腰椎旋扳手法治疗腰椎间盘突出症:生物力学差异的有限元分析[J]. 中国组织工程研究, 2026, 30(9): 2153-2161. |
| [11] | 程旗圣, 居来提·买提肉孜, 肖 扬, 张陈伟, 帕尔哈提·热西提. 新型变径螺钉在腰椎改良皮质骨轨迹中的有限元分析[J]. 中国组织工程研究, 2026, 30(9): 2162-2171. |
| [12] | 武泓序, 刘轩宇, 王韬宇, 王诗尧, 程靖祎, 张鸣文, 张银霞, 刘治华, 王晓洁. 引入肌肉单元的脊柱侧弯有限元仿真:双向载荷的矫形效果验证[J]. 中国组织工程研究, 2026, 30(9): 2172-2181. |
| [13] | 刘佳富, 任茹霞, 廖州伟, 周夏丽, 吴益宏, 张少群. 颈性眩晕模型大鼠颈椎生物力学特性的三维有限元分析[J]. 中国组织工程研究, 2026, 30(9): 2182-2190. |
| [14] | 周道斌, 王科豪, 谢 洋, 宁仁德. 掌侧锁定钢板与联合背侧钢板固定桡骨远端骨折尺背侧骨折块的生物力学特征[J]. 中国组织工程研究, 2026, 30(9): 2255-2261. |
| [15] | 张 楠, 孟庆华, 鲍春雨. 踝关节有限元模型的特性及临床应用[J]. 中国组织工程研究, 2026, 30(9): 2343-2349. |
1.1.7 检索策略 使用电子数据库检索,如万方数据知识服务平台、中国知网、PubMed具体文献检索策略见图1,2。
1.3 质量评估与数据提取 依照纳入条件实施文献初筛,初筛阶段共选出601篇符合条件的文献,随后基于排除条件开展复筛流程;最终纳入70篇均来自于中文核心期刊及收录于SCI数据库的文献进行综述,见图3。
文题释义:
股骨转子间骨折:骨折位于髋关节囊外解剖区域,其损伤范围涵盖股骨颈基底区域并向下延伸至小转子上缘水平,又名股骨粗隆间骨折,被称为“人生最后一次骨折”,多发于骨质疏松性老年人。#br#

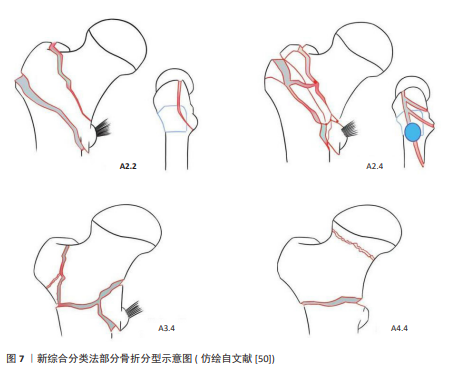

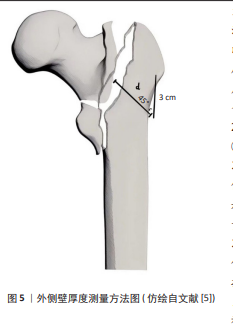

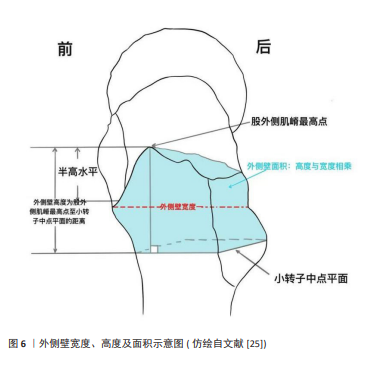

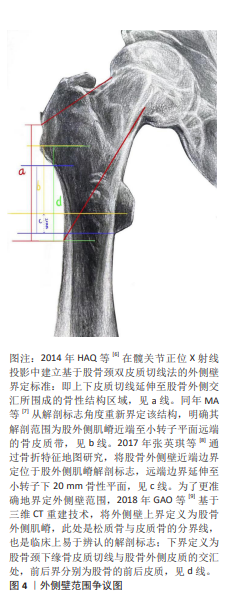

此综述系统构建了股骨转子间骨折外侧壁研究的三维理论框架,整合了解剖学争议、分型革新与治疗策略进阶三大维度,具有显著创新性与临床价值。在解剖学层面,文章突破性梳理外侧壁范围界定演变(从Gotfried原始概念至Gao三维CT定义),研究同时指出关键争议:张殿英提出的杠杆-支点平衡理论质疑外侧壁的解剖学基础,强调其仍属外科学概念;而厚度测量因个体差异、影像学技术局限及操作标准化缺失存在显著分歧。并列举了厚度(临界值20.5 mm)、宽度(预测阈值18.55 mm)、残余体积(70%生物力学阈值)多参数评估体系,破解单一指标局限;分型领域提及张世民新综合分类法,其融合骨折线走向、外侧壁状态及骨质量参数,使复杂骨折分型准确率提升,可实现治疗精准导航;生物力学研究通过有限元模型量化外侧壁厚度与固定稳定性正相关,证实完整外侧壁可降低髓内钉切割风险,重建外侧壁可恢复力学稳定性。颠覆传统"内侧壁优先"认知。其临床意义在于重构治疗范式:创建"分型-生物力学评估-重建路径"决策链,将外侧壁状态纳入骨折初始评估核心;确立髓内-髓外联合固定为A3型骨折金标准。全文通过整合多学科证据,将争议性解剖概念转化为临床决策工具,为个性化治疗提供理论框架。#br# #br#
