Effects of different cervical artificial disc coatings on adhesion and differentiation ability of rat bone marrow mesenchymal stem cells

doi:10.3969/j.issn.2095-4344.2014.12.022

Abstract

Abstract:

BACKGROUND: Titanium artificial cervical disc has good biocompatibility, but titanium alloy is shown to have poor biological activity, low bonding strength, easy release of metal ions under physiological conditions.
OBJECTIVE: To observe the effects of different coating for the titanium plate of domestic cervical artificial disc on adhesion and differentiation ability of rat bone marrow mesenchymal stem cells.
METHODS: Passage 3 bone marrow mesenchymal stem cells from Wistar rats were seeded into 24-well titanium plates with hydroxyapatite coating, titanium powder+hydroxyapatite coating and bare titanium plate. Cell culture was terminated after 24 and 48 hours, and the cell growth was observed under scanning electron microscope. After 24 hours of inoculation, osteogenic inducer was added; then, cell supernatant was collected at 3, 5, 7 days after cell lysis and centrifugation to detect the activity of alkaline phosphatase.

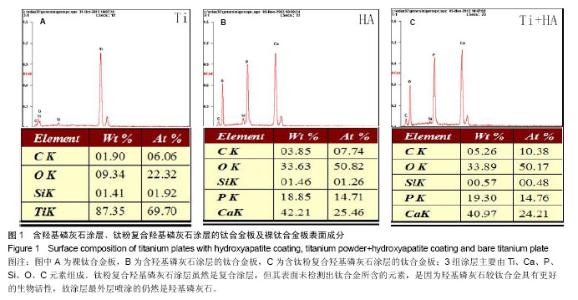

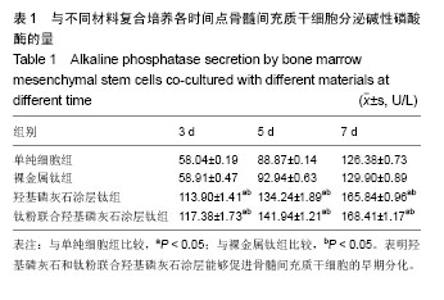

RESULTS AND CONCLUSION: After composite culture with titanium plates with hydroxyapatite coating or titanium powder+hydroxyapatite coating, cultured cells were in polygonal shape, and pseudopodia were extended into the micropores that were adhered closely to the material surface. Cells cultured with bare titanium plates had poor differentiation and adhesion rate. With time, the expression of alkaline phosphatase was increased in each group, especially in the groups of titanium plates with hydroxyapatite coating and titanium powder+hydroxyapatite coating (P < 0.05). These findings indicate that titanium plates with hydroxyapatite coating or titanium powder+hydroxyapatite coating can promote adhesion and differentiation of rat bone marrow mesenchymal stem cells.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

全文链接：

Key words: biocompatible materials, intervertebral disk, bioprosthesis, stem cells

CLC Number:

R318

Li Jun-hui, Yu Xing, Mu Xiao-hong, Xu Lin, Wang Song, Lu Jun-zhe . Effects of different cervical artificial disc coatings on adhesion and differentiation ability of rat bone marrow mesenchymal stem cells[J]. Chinese Journal of Tissue Engineering Research, 2014, 18(12): 1938-1943.

Figures/Tables 3

References

[1] Kang L,Lin D,Ding Z,et al.Artificial disk replacement combined with midlevel ACDF versus multilevel fusion for cervical disk disease involving 3 levels. Orthopedics.2013;36(1):e88-94.

[2] 王逢贤,徐林,俞兴,等.新型国产颈椎间盘实验山羊模型的建立及初步研究[J].生物骨科材料与临床研究,2013,10(3):50-52.

[3] 中华人民共和国科学技术部.关于善待实验动物的指导性意见. 2006-09-30.

[4] Tsuchiya S,Hara K,Ikeno M,et al.Rat bone marrow stromal cell-conditioned medium promotes early osseointegration of titanium implants.Int J Oral Maxillofac Implants.2013;28(5): 1360-1369.

[5] Garai S,Sinha A.Biomimetic nanocomposites of carboxymethyl cellulose-hydroxyapatite: Novel three dimensional load bearing bone grafts.Colloids Surf B Biointerfaces.2013;115C:182-190.

[6] Butcher A,Milner R,Ellis K,et al.Interaction of platelet-rich concentrate with bone graft materials: an in vitro study.J Orthop Trauma.2009;23(3):195-200.

[7] Bae SE,Bhang SH,Kim BS,et al.Self-assembled extracellular macromolecular matrices and their different osteogenic potential with preosteoblasts and rat bone marrow mesenchymal stromal cells.Biomacromolecules. 2012;13(9): 2811-2820.

[8] Phinney DG,Kopen Q,Isaacson RL,et al.Plastic adherent stromal cells from the bone marrow of commonly used strains of inbred mice:variations in yield，growth，and diferentiation.J Cell Biochem.1999;72:570-585.

[9] Zhang MM,Jia GQ,Cheng JQ,et al.In vitro analysis and in vivo tracing of BrdU-labeled rat bone marrow mesenchymal stem cells.Sichuan Da Xue Xue Bao Yi Xue Ban.2012;43(2): 266-270.

[10] Djouad F,Bony C,Häupl T,et al.Transcriptional profiles discriminate bone marrow-derived and synovium-derived mesenchymal stem cells.Arthritis Res Ther.2005;7(6): R1304-1315.

[11] Martin JY,Schwartz Z,Hummert TW,et al.Effect of titanium surface roughness on proliferation, differentiation and protein synthesis of human osteoblast-like cells(MG63).J Biomed Mater Res.1995;29:389-401.

[12] Chien CY,Tsai WB.Poly(dopamine)-assisted immobilization of Arg-Gly-Asp peptides,hydroxyapatite,and bone morphogenic protein-2 on titanium to improve the osteogenesis of bone marrow stem cells.ACS Appl Mater Interfaces.2013;5(15): 6975-6983.

[13] Malchau H,Herberts P,Ahnfelt L.Prognosis of total hip replacement in Sweden.Acta Orthop Scand.1993;64:497-506.

[14] 姜红江,王玉林.医用钛合金的表面改性[J].生物骨科材料与临床研究,2005,2(4):28-33.

[15] Hench LL.Bioceramics from concept to clinic.J Am Ceram Soc.1991;8(1):1487-1510.

[16] Mutsuzaki H,Sogo Y,Oyane A,et al.Improved bonding of partially osteomyelitic bone to titanium pins owing to biomimetic coating of apatite.Int J Mol Sci.2013;14(12): 24366-24379.

[17] Anselme K.Osteoblast adhesion on biomaterials.Biomaterials. 2000;21:667-681.

[18] Nakashima Y,Sato T,Yamamoto T,et al.Results at a minimum of 10 years of follow-up for AMS and PerFix HA-coated cementless total hip arthroplasty: impact of cross-linked polyethylene on implant longevity.J Orthop Sci.2013;18(6): 962-968.

[19] Shin J,Lee K,Koh J,et al.Hydroxyapatite coatings on nanotubular titanium dioxide thin films prepared by radio frequency magnetron sputtering.J Nanosci Nanotechnol. 2013;13(8):5807-5810.

[20] Lee TM,Yang CY,Chang E,et al.Comparison of plasma sprayed hydroxyapatitc coatings and zirconia-reinforced hydroxyapatite composite coatings: in vivo study.J Biomed Mater Res A.2004;71A(4):652-660.

[21] Antonov EN,Bagratashvili VN,Ball M,et al.Influence of target density on properties of laser deposited calcium phosphate coatings.Key Eng Mater.2001;192-195(22-26):107-110.

[22] Long LH,Kim HW,Lee SH,et al.Biocompatibility of titanium implants modified by microarc oxidation and hydraxyapatite coating.J Biomed Mater Res A.2005;73(1):48-54.

[23] Ma J,Wang C,Peng KM.Electrophoretic deposition of porous hydroxyapatite scaffold.Biomaterials.2003;24:(3)505-510.

[24] Lord G,Bancel P.Themadreporic cementless total hip arthroplasty.New experimental data and a seven-year clinical follow-up study.Clin Orthop Relat Res.1983;176:67-76.

[25] Zreiqat H,Valenzuela SM,Nissan BB,et al.The effect of surface chemistry modification of titanium alloy on signalling pathways in human osteoblasts.Biomaterials.2005;26:7579-7586.

[26] Millet P,Girardin E,Braham C,et al.Stress influence on interface in plasma-sprayed hydroxyapatite coatings on titanium alloy.J Biomed Mater Res.2012;60(4):679-684.

[27] Li HW,Sun JY.Effects of dicalcium silicate coating ionic dissolution products on human mesenchymal stem-cell proliferation and osteogenic differentiation.J Int Med Res. 2011; 39(1):112-128.

[28] Zeng XL,Li JF,Yang SH,et al.In Vivo Testing of Canine Prosthetic Femoral Components with HA-Ti Ladder-type Coating on Vacuum Plasma-sprayed Ti Substrate. J Huazhong Univ Sci Technolog Med Sci.2013;33(4):543-550.

[29] Heimann RB,Schurmann N,Muller RT.In vitro and in vivo performance of Ti6Al4V implants with plasma-sprayed osteoconductive hydroxylapatite-bioinert titania bond coat "duplex" systems: an experimental study in sheep.J Mater Sci Mater Med.2004;15(9):1045-1052.

[30] Ker ED,Chu B,Phillippi JA,et al.Engineering spatial control of multiple differentiation fates within a stem cell population. Biomaterials.2011;32(13):3413-3422.
