Three-dimensional reconstruction and finite element analysis of the optic nerve head of a cat

doi:10.3969/j.issn.2095-4344.2016.18.020

Abstract

Abstract:

BACKGROUND: Glaucoma is a kind of eye disease that can cause irreversible blindness which is characterized by visual field loss. Clinical research shows that the optic nerve head has changed before the visual field loss. The morphological changes of the optic nerve head have become the key to determine the early diagnosis of glaucoma and disease development. So it has important significance for us to study the morphological changes of the tissues of optic nerve head under the high intraocular pressure.

OBJECTIVE: To establish three-dimensional finite element model of optic nerve head which includes choroid, retina and lamina cribrosa, and analyze the thickness of the optic nerve head under the acute high intraocular pressure.

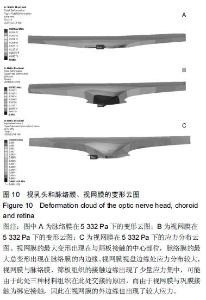

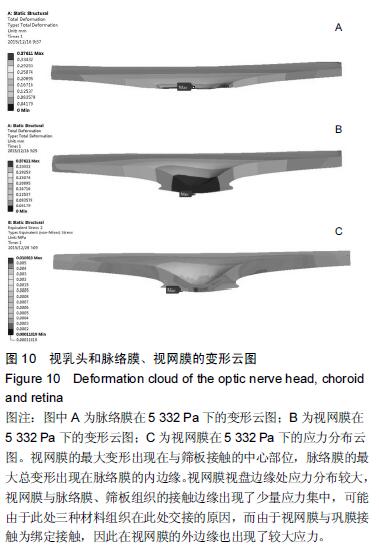

METHODS: (1) We chose healthy cats without refractive media and other eye diseases. The tomographic sequence images of the optic nerve head of a cat were obtained with the intraocular pressure of the normal value by using enhanced depth imaging spectral-domain optical coherence tomography. (2) The three- dimensional model of the retina, choroid and lamina cribrosa was obtained. Three-dimensional model of optic nerve head was established by assembling the model of the retina, the choroid and the lamina cribrosa. The thickness of the retina, choroid and lamina cribrosa was analyzed under different intraocular pressures by using the method of finite element analysis. (3) Animal model of acute ocular hypertension was established by methods of anterior chamber perfusion. The tomographic sequence images of the optic nerve head of a cat were obtained with different intraocular pressures by using enhanced depth imaging spectral-domain optical coherence tomography. Then, we measured the thickness changes of the choroid, retina and lamina cribrosa under different intraocular pressures, and compared with the results of finite element analysis.

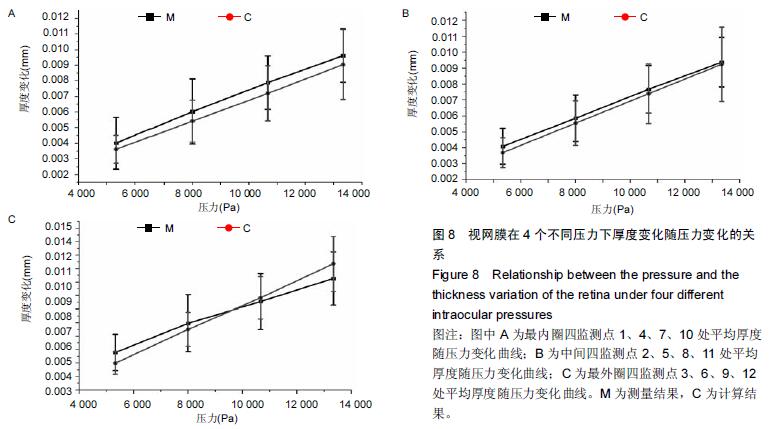

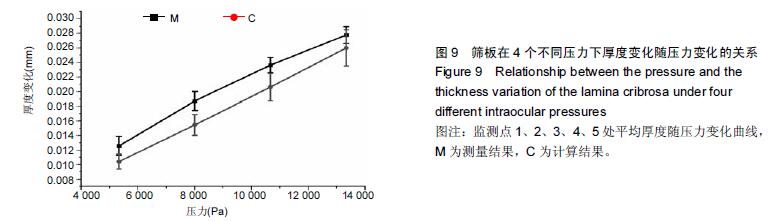

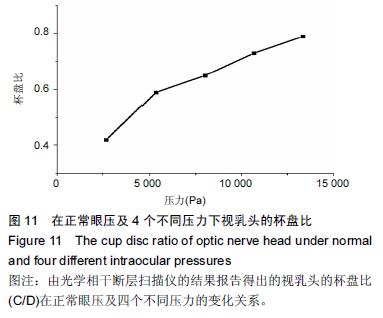

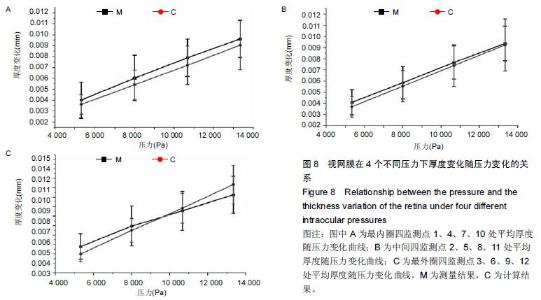

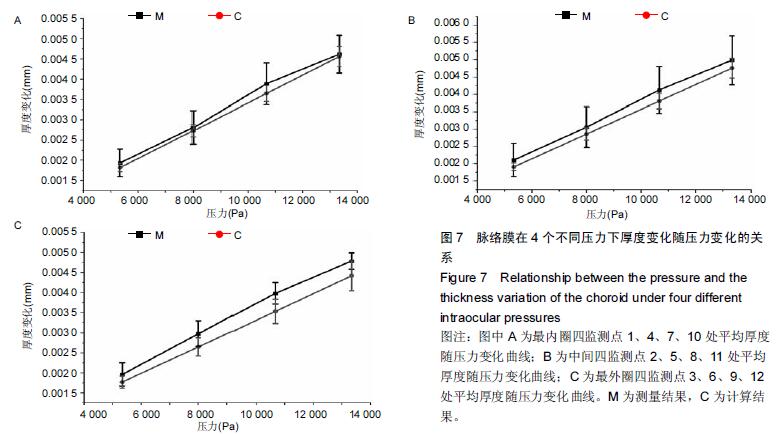

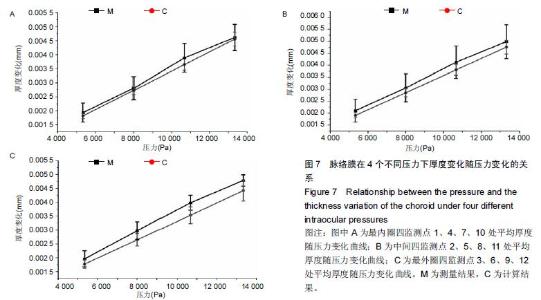

RESULTS AND CONCLUSION: The thickness of the choroid, retina and lamina cribrosa trended to be thin, and the cup dish ratio of optic nerve head increased gradually with the increased intraocular pressures. Regarding to the thickness changes of the choroid, retina and lamina cribrosa, the trend of experimental measurement results was consistent with finite element calculation results. Hence, it is feasible to analyze morphological changes of every fundus tissue under high intraocular pressure using the tomographic sequence images obtained by optical coherence tomography. We can predict the morphological changes of the optic nerve head tissue by finite element analysis, which has certain guiding significance in determining the progression of glaucoma.
中国组织工程研究杂志出版内容重点：肾移植；肝移植；移植；心脏移植；组织移植；皮肤移植；皮瓣移植；血管移植；器官移植；组织工程

Key words: Finite Element Analysis, Intraocular Pressure, Glaucoma, Tissue Engineering

Gao Wei, Yang Yu-tong, Zhang Shi-yao, Zhang Kun-ya, Liu Zhi-cheng, Qian Xiu-qing. Three-dimensional reconstruction and finite element analysis of the optic nerve head of a cat[J]. Chinese Journal of Tissue Engineering Research, 2016, 20(18): 2717-2724.

Figures/Tables 5

References

[1] 刘祖国.眼科学基础[M].北京:人民卫生出版社,2004: 150-152.

[2] Quigley HA, Broman AT. The number of people with glaucoma worldwide in 2010 and 2020. Br J Ophthalmol. 2006;90(3):262-267.

[3] Minckler DS, Bunt AH, Johanson GW. Orthograde and retrograde axoplasmic transport during acute ocular hypertension in the monkey. Invest Ophthalmol Vis Sci. 1977;16(5):426-441.

[4] Quigley HA, Green WR. The histology of human glaucoma cupping and optic nerve damage: clinicopathologic correlation in 21 eyes. Ophthalmology. 1979;86(10):1803-1830.

[5] Bellezza AJ, Rintalan CJ, Thompson HW, et al. Deformation of the lamina cribrosa and anterior scleral canal wall in early experimental glaucoma. Invest Ophthalmol Vis Sci. 2003;44(2):623-637.

[6] Park HY, Jeon SH, Park CK. Enhanced depth imaging detects lamina cribrosa thickness differences in normal tension glaucoma and primary open-angle glaucoma. Ophthalmology. 2012;119(1):10-20.

[7] Quigley HA, Addicks EM, Green WR, et al. Optic nerve damage in human glaucoma. II. The site of injury and susceptibility to damage. Arch Ophthalmol. 1981;99(4): 635-649.

[8] Teng CC, De Moraes CG, Prata TS, et al. Beta-Zone parapapillary atrophy and the velocity of glaucoma progression. Ophthalmology. 2010;117(5):909-915.

[9] Lee EJ, Kim TW, Weinreb RN, et al. β-Zone parapapillary atrophy and the rate of retinal nerve fiber layer thinning in glaucoma. Invest Ophthalmol Vis Sci. 2011;52(7):4422-4427.

[10] Yin ZQ, Vaegan, Millar TJ, et al. Widespread choroidal insufficiency in primary open-angle glaucoma. J Glaucoma. 1997;6(1):23-32.

[11] Weinreb RN, Khaw PT. Primary open-angle glaucoma. Lancet. 2004;363(9422):1711-1720.

[12] Hood DC, Kardon RH. A framework for comparing structural and functional measures of glaucomatous damage. Prog Retin Eye Res. 2007;26(6):688-710.

[13] Quigley HA, Addicks EM. Quantitative studies of retinal nerve fiber layer defects. Arch Ophthalmol. 1982; 100(5): 807-814.

[14] Bellezza AJ, Hart RT, Burgoyne CF. The optic nerve head as a biomechanical structure: initial finite element modeling. Invest Ophthalmol Vis Sci. 2000;41(10):2991-3000.

[15] Yang H, Downs JC, Sigal IA, et al. Deformation of the normal monkey optic nerve head connective tissue after acute IOP elevation within 3-D histomorphometric reconstructions. Invest Ophthalmol Vis Sci. 2009; 50(12):5785-5799.

[16] Yang H, Downs JC, Bellezza A, et al. 3-D histomorphometry of the normal and early glaucomatous monkey optic nerve head: prelaminar neural tissues and cupping. Invest Ophthalmol Vis Sci. 2007;48(11):5068-5084.

[17] Sigal IA, Flanagan JG, Tertinegg I, et al. Finite element modeling of optic nerve head biomechanics. Invest Ophthalmol Vis Sci. 2004;45(12):4378-4387.

[18] Sigal IA, Flanagan JG, Tertinegg I, et al. Reconstruction of human optic nerve heads for finite element modeling. Technol Health Care. 2005;13(4): 313-329.

[19] Sigal IA, Flanagan JG, Tertinegg I, et al. 3D morphometry of the human optic nerve head. Exp Eye Res. 2010;90(1):70-80.

[20] 祁昕征,魏超,杨佳燕,等.三维有限元模型力学分析可预测视乳头的形状变化[J].中国组织工程研究,2013,17(50): 8712-8718.

[21] 林为华,卢敏,唐浩英,等.脉络膜厚度测量在糖尿病性视网膜病变治疗中的应用[J].国际眼科杂志,2015,15(4):714-716.

[22] Zhao Q, Qian X, Li L, et al. Effect of elevated intraocular pressure on the thickness changes of cat laminar and prelaminar tissue using optical coherence tomography. Biomed Mater Eng. 2014;24(6):2349-2360.

[23] Chen TC, Cense B, Miller JW, et al. Histologic correlation of in vivo optical coherence tomography images of the human retina. Am J Ophthalmol. 2006; 141(6):1165-1168.

[24] Toth CA, Birngruber R, Boppart SA, et al. Argon laser retinal lesions evaluated in vivo by optical coherence tomography. Am J Ophthalmol. 1997;123(2):188-198.

[25] Fatehee N, Yu PK, Morgan WH, et al. The impact of acutely elevated intraocular pressure on the porcine optic nerve head. Invest Ophthalmol Vis Sci. 2011; 52(9):6192-6198.

[26] Jonas JB, Hayreh SS, Yong T. Thickness of the lamina cribrosa and peripapillary sclera in Rhesus monkeys with nonglaucomatous or glaucomatous optic neuropathy. Acta Ophthalmol. 2011;89(5):e423-427.

[27] Chung HS, Sung KR, Lee JY, et al. Lamina Cribrosa-Related Parameters Assessed by Optical Coherence Tomography for Prediction of Future Glaucoma Progression. Curr Eye Res. 2015:1-8.

[28] Quigley HA. The contribution of the sclera and lamina cribrosa to the pathogenesis of glaucoma: Diagnostic and treatment implications. Prog Brain Res. 2015;220:59-86.

[29] Omodaka K, Horii T, Takahashi S, et al. 3D evaluation of the lamina cribrosa with swept-source optical coherence tomography in normal tension glaucoma. PLoS One. 2015;10(4):e0122347.

[30] Jones HJ, Girard MJ, White N, et al. Quantitative analysis of three-dimensional fibrillar collagen microstructure within the normal, aged and glaucomatous human optic nerve head. J R Soc Interface. 2015;12(106).

[31] Galassi F, Sodi A, Ucci F, et al. Ocular hemodynamics and glaucoma prognosis: a color Doppler imaging study. Arch Ophthalmol. 2003;121(12):1711-1715.

[32] Grunwald JE, Piltz J, Hariprasad SM, et al. Optic nerve and choroidal circulation in glaucoma. Invest Ophthalmol Vis Sci. 1998;39(12):2329-2336.

[33] Hirooka K, Tenkumo K, Fujiwara A, et al. Evaluation of peripapillary choroidal thickness in patients with normal-tension glaucoma. BMC Ophthalmol. 2012;12:29.

[34] Park HY, Lee NY, Shin HY, et al. Analysis of macular and peripapillary choroidal thickness in glaucoma patients by enhanced depth imaging optical coherence tomography. J Glaucoma. 2014;23(4):225-231.

[35] Sigler EJ, Mascarenhas KG, Tsai JC, et al. Clinicopathologic correlation of disc and peripapillary region using SD-OCT. Optom Vis Sci. 2013;90(1): 84-93.

[36] Song W, Huang P, Dong X, et al. Choroidal Thickness Decreased in Acute Primary Angle Closure Attacks with Elevated Intraocular Pressure. Curr Eye Res. 2015:1-6.

[37] McCourt EA, Cadena BC, Barnett CJ, et al. Measurement of subfoveal choroidal thickness using spectral domain optical coherence tomography. Ophthalmic Surg Lasers Imaging. 2010;41 Suppl: S28-33.

[38] Fénolland JR, Giraud JM, Maÿ F, et al. Enhanced depth imaging of the choroid in open-angle glaucoma: a preliminary study. J Fr Ophtalmol. 2011;34(5):313-317.

[39] Jonas JB. Clinical implications of peripapillary atrophy in glaucoma. Curr Opin Ophthalmol. 2005;16(2):84-88.

[40] Spaide RF. Age-related choroidal atrophy. Am J Ophthalmol. 2009;147(5):801-810.

[41] Strouthidis NG, Fortune B, Yang H, et al. Longitudinal change detected by spectral domain optical coherence tomography in the optic nerve head and peripapillary retina in experimental glaucoma. Invest Ophthalmol Vis Sci. 2011;52(3):1206-1219.

[42] Choi MG, Han M, Kim YI, et al. Comparison of glaucomatous parameters in normal, ocular hypertensive and glaucomatous eyes using optical coherence tomography 3000. Korean J Ophthalmol. 2005;19(1):40-46.

[43] Bowd C, Zangwill LM, Berry CC, et al. Detecting early glaucoma by assessment of retinal nerve fiber layer thickness and visual function. Invest Ophthalmol Vis Sci. 2001;42(9):1993-2003.
