Evaluating cytotoxicity of four different dental metal materials toward L-929 cells using three assay systems

doi:10.3969/j.issn.2095-4344.2013.08.011

Abstract

Abstract:

BACKGROUND: Different methods to evaluate cytotoxicity of the same material may produce different results.
OBJECTIVE: To evaluate the cytotoxicity of nickel-chromium alloy, cobalt-chromium alloy, 3Cr13 stainless steel and pure titanium toward L-929 cells by using three assay systems.
METHODS: The L-929 cells were cultivated in vitro in the extracts of four different dental metal materials (nickel-chromium alloy, cobalt-chromium alloy, 3Cr13 stainless steel and pure titanium) at 24 hours and 72 hours, separately. The L-929 cells, cultured in high-glucose Dulbecco’s modified Eagle’s medium supplemented with 10% fetal calf serum, served as the negative control group. And cells, cultured in high-glucose Dulbecco’s modified Eagle’s medium supplemented with 10% fetal calf serum and 0.7% acrylamide, served as the positive control group. The detection methods for the cytotoxicity included MTT, cell counting kit-8 and crystal violet cell proliferation assay system.

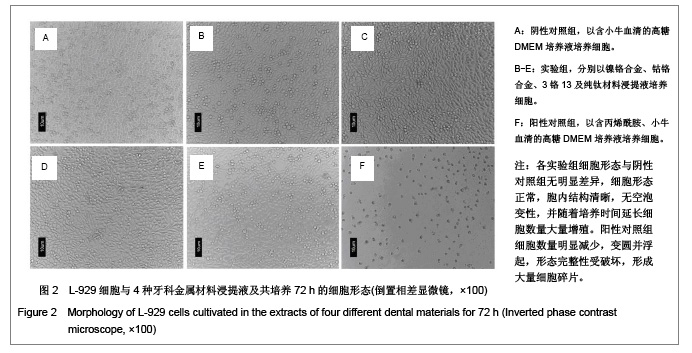

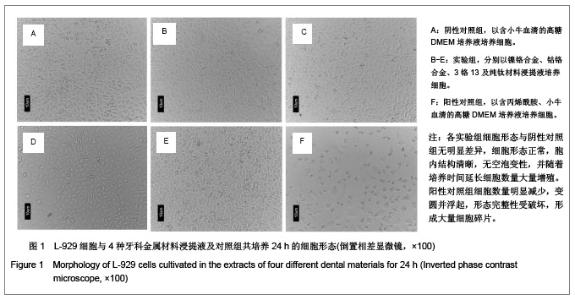

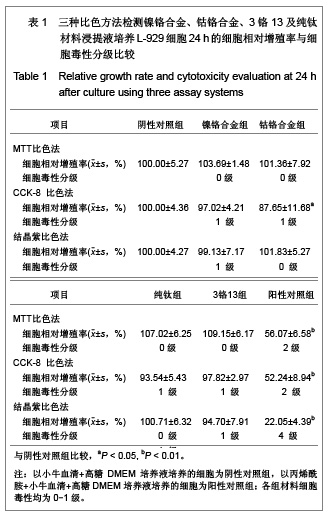

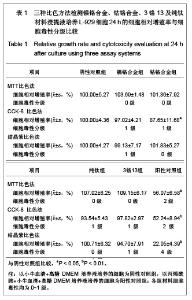

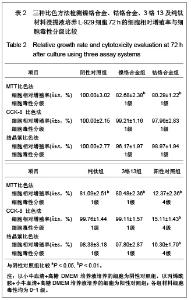

RESULTS AND CONCLUSION: (1) Microscopy showed that the L-929 cells, cultivated in the extracts of four different dental materials, were normal and their intracellular structure was clear. They proliferated well with extension of incubation time. There were no significant differences between the test and negative control groups at all times. However, the number of cells in the positive control group significantly reduced as compared with the negative control group. The morphological integrity destroyed and a lot of cell debris formed. (2) After culture for 24 hours, the cell counting kit-8 assay revealed that the relative growth rate of the cobalt-chromium alloy group was significantly lower than that of the negative group (P < 0.05), while the MTT and crystal violet assay revealed that there were no significant differences in cell viability between the cobalt-chromium alloy and negative control group (P > 0.05). After culture for 72 hours, the MTT assay revealed that the relative growth rate of four dental metal materials groups was significantly lower than that of the negative group (P < 0.01), while the cell counting kit-8 and crystal violet assay revealed that there were no significant differences in cell viability between the four dental metal materials and negative control group (P > 0.05). The cytotoxicity of the tested dental metal materials was grade 0-1, which meets the safety standard. These indicate that these four dental metal materials have good biological safety.

Key words: biomaterials, tissue engineering oral materials, nickel-chromium alloy, cobalt-chromium alloy, 3Cr13, pure titanium, dental metal materials, cytotoxicity, L-929 cells, MTT colorimetric assay, cell counting kit-8 assay, crystal violet assay, provincial grants-supported paper, biomaterial photographs-containing paper

CLC Number:

R318

Chen Yao-zhong, Liu Gen-di, Song Ping, Gao Feng. Evaluating cytotoxicity of four different dental metal materials toward L-929 cells using three assay systems[J]. Chinese Journal of Tissue Engineering Research, 2013, 17(8): 1390-1397.

Figures/Tables 5

References

[1] Gil FJ,Sánchez LA,Espías A,et al.In vitro corrosion behavior and metallic ion release of different prosthodontic alloys.Int Dent J.1999;49:361-367.

[2] McGinley EL,Moran GP,Fleming GJ.Base-metal dental casting alloy biocompatibility assessment using a human-derived three-dimensional oral mucosal model.Acta Biomater.2012;8(1):432-438.

[3] McGinley EL,Fleming GJ,Moran GP.Development of a discriminatory biocompatibility testing model for non-precious dental casting alloys.Dent Mater.2011;27(12):1295-1306.

[4] Xu WX,Su JS.Huaxi Kouqiang Yixue Zazhi.2012;30(3): 255-258. 许卫星,苏俭生.3种金属烤瓷冠修复后龈沟液中白细胞介素-8水平动态测定[J].华西口腔医学杂志,2012,30(3):255-258.

[5] Galo R,Ribeiro RF,Rodrigues RC,et al.Effects of chemical composition on the corrosion of dental alloys.Braz Dent J. 2012;23(2):141-148.

[6] Faria AC,Rosa AL,Rodrigues RC,et al.In vitro cytotoxicity of dental alloys and cpTi obtained by casting.J Biomed Mater Res B Appl Biomater.2008;85(2):504-508.

[7] Faria AC,Rodrigues RC,Antunes RP,et al.Effect of temperature variation on the cytotoxicity of cast dental alloys and commercially pure titanium.J Appl Oral Sci.2009;17(5): 421-426.

[8] Garhammer P,Schmalz G,Hiller KA,et al.Patients with local adverse effects from dental alloys: frequency, complaints, symptoms, allergy. Clin Oral Investig.2001;5(4):240-249.

[9] Zhao XY. Zhonghua Kouqiang Yixue Zazhi.2009; 44(7): 401-403. 赵信义.浅谈烤瓷修复用镍合金的安全性及不良反应[J].中华口腔医学杂志,2009,44(7):401-403.

[10] Venclíkova Z,Benada O,Bártova J,et al.Metallic pigmentation of human teeth and gingival:morphological and immunological aspects.Dent Mater J.2007;26(1): 96-104.

[11] Kedici PS,Memiko?lu MM,Kansu G,et al.Case report: ionisation tendency of a base metal alloy in the oral environment.Eur J Prosthodont Restor Dent.1995; 3(5): 231-234.

[12] Kalkwarf KL.Allergic gingival reaction to esthetic crowns.Quintessence Int Dent Dig.1984;15(7):741-745．

[13] Li RQ,Kan HX,Zheng ZF. Zhongguo Zuzhi Gongcheng Yanjiu yu Linchuang Kangfu.2009;13(25):4989-4992. 李榕卿,阚洪霞,郑宗富.镍铬合金烤瓷冠修复对牙周组织的影响[J].中国组织工程研究与临床康复,2009,13(25):4989-4992.

[14] Li-Chun W,Ye S,Teng M.Comparison of clinical effects of au-pt based and ni-cr based porcelain crowns.Chin Med Sci J.2012;27(3):167-170.

[15] Bai YX,Xie WL,Sun Y.Xiandai Kouqiang Yixue Zazhi.2009; 23(4):386-388.   白轶昕,谢伟丽,孙宇.两种非贵金属烤瓷冠的临床应用效果评价[J].现代口腔医学杂志,2009,23(4):386-388.

[16] Zhang Y.Shiyong Kouqiang Yixue Zazhi.2010;26(2):244-247. 张英.3种全冠修复体对基牙龈沟液中酶水平的影响[J].实用口腔医学杂志,2010,26(2):244-247.

[17] ISO 10993-12:2002,Biological evaluation of medical devices- Part 12:Sample preparation and reference materials.

[18] Hao HP.Beijing:Standards Press of China.2000:285-289, 334-347. 郝和平.医疗器械生物学评价标准实施指南[M].北京:中国标准出版,2000:285-289, 334-347.

[19] Pu MH,Luo XJ.Kouqiang Yixue Yanjiu.2009;25(1):51-54. 浦美泓,罗晓晋.口腔修复非贵金属材料对L-929细胞毒性的研究[J].口腔医学研究, 2009,25(1):51-54.

[20] Imirzalioglu P,Alaaddinoglu E,Yilmaz Z,et al.Influence of recasting different types of dental alloys on gingival fibroblast cytotoxicity.J Prosthet Dent.2012;107(1):24-33.

[21] Wang X,Xia Y,Liu L,et al.Comparison of MTT assay, flow cytometry, and RT-PCR in the evaluation of cytotoxicity of five prosthodontic materials.J Biomed Mater Res B Appl Biomater. 2010;95(2):357-364.

[22] Qiao GY,Shen QP,Su JS.Shanghai Kouqiang Yixue.2010; 19(1): 72-76.   乔广艳,沈庆平,苏俭生.3种临床常用烤瓷合金对小鼠成纤维细胞L929的毒性评价[J].上海口腔医学,2010,19(1):72-76.

[23] Jin CS,Jiang J,Zhan DS. Zhongguo Zuzhi Gongcheng Yanjiu yu Linchuang Kangfu.2009;13(21):4181-4184. 金长山,江娟,战德松.细胞培养法评价自制镍铬烤瓷合金的细胞毒性[J].中国组织工程研究与临床康复,2009,13(21): 4181-4184.

[24] Tu M,Liang W,Wu T,et al.Evaluation of cytotoxicity of resin bonding materials toward human oral epithelial cells using three assay systems.J Dent Sci.2009;4(4):178-186.

[25] Mosmann T.Rapid colorimetric assay for cellular growth and survival: application to proliferation andcytotoxicity assays.J Immunol Methods.1983;65(1-2):55-63.

[26] Lü XY,H.F.Kappert.Zhonghua Kouqiang Yixue Zazhi.1995; 30(6): 377-379.   吕晓迎,H.F.Kappert.牙科材料细胞毒性评定的新方法(MTT试验)[J].中华口腔医学杂志,1995,30(6):377-379.

[27] Xiong JW,Xiao H,Zhang ZX.Jiguang Shengwu Xubeao.2007; 16(5):559-562. 熊建文,肖化,张镇西.MTT法和CCK-8法检测细胞活性之测试条件比较[J].激光生物学报,2007,16(5):559-562.

[28] Zhang D,Nan L,Ren L,et al.Kouqiang Yixue.2012;32(1):5-8.    张丹,南黎,任玲,等.CCK-8法和MTT法评价医用抗菌不锈钢细胞毒性的比较研究[J].口腔医学,2012,32(1):5-8.

[29] Li N,Wan WT,Jin LH. Guizhou Daxue Xuebao.2009; 26(3): 18-20. 李宁,万文婷,金林红.CCK-8法和MTT法检测人前列腺癌PC3细胞活性的最佳条件比较研究[J].贵州大学学报:自然科学版,2009, 26(3):18-20.

[30] Eckhardt A,Müller P,Hiller KA,et al.Influence of TEGDMA on the mammalian cell cycle in comparison with chemotherapeutic agents.Dent Mater.2010;26(3):232-241.

[31] Thumwanit V,Kedjarune U.Cytotoxicity of polymerized commercial cyanoacrylate adhesive on cultured human oral fibroblasts.Aust Dent J.1999;44(4):248-252.
