Histocompatibility of
poly(L-lactide-co-ε-caprolactone)/cross-linked polyvinylpyrrolidone ureteral
stent grafted into the rat bladder

doi:10.3969/j.issn.2095-4344.2214

Abstract

Abstract:

BACKGROUND: With the development of tissue engineering, materials science, and biomechanics, developing new biodegradable ureteral stent has become an issue of concern. The ureteral stent with poly(L-lactide-co-ε-caprolactone)/crosslinked polypyrrolidone was prepared.

OBJECTIVE: To explore the histocompatibility of the ureteral stent grafted into the bladder of Sprague-Dawley rats.

METHODS: Sixty male Sprague-Dawley rats (provided by Laboratory Animal Center of Sichuan Academy of Traditional Chinese Medicine) were randomly divided into four groups, each group containing 15 rats. The sham operation group was directly sutured after opening a small incision on the outside of the bladder, and no material was implanted. The other three groups were implanted with polyurethane ureteral stent (control group), poly(L-lactide-co-ε-caprolactone)/8% cross-linked polyvinylpyrrolidone ureter stent (experiment group 1), poly(L-lactide ε- caprolactone)/5% cross-linked polyvinylpyrrolidone ureteral stent (experiment group 2) after opening a small incision on the outer side of the bladder, followed by suturing the incision. At 4, 8, and 16 weeks after operation, the local anatomy of the bladder was observed. The histocompatibility of the materials in each group was observed by hematoxylin-eosin staining. The study was approved by the Ethical Committee of Laboratory Animal Analysis and Testing Center of West China School of Public Health, Sichuan University.

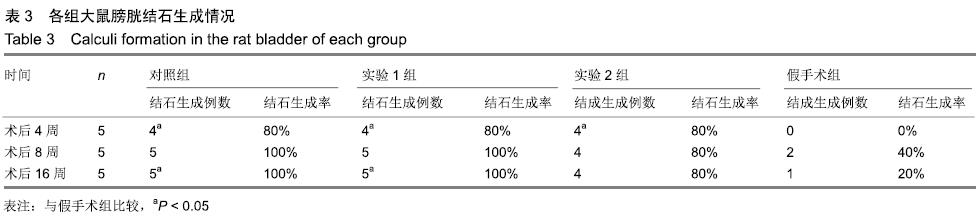

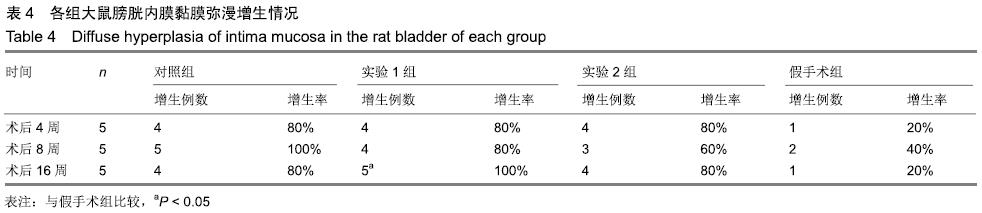

RESULTS AND CONCLUSION: (1) Gross observation: at 4, 8 and 16 weeks postoperatively, different degrees of chronic inflammation reaction occurred in the control group and experimental group 1. In the experiment group 2, chronic inflammatory reaction appeared at 4 weeks postoperatively. The stone formation rate in the control group and experimental group 1 was significantly higher than that in the sham operation group (P < 0.05) at 4 and 16 weeks postoperatively, which showed no significant difference at 8 weeks postoperatively among groups (P > 0.05). The calculus formation rate in the experimental group 2 was significantly higher than that in the sham operation group only at 4 weeks postoperatively, and had no significant difference at other time points (P > 0.05). (2) Pathological observation: different degrees of foreign body in the outer membrane, inflammatory reaction and diffuse hyperplasia of the mucosa were found in the control group, experimental groups 1 and 2 at different time points postoperatively. There was no significant difference in the rate of diffuse hyperplasia of the mucosa at different time points postoperatively among groups (P > 0.05), but higher than that in the sham operation group (P < 0.05). (3) These results indicate that the calculus formation rate and bladder histological reaction of poly(L-lactide-co-ε-caprolactone)/cross-linked polyvinylpyrrolidone ureter stent are comparable with those of commercial ureteral stents, especially the addition of 5% cross-linked polyvinylpyrrolidone has better histocompatibility.

Key words: biomaterials, histocompatibility, L-Lactide, ε-caprolactone, cross-linked polyvinylpyrrolidone, ureteral stent tube, bladder, pathology

CLC Number:

Tang Mengmeng, Chen Hechun, Xie Hongchen, Zhang Yu, Tan Xiaoshuang, Sun Yixuan, Huang Yina. Histocompatibility of poly(L-lactide-co-ε-caprolactone)/cross-linked polyvinylpyrrolidone ureteral stent grafted into the rat bladder[J]. Chinese Journal of Tissue Engineering Research, 2020, 24(4): 583-588.

Figures/Tables 7

References

[1] 张昊,徐卫丽,张凯,等.输尿管内支架管在泌尿外科中的应用价值及并发症分析[J].中国卫生产业,2014,18(29):38.
[2] JACOBSEN S, KLEMETSEN Ø, BIRKELUND Y.Vesicoureteral reflux in young children: a study of radiometric thermometry as detection modality using an ex vivo porcine model.Phys Med biol.2012;57(17):5557.
[3] ZHANG MQ, ZOU T, HUANG YC, et al.Braided thin-walled biodegradable ureteral stent: Preliminary evaluation in a canine model. Int J Urol. 2014; 21(4):401.
[4] 王瑞庆,王艳波,陶森.多镜联合取出遗忘输尿管支架管合并结石1例[J].中国现代医学杂志,2016,26(9):131-133.
[5] BAUMGARTEN L, DESAI A, SHIPMAN S, et al.Spontaneous passage of ureteral stones in patients with indwelling ureteral stents.Can J Urol. 2017;24(5):9024-9029.
[6] 杨刚,沈天一,周昱霖,等.输尿管内支架管滞留后拔除困难的临床处理进展[J].医学研究生学报,2018,31(12):1314 .
[7] 施云峰,李维国,张捷等.双J管留置时间对输尿管结石并感染患者疗效的影响[J].中华医学杂志,2016,92(32):2588-2591.
[8] Taguchi M, Inoue T, Muguruma K, et al.Impact of loop-tail ureteral stents on ureteral stent-related symptoms immediately after ureteroscopic lithotripsy: Comparison with pigtail ureteral stents.Investig Clin Urol. 2017;58(6):440-446.
[9] AL-AWADI K, KEHINDE EO, AL-HUNAYAN A, et al.Iatrogenic Ureteric Injuries: Incidence, Aetiological Factors and the Effect of Early Management on Subsequent Outcome.Int Urol Nephrol.2005;37(2):235.
[10] GENTILE P, MCCOLGAN-BANNON K, GIANONE NC, et al. Biosynthetic PCL-graft-Collagen Bulk Material for Tissue Engineering Applications. Materials.2017;10(7):693.
[11] CHUNG D, BRIGGS J, TURNEY BW, et al.Management of iatrogenic ureteric injury with retrograde ureteric stenting: an analysis of factors affecting technical success and long-term outcome.Acta Radiol.2017; 58(2):170.
[12] 赵立江.输尿管支架管在泌尿外科的临床实用价值[J].中西医结合心血管病杂志,2017,5(15):95.
[13] 周雪健,许华,姜昊文.可降解输尿管支架的研究现状及临床前景[J].临床泌尿外科杂志,2017,32(12):979-984.
[14] BARROS AA, OLIVEIRA C, RIBEIRO AJ, et al.In vivo assessment of a novel biodegradable ureteral stent.World J Urol.2018;36(2):277.
[15] WOLTERS HH, HEISTERMANN HP, STÖPPELER S, et al.A New Technique for Ureteral Defect Lesion Reconstruction Using an Autologous Vein Graft and a Biodegradable Endoluminal Stent.J Urology.2010;184(3):1197.
[16] 钟华,刘建纯,郭乐斌,等.可吸收内固定PLLA材料制备及生物相容性评价[J].国际医药卫生导报,2018,24(8):1133.
[17] MOURE C, QASSEMYAR Q, DUNAUD O, et al.Skeletal stability and morbidity with self-reinforced P (l/dL) LA resorbable osteosynthesis in bimaxillary orthognathic surgery.J Cranio Maxill Surg.2012;40(1):55.
[18] JAYAKUMAR R, CHENNAZHI KP, SRINIVASAN S, et al.Chitin Scaffolds in Tissue Engineering.Int J Mol Sci. 2011;12(3):1876.
[19] STERLING JA, GUELCHER SA.Biomaterial Scaffolds for Treating Osteoporotic Bone.Curr Osteoporos Rep.2014;12(1):48.
[20] FIORENTINO SM, CARFÌ PAVIA F, LA CARRUBBA V, et al. Characterization of PLLA scaffolds for biomedical applications.Int J Polym Mater.2017;66(9):469.
[21] 肖世伟,李亚楠,刘军.可降解输尿管支架管的研究进展[J].中华泌尿外科杂志,2018,9(1):76-77.
[22] QI H, YE Z, REN H, et al.Bioactivity assessment of PLLA/PCL/HAP electrospun nanofibrous scaffolds for bone tissue engineering.Life Sci. 2016;148:139.
[23] 韦茜茜,金嘉长,周密,等.PCL基聚合物的制备及其在生物医学工程中的应用[J].宁波大学学报(理工版), 2018,31(4):36.
[24] MALIKMAMMADOV E, TANIR TE, KIZILTAY A, et al.PCL and PCL-based materials in biomedical applications.J Biomater Sci Polym Ed. 2018;29(7-9):863.
[25] SIDDIQUI N, ASAWA S, BIRRU B, et al.PCL-Based Composite Scaffold Matrices for Tissue Engineering Applications.Mol Biotechnol. 2018;60(7):506.
[26] ABEDALWAFA M, WANG F, LI W, et al.Biodegradable poly-epsilon- caprolactone (PCL) for tissue engineering applications: a review.Rev Adv Mater Sci.2013;34(2):123-140.
[27] 刘秀萍,臧恒昌,孙海龙.交联聚乙烯吡咯烷酮的生产应用与市场前景[J].食品与药品,2012,14(9):366-368.
[28] 叶佳佳,杨青芳,吴杨传,等.硅橡胶/PVPP水凝胶共混型吸水膨胀材料的制备及性能研究[J].橡胶工业,2008,55(6):325-328.
[29] 陈和春,张大宏,熊成东.等.一种用于可降解输尿管支架管的复合材料及可降解输尿管支架管:中国, 201210538575.X[P]. 2013-04-17
[30] 吴航,张丽芳,熊左春.等.酯交换反应条件对聚(L-丙交酯-co-Ɛ-己内酯)力学性能的影响[J].合成化学, 2011,19(5):590-594.
[31] 鲁越,熊左春,李庆,等.聚(L-丙交酯-co-Ɛ-己内酯)力学性能和降解性能研究[J].塑料工业,2012,38(8):34-38.
[32] CERCA N, PIER GB, VILANOVA M, et al.Quantitative analysis ofadhesion and biofilm formation on hydrophilic and hydrophobicsurfaces ofclinical isolates of Staphylococcus epidermidis.ResMicrobiol. 2005;156(4):506-514.
[33] 熊富忠,赵小希,廖胤皓,等.材料表面特征对生物膜形成的影响及其应用[J].微生物学通报,2018,45(1):155-165.
[34] 尹卫民.治疗短鼻畸形的可控性膨胀材料的实验研究[D].广州:南方医科大学, 2008:32-40.
[35] FISCHER KM, LOUIE M, MUCKSAVAGE P.Ureteral Stent Discomfort and Its Management.Curr Urol Rep.2018;19(8):1-7.
[36] CHEW BH, LANGE D.Advances in ureteral stent development.Curr Opin Urol.2016;26(3):277.
[37] WANG L, YANG G, XIE H, et al.Prospects for the research and application of biodegradable ureteral stents: from bench to bedside.J Biomater Sci Polym Ed.2018;29(14):1657.
[38] QI H, YE Z, REN H, et al.Bioactivity assessment of PLLA/PCL/HAP electrospun nanofibrous scaffolds for bone tissue engineering.Life Sci. 2016;148:139.
[39] 姚海军,赵阳,周哲,等.人脂肪来源干细胞与左旋聚乳酸/聚己内酯支架的体内外生物相容性研究[J].组织工程与重建外科杂志,2014,10(5):255-258.
[40] 姚丹,郝岱峰,赵帆,等.富血小板血浆联合聚乳酸/聚己内酯对小型猪破片伤深部软组织缺损愈合的影响[J].中华烧伤杂志,2019,35(1):31-39.
[41] 陈丽芬,吴建辉,黄冬妍,等.探讨微孔树脂应用于膀胱结石模型的可行性[C]. 2017年生殖毒理药理学理论与技术及科技产品研发学术交流会论文集, 2017.
[42] 张薇,陈苑,邹移海,等.不同剂量化学纯三聚氰胺诱发SD大鼠尿结石的比较[J].中国实验方剂学杂志,2011,17(14):102-105.
[43] 曹建英,曲秀君,段晓勇.石淋消汤对大鼠膀胱结石的溶解作用[J].中国实用医药,2012,7(27):251-252.
[44] 白殿卿,范薇.医学实验动物等级划分及生物医学[J].青海医药杂志, 1993, 36(5):59.
[45] 王妍,王汉中,张英,等.生物骨组织立体培养分化和动物体内修复实验[J].中国组织工程研究,2017,21(6):836-842.
