In vivo biosafety and histocompatibility of absorbable poly-D,L-lactic acid screws implanted with ultrasound-assisted technology

doi:10.3969/j.issn.2095-4344.2324

Abstract

Abstract:

BACKGROUND: According to the characteristics of low glass transition temperature of poly-D,L-lactic acid, we developed a new ultrasonic welding device to treat limb fractures with restorable poly-D,L-lactic acid screws. But whether the physical properties of poly-D,L-lactic acid changed by ultrasound has impact on material safety is unknown. In addition, under high intensity ultrasound action, the effects of absorbable screws on tissues around the absorbable screws remain unclear.

OBJECTIVE: To evaluate the biosafety and histocompatibility of ultrasound-assisted absorbable poly-D,L-lactic acid screws in rats.

METHODS: Twenty-four adult SD rat models of 1.6 mm-sized bone defects were made in the anterior side of the right tibial shaft, and then randomly divided into two groups. Absorbable poly-D,L-lactic acid screws were implanted in the experimental group and nothing was implanted in the control group. At postoperative 1, 3, 7 and 14 days and 2, 4, 6, and 8 weeks, routine blood tests, blood biochemical and serum inflammatory indicators were detected. At postoperative 2 weeks and 1, 3 and 6 months, gross observation, X-ray imaging, and histological observation of the bone defects were performed. This study was approved by the Animal Ethics Committee, West China Hospital of Sichuan University, China.

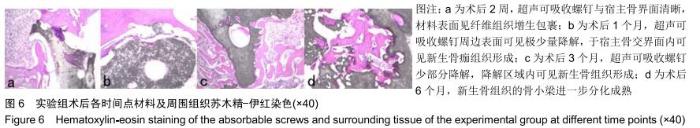

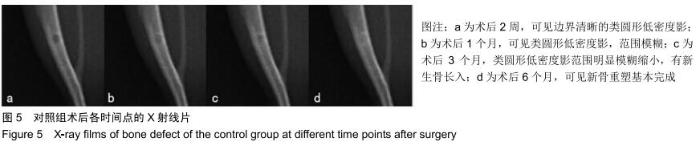

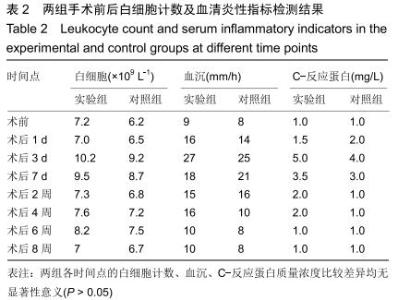

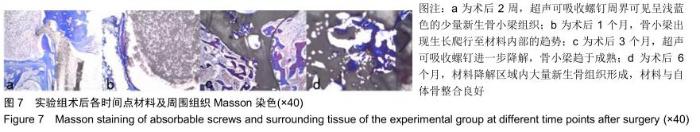

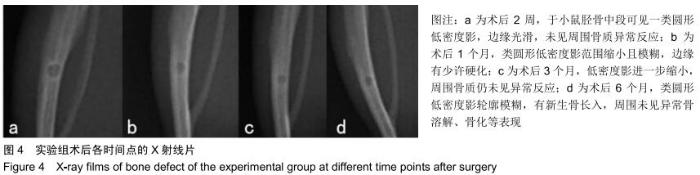

RESULTS AND CONCLUSION: (1) In both experimental and control groups, after surgery, wounds healed well without signs of infection and rejection, and there were no abnormal fluctuations in routine blood tests, biochemical and inflammatory indicators. (2) Gross observation revealed that by 1 month after surgery, absorbable poly-D,L-lactic acid screws began to degrade with a small amount of cartilage callus crawling towards the center; by 6 months after surgery, there were a large amount of new bone around the screws, and no abnormal reactive hyperplasia was observed in the surrounding tissues. (3) X-ray showed that the bone defect area in the experimental group was gradually reduced, and by 6 months after surgery, there were a large amount of new bone, and no abnormal reaction of the surrounding bone matrix was observed. (4) Histological observation revealed that at 2 weeks after surgery, the interface between the screws and the bone was clear, adjacent bone trabeculae did not grow in the screws, and fibrous tissue proliferated and covered the surface of the materials. The screws gradually degraded, new bone tissue gradually increased and matured. (5) These results suggest that ultrasound-assisted absorbable poly-D,L-lactic acid screws exhibit good biosafety and histocompatibility and can degrade gradually in vivo.

Key words: ultrasound-assisted, ultrasound-bonding, absorbable material, absorbable screws, poly-D,L-lactic acid, bone defect model, biosafety, histocompatibility

CLC Number:

Lei Senlin, Liu Hongyuan, Yang Hongsheng, Xiong Yan, Duan Hong. In vivo biosafety and histocompatibility of absorbable poly-D,L-lactic acid screws implanted with ultrasound-assisted technology[J]. Chinese Journal of Tissue Engineering Research, 2020, 24(34): 5454-5460.
