Origin and trend of the upper eyelid artery in the eyelid region of a skull model after blood reperfusion: an anatomical observation

doi:10.3969/j.issn.2095-4344.0143

Abstract

Abstract:

BACKGROUND: Upper eyelid flap grafting-related vessels such as superficial temporal artery, supratrochlear artery, supraorbital artery trunk are reported. Upper eyelid artery dissection is becoming more and more important for the surgery on the eyelid, but there is a lack of anatomical analysis of upper eyelid artery.
OBJECTIVE: To measure the anatomical position of the upper eyelid artery in the eyelid region, and to provide anatomical basis for adjacent flap grafting.
METHODS: Twenty adult skull specimens were dissected, and a reference coordinate system was made based on the inner canthus connection for the X axis, and the center line for the Y axis. The red lactoprene was injected into the skull model via common carotid artery. The locations A-E of the upper eyelid artery in the eyelid area were measured.
RESULTS AND CONCLUSION: The upper eyelid artery in the eyelid area was mainly from the supratrochlear artery and the supraorbital artery, generally paralleling to the X axis. The upper eyelid branch originated from the supratrochlear artery was located at the projection of the inner canthus, with a total length of 24.50 mm, and a diameter of 0.51 mm, extended to the outer canthus and the diameter of the vessel gradually reduced. The upper eyelid branch originated from the supraorbital artery was located at pupil and inner canthus junction 1/2 projection. The total length of the blood vessels was about 23-24.6 mm, and the diameter of the blood vessels was (0.55±0.05) mm. In the current study, we obtained the surface projecting of upper eyelid artery in the eyelid area by establishing the skull model of blood perfusion, which provides an anatomic basis for upper eyelid flap grafting.

中国组织工程研究杂志出版内容重点：组织构建；骨细胞；软骨细胞；细胞培养；成纤维细胞；血管内皮细胞；骨质疏松；组织工程

Key words: Cadaver, Dissection, Surgical Flaps, Transplantation, Tissue Engineering

CLC Number:

R318

Li Xu-feng1, Liu Yuan-yuan2, Ren Shan-shan2, Wang Ai1, Lu Xiao-sheng2. Origin and trend of the upper eyelid artery in the eyelid region of a skull model after blood reperfusion: an anatomical observation[J]. Chinese Journal of Tissue Engineering Research, 2018, 22(8): 1241-1246.

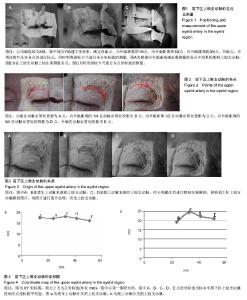

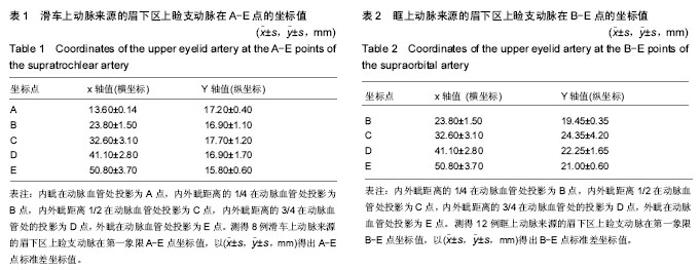

Figures/Tables 2

References

[1] 杨超,陈江萍,薛春雨,等.联合应用局部皮瓣修复复杂性眼睑缺损[J].中国美容整形外科杂志,2010,21(9):525-528.

[2] 曹月坡,赵晓军.风筝皮瓣在眼周皮肤缺损的应用观察[J].中国美容医学,2015,24(4):70-71.

[3] 淳璞. 上睑软组织结构的应用解剖学研究[D].大连医科大学, 2015

[4] 刘海鹏. 提上睑肌-Müller\'s肌复合体的相关解剖及其临床应用研究[D].吉林大学.2014

[5] Cong LY,Phothong W, Lee SH, et al. Topographic Analysis of the Supratrochlear Artery and the Supraorbital Artery: Implication for Improving the Safety of Forehead Augmentation. Plast Reconstr Surg. 2017;139(3):620e-627e.

[6] Fathi R, Biesman B, Cohen JL. Commentary on: An Anatomical Analysis of the Supratrochlear Artery: Considerations in Facial Filler Injections and Preventing Vision Loss. Aesthet Surg J.2017;37(2):209-211.

[7] 胡守舵,佳瑜,张海明,等. 眶周皮肤软组织缺损的扩张皮瓣治疗[J].中国美容整形外科杂志,2009,20(5):272-275.

[8] 刘秀明,王曙红,李建昌. 局部皮瓣联合异体巩膜移植修复眼睑恶性肿瘤切除术后眼睑缺损[J].现代预防医学,2013,40(23): 4459-4460,4463.

[9] 侯捷,何剑峰. 自体硬腭黏膜移植修复眼睑缺损的临床观察[J].广西医科大学,2015,32(1):127-128.

[10] Scuderi N, Rubino C.Island chondro-mucosal flap and skingraft, a newtechnique in eyelid reconstruction.Br J Plast Surg.1994;47:57-65.

[11] 喻小红.额部皮瓣修复眼睑内侧缺损眼12例分析[J].中国肿瘤杂志,2007,16(7): 559-560.

[12] 柴筠,余道江,孙卫,等.鼻唇沟窄蒂皮瓣修复下眼睑皮肤缺损[J].中国美容整形外科杂志,2013,24(1):51-52.

[13] 蔡震,蒋海越,国冬军,等. 颞浅动脉岛状皮瓣修复下眼睑缺损[J].中国美容医学,2006,15(12):1372-1373.

[14] 赵天兰,程新德,李光早,等.眼睑复合组织瓣修复眼睑全层缺损[J].中华医学美学美容杂志,2003,9(2):72-74.

[15] McCarthy JG, Lorenc ZP, Cutting C, et al.The median forehead flap revisited:the blood supply. Plast Reconstr Surg. 1985;76(6):866-869.

[16] Menick FJ. Aesthetic refinements in use of forehead for nasal recon-struction: the paramedian forehead flap. Clin Plast Surg. 1990;17(4):607-622.

[17] Shumrick KA, Smith TL.The anatomic basis for the design of forehead flaps in nasal reconstruction. Arch Otolaryngol Head Neck Surg. 1992;118(4):373-379.

[18] 范飞,陈宗基,严义坪.鼻成形术中额颞部血管的应用解剖学研究[J].中国临床解剖学杂志,1997, 15(3):161-164.

[19] Erdogmus S, Govsa F. Arterial features of inner canthus region: confirming the safety for the flap design. J Craniofac Surg. 2006;17(5):864-868.

[20] 刘明明,林渊,孙建宇,等.滑车上动脉及其固定皮支在鼻再造术中的解剖学研究[J].中华临床医师杂志:电子版, 2013,7(3): 1046-1048.

[21] 过云,於平,丁炯,等.改良前额旁正中皮瓣鼻再造术的解剖学研究[J].南京医科大学学报:自然科学版,2008,28(7):864-867.

[22] 许冬明,牛松青,韩锋,等. 眶上神经、血管主干的坐标定位[J].解剖学杂志,2014, 37(6):777-779,832.

[23] 徐静,张阳,谢波,等.滑车上动脉的影像学研究及在鼻再造术中的应用[J].中国修复重建外科杂志,2012,26(1):46-49.

[24] 姜兴超.额肌瓣的相关解剖学研究[D].吉林大学,2013.

[25] 李和平,刘学敏,武志兵. 颞浅动脉额支的观测及其临床意义[J].解剖学研究,2005, 27(1):52-55.

[26] 李芳，李雪.自体脂肪移植在面部抗衰老中的临床应用[J].中国医疗美容，2017,7(11):16-18.

[27] 乔向坤,邢宇龙.自体脂肪颗粒移植联合钝针注射在填充面部年轻化中的应用[J].实用中西医结合临床,2017,17(11):98-99.

[28] 曾令寰,岑瑛,陈俊杰.等.基于中面部深层脂肪解剖亚单位的自体脂肪精细移植的效果评价[J].华西医学,2017,32(1):1876-1881.

[29] 夏秉承.基于中面部深层脂肪解剖亚单位的自体脂肪精细移植的效果评价[J].中国实用医药,2017,12(34):75-76.

[30] 张卓然.基于中面部深层脂肪解剖亚单位的自体脂肪精细移植的效果评价.[J].中国美容医学,2017,26(7):22-24.

[31] 宋慧锋,柴家科,王祎蓉,等.肉毒素联合透明质酸注射在面部年轻化中的应用[D].中华医学会整形外科学分会第十一次全国会议、中国人民解放军整形外科学专业委员会学术交流会、中国中西医结合学会医学美容专业委员会全国会议论文集,2011.

[32] 张世仁,金云波,林晓曦.A型肉毒毒素在面部年轻化中的应用进展[J].组织工程与重建外科杂志,2017,13(4):238-240.

[33] 富小清,夏洪福,许进前,等.A型肉毒毒素进行面部除皱的临床效果研究[J].中国美容医学,2015,24(16):8-9.

[34] 陈竹林,黄光,赵涵,等.面部注射美容手术致失明和肢体偏瘫的临床分析[J].中国神经免疫学和神经病学杂志, 2017,24(6): 438-440.

[35] 徐丹枫.面部注射填充物并发症处理及疗效观察[D].浙江大学, 2017.

[36] 李小静,易成刚.面部注射填充术血管栓塞致失明并发症分析[J].中国美容医学,2015,24(1):77-83.

[37] 赖琳英,陈敏亮,梁黎明.面部注射美容致局部皮肤并发症的救治[J].中国美容整形外科杂志,2017.28(3):133-134.

[38] 文军慧. 睑周的临床解剖学研究进展[J]. 中国临床解剖学杂志, 2000, 18(2):180-182.

[39] 沈倩云,章一新,李靖,等.鼻唇沟穿支皮瓣在鼻翼修复中的应用[J].中国美容整形外科杂志,2010, 21(1) :14-16.
