In vitro cytocompatibility of biomedical (Y0.95Eu0.05)2O3 nanomaterials

doi:10.3969/j.issn.2095-4344.2015.12.009

Abstract

Abstract:

BACKGROUND: Compared with organic fluorescent dyes and fluorescent proteins, rare earth nanomaterials have higher sensitivity, better optical stability, and lower cytotoxicity.

OBJECTIVE: To investigate the in vitro cytocompatibility of (Y_0.95Eu_0.05)₂O₃ rare earth nanomaterial and the effect of amine functionalization on the material cytocompatibility.

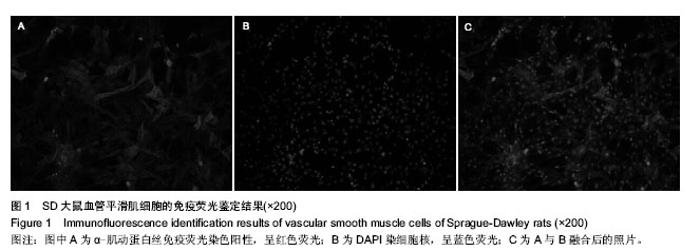

METHODS:(Y_0.95Eu_0.05)₂O₃ nanomaterials were synthesized using sol-gel method, and underwent amine functionalization. Amine-functionalized samples (10, 25, 50, 100, 200 mg/L) and non-amine-functionalized (Y_0.95Eu_0.05)₂O₃ rare earth nanomaterial suspensions were co-cultured with vascular smooth muscle cells of Sprague-Dawley rats for 3 days. Cell proliferation was detected using Cell Counting Kit-8 assay. 100 mg/L amine-functionalized samples and non-amine-functionalized (Y_0.95Eu_0.05)₂O₃ rare earth nanomaterial suspensions were co-cultured with L929 cells for 48 hours. Cell apoptosis was observed using fluorescence staining.

RESULTS AND CONCLUSION: With increased mass concentration of material suspension, survival rate of vascular smooth muscle cells was gradually reduced. At the mass concentration of 10, 25, 50 mg/L, cell survival rate was significantly higher in the amine-functionalized group than in the non-amine-functionalized group (P < 0.05). When the mass concentration of materials reached 200 mg/L, the cell survival rate decreased to 76% in the non-amine-functionalized group, but it was still above 80% in the amine-functionalized group, showing significant differences between the two groups (P < 0.05). The growth of L929 cells was good and the number of apoptotic cells was less in the amine-functionalized group. Cells were sparse and the number of cell apoptosis was more in the non-amine-functionalized group, showing slight cytotoxicity. These data verified that amine-functionalization can improve cytocompatibility of (Y_0.95Eu_0.05)₂O₃ rare earth nanomaterial.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

全文链接：

Key words: Nanostructures, Materials Testing, Lanthanoid Series Elements

CLC Number:

Ring18

Shuai Meng-qi, Zhu Wen-lu, Wang You-fa. In vitro cytocompatibility of biomedical (Y_0.95Eu_0.05)₂O₃ nanomaterials[J]. Chinese Journal of Tissue Engineering Research, 2015, 19(12): 1846-1851.

Figures/Tables 3

References

[1] 张文文.用于荧光免疫分析的稀土掺杂无机发光纳米粒子的研究[D].广东:暨南大学,2007.
[2] Jiang G,Pichaandi J,JohnsonNJ,et al.An effective polymer cross-Linking strategy to obtain stable dispersions of upconverting NaYF4 nanoparticles in buffers and biological growth media for biolabeling applications. Langmuir. 2012; 28(6):3239-3247.
[3] Wang ZL,Hao J,Chan HL,et al.Simultaneous synthesis and functionalization of water-soluble up-conversion nanoparticles for in-vitro cell and nude mouse imaging.Nanoscale. 2011; 3(5): 2175-2181.
[4] Zhan Q,Qian J,Liang H,et al.Using 915nm laser excited Tm3+/ Er3+/ Ho3+-doped NaYbF4 unconversion nanoparticles for in vitro and deeper in vivo bioimaging without overheating irradiation.ACS Nano.2011;5(5): 3744-3757.
[5] Williams DF.On the mechanisms of biocompatibility. Biomaterials.2008;29(20): 2941-2953.
[6] 国家医疗器械生物学评价标准化技术委员会.GB-T16886 15-2003:医疗器械生物学评价[M].北京:中国标准出版社, 2003: 120-127.
[7] 李瑞,王青山.生物材料生物相容性的评价方法和发展趋势[J].中国组织工程研究, 2011,15(29):5471-5474.
[8] Leevy WM,Gammon ST,Jiang H,et al.Optical imaging of bacterial infection in living mice using a fluorescent near-infrared molecular probe.Journal of the American Chemical Society.2006;128(51):16476-16477.
[9] Zhang M, Yu M, Li F, et al. A highly selective fluorescence turn-on sensor for cysteine/homocysteine and its application in bioimaging.J Am Chem Soc. 2006;128(51):16476-16477.
[10] Xiong L,Yu M,Cheng M,et al.A photostable fluorescent probe for targeted imaging of tumour cells possessing integrin αvβ3. Mol Biosyst.2009;5(3): 241-243.
[11] [Bruchez M,Moronne M,Gin P,et al.Semiconductor nanocrystals as fluorescent biological labels. Science. 1998; 281(5385):2013-2016.
[12] Xiong LQ,Chen ZG,Yu MX,et al.Synthesis, characterization, and in vivo targeted imaging of amine-functionalized rare-earth up-converting nanophosphors. Biomaterials. 2009; 30(29):5592-5600.
[13] Smith AM,Duan H,Mohs AM,et al.Bioconjugated quantum dots for in vivo molecular and cellular imaging.Adv Drug Deliv Rev.2008;60(11):1226-1240.
[14] Wang X,Ren X,Kahen K,et al.Non-blinking semiconductor nanocrystals.Nature. 2009;459(7247):686-689.
[15] Efros AL.Nanocrystals: Almost always bright.Nat Mater. 2008;7(8):612-613.
[16] Mahler B,Spinicelli P,Buil S,et al.Towards non-blinking colloidal quantum dots.Nat Mater.2008;7(8):659-664.
[17] Derfus AM,Chan WCW,Bhatia SN.Probing the cytotoxicity of semiconductor quantum dots.Nano Lett.2004;4(1):11-18.
[18] Hardman R.A toxicologic review of quantum dots: toxicity depends on physicochemical and environmental factors.Environ Health Perspect. 2006;114(2):165-172.
[19] Shen J,Sun LD,Yan CH.Luminescent rare earth nanomaterials for bioprobe applications.Dalton Trans. 2008;(42):5687-5697.
[20] Vetrone F,Capobianco JA. Lanthanide-doped fluoride nanoparticles: luminescence, upconversion, and biological applications.IntJNanotechnol.2008;5(9):1306-1339.
[21] Dosev D,Nichkova M,Kennedy IM.Inorganic lanthanide nanophosphors in biotechnology.J Nanosci Nanotechnol. 2008;8(3):1052-1067.
[22] Escribano P,Julián-López B,Planelles-Aragó J,et al.Photonic and nanobiophotonic properties of luminescent lanthanide- doped hybrid organic–inorganic materials. J Mater Chem. 2008;18(1):23-40.
[23] Bouzigues C, Gacoin T, Alexandrou A. Biological applications of rare-earth based nanoparticles.Acs Nano. 2011;5(11): 8488-8505.
[24] Näreoja T,Vehniäinen M,Lamminmäki U,et al.Study on nonspecificity of an immuoassay using Eu-doped polystyrene nanoparticle labels.J Immunol Methods. 2009;345(1):80-89.
[25] Bruchez M,Moronne M,Gin P,et al.Semiconductor nanocrystals as fluorescent biological labels.Science. 1998; 281(5385):2013-2016.
[26] Qian J,Wang Y,Gao X,et al.Carboxyl-functionalized and bio-conjugated silica-coated quantum dots as targeting probes for cell imaging. J Nanosci Nanotechnol. 2010;10(3): 1668-1675.
[27] Smith JE,Wang L,Tan W.Bioconjugated silica-coated nanoparticles for bioseparation and bioanalysis.Trends Anal Chem.2006;25(9):848-855.
[28] Wang C,Ma Z,Wang T,et al.Synthesis, Assembly, and Biofunctionalization of Silica-Coated Gold Nanorods for Colorimetric Biosensing.Adv Funct Mater. 2006;16(13): 1673-1678.
[29] Hoshino A,Fujioka K,Oku T,et al.Physicochemical properties and cellular toxicity of nanocrystal quantum dots depend on their surface modification. Nano Lett.2004;4(11): 2163-2169.
[30] Li Z,Zhang Y.Monodisperse Silica-Coated Polyvinylpyrrolidone/NaYF4 Nanocrystals with Multicolor Upconversion Fluorescence Emission.Angewandte Chemie. 2006;118(46):7896-7899.
[31] Xiong LQ,Chen ZG,Yu MX,et al.Synthesis, characterization, and in vivo targeted imaging of amine-functionalized rare-earth up-converting nanophosphors.Biomaterials. 2009; 30(29):5592-5600.
[32] Zhou JC,Yang ZL,Dong W,et al.Bioimaging and toxicity assessments of near-infrared upconversion luminescent NaYF 4: Yb, Tm nanocrystals.Biomaterials. 2011;32(34):9059-9067.
