Autologous cortical bone block for repair of implant-site jaw bone defects

doi:10.3969/j.issn.2095-4344.2646

Abstract

Abstract:

BACKGROUND: Autologous bone with good biocompatibility possesses the characteristics of bone conduction, osteoinduction and osteogenesis. However, the healing process after autologous bone grafting is still controversial. The focus of controversy is whether the bone graft is completely absorbed and replaced or whether it can retain cell viability for a long time.

OBJECTIVE: To observe the histological changes in bone remodeling and regeneration after cortical bone grafting.

METHODS: Six healthy beagle dogs were selected as the research animals. The maxillary premolars of experimental dogs were extracted and the bone plates with width of 10 mm, length of 15 mm and thickness of 2 mm were removed from the buccal side. A bone defect model was established. The corresponding size of cortical bone block was cut on the buccal side of the bilateral mandibular body. Cortical bone grafts were fixed in the maxillary defect area. On one side pure cortical bone block was used as grafting material; on the other side the implant was placed simultaneously with the bone graft. Samples were harvested at 3 and 6 months after bone grafting. The cell survival and bone graft resorption of autologous cortical bone graft were analyzed by gross observation and histological observation. The study protocol was approved by the Animal Ethics Committee of Dalian Medical University, China.

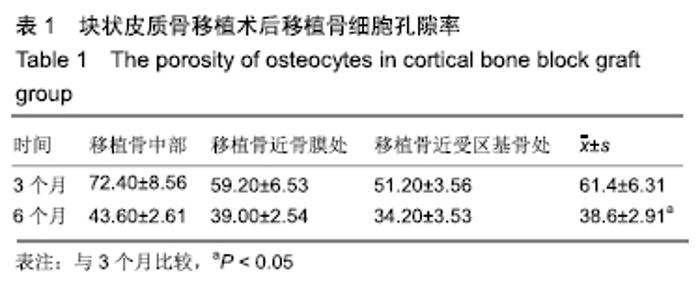

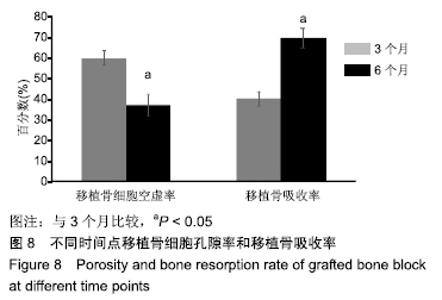

RESULTS AND CONCLUSION: The size of the grafted bone was gradually reduced, and the margin was blunt and firmly bonded to the base bone. All implants lost after 6 months. A newly formed connection between the graft and the base bone was shown by hard tissue ground sections. The porosity of bone lacuna in the grafted bone block at 6 months was significantly lower than that at 3 months (P < 0.05). The grafted bone resorption rate at 6 months was significantly higher than that at 3 months (P < 0.05). These findings indicate that osseointegration exists between grafted cortical bone block and the base bone of the recipient area. Osteocytes in the graft bone partially remain alive. With the prolongation of healing period, the proportion of new bone cells increases, and the volume of the grafted bone gradually decreases. Osseointegration of the concurrent implant is disturbed due to the absorption of cortical bone graft.

Key words: bone regeneration, autologous cortical bone, biomaterial, Onlay bone graft

CLC Number:

Wang Ning, Cui Tingting, Li Yongqi, Zhao Binbin, Zhong Weijian, Ma Guowu.

Autologous cortical bone block for repair of implant-site jaw bone defects [J]. Chinese Journal of Tissue Engineering Research, 2020, 24(17): 2675-2679.

Figures/Tables 8

References

[1] CHA HS, KIM JW, HWANG JH, et al. Frequency of bone graft in implant surgery.Maxillofac Plast Reconstr Surg. 2016;38(1):19.
[2] SAKKAS A, WILDE F, HEUFELDER M, et al. Autonomic bone grafts in oralimplantology-is it still a “gold standard”?A consecutive review of 279 patients with 456 clinical procedures.Int J Implant Dent. 2017; 3(1):23.
[3] OH KC, CHA JK, KIM CS, et al. The influence of perforating the autogenous block bone and the recipient bed in dogs.Part I: a radiographic analysis.Clin Oral Implants Res. 2011;22(11): 1298-1302.
[4] PHEMISTER DB. Bone growth and repair.Ann Surg.1935;102(2): 261-285.
[5] 林成,刘宝林,刘晓辉.非血管化游离髂骨移植血供重建的动物实验研究[J].临床口腔医学杂志,2007,23(7):387-389.
[6] DAYANGAC E, ARAZ K, OGUZ Y, et al. Radiological and Histological Evaluation of the Effects of Cortical Perforations on Bone Healing in Mandibular Onlay Graft Procedures.Clin Implant Dent Relat Res. 2016;18(1):82-88.
[7] CANEVA M, BOTTICELLI D, CARNEIRO MARTINS EN, et al. Healing at the interface between recipient sites and autologous block bone grafts affixed by either position or lag screw methods: a histomorphometric study in rabbits.Clin Oral Implants Res.2017; 28(12):1484-1491.
[8] FıNDıK Y, BAYKUL T. Effects of low-intensity pulsed ultrasound on autogenous bone graft healing. Oral Surg Oral Med Oral Pathol Oral Radiol. 2014;117(3):e255-260.
[9] ZHANG X, XIE C, LIN AS, et al. Periosteal progenitor cell fate in Segmental cortical bone graft transplantations: implications for functional tissue engineering.J Bone Miner Res.2005;20(12): 2124-2123.
[10] SHIROTA T, SCHMELZEISEN R, OHNO K, et al. Experimental reconstruction of mandibular defects with vascularized iliac bone grafts.J Oral Maxillofac Surg.1995;53(5):566-571.
[11] CONLEY J, CINELLI PB, JOHNSON PM, et al. Investigation of bone changes in composite flaps after transfer to the head and neck region. Plast Rec Surg.1973;51(6):658-661.
[12] JORDANA F, LE VISAGE C, WEISS P. Bone substitutes.Med Sci (Paris).2017;33(1):60-65.
[13] CHAPPUIS V, CAVUSOGLU Y, BUSER D. Lateral Ridge Augmentation Using Autogenous Block Grafts and Guided Bone Regeneration: A 10-Year Prospective Case Series Study.Clin Implant Dent Relat Res.2017;19(1):85-96.
[14] SEN MK, MICLAU T. Autologous iliac crest bone graft: should it still be the gold standard for treating nonunions?Injury. 2007;38 Suppl 1: S75-80.
[15] THÉS A, KLOUCHE S, TIENDA M, et al. Cortical onlay strut allograft with cerclage wiring of periprosthetic fractures of the humerus without stem loosening: technique and preliminary results.J Orthop Surg Traumatol.2017;27(4):553-557.
[16] ENNEKING WF, BURCHARDH H, PUHL JJ. Physical and biological aspects of Repair in dog cortical bone transplants.J Bone Joint Surg Am.1975;5(7):237-252.
[17] MOON KN, KIM SG, OH JS, et al. Evaluation of bone formation after grafting with deproteinized bovine bone and mineralizedallogenic bone.Implant Dent.2015;24(1):101-105.
[18] BAHEIRAEI N, NOURANI MR, MORTAZAVI SMJ, et al. Development of a bioactive porous collagen/β-tricalcium phosphate bone graft assisting rapid vascularization for bone tissue engineering applications.J Biomed Mater Res A.2018;106(1):73-85.
[19] CHEN B. Non-Vascularized Autogenous Bone Grafts for Reconstructionof Maxillofacial Osseous Defects.J Coll Physicians Surg Pak.2018;28(1):17-21.
[20] GEALH WC, PEREIRA CC, LUVIZUTO ER. Healing process of autogenous bone graft in spontaneously hypertensive rats treated with losartan: an immunohistochemical and histomorphometric study.J Oral Maxillofac Surg.2014;72(12):2569-2581.
[21] BUSER D, SCHENK RK, STEINEMANN S, et al. Influence of surface characteristics on bone integration of titanium implants.A histomorphometric study in miniature pigs.Biomed Mater Res. 1991; 25(7):889-902.
[22] WANG X, ZHANG Y, CHOUKROUN J, et al. Effects of an injectable platelet-rich fibrin on osteoblast behavior and bone tissue formation in comparison to platelet-rich plasma.Platelets.2018;29(1):48-55.
[23] ERMIS I,POOLE M.The effects of soft tissue coverage on bone graft Resorption in the craniofacial region.Br J Plast Surg.1992; 45(3): 26-29.
[24] 王玄,于卓力,纪楠,等.3D打印个性化截骨导板与传统截骨方法在全膝关节置换中的应用与比较[J].中国组织工程研究,2018,22(19): 3049-3054.
