Total hip arthrolasty plus acetabular structural bone grafting for acetabular dysplasia combined with osteoarthritis

doi:10.3969/j.issn.2095-4344.2017.31.003

Abstract

Abstract:

BACKGROUND: Acetabular dysplasia is commonly seen in hip diseases, which can lead to biomechanical imbalance of the hip joint and accelerate the hip worn, further inducing hip osteoarthritis. At present, total hip arthroplasty is the preferred.

OBJECTIVE: To investigate the clinical efficacy of total hip arthrolasty plus acetabular structural bone grafting in the treatment of acetabular dysplasia combined with osteoarthritis.

METHODS: Fifty cases of acetabular dysplasia combined with osteoarthritis were enrolled, including 11 cases of Crowe I, 16 Crowe II, 19 Crowe III and 4 Crowe IV, and all were treated with total hip arthrolasty plus acetabular structural bone grafting. The pain, functional recovery, Harris hip score, and quality of life were recorded at baseline and 6 months after treatment.

RESULTS AND CONCLUSION: After treatment, (1) the Harris hip scores in the patients with Crowe I, II, III, and IV acetabular dysplasia were significantly increased (P < 0.05); (2) the pain and walking were significantly improved in all patients (P < 0.05); (3) the patients’ physiological function, physiological function, body pain, health, energy, social function, emotional function and mental health were significantly improved (P < 0.05). (4) These results elaborate that total hip arthrolasty plus acetabular structural bone grafting to treat acetabular dysplasia combined with osteoarthritis, can obtain appropriate acetabular cup placement, excellent prosthesis supporting, restore limb length and increase acetabular bone mass. Therefore, it significantly improves patients’ pain and hip function, thereby improving patients’ quality of life and achieving satisfactory treatment outcomes.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

Key words: Acetabulum, Bone Remodeling, Arthroplasty, Replacement, Hip, Osteoarthritis, Tissue Engineering

CLC Number:

R318

Tang Xu. Total hip arthrolasty plus acetabular structural bone grafting for acetabular dysplasia combined with osteoarthritis[J]. Chinese Journal of Tissue Engineering Research, 2017, 21(31): 4933-4938.

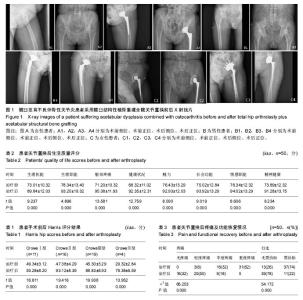

Figures/Tables 1

References

[1] Wohlrab D, Radetzki F, Noser H. et al.Cup positioning in total hip arthoplasty: spatial alignment of the acetabular entry plane.Arch Orthop Trauma Surg.2012;132(1):1-7.

[2] Clohisy JC, Ackerman J, Baca G, et al. Patient-Reported Outcomes of Periacetabular Osteotomy from the Prospective ANCHOR Cohort Study. J Bone Joint Surg Am. 2017;99(1): 33-41.

[3] 赵胜军,赵丽,韩永台,等.成人髋臼发育不良的诊断和治疗现状[J].大连医科大学学报,2016,38(1):93-96.

[4] Dai M, Sakai Y, Ibuchi S, et al. Sex- and age-specific differences in femoral head coverage and acetabular morphology among healthy subjects—derivation of normal ranges and thresholds for abnormality. Skeletal Radiology. 2017;46(4):523-531.

[5] 齐海,丁悦,许杰,等.Harris评分和X线在评价全髋关节置换术后疗效中的作用[J]. 中华关节外科杂志:电子版,2009,3(4):444-448.

[6] 肖瑜.CT三维重建在成人髋臼发育不良Crowe分型评估中的应用研究[C].//第二十届全国中西医结合骨伤科学术研讨会、第二届中国医师协会中西医结合医师分会骨伤科学术年会、第十九届浙江省中西医结合骨伤科专业委员会学术年会论文集. 2013: 321-321.

[7] Henak CR, Abraham CL, Anderson AE, et al. Patient-specific analysis of cartilage and labrum mechanics in human hips with acetabular dysplasia. Osteoarthritis Cartilage.2014；22(2):210-217.

[8] 彭阳,杨柳,陈光兴,等.Crowe Ⅲ及Ⅳ型髋关节发育不良全髋关节置换术中髋臼骨缺损的重建[J].中华外科杂志,2014,52(1): 25-29.

[9] Moriya M, Fukushima K, Uchiyama K, et al. Clinical results of arthroscopic surgery in patients over 50 years of age-what viability does it have as a joint preservative surgery?. J Orthop Surg Res. 2017 ;12(1):2.

[10] 肖瑜,张福江,马信龙,等.成人髋关节发育不良不同Crowe分型的三维CT影像学特征[J].中华骨科杂志,2014,34(3):311-316.

[11] 韦宜山,刘万林,赵振群,等.Pemberton骨盆截骨术联合股骨近端截骨治疗儿童期发育性髋关节脱位疗效分析[J].中华小儿外科杂志,2015,36(7):501-505.

[12] Nie Y, Pei F, Shen B, et al. Implication of acetabular width on the anteroposterior pelvic radiograph of patients with developmental dysplasia of the hip.J Arthroplasty.2015；30(3): 489-494.

[13] 肖凯,张洪,罗殿中,等.髋关节发育不良患者股骨颈前倾角的影像学观察[J].中华外科杂志,2015,53(5):353-356.

[14] Li Y, Xu H, Li J, et al. Early predictors of acetabular growth after closed reduction in late detected developmental dysplasia of the hip.J Pediatr Orthop B.2015；24(1):35-39.

[15] Ishidou Y, Matsuyama K, Sakuma D, et al. Osteoarthritis of the hip joint in elderly patients is most commonly atrophic, with low parameters of acetabular dysplasia and possible involvement of osteoporosis. Arch Osteoporos. 2017; 12(1):30.

[16] Sankar WN, Duncan ST, Baca GR, et al.Descriptive Epidemiology of Acetabular Dysplasia: The Academic Network of Conservational Hip Outcomes Research (ANCHOR) Periacetabular Osteotomy. J Am Acad Orthop Surg. 2017;25(2):150-159.

[17] 尚小斌, 杨卿, 鲁锐,等. 人工全髋关节置换联合自体股骨头结构性植骨及转子下截骨治疗CroweⅣ型髋关节发育不良的短期随访[J].骨科, 2017, 8(1):39-43.

[18] Markovicdenic L, Zivkovic K, Lesic A, et al. Risk factors and distribution of symptomatic venous thromboembolism in total hip and knee replacements: prospective study. Int Orthop. 2012; 36(6):1299-305.

[19] Zahar A, Papik K, Lakatos J, et al.Total hip arthroplasty with acetabular reconstruction using a bulk autograft for patients with developmental dysplasia of the hip results in high loosening rates at mid-term follow-up. Int Orthop.2014; 38(5):947-951.

[20] VI Sakellariou, M Christodoulou, G Sasalos, et al. Reconstruction of the Acetabulum in Developmental Dysplasia of the Hip in total hip replacement. Arch Bone JT Surg.2014;2(3):130-136.

[21] Zha GC, Sun JY, Guo KJ, et al. Medial Protrusio Technique in Cementless Total Hip Arthroplasty for Developmental Dysplasia of the Hip: A Prospective 6- to 9-Year Follow-Up of 43 Consecutive patients.J Arthroplasty.2016; 31(8): 1761-1766.

[22] T Iwase, D Morita, TIto, et al. Favorable Results of Primary Total Hip Arthroplasty With Acetabular Impaction Bone Grafting for Large Segmental Bone Defects in Dysplastic Hips. J Arthroplasty.2016;31(10):2221-2226.

[23] 许杰,马若凡,蔡志清,等. 成人髋臼发育不良伴骨关节炎行髋臼结构性植骨重建关节置换术的力学分析[J].中华关节外科杂志:电子版,2014,8(5):618-623.

[24] Gray BL, Stambough JB, Baca GR, et al. Comparison of contemporary periacetabular osteotomy for hip dysplasia with total hip arthroplasty for hip osteoarthritis.Bone Joint J.2015; 97-B(10):1322-1327.

[25] Kaneuji A, Sugimori T, Ichiseki T, et al. Rotational Acetabular Osteotomy for Osteoarthritis with Acetabular Dysplasia: Conversion Rate to Total Hip Arthroplasty within Twenty Years and Osteoarthritis Progression After a Minimum of Twenty Years.J Bone Joint Surg Am.2015;97(9):726-732.

[26] Bin K, Laville JM, Salmeron F.Developmental dysplasia of the hip in neonates: Evolution of acetabular dysplasia after hip stabilization by brief Pavlik harness treatment. Orthop Traumatol Surg Res.2014;100(4):357-361.

[27] Swann M, Sucato DJ, Romero J, et al. Fracture at the Ischio-Pubic Junction After Periacetabular Osteotomy in the Adolescent Population.J Pediatr Orthop. 2017;37(2):127-132

[28] 刘嘉,邓江,韩小松,等. 骨密度降低是女性患者全髋关节置换术后非骨水泥髋臼杯移位的高危因素[J].中国骨伤, 2017, 30(1): 33-37.

[29] Zhang HL, Liang JS, Li LG, et al.Inverted Acetabular Labrum: An Analysis of Tissue Embedment in Hip Joint in 15 Patients with Developmental Dysplasia of the Hip. Chin Med J (Engl). 2017;130(1):100-103.

[30] Suarez-Ahedo C, Gui C, Martin TJ, et al.Robotic-arm assisted total hip arthroplasty results in smaller acetabular cup size in relation to the femoral head size: a matched-pair controlled study. Hip Int. 2017;27(2):147-152

[31] 王虎, 张堃, 魏星,等. 髂腹股沟入路短支撑钢板固定髋臼后柱治疗复杂髋臼骨折[J].中华骨科杂志, 2017, 37(1):17-23.

[32] Park B, Liporace F, Marwin S. Managing Acetabular Defects in Total Hip Arthroplasty. Bull Hosp Jt Dis (2013). 2017;75(1): 37-46.

[33] Carta S, Falzarano G, Rollo G, et al. Total hip arthroplastyvs. osteosynthesis in acute complex acetabular fractures in the elderly:Evaluation of surgical management and outcomes.急性病杂志:英文版,2017；6(1):12-17.

[34] Sankar WN, Beaulé PE, Clohisy JC, et al. Labral morphologic characteristics in patients with symptomatic acetabular dysplasia. Am J Sports Med.2015;43(9):2152-2156.

[35] 曹广如, 蔡玉强, 王霞,等.不同密度同种异体骨移植对犬脊柱融合术效果的影响[J].山东医药,2017, 57(4):32-34.

[36] Osawa Y,Hasegawa Y,Okura T,et al.Total Hip Arthroplasty After Periacetabular and Intertrochanteric Valgus Osteotomy. J Arthroplasty. 2017;32(3):857-861.

[37] Bi C, Wang J, Ji X, et al. The safe screw path along inferior border of the arcuate line at acetabular area: an anatomical study based on CT scans.Bmc Musculoskeletal Disorders. 2017;18(1):88.

[38] Lee CB, Mata-Fink A, Millis MB, et al. Demographic differences in adolescent-diagnosed and adult-diagnosed acetabular dysplasia compared with infantile developmental dysplasia of the hip.J Pediatr Orthop.2013;33(2):107-111.
