Digital measurement and analysis of the distal femur in adults with secondary knee valgus deformity

doi:10.12307/2022.170

Abstract

Abstract: BACKGROUND: The surgical method for knee valgus deformity is osteotomy around the knee joint or total knee arthroplasty. Osteotomy around the knee joint needs three-dimensional shaping. The type of artificial total knee arthroplasty prosthesis and the degree of matching with the knee joint affect the long-term effect after arthroplasty. Femoral condyle osteotomy shaping usually requires the support of femoral condyle data. Nowadays, prosthesis systems designed by westerners have a relatively high usage rate in China, but cannot achieve the best results in the Chinese.
OBJECTIVE: To explore the anatomical abnormalities of the femoral condyle, and provide anatomical data for total knee arthroplasty or osteotomy of knee valgus deformity.

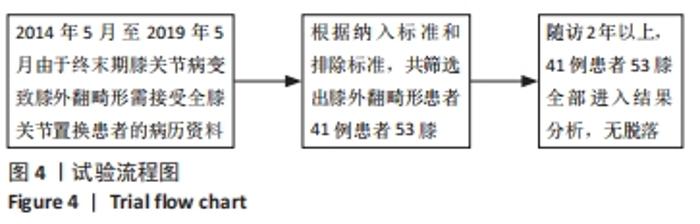

METHODS: Totally 41 adult patients (53 knees) with knee valgus deformity were detected with CT scan. The obtained images were imported into Mimics 17.0 software, and digital three-dimensional model was established. The anatomical parameters were measured, and the distribution and correlation were analyzed. The knee joint parameters between knee valgus deformity patients and healthy normal knee in single deformity patients (control group, n=29) were compared.

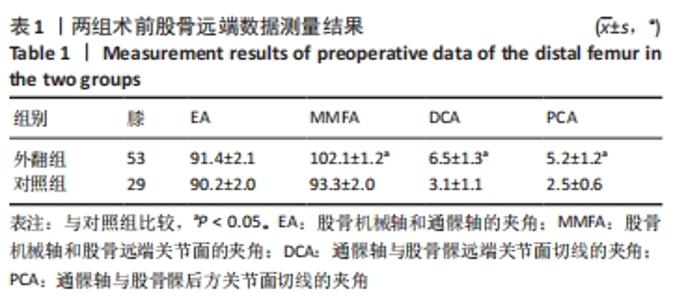

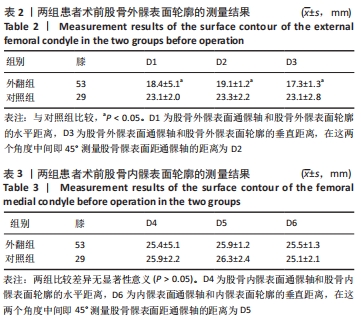

RESULTS AND CONCLUSION: (1) Compared with the control group, epicondylar angle was not significantly different in the valgus group (P > 0.05). Medial mechanical femoral angle, distal condylar angle, and poster condylar angle were significantly increased in the valgus group (P < 0.05). (2) Measurement results of the surface profile of the femoral condyle showed that femoral condyle data were significantly lower in the valgus group than that in the control group (P < 0.05). No significant difference in femoral medial condyle data was found between the valgus and control groups (P > 0.05). (3) The distance between the center of the femoral condyle and the condyle line of the femoral condyle was significantly lower in the valgus group than that in the control group (P < 0.05). (4) These findings indicate that the morphological changes of the femoral lateral condyle of adult secondary knee valgus deformity are more significant, but the morphological changes of the femoral medial condyle are not obvious. The femoral condyle axis is used as a reference for adult secondary valgus total knee arthroplasty. The data obtained can help intraoperative positioning and improve the treatment effect.

Key words: implant, digital orthopedics, knee valgus, total knee arthroplasty, three-dimensional reconstruction, anatomical variation, morphological parameters

CLC Number:

Yuan Jing, Sun Xiaohu, Chen Hui, Qiao Yongjie, Wang Lixin. Digital measurement and analysis of the distal femur in adults with secondary knee valgus deformity[J]. Chinese Journal of Tissue Engineering Research, 2022, 26(6): 881-885.

Figures/Tables 3

References

[1] TIAN F, ZANG XH, SUN YS. Impact of knee varus and valgus deformity on alignment in lower extremities after total knee arthroplasty (TKA). Eur Rev Med Pharmacol Sci. 2018;22(1 Suppl):83-89.
[2] ZAMPOGNA B, VASTA S, PAPALIA R. Patient Evaluation and Indications for Osteotomy Around the Knee. Clin Sports Med. 2019;38(3):305-315.
[3] SANTOSO MB, WU L. Unicompartmental knee arthroplasty, is it superior to high tibial osteotomy in treating unicompartmental osteoarthritis? A meta-analysis and systemic review. J Orthop Surg Res. 2017;12(1):50-56.
[4] SHEN Z, WANG H, DUAN Y, et al. Application of 3D printed osteotomy guide plate-assisted total knee arthroplasty in treatment of valgus knee deformity. J Orthop Surg Res. 2019;14(1):327-332.
[5] MANCINO F, FALEZ F, MOCINI F, et al. Is varus-valgus constraint a reliable option in complex primary total knee arthroplasty? A systematic review. J Orthop. 2021;24:201-211.
[6] RAUT V, MATAR HE, SINGH A. Satisfactory medium-term outcomes with lateral condylar sliver osteotomy to correct valgus deformity in total knee replacements. Knee Surg Sports Traumatol Arthrosc. 2020;28(5): 1394-1399.
[7] LOBENHOFFER P. The Rationale of Osteotomy around the Knee. J Knee Surg. 2017;30(5):386-392.
[8] STANNARD JT, STANNARD JP. High Tibial Osteotomy following Biologic Replacement of the Knee. J Knee Surg. 2017;30(8):764-768.
[9] MA QL, LIPMAN JD, CHENG CK, et al. A Comparison Between Chinese and Caucasian 3-Dimensional Bony Morphometry in Presimulated and Postsimulated Osteotomy for Total Knee Arthroplasty. J Arthroplasty. 2017;32(9):2878-2886.
[10] KIM TK, PHILLIPS M, BHANDARI M, et al. What Differences in Morphologic Features of the Knee Exist Among Patients of Various Races? A Systematic Review. Clin Orthop Relat Res. 2017;475(1):170-182.
[11] ALESI D, MEENA A, FRATINI S, et al. Total knee arthroplasty in valgus knee deformity: is it still a challenge in 2021? Musculoskelet Surg. 2021 Feb 15. doi: 10.1007/s12306-021-00695-x. Online ahead of print.
[12] 袁景,甄平,宋焱峰,等.膝外翻畸形全膝关节置换的假体匹配:三维模型数字化测量与分析[J].中国组织工程研究,2015,19(17): 2768-2774.
[13] HIRSCHMANN MT, MOSER LB, AMSLER F, et al. Phenotyping the knee in young non-osteoarthritic knees shows a wide distribution of femoral and tibial coronal alignment. Knee Surg Sports Traumatol Arthrosc. 2019;27(5):1385-1393.
[14] BONNIN M. Rotation of components in total knee arthroplasty//BONNIN M, AMENDOLA A, BELLEMANS J, et al. The Knee Joint. Paris: Springer, 2012:797-807.
[15] 高嘉翔,林剑浩,李志昌.股骨后髁偏心距在全膝关节置换术中的意义[J].中华关节外科杂志,2019,13(4):461-465.
[16] LIN YH, CHANG FS, CHEN KH, et al. Mismatch between femur and tibia coronal alignment in the knee joint: classification of five lower limb types according to femoral and tibial mechanical alignment. BMC Musculoskelet Disord. 2018;19(1):411-416.
[17] 陈文昊,周一新,刘文革.外翻膝骨性结构的形态学及分型研究[J].福建医科大学学报,2013,47(1):39-45.
[18] COHEN DA, GURSEL AC, LOW AK. How coronal alignment affects distal femoral anatomy: an MRI-based comparison of varus and valgus knees. J Orthop Surg Res. 2019;14(1):92-96.
[19] 张宝,许建中,李广恒,等.膝关节置换股骨髁前后径与内外径测量的临床意义[J].中华骨与关节外科杂志,2016,9(2):145-148.
[20] KEREMU A, MIJITI N, MIJITI S, et al. Evaluation of the application value of a three-dimensional digital model of the knee in clinical practice. J Int Med Res. 2020;48(5):300060519889742.
[21] CHANG CM, WU WT, LIU KL, et al. An anatomical study of the proximal aspect of the medial femoral condyle to define the proximal-distal condylar length. Ci Ji Yi Xue Za Zhi. 2017;29(2):104-108.
[22] XIE X, ZHAN Y, DONG M, et al. Two and Three-Dimensional CT Mapping of Hoffa Fractures. J Bone Joint Surg Am. 2017;99(21):1866-1874.
[23] CONFALONIERI N, BIAZZO A. Computer-assisted surgery in total knee replacement: advantages, surgical procedure and review of the literature. Acta Biomed. 2019;90(1):16-23.
[24] TWIGGS JG, DICKISON DM, KOLOS EC, et al. Patient Variation Limits Use of Fixed References for Femoral Rotation Component Alignment in Total Knee Arthroplasty. J Arthroplasty. 2018;33(1):67-74.
[25] NG CK, CHEN JY, YEH JZY, et al. Distal Femoral Rotation Correlates With Proximal Tibial Joint Line Obliquity: A Consideration for Kinematic Total Knee Arthroplasty. J Arthroplasty. 2018;33(6):1936-1944.
[26] FRANCESCHINI V, NODZO SR, GONZALEZ DELLA VALLE A. Femoral Component Rotation in Total Knee Arthroplasty: A Comparison Between Transepicondylar Axis and Posterior Condylar Line Referencing. J Arthroplasty. 2016;31(12):2917-2921.
[27] MANNAN A, SMITH TO. Favourable rotational alignment outcomes in PSI knee arthroplasty: A Level 1 systematic review and meta-analysis. Knee. 2016;23(2):186-190.
[28] DU Z, CHEN S, YAN M, et al. Do size, shape, and alignment parameters of the femoral condyle affect the trochlear groove tracking? A morphometric study based on 3D- computed tomography models in Chinese people. BMC Musculoskelet Disord. 2017;18(1):4-10.
[29] FITZ DW, JOHNSON DJ, HARTWELL MJ, et al. Relationship of the Posterior Condylar Line and the Transepicondylar Axis: A CT-Based Evaluation. J Knee Surg. 2020;33(7):673-677.
[30] OLMEDO-GARCIA NI, MARTÍNEZ VERGARA JL, APARICI MIRALLES TL, et al. Assessment of magnification of digital radiographs in total HIP arthroplasty. J Orthop. 2018;15(4):931-934.
[31] ZHANG Z, LIU M, WEN X, et al. The relationship between the posterior tibial slope and the sagittal femoral condylar shape: Two circles and ellipses. Clin Anat. 2020;33(7):1075-1081.
[32] WANG G, LIU M, ZHANG Z, et al. A simplified relationship between the femoral trochlea and the femoral condyle: A sagittal MRI analysis by an ellipse-fitting approach. Clin Anat. 2020;33(4):500-506.
[33] GRAMMENS J, VAN HAVER A, DANCKAERS F, et al. Small medial femoral condyle morphotype is associated with medial compartment degeneration and distinct morphological characteristics: a comparative pilot study. Knee Surg Sports Traumatol Arthrosc. 2021;29(6):1777-1789.
[34] EHMKE T, AGHAZADEH M, BONO OJ, et al. Anthropometric Measures of the Posterior Condyles: Gender Differences and Correlation to Implant Sizing. J Knee Surg. 2019;6(11):23-31.
[35] BONNIN MP, SAFFARINI M, NOVER L, et al. External rotation of the femoral component increases asymmetry of the posterior condyles. Bone Joint J. 2017;99-B(7):894-903.
[36] OU YL, LI PY, XIA H. Optimal Sagittal Insertion Depth and Direction of Femoral Intramedullary Rod in Total Knee Arthroplasty in Chinese Osteoarthritis Patients. Orthop Surg. 2020;12(4):1238-1244.
[37] LANGE J, HAAS SB. Correcting severe valgus deformity: taking out the knock. Bone Joint J. 2017;99-B(1 Supple A):60-64.
[38] GHOSH SK. Cadaveric dissection as an educational tool for anatomical sciences in the 21st century. Anat Sci Educ. 2017;10(3):286-299.
[39] MORO C, ŠTROMBERGA Z, RAIKOS A, et al. The effectiveness of virtual and augmented reality in health sciences and medical anatomy. Anat Sci Educ. 2017;10(6):549-559.
