Measuring the thickness of hard palatal mucosa in Han population: cone-beam CT image analysis versus trans-gingival probing method

doi:10.3969/j.issn.2095-4344.2017.24.006

Abstract

Abstract:

BACKGROUND: Hard palate mucosa serves as a main donor material in periodontal plastic surgery and its thickness is crucial for the surgical outcomes.
OBJECTIVE: To analyze the thickness of hard palate mucosa in Han population, and analyze the consistency between cone-beam CT image analysis and trans-gingival probing method.
METHODS: A total of 30 Han volunteers (300 teeth) were recruited, and the thickness of hard palate mucosa was measured using cone-beam CT image analysis or trans-gingival probing method, to analyze their consistency.
RESULTS AND CONCLUSION: The two methods showed a higher consistency in the thickness of hard palate mucosa at the cuspid, first and second premolars as well as first and second molars. The thickness of the hard palate mucosa related to the distance from the gingival margin and tooth position, the thickness from the canine region to the second premolar region thickening gradually, and became the thickest at the second molar, and the thinnest at the cuspid. This study for the first time analyzed the thickness of hard palate mucosa in Chinese Han population, and confirmed there is a high consistency between cone-beam CT image analysis and trans-gingival probing method.

中国组织工程研究杂志出版内容重点：组织构建；骨细胞；软骨细胞；细胞培养；成纤维细胞；血管内皮细胞；骨质疏松；组织工程

Key words: Tooth, Periodontitis, Connective Tissue, Tissue Engineering

CLC Number:

R318

Ma Chan-juan, Xuan Dong-ying, Wang Ren-fei, Jin Dong-mei. Measuring the thickness of hard palatal mucosa in Han population: cone-beam CT image analysis versus trans-gingival probing method[J]. Chinese Journal of Tissue Engineering Research, 2017, 21(24): 3803-3808.

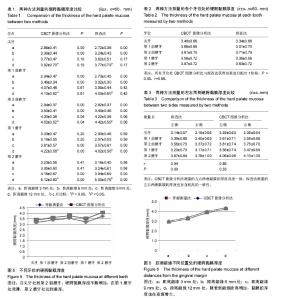

Figures/Tables 1

References

[1] Barriviera M, Duarte WR, Januário AL, et al. A new method to assess and measure palatal masticatory mucosa by cone-beam computerized tomography.J Clin Periodontol. 2009;36(7):564-568.

[2] Madeley E, Duane B.Coronally advanced flap combined with connective tissue graft; treatment of choice for root coverage following recession. Evid Based Dent. 2017;18(1):6-7.

[3] Marin DO, Leite AR, Nícoli LG, et al.Free Gingival Graft to Increase Keratinized Mucosa after Placing of Mandibular Fixed Implant-Supported Prosthesis. Case Rep Dent. 2017: 5796768.

[4] Wara-aswapati N, Pitiphat W, Chandrapho N, et al. Thickness of palatal masticatory mucosa associated with age. J Periodontol. 2001;72(10):1407-1412.

[5] Mörmann W, Schaer F, Firestone AR.The relationship between success of free gingival grafts and transplant. Revascularization and shrinkage -- a one year clinical study. J Periodontol. 1981; 52(2):74-80.

[6] Kydd WL, Daly CH, Wheeler JB, et al. The thickness measurement of masticatory mucosa in vivo. Int Dent J. 1971; 21(4):430-441.

[7] Renvert S, Badersten A, Nilvéus R, et al. Healing after treatment of periodontal intraosseous defects I. Comparative study of clinical methods. J Clin Periodontol.1981;8(5): 387-399.

[8] Goaslind GD, Robcrtson PB, Mahan CJ, et al. Thickness of facial gingival. J Periodontol.1977; 48(12): 768-771.

[9] Müller HP, Eger T. Gingival phenotypes in young male adults. J Clin Periodontol.1997;24(1): 65-71.

[10] Song JE, Um YJ, Kim CS, et al. Thickness of posterior palatal masticatory mucosa: The use of computerized tomography.J Periodontol.2008;79(3):406-412.

[11] Ueno D, Sekiguchi R, Morita M, et al.Palatal Mucosal Measurements in a Japanese Population Using Cone-Beam Computed Tomography.J Esthet Restor Dent. 2014;26(1):48-58.

[12] 师苏萌,施生根,白忠诚,等. CBCT测量上颌中切牙区软组织厚度的1例重复性研究[J].中华老年口腔医学杂志,2013, 11(6):348-351

[13] 曹洁, 胡文杰等. 基于锥形束计算机体层摄影术测量牙龈厚度[J]. 北京大学学报, 2013.1(45):135-139.

[14] Studer SP, Allen EP, Rees TC,et al. The thickness of masticatory mucosa in the human hard palate and tuberosity as potential donor sites for ridge augmentation procedures. J Periodontol. 1997;68(2):145-151.

[15] Gupta P, Jan SM, Behal R, et al. Accuracy of cone-beam computerized tomography in determining the thickness of palatal masticatory mucosa. J Indian Soc Periodontol. 2015; 19(4):396-400.

[16] Kau CH, Bozic M, English J, et al. Cone-beam computed tomography of the maxillofacial region - an update. Int J Med Robot.2009;5(4):366-380.

[17] Mah J, Hatcher D. Current status and future needs in craniofacial imaging. Orthod Craniofac Res.2003,6(Suppl 1): 10-16.

[18] 刘海霞,马胤喆.CBCT法研究上颌第1磨牙根管形态[J].口腔疾病防治,2016,24 (8):498-500.

[19] 何锦泉,欧阳可雄,王朝俭,等.锥形束CT在评估牙槽突裂骨缺损体积中的应用[J].口腔疾病防治,2016,24(5):293-296

[20] Lascala CA, Panella J, Marques MM. Analysis of the accuracy of linear measurements obtained by cone beam computed tomography (CBCT-NewTom). Dentomaxillofac Radiol.2004; 33(5):291-294.

[21] Mah JK, Danforth RA, Bumann A, et al. Radiation absorbed in maxillofacial imaging with a new dental computed tomography device. Oral Surg Oral Med Oral Pathol Oral Radiol Endod.2003; 96(4):508-513.

[22] Ludlow JB, Davies-Ludlow LE, Brooks SL, et al. Dosimetry of 3 CBCT devices for oral and maxillofacial radiology: CB Mercuray, NewTom 3G and i-CAT. Dentomaxillofac Radiol.2006;35(5): 219-226.

[23] Kobayashi K, Shimoda S, Nakagawa Y, et al. Accuracy in measurement of distance using limited cone-beam computerized tomography.Int J Oral Maxillofac Implants. 2004; 19(2):228-231.

[24] 沈悦,马海英,张彦升,等.锥形束CT测量数据三维重建分析正畸牙槽嵴裂植骨修复单侧完全性唇腭裂的可行性[J].中国组织工程研究,2015,19(11):1678-1682

[25] Scarfe WC, Azevedo B, Toghyani S, et al.Cone Beam Computed Tomographic imaging in orthodontics. Aust Dent J. 2017, 62 Suppl 1:33-50.

[26] 顾月光,张来健,秦晗,等.锥形束CT数字成像分析牙槽嵴裂植骨修复的成骨效果[J].中国组织工程研究,2016, 20 (2): 213-217.

[27] Rodrigues E, Braitt AH, Galvão BF, et al. Maxillary first molar with 7 root canals diagnosed using cone-beam computed tomography. Restor Dent Endod. 2017;42 (1) :60-64.
