Repeated transient ischemia during fracture healing: a micro-CT observation

doi:10.3969/j.issn.2095-4344.2015.46.001

Abstract

Abstract:

BACKGROUND: Some studies have shown that blocking the venous return can promote fracture healing but there is no study about the effect of repeated transient ischemia on promoting fracture healing.
OBJECTIVE: To observe the promoting effect of repeated transient ischemia on early fracture healing based on micro-CT technique.
METHODS: Forty-eight Wistar rats were used to make animal models of right tibial midpiece closed fractures followed by K-wire fixation. Rats were randomly divided into four groups: 24-hour group, 48-hour group, 72-hour group and control group. Tourniquet was used on the root of the affected thigh, inflated for 10 minutes, and then released for 10 minutes. Three above-mentioned cycles were taken as an ischemic treatment. At 24 hours after fracture fixation, the ischemic treatment was first carried out, and after that, it was done every 24 hours in the 24-hour group, every 48 hours in the 48-hour group and every 72 hours in the 72-hour group. In the control group, the tourniquet with no inflation was used once on the right lower limb every 24 hours after fixation. All the rats were killed at 2 weeks after modeling to take out the right tibia with removal of K-wires for micro-CT observation.

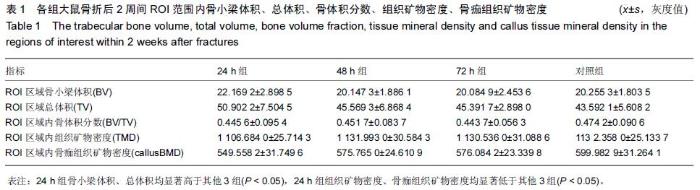

RESULTS AND CONCLUSION: The trabecular bone volume and total volume in the regions of interest were significantly higher in the 24-hour group than the other three groups (P < 0.05), but the tissue mineral density and callus tissue mineral density were significantly lower in the 24-hour group than the other three groups (P < 0.05). There was no significant statistical difference in the bone volume fraction among the four groups (P > 0.05). These findings indicate that within 2 weeks after fractures, the repeated transient ischemia can promote fracture healing, which may be related to the improvement in the secretion of growth factor, revascularization and osteoblast proliferation induced by repeated transient ischemia.
中国组织工程研究杂志出版内容重点：组织构建；骨细胞；软骨细胞；细胞培养；成纤维细胞；血管内皮细胞；骨质疏松；组织工程

Key words: Fractures, Bone, Fracture Healing, Ischemic Preconditioning, Tissue Engineering

Wang Dong, Liu Yang, Zhao Yan-rui, Shan Lei, Zhou Jun-lin. Repeated transient ischemia during fracture healing: a micro-CT observation[J]. Chinese Journal of Tissue Engineering Research, 2015, 19(46): 7381-7385.

Figures/Tables 1

References

[1] Zhao ZQ, Corvera JS, Halkos ME, et al.Inhibition of myocardial injury by ischemic postconditioning during reperfusion: comparison with ischemic preconditioning.Am J Physiol Heart Circ Physiol.2003;285(2): H579-588.

[2] Cao QF, Qu MJ, Yang WQ, et al.Ischemia postconditioning preventing lung ischemia-reperfusion injury. Gene.2015; 554(1): 120-124.

[3] Li WN, Wu N, Shu WQ, et al.The protective effect of fasudil pretreatment combined with ischemia postconditioning on myocardial ischemia/reperfusion injury in rats.Eur Rev Med Pharmacol Sci. 2014;18(18):2748-2758.

[4] Leger PL, Bonnin P, Renolleau S,et al.Ischemic postconditioning in cerebral ischemia: Differences between the immature and mature brain?Int J Dev Neurosci. 2015. pii: S0736-5748(15)00034-9.

[5] Janoušek O, Kolá?ová J, Ronzhina M,et al.Motion artefact in voltage-sensitive fluorescent dye emission during repeated ischemia of isolated heart.Physiol Res. 2013;62(4):371-378.

[6] Sadahiro H, Ishihara H, Goto H,et al.Repeated cerebral ischemia caused by extracranial carotid artery dolichoectasia. J Neuroimaging.2014;24(1):83-87.

[7] Otto TE, Patka P, Haarman HJ. Closed fracture healing: a rat model. Eur Surg Res.1995;27(4):277-284.

[8] Smith B, Goldstein T, Ekstein C. Biologic adjuvants and bone: current use in orthopedic surgery. Curr Rev Musculoskelet Med.2015;8(2):193-199.

[9] Gorter EA, Hamdy NA, Appelman-Dijkstra NM, et al. The role of vitamin D in human fracture healing: a systematic review of the literature.Bone.2014; 64(7):288–297.

[10] Xavier JR, Thakur T, Desai P, et al.Bioactive nanoengineered hydrogels for bone tissue engineering: a growth-factor-free approach.ACS Nano.2015;9(3):3109-3118.

[11] Chiang T, Roca AL, Rostkowski S,et al.Reconstruction of the narrow ridge using combined ridge split and guided bone regeneration with rhPDGF-BB growth factor-enhanced allograft.Int J Periodontics Restorative Dent.2014;34(1): 123-130.

[12] Tokunaga T, Ide J, Arimura H,et al.Local Application of Gelatin Hydrogel Sheets Impregnated With Platelet-Derived Growth Factor BB Promotes Tendon-To-Bone Healing After Rotator Cuff Repair in Rats.Arthroscopy.2015 Apr 21. pii: S0749-8063 (15)00195-4.

[13] Saito Y, Sato S, Oginuma T, et al.Effects of nicotine on guided bone augmentation in rat calvarium.Clin Oral Implants Res. 2013;24(5):531-535.

[14] Carlier A, Geris L, Gastel Nv, et al.Oxygen as a critical determinant of bone fracture healing-a multiscale model.J Theor Biol. 2015;365:247-264.

[15] Zhao J, Zhang P, Qin L,et al.Hypoxia is essential for bone-tendon junction healing: the molecular biological evidence.Int Orthop. 2011;35(6):925-928.

[16] Lafantaisie-Favreau CH,Guzmán-Morales J,Sun J,et al.Subchondral pre-solidified chitosan/blood implants elicit reproducible early osteochondral wound-repair responses including neutrophil and stromal cell chemotaxis, bone resorption and repair, enhanced repair tissue integration and delayed matrix deposition.BMC Musculoskelet Disord. 2013; 14:27.

[17] Dong LQ, Yin H, Wang CX,et al.Effect of the timing of surgery on the fracture healing process and the expression levels of vascular endothelial growth factor and bone morphogenetic protein-2.Exp Ther Med.2014;8(2):595-599.

[18] Yin G, Sheu TJ, Menon P,et al.Impaired angiogenesis during fracture healing in GPCR kinase 2 interacting protein-1 (GIT1) knock out mice.PLoS One. 2014;9(2):e89127.

[19] Talal A, McKay IJ, Tanner KE,et al.Effects of hydroxyapatite and PDGF concentrations on osteoblast growth in a nanohydroxyapatite-polylactic acid composite for guided tissue regeneration.J Mater Sci Mater Med. 2013;24(9): 2211-2221.

[20] Saito H, Nakamachi T, Inoue K, et al.Autocrine effects of neuromedin B stimulate the proliferation of rat primary osteoblasts.J Endocrinol. 2013;217(2):141-150.

[21] Aryaei A, Jayasuriya AC.The effect of oscillatory mechanical stimulation on osteoblast attachment and proliferation.Mater Sci Eng C Mater Biol Appl. 2015;52:129-134.

[22] Senck S, Plank B, Kastner J,et al.Visualization of local cortical defects in Charcot foot using microcomputed tomography. Orthopade. 2015;44(1):8-13.

[23] Haffner-Luntzer M, Heilmann A, Rapp AE,et al. Midkine-deficiency delays chondrogenesis during the early phase of fracture healing in mice.PLoS One. 2014;9(12): e116282.

[24] Fallon EM, Nazarian A, Nehra D,et al.The effect of docosahexaenoic acid on bone microstructure in young mice and bone fracture in neonates.J Surg Res. 2014,191(1): 148-155.

[25] Murphy CM, Schindeler A, Cantrill LC,et al.PTH(1-34) Treatment Increases Bisphosphonate Turnover in Fracture Repair in Rats.J Bone Miner Res. 2015,30(6):1022-1029.

[26] Currey JA, Mancuso M, Kalikoff S, et al.Controlled cyclic compression of an open tibial fracture using an external fixator affects fracture healing in mice.J Biomech Eng. 2015; 137(5):051011.

[27] Liu T, Zou W, Shi G,et al.Hypoxia-induced MTA1 promotes MC3T3 osteoblast growth but suppresses MC3T3 osteoblast differentiation.Eur J Med Res. 2015 Feb 3;20:10.

[28] Lee A, Derricks K, Minns M,et al.Hypoxia-induced changes in Ca(2+) mobilization and protein phosphorylation implicated in impaired wound healing.Am J Physiol Cell Physiol. 2014;306 (10):C972-985.

[29] Balaji S, King A, Crombleholme TM,et al.The Role of Endothelial Progenitor Cells in Postnatal Vasculogenesis: Implications for Therapeutic Neovascularization and Wound Healing.Adv Wound Care (New Rochelle). 2013,2(6): 283-295.

[30] Sun W, Depping R, Jelkmann W.Interleukin-1β promotes hypoxia-induced apoptosis of glioblastoma cells by inhibiting hypoxia-inducible factor-1 mediated adrenomedullin production.Cell Death Dis. 2014 Jan 23;5:e1020.

[31] M?ot B, Szczylik C, Rzepecki P.Seeking new prognostic and predictive factors in patients with metastatic renal cell carcinoma - hypoxia-induced factors.Contemp Oncol (Pozn). 2012;16(3):250-253.

[32] Stachurska A, Florczyk U, Józkowicz A,et al.The new face of factors induced by hypoxia--HIF-1 and HIF-2 and oxidative stress.Postepy Biochem. 2010;56(2):156-164.
