CT three-dimensional reconstruction evaluates pedicle screw position classification: reliability analysis

doi:10.3969/j.issn.2095-4344.2015.44.022

Abstract

Abstract:

BACKGROUND: In recent years, CT has been gradually adopted to evaluate the pedicle screw position, but there are less reports about the reliability of the application of CT three-dimensional reconstruction evaluating pedicle screw position.

OBJECTIVE: To investigate the reliability of the application of CT three-dimensional reconstruction evaluating pedicle screw position classification.

METHODS: Twenty-seven patients with pedicle screw placement were included. CT scan was conducted within one week after embedding. Two-dimensional and three-dimensional CT image data were randomly observed by two professional orthopedists. Screw position was performed classification according to Rao Grading method. Interobserver reliability and intraobserver reliability were evaluated using consistency test.

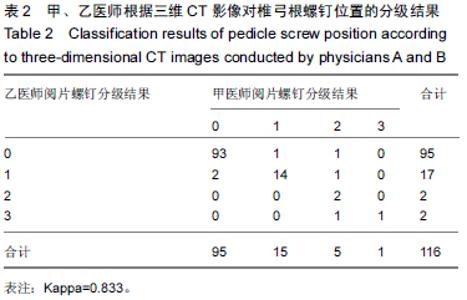

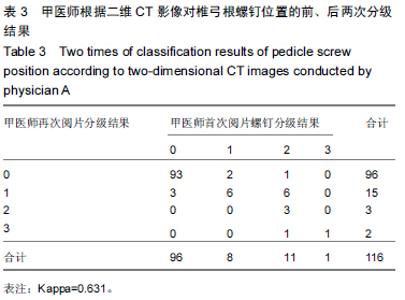

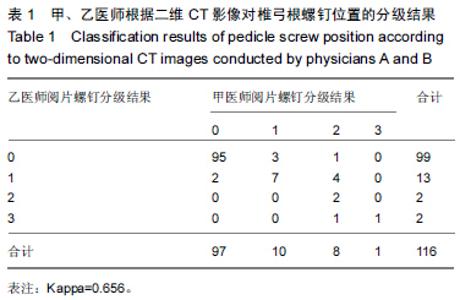

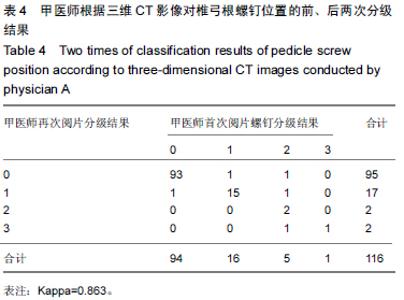

RESULTS AND CONCLUSION: One hundred and sixteen pedicle screws were inserted in 27 patients. The grading determination of the screw position using two-dimensional CT images showed that the interobserver reliability and intraobserver reliability were highly consistent. Kappa coefficients were respectively 0.656 and 0.631. The grading determination of the screw position using three-dimensional reconstruction CT images showed that the interobserver reliability and intraobserver reliability were both strongest. Kappa coefficients were respectively 0.833 and 0.863. These results show that the reliability of applying CT three-dimensional reconstruction on evaluating pedicle screw position is high, which proves a certain clinical application value.
中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

Key words: Internal Fixators, Image Processing, Computer-Assisted, Thoracic Vertebrae, Lumbar Vertebrae, Tissue Engineering

Yan Bing-shan, Yin Wang-ping, Ni Miao-zhong, Chen Yan-chao, Dong Jia-chun. CT three-dimensional reconstruction evaluates pedicle screw position classification: reliability analysis[J]. Chinese Journal of Tissue Engineering Research, 2015, 19(44): 7172-7176.

Figures/Tables 5

References

[1] Suk SI, Kim JH, Kim SS, et al. Pedicle screw instrumentation in adolescent idiopathic scoliosis (AIS). Eur Spine J. 2012; 21(1): 13-22.

[2] Kosmopoulos V, Schizas C. Pedicle screw placement accuracy: a meta-analysis. Spine (Phila Pa 1976). 2007; 32(3):E111-120.

[3] Kim YW, Lenke LG, Kim YJ, et al. Free-hand pedicle screw placement during revision spinal surgery: analysis of 552 screws. Spine (Phila Pa 1976). 2008;33(10):1141-1148.

[4] Gang C, Haibo L, Fancai L, et al. Learning curve of thoracic pedicle screw placement using the free-hand technique in scoliosis: how many screws needed for an apprentice? Eur Spine J. 2012;21(6):1151-1156.

[5] 杨曦,孔清泉,宋跃明,等.计算机导航辅助椎弓根螺钉后路固定在骨质疏松患者中的临床应用[J].中国修复重建外科杂志,2012, 26(2): 196-200.

[6] Tang J, Zhu Z, Sui T, et al. Position and complications of pedicle screw insertion with or without image-navigation techniques in the thoracolumbar spine: a meta-analysis of comparative studies. J Biomed Res. 2014;28(3):228-239.

[7] 陈晓明,肖增明,宗少晖,等.计算机导航引导下脊柱后路椎弓根螺钉置入内固定：准确性及安全性[J].中国组织工程研究,2015, 19(13): 2119-2124.

[8] 杨波,方世兵,尹飚,等.三维重建腰椎椎弓根螺钉置入的精确性[J].中国组织工程研究,2013,17(13):2333-2338.

[9] Berlemann U, Heini P, Müller U, et al. Reliability of pedicle screw assessment utilizing plain radiographs versus CT reconstruction. Eur Spine J.1997;6(6):406-410.

[10] Karatas OH, Toy E. Three-dimensional imaging techniques: A literature review. Eur J Dent. 2014;8(1):132-140.

[11] 王猛,孔繁之.医学图像三维可视化技术及其新进展[J].医学影像学杂志,2015,25(6):1095-1097.

[12] 吴超,谭伦,林旭,等.二维计算机辅助手术导航系统引导腰椎椎弓根螺钉植入及术后 CT 重组断面评价[J].中国修复重建外科杂志, 2015,29(4):452-456.

[13] Elliott MJ, Slakey JB. CT provides precise size assessment of implanted titanium alloy pedicle screws. Clin Orthop Relat Res. 2014;472(5):1605-1609.

[14] Koktekir E, Ceylan D, Tatarli N, et al. Accuracy of fluoroscopically-assisted pedicle screw placement: analysis of 1,218 screws in 198 patients. Spine J. 2014;14(8):1702-1708.

[15] Rao G, Brodke DS, Rondina M, et al. Comparison of computerized tomography and direct visualization in thoracic pedicle screw placement. J Neurosurg. 2002;97(2 Suppl): 223-226.

[16] Kosmopoulos V, Theumann N, Binaghi S, et al. Observer reliability in evaluating pedicle screw placement using computed tomography. Int Orthop. 2007;31(4):531-536.

[17] Luther N, Iorgulescu JB, Geannette C, et al. Comparison of navigated versus non-navigated pedicle screw placement in 260 patients and 1434 screws: screw accuracy, screw size, and the complexity of surgery. J Spinal Disord Tech. 2015; 28(5): E298-303.

[18] Kraus M, Weiskopf J, Dreyhaupt J, et al. Computer-aided surgery does not increase the accuracy of dorsal pedicle screw placement in the thoracic and lumbar spine: a retrospective analysis of 2,003 pedicle screws in a level I trauma center. Global Spine J. 2015;5(2):93-101.

[19] Braga BP, de Morais JV, Vilela MD. Free-hand placement of high thoracic pedicle screws with the aid of fluoroscopy: evaluation of positioning by CT scans in a four-year consecutive series. Arq Neuropsiquiatr. 2010;68(3):390-395.

[20] Dakhil-Jerew F, Jadeja H, Cohen A, et al. Inter-observer reliability of detecting Dynesys pedicle screw using plain X-rays: a study on 50 post-operative patients. Eur Spine J. 2009;18(10): 1486-1493.

[21] 刘庆余,陈健宇,梁碧玲,等.脊柱椎弓根螺钉置入术后螺钉位置MSCT评估[J].中国医学影像技术,2007,23(8):1214-1217.

[22] Lehman RA Jr, Lenke LG, Helgeson MD, et al. Do intraoperative radiographs in scoliosis surgery reflect radiographic result? Clin Orthop Relat Res. 2010;468(3):679-686.

[23] Celik SE, Kelten B, Gökcan R, et al. The accuracy of multi-slice three-dimensional computerized tomography on the verification of the pedicle screw trajectory. Orthop Rev (Pavia). 2009;1(2): e22.

[24] Farber GL, Place HM, Mazur RA, et al. Accuracy of pedicle screw placement in lumbar fusions by plain radiographs and computed tomography. Spine (Phila Pa 1976). 1995;20(13): 1494-1499.

[25] 杨雯栋,王清,兰永树,等.多层螺旋CT三维重建技术在胸腰椎骨折经椎弓根螺钉内固定术中的应用价值[J].中国脊柱脊髓杂志, 2011, 21(6):452-455.

[26] Kaptanoglu E, Cemil B, Gurcay AG, et al. Morphometric characteristics of the inner and outer diameter of lumbar pedicles on computed tomography. Neurol Neurochir Pol. 2009;43(6):533-537.

[27] Garber ST, Bisson EF, Schmidt MH. Comparison of Three-Dimensional Fluoroscopy versus Postoperative Computed Tomography for the Assessment of Accurate Screw Placement after Instrumented Spine Surgery. Global Spine J. 2012;2(2):95-98.

[28] Illés T, Tunyogi-Csapó M, Somoskeöy S. Breakthrough in three-dimensional scoliosis diagnosis: significance of horizontal plane view and vertebra vectors. Eur Spine J. 2011;20(1): 135-143.

[29] Phan P, Mezghani N, Aubin CÉ, et al. Computer algorithms and applications used to assist the evaluation and treatment of adolescent idiopathic scoliosis: a review of published articles 2000-2009. Eur Spine J. 2011;20(7):1058-1068.

[30] Lotfinia I, Sayahmelli S, Gavami M. Postoperative computed tomography assessment of pedicle screw placement accuracy. Turk Neurosurg. 2010;20(4):500-507.

[31] Abul-Kasim K, Ohlin A, Strömbeck A, et al. Radiological and clinical outcome of screw placement in adolescent idiopathic scoliosis: evaluation with low-dose computed tomography. Eur Spine J. 2010;19(1):96-104.

[32] 武峰.多排螺旋CT对腰椎椎弓根内固定术18例的术后评价[J].中国误诊学杂志,2010,10(4):956-957.

[33] 娄海芳,朱永坚,王志康.三维多层螺旋 CT 在椎管重建术后评价中的应用[J].医疗装备,2011,24(6):15-17.

[34] Gstoettner M, Lechner R, Glodny B, et al. Inter- and intraobserver reliability assessment of computed tomographic 3D measurement of pedicles in scoliosis and size matching with pedicle screws. Eur Spine J. 2011;20(10):1771-1779.

[35] Schizas C, Michel J, Kosmopoulos V, et al. Computer tomography assessment of pedicle screw insertion in percutaneous posterior transpedicular stabilization. Eur Spine J. 2007;16(5):613-617.
