Intra-articular migration of transplanted bone marrow mesenchymal stem cells in rats with articular cartilage injury

doi:10.3969/j.issn.2095-4344.0514

Abstract

Abstract:

BACKGROUND: The application of mesenchymal stem cells (MSCs) in the treatment of cartilage damage has become a hot spot of research. Further studies on the distribution of MSCs in the body after injection and on the underlying mechanism of action are needed.
OBJECTIVE: To observe the migration of bone marrow mesenchymal stem cells (BMSCs) after injection into the region of osteochondral defect.
METHODS: Thirty Sprague-Dawley rats were randomized into two groups (n=15 per group). In the control group, the femoral tochlear was exposed but an osteochondral defect was not made; and after the suture, PKH26-labeled BMSCs were directly injected into the articular cavity of rats. In the experimental group, a cartilage defect of 1 mm in diameter and 1 mm in depth was made in the rat femoral trochlea, and 5×106 PKH26-labeled BMSCs were injected into the defect after operation. At 1, 3 and 7 days after injection, the femoral condyle was taken to make frozen sections followed by DAPI staining. The distribution of BMSCs was observed under laser scanning confocal microscope.
RESULTS AND CONCLUSION: In the control group, PKH26-labeled BMSCs were not transferred to the subchondral bone. In the experimental group, BMSCs were detected in the subchondral bone area at 1, 3 days after injection of PKH26-BMSCs in the bone cartilage defect area, and the BMSCs were also found in the bone marrow cavity at 7 days after injection. In conclusion, BMSCs in the articular cavity cannot migrate into the subchondral bone and bone marrow cavity unless the cartilage of the femoral condyle is damaged.

中国组织工程研究杂志出版内容重点：干细胞；骨髓干细胞；造血干细胞；脂肪干细胞；肿瘤干细胞；胚胎干细胞；脐带脐血干细胞；干细胞诱导；干细胞分化；组织工程

Key words: Osteochondrosis, Bone Marrow, Mesenchymal Stem Cell Transplantation, Cell Migration Assays, Tissue Engineering

CLC Number:

R394.2

Sun Bai-chuan, Wang Shou-feng, Liu Xue-jian, Zhang Kai-hong, Chen Peng, Huang Shao-dai, Lu Chang-feng, Wang Chong, Yu Wen, Wang Yu, Zhang Zeng-zeng, Zhou Cheng-fu, Peng Jiang. Intra-articular migration of transplanted bone marrow mesenchymal stem cells in rats with articular cartilage injury[J]. Chinese Journal of Tissue Engineering Research, 2018, 22(17): 2699-2704.

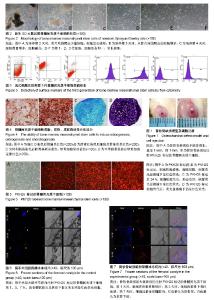

Figures/Tables 1

2.1 细胞形态原代培养至第2天，倒置显微镜下观察，大部分细胞从骨片周围爬出，细胞呈长梭形；第3天时，细胞爬出的数量增多；第4天时，细胞数量明显增多，细胞呈长梭形围绕骨片生长，部分细胞集落间有融合现象，当细胞密度达50%时，1︰1传代。第1-3代骨髓间充质干细胞均呈长梭形，细胞形态无明显差异(图2)。 2.2 流式细胞鉴定结果流式细胞仪检测细胞表面抗原，高表达CD29和CD90，低表达CD34和CD45(图3)。 2.3 成脂、成骨、成软骨诱导分化能力成脂诱导10 d后，大部分细胞内出现圆形脂滴，细胞由长梭形变成圆形或多边形，油红O染色后脂滴呈红色(图4A)；成骨诱导3周后，细胞呈结层状、结节状生长，失去原始细胞结构，茜素红染色呈红色(图4B)；成软骨诱导4周后，细胞由扁平的细胞团块逐渐变成球形，并且软骨球不断增大、变圆，软骨球经石蜡切片阿利新蓝染色后软骨基质呈蓝色(图4C)，甲苯胺蓝染色后软骨细胞呈紫红色(图4D)。 2.4 荧光显微镜观察骨髓间充质干细胞标记情况 PKH26染色的骨髓间充质干细胞标记率达98%，染料均匀分布在细胞膜上，在倒置荧光显微镜下呈红色荧光，细胞轮廓清晰，胞膜完整。继续培养24 h后，细胞贴壁生长，形态良好，荧光显微镜下呈红色。细胞传代后荧光显微镜下仍呈红色荧光(图5)。 2.5 激光共聚焦显微镜下观察PKH26标记的骨髓间充质干细胞在体内的迁移情况关节腔内注射PKH26标记的骨髓间充质干细胞，第1，3，7天行股骨髁冰冻切片，DAPI染色，在激光共聚焦荧光显微镜下观察。假手术组：图6A为DAPI染色结果，细胞发出蓝色荧光，图6B为PKH26标记的骨髓间充质干细胞发出红色荧光，图6C为明场下的大鼠股骨髁冰冻切片，图6D为重叠图像。结果显示：正常大鼠关节腔注射PKH26标记的骨髓间充质干细胞，未见明显红色荧光细胞向软骨及软骨下骨区迁移。骨软骨缺损组：图7A为DAPI染色结果，细胞发出蓝色荧光，图7B为PKH26标记的骨髓间充质干细胞发出红色荧光，图7C为明场下的大鼠股骨髁冰冻切片，图7D为重叠图像。注射细胞后第1天，骨髓间充质干细胞在骨软骨缺损区；注射细胞后第3天，红色荧光细胞在缺损旁软骨及软骨下骨区；注射细胞后第7天，在骨髓腔内可见大量的PKH26标记的骨髓间充质干细胞。"

References

[1] Lories RJ, Luyten FP. The bone-cartilage unit in osteoarthritis. Nat Rev Rheumatol. 2011;7(1):43-49.

[2] Loeser RF, Goldring SR, Scanzello CR, et al. Osteoarthritis: a disease of the joint as an organ. Arthritis Rheum. 2012;64(6): 1697-1707.

[3] Toh WS, Foldager CB, Pei M, et al. Advances in mesenchymal stem cell-based strategies for cartilage repair and regeneration. Stem Cell Rev. 2014;10(5):686-696.

[4] Filardo G, Perdisa F, Roffi A, et al. Stem cells in articular cartilage regeneration. J Orthop Surg Res. 2016;11:42.

[5] Orozco L, Munar A, Soler R, et al. Treatment of knee osteoarthritis with autologous mesenchymal stem cells: a pilot study. Transplantation. 2013;95(12):1535-1541.

[6] Sekiya I, Ojima M, Suzuki S, et al. Human mesenchymal stem cells in synovial fluid increase in the knee with degenerated cartilage and osteoarthritis. J Orthop Res. 2012;30(6): 943-949.

[7] Kawaguchi K, Katsuyama Y, Kikkawa S, et al. PKH26 is an excellent retrograde and anterograde fluorescent tracer characterized by a small injection site and strong fluorescence emission. Arch Histol Cytol. 2010;73(2):65-72.

[8] Wong KL, Lee KB, Tai BC, et al. Injectable cultured bone marrow-derived mesenchymal stem cells in varus knees with cartilage defects undergoing high tibial osteotomy: a prospective, randomized controlled clinical trial with 2 years' follow-up. Arthroscopy. 2013;29(12):2020-2028.

[9] Steadman JR, Rodkey WG, Rodrigo JJ. Microfracture: surgical technique and rehabilitation to treat chondral defects. Clin Orthop Relat Res. 2001;(391 Suppl):S362-369.

[10] Bianco P, Gehron Robey P. Marrow stromal stem cells. J Clin Invest. 2000;105(12):1663-1668.

[11] Clarke D, Frisén J. Differentiation potential of adult stem cells. Curr Opin Genet Dev. 2001;11(5):575-580.

[12] Tuan RS, Boland G, Tuli R. Adult mesenchymal stem cells and cell-based tissue engineering. Arthritis Res Ther. 2003; 5(1):32-45.

[13] Romanov YA, Darevskaya AN, Merzlikina NV, et al. Mesenchymal stem cells from human bone marrow and adipose tissue: isolation, characterization, and differentiation potentialities. Bull Exp Biol Med. 2005;140(1):138-143.

[14] Mobasheri A, Kalamegam G, Musumeci G, et al. Chondrocyte and mesenchymal stem cell-based therapies for cartilage repair in osteoarthritis and related orthopaedic conditions. Maturitas. 2014;78(3):188-198.

[15] Bashir J, Sherman A, Lee H, et al. Mesenchymal stem cell therapies in the treatment of musculoskeletal diseases. PM R. 2014;6(1):61-69.

[16] 徐丽娟,张云巍,王淑芳,等.小鼠骨髓间充质干细胞的分离、培养新方法[J]. 肝脏, 2017,22(3): 252-255.

[17] Dahia CL, Mahoney E, Wylie C. Shh signaling from the nucleus pulposus is required for the postnatal growth and differentiation of the mouse intervertebral disc. PLoS One. 2012;7(4):e35944.

[18] Fang Z, Yang Q, Luo W, et al. Differentiation of GFP-Bcl-2-engineered mesenchymal stem cells towards a nucleus pulposus-like phenotype under hypoxia in vitro Biochem Biophys Res Commun. 2013;432(3):444-450.

[19] Wang D, Vo NV, Sowa GA, et al. Bupivacaine decreases cell viability and matrix protein synthesis in an intervertebral disc organ model system. Spine J. 2011;11(2):139-146.

[20] de Chickera S, Willert C, Mallet C, et al. Cellular MRI as a suitable, sensitive non-invasive modality for correlating in vivo migratory efficiencies of different dendritic cell populations with subsequent immunological outcomes. Int Immunol. 2012; 24(1):29-41.

[21] Go??b K, Kizilel S, Bal T, et al. Improved coating of pancreatic islets with regulatory T cells to create local immunosuppression by using the biotin-polyethylene glycol-succinimidyl valeric acid ester molecule. Transplant Proc. 2014;46(6):1967-1971.

[22] Pastò A, Marchesi M, Diamantini A, et al. PKH26 staining defines distinct subsets of normal human colon epithelial cells at different maturation stages. PLoS One. 2012;7(8):e43379.

[23] Chiba Y, Kuroda S, Osanai T, et al. Impact of ageing on biological features of bone marrow stromal cells (BMSC) in cell transplantation therapy for CNS disorders: functional enhancement by granulocyte-colony stimulating factor (G-CSF). Neuropathology. 2012;32(2):139-148.
