Meta-analysis of excellent and good rate and complication of Endobutton plate versus clavicular hook plate for treating acromioclavicular joint dislocation

doi:10.3969/j.issn.2095-4344.0050

Abstract

Abstract:

BACKGROUND: At present, there are many ways to treat acromioclavicular joint dislocation, mainly based on clavicular hook plate, but the anatomical reconstruction of the trapezoid ligament and conoid ligament of the acromioclavicular ligament is the most important trend in the treatment of acromioclavicular joint dislocation. Endobutton plate has been widely promoted in recent years. A large number of randomized controlled trials and retrospective study showed that it has better efficacy and lower incidence of complications compared with the clavicular hook plate.

OBJECTIVE: To evaluate the excellent and good rate and the short-term incidence of complication between Endobutton plate and clavicular hook plate in the treatment of acromioclavicular joint dislocation.

METHODS: The Cochrane Library (1966-06/2017-05), PubMed (1966-06/2017-05), MEDLINE (1966-02/2017-05), EMbase (1984-01/2017-05), CNKI (1979-01/2017-05), VIP (1989-01/2017-05), and Wanfang (1982-01/2017-05) databases were searched by computer. Simultaneously, six major Chinese orthopedic journals were retrieved by hand, and the references included in the related articles were consulted. Randomized controlled trials addressing Endobutton plates and clavicular hook plates for the treatment of acromioclavicular joint dislocation were collected. The literatures were screened for inclusion criteria, and their qualities were evaluated. Meta-analysis was performed using RevMan 5.3 software.

RESULTS AND CONCLUSION: (1) A total of 13 randomized controlled trials containing 800 patients were included in the study. 394 patients were treated with Endobutton plate and 406 patients with clavicular hook plate as controls. Among which, only one study was compared in three different ways; the rest were compared between Endobutton plate and clavicular hook plate. (2) Meta-analysis showed that the excellent and good rate of Endobutton plate was superior to that of clavicular hook plate in the treatment of acromioclavicular joint dislocation (P < 0.000 01). Compared with clavicular hook plate, the incidence of incision infection, acromioclavicular joint pain, limited activity and redislocation were lower in Endobutton plate (P=0.02, < 0.001, < 0.00001, 0.03). (3) These findings suggested that the effect of Endobutton plate was better than that of clavicular hook plate in the treatment of acromioclavicular joint dislocation. The incidences of incision infection, acromioclavicular joint pain, limited mobility, and redislocation were lower in Endobutton plate than in the clavicular hook plate. Although the article included many randomized controlled trials, the qualities of these articles are limited. We still need to design more strictly large-sample randomized controlled trials to increase the credibility of the evidence.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

Key words: Acromioclavicular Joint, Internal Fixator, Randomized Controlled Trial, Evidence-Based Medicine, Meta-Analysis, Tissue Engineering

CLC Number:

R318

Song Xin, Maimaitishawutiaji•Maimaiti, Yilihamu•Tuoheti, Maihemuti•Yakufu, Chen Hong-tao, Abudusalamu•Abudukelimu, Luo Xiao-ying. Meta-analysis of excellent and good rate and complication of Endobutton plate versus clavicular hook plate for treating acromioclavicular joint dislocation[J]. Chinese Journal of Tissue Engineering Research, 2018, 22(3): 478-485.

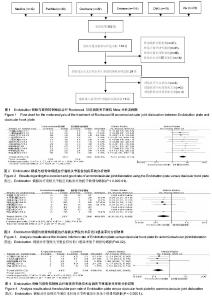

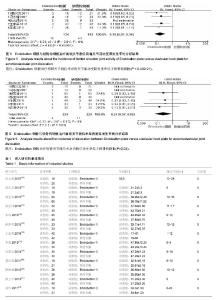

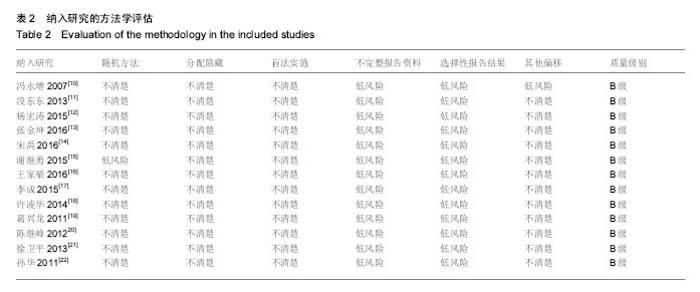

Figures/Tables 3

2.5 优良率分析纳入的11个随机对照试验比较了该两种方式术后的优良率[10，11，13-15，17-22]，结果均按Karlsson评定标准。Endobutton钢板组292例，锁骨钩钢板组304例，异质性分析显示，各研究无明显异质性[Chi2=1.33，df=10(P=1.000)，I2=0%]，故采用固定效应模型分析，OR=5.22，95%CI(2.99，9.11)，P < 0.000 01，结果显示2种内固定方式优良率差异有显著性意义(图2)。 2.6 术后切口感染率分析 8个随机对照试验报道固定后伤口感染情况[10-12，14，16-19]，共523例。其中Endobutton钢板组257例，锁骨钩钢板组266例。异质性分析显示，各研究的感染率指标间无明显异质性[Chi2=0.09，df=4(P=1.00)，I2=0%]，故采用固定效应模型分析，OR=0.31，95% CI(0.12，0.85)，P=0.02，结果显示Endobutton 钢板治疗肩锁关节脱位后切口感染与锁骨钩钢板比较差异有显著性意义(图3)。 2.7 肩关节疼痛发生率分析共5个随机对照试验报道了术后肩关节疼痛的发生情况[10，15，17-19]，共239例，其中Endobutton钢板组115例，锁骨钩钢板组124例，异质性分析显示，各研究的疼痛发生率指标间无明显异质性[Chi2=2.40，df=4(P=0.66)，I2=0%]，故采用固定效应模型分析，OR=0.19，95%CI(0.08，0.42)，P < 0.000 1，结果显示Endobutton钢板治疗肩锁关节脱位后肩关节疼痛与锁骨钩钢板比较差异有显著性意义(图4)。 2.8 活动受限发生率分析 5个随机对照试验报道活动受限情况[10，13，16-17，19]，共277例。其中Endobutton钢板组134例，锁骨钩钢板组143例。异质性分析显示，各研究的活动受限发生率指标间无明显异质性[Chi2=0.53，df=3(P=0.91)，I2=0%]，故采用固定效应模型分析，OR=0.16，95%CI(0.07，0.34)，P < 0.000 01，结果显示Endobutton钢板治疗肩锁关节脱位后肩关节活动受限与锁骨钩钢板组比较差异有显著性意义(图5)。 2.9 术后再脱位发生率分析 7个随机对照试验报道手术后再脱位情况[10，12-14，17-19]，共453例。其中Endobutton钢板组224例，锁骨钩钢板组229例。异质性分析显示，各研究的再脱位发生率指标间无明显异质性[Chi2=0.25，df=3(P=0.97)，I2=0%]，故采用固定效应模型分析，OR=0.24，95%CI(0.07，0.85)，P=0.03，结果显示Endobutton钢板治疗肩锁关节脱位后再脱位与锁骨钩钢板术比较差异有显著性意义(图6)。 "

References

[1] Kim AC, Matcuk G, Patel D, et al. Acromioclavicular joint injuries and reconstructions: a review of expected imaging findings and potential complications. Emerg Radiol. 2012;19: 399-413.

[2] Bradley JP, Elkousy H. Decision making: operative versus nonoperative treatment of acromioclavicular joint injuries. Clin Sports Med. 2003;22:277-290.

[3] Spencer EE Jr. Treatment of grade III acromioclavicular joint injuries: a systematic review. Clin Orthop Relat Res. 2007; 455:38-44.

[4] Wei HF, Chen YF, Zhang CQ, et al. Triple endobuttton technique for the treatment of acute complete acromioclavicular joint dislocations: preliminary results. Int Orthop. 2011;35:555-559.

[5] 王海明,陈云丰,陆叶,等 Triple-Endobutton技术与锁骨钩钢板置入治疗肩锁关节脱位的比较[J].中国组织工程研究,2012, 16(17):3105-3110.

[6] Li H, Wang C, Wang J, et al. Restoration of horizontal stability in complete acromioclavicular joint separations: surgical technique and preliminary results. Eur J Med Res. 2013;18: 42.

[7] 宋烜,陈羽,子树明,等.带袢钢板治疗肩锁关节脱位[J].临床骨科杂志,2014,17(1):40-42.

[8] Amarson K, Sigurjionsson K. Acromio-clavicalar dislocation treated by coraoacrom ial iganene transfer. Arch Orthop Trauma Surg. 1986;106:8.

[9] Higgins JP, Thompson SG, Deeks JJ, et al. Measuring inconsistency in meta-analyses.BMJ. 2003;327(7414): 557-560.

[10] 冯永增,洪建军,陈鸿亮,等. 锁骨钩钢板与双Endobutton钢板治疗肩锁关节脱位的对比研究[J]. 中华骨科杂志, 2009, 29(11): 1009-1014.

[11] 段东东,冯德宏,赵继军,等. Endobutton钢板与锁骨钩钢板治疗TossyⅢ型肩锁关节脱位疗效比较研究[J]. 中国骨与关节损伤杂志, 2013, 28(9):828-830.

[12] 杨宏涛,贺西京,祝利虎,等. 双带袢纽扣钢板重建喙锁韧带治疗完全性肩锁关节脱位疗效观察[J]. 现代中西医结合杂志, 2015, 24(19):2122-2124.

[13] 张金坤,倪善军. 纽扣带袢钢板内固定治疗肩锁关节脱位短期临床分析[J]. 中外医疗, 2016,35(26):83-84.

[14] 宋禹. 双带袢纽扣钢板重建喙锁韧带治疗完全性肩锁关节脱位疗效分析[J]. 医学理论与实践,2016,29(10):1327-1328.

[15] 谢继勇. 锁骨钩钢板与纽扣钢板治疗肩锁关节脱位的临床评价[J]. 现代医药卫生, 2015,31(12):1828-1830.

[16] 王家梁,刘志彬,李毅,等. 双Endobutton钢板与锁骨钩钢板对Tossy Ⅲ型肩锁关节脱位的临床实效性评价[J]. 湖北科技学报(医学版), 2015, 29(2):114-116.

[17] 李成,邓伟捷,万雷,等. 锁骨钩钢板和双Endobutton带袢钢板治疗TossyⅢ型肩锁关节脱位疗效比较[J]. 中国民族民间医药, 2015,24(5):125-126.

[18] 许凌华,徐建杰. 不同方法治疗TossyⅢ型肩锁关节脱位的临床比较分析[J]. 浙江创伤外科, 2014,19(6):967-969.

[19] 葛兴龙,单军标. Endobutton钢板治疗肩锁关节脱位的疗效分析[J]. 浙江中医药大学学报, 2011,35(5):699-700.

[20] 陈继峰. RockwoodⅢ-Ⅴ型肩锁关节脱位的三种治疗方法比较研究[J]. 现代诊断与治疗, 2012, 23(4):336-337.

[21] 徐卫平. 不同内固定方法在肩锁关节骨折脱位治疗中的效果比较[J]. 现代诊断与治疗, 2013,24(19):4500-4501.

[22] 孙华,罗轶,毛汉兴,等. 锁骨钩钢板与带绊纽扣钢板治疗Tossy Ⅲ型肩锁关节脱位的疗效研究[J]. 骨科, 2011, 2(1):44-46.

[23] 王磊,王新,周路纲,等. 锁骨钩钢板治疗肩锁关节脱位及锁骨远端骨折术后并发症的探讨[J]．创伤外科杂志, 2010,12(4): 365-365.

[24] 顾华,付建,宋小勇,等.锁骨钩钢板治疗锁骨远端骨折与肩锁关节脱位术后肩周疼痛原因分析[J].中国骨与关节损伤杂志,2012, 27(7):634-636.

[25] 陆军,李永刚,吴小涛,等.肩锁钩钢板内固定对肩关节功能的影响[J].中华损伤与修复杂志(电子版),2013,8(1):26-30.

[26] 郭丹,周海斌.锁骨钩钢板治疗RockwoodⅢ型肩锁关节脱位的治疗分析[J].中国矫形外科杂志,2012,20(16):1449-1451.

[27] 胡阿威,夏成焱,夏春明,等.锁骨钩钢板与双Endobutton钢板治疗肩锁关节脱位的疗效比较[J].临床骨科杂志,2017,20(1): 111-113.

[28] 朱义用,汪建良. 锁骨钩钢板治疗肩锁关节脱位和锁骨远端骨折的肩痛原因分析[J]. 中华创伤骨科杂志,2007,9(7):692-693.

[29] Struhl S, Wolfson TS．Double Endobutton technique for repair of complete acromioclavicular joint dislocations. Tech Shoulder Elbow Surg. 2007;8(4):175-179.

[30] 周渊. 双Endobutton钢板治疗新鲜Tossy Ⅲ型肩锁关节脱位[J]. 中医临床研究, 2014, 6(34):140-141.

[31] 戴志兵,唐广满,孔建中. 锁骨钩钢板与Endobutton袢钢板治疗肩锁关节脱位[J].实用骨科杂志,2011,11(10):879-881.

[32] Grutter PW, Petersen SA. Anatomical acromioclavicular ligament reconstruction: a biomechanical comparison of reconstructive techniques of the acromioclavicular joint. Am J Sports Med. 2005;33:1723-1728.

[33] 王治洲,曲广华,韩亚军,等. 纽扣钢板与其他内固定方式修复肩锁关节脱位比较的Meta分析[J]. 中国组织工程研究, 2014, 18(40):6553-6560.

[34] Alentorn-Geli E, Santana F, Mingo F, et al. Distal clavicle osteolysis after modified Weaver-Dunn’s procedure for chronic acromioclavicular dislocation: a case report and review of complications. Case Rep Orthop. 2014;2014: 953578.

[35] Bostrom Windhamre HA, von Heideken JP, Une-Larsson VE, et al. Surgical treatment of chronicacromioclavicular dislocations: a comparative study of Weaver Dunn augmented with PDS-braid or hook plate. J Shoulder Elbow Surg.2010; 19(7): 1040-1048.

[36] Bezer M, Saygi B, Aydin N, et al. Guven. Quantification of acromioclavicular reduction parameters after the Weaver-Dunn procedure. Arch Orthop Trauma Surg. 2009; 129(8):1017-1024.

[37] 伊力哈木托合提,曲广华,桂和,等.喙肩韧带转位治疗Ⅲ度肩锁关节脱位的临床疗效分析[J].中国骨与关节损伤杂志, 2011,26(5): 414-416.

[38] Millett PJ, Braun S, Gobezie R, et al. Acromioclavicular joint reconstruction with coracoacromial ligament transfer using the docking technique.BMC Musculoskelet Disord.2009;10:6.

[39] Baldwin K, Namdari S, Andersen JR, et al. Luggage TagTechnique of Anatomic Fixation of Displaced Acromioclavicular Joint Separations. Clin Orthop Relat Res. 2010;468:259-265.

[40] Kovilazhikathu Sugathan H, Dodenhoff RM. Management of Type 3 Acromioclavicular Joint Dislocation: Comparison Long-Term Functional Results of Two Operative Methods. ISRN Surg.2012;2012:580504.

[41] Sandmann GH, Martetschläger F, Mey L, et al. Reconstruction of displaced acromioclavicular joint dislocations using a triple suture-cerclage: description of a safe and efficient surgical technique. Patient Saf Surg. 2012;6:25.

[42] Gille J, Heinrichs G, Unger A, et al. Arthroscopic-assisted hook plate fixation for acromioclavicular joint dislocation. Int Orthop. 2013;37:377-382.

[43] Yoo YS, Seo YJ, Noh KC, et al. Arthroscopically assisted anatomical coracoclavicular ligament reconstruction using tendon graft. Int Orthop. 2011;35(7):1025-1030.

[44] Ranne JO, Sarimo JJ, Rawlins MI, et al. All-arthroscopic double-bundle coracoclavicular ligament reconstruction using autogenous semitendinosus graft: a new technique. Arthrosc Tech. 2012;1(1):e11-e14.

[45] 田竞,于海龙,薛海鹏,等. Endobutton技术治疗肩锁关节脱位失效的原因分析[J].中国骨与关节外科,2012,5(6):497-500.
