Stability of load-bearing cross barrier of different arch structures

doi:10.12307/2021.089

Abstract

Abstract: BACKGROUND: Walking across obstacles with weight is more common in daily life. Changes in the structure of the arch of the foot can easily cause foot diseases, thereby affecting the gait characteristics of walking.
OBJECTIVE: To study the changes of spatial and temporal gait parameters and kinetic parameters during normal foot, high arch, flat foot and load-bearing stride, and to explore the influence of arch structure on gait stability.

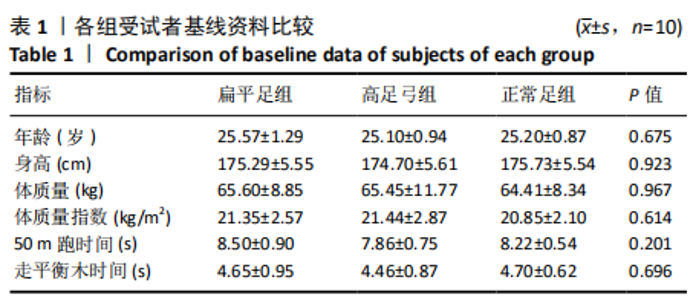

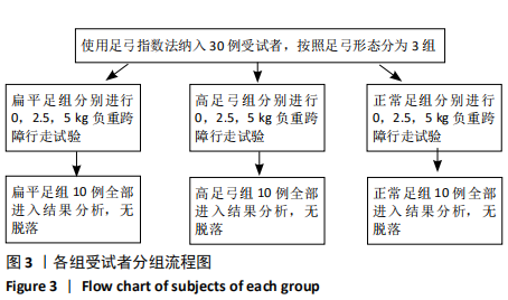

METHODS: Thirty healthy male college students at school were divided into three groups according to the shape of the foot arches (n=10 per group). The 10 cases in the normal foot group were at the age of (25.2±0.87) years old and height of (175.73±5.54) cm. The 10 cases in the flat foot group were at the age of (25.57±1.29) years old and height of (175.29±5.55) cm. The 10 cases in the high foot arch group were at the age of (25.1±0.94) years old and height of (174.7±5.61) cm. The VICON three-dimensional motion capture system and Pedar-X insole plantar pressure measurement system were used to collect spatial and temporal gait parameters, and dynamic parameters. The changes of parameters such as the gait cycle and the center of pressure trajectory under different weights were analyzed.

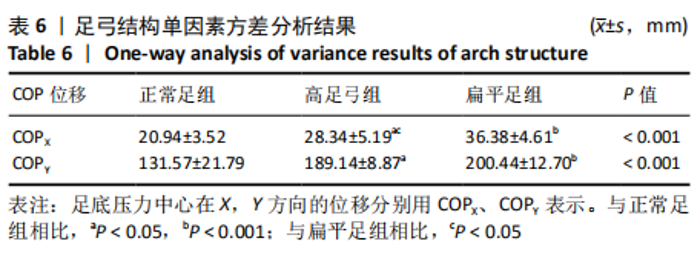

RESULTS AND CONCLUSION: (1) Differences in center of pressure displacements of different arch structures during weight-bearing cross-obstacle. The displacements of plantar pressure center in X and Y axes of the high arch and flat foot were larger than those of the normal foot. Compared with the normal foot and the high arch, the flat foot had a longer proportion of the gait cycle in the dual support phase, and the single support phase had a shorter proportion in the gait cycle. (2) To conclude, the arch structure has a significant effect on the stability during weight-bearing trans-obstacle. Compared with normal feet, the gait stability of the high arch and the flat foot is lower; the high arch requires more medial support; and the flat foot requires more lateral support to improve gait stability. The conclusion of this study provides a certain reference for the design of orthopedic rehabilitation insoles with flat feet and high arches.

Key words: foot arch structure, crossing obstacles, center of plantar pressure, gait cycle, , stability, gait analysis

CLC Number:

Wang Xinting, Xu Dandi, Zhang Junxia, Su Hailong Wang Qi. Stability of load-bearing cross barrier of different arch structures[J]. Chinese Journal of Tissue Engineering Research, 2021, 25(24): 3838-3843.

Figures/Tables 12

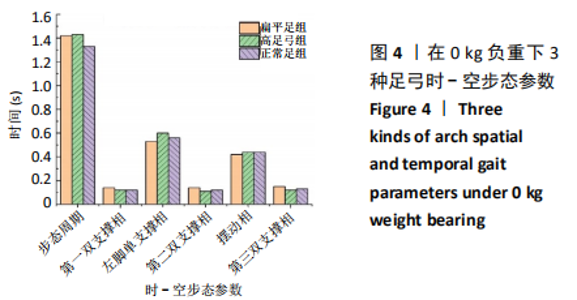

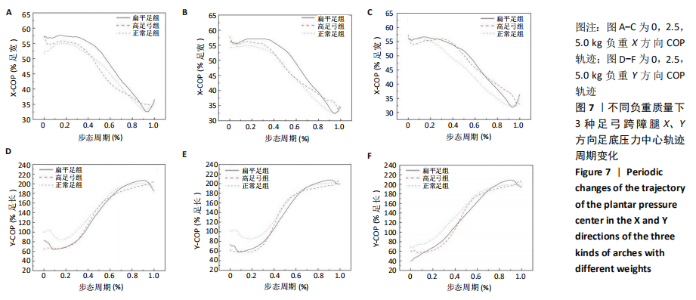

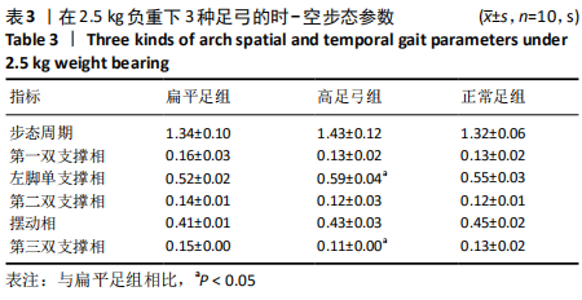

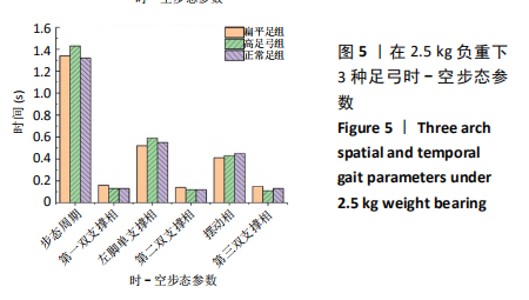

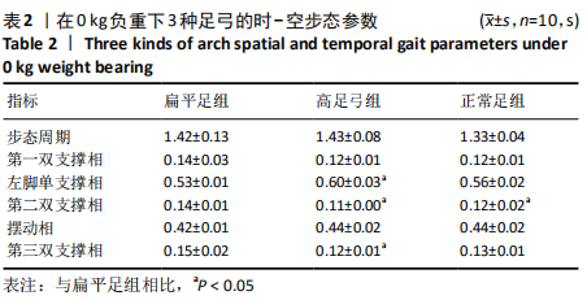

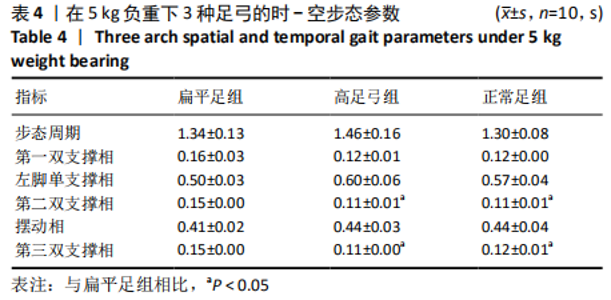

如表2所示，在无负重状态下，与正常足组相比，扁平足组第二双支撑相时间明显更长；与高足弓组相比，扁平足组第二、三双支撑相时间明显更长，左脚单支撑相时间明显更短。如表3所示，在2.5 kg负重状态下，与高足弓组相比，扁平足组第三双支撑相时间明显更长，左脚单支撑相时间明显更短。如表4所示，在5 g负重状态下，与正常足组和高足弓组相比，扁平足组第二、三双支撑相时间明显更长。 2.5 各组受试者COP轨迹的比较对不同负重质量的跨障腿X方向COP轨迹进行描述与分析，图7A-C为不同负重质量3种足弓跨障腿X方向COP轨迹周期变化。在0 kg负重质量的范围里，相比于正常足，扁平足与高足弓呈现出更多的横向COP位移，如图7A所示。在2.5 kg负重质量的范围里，扁平足与高足弓的横向位移均大于正常足，如图7B所示。在5 kg负重质量的范围里，与0 kg、2.5 kg相同，扁平足与高足弓的横向位移均大于正常足，如图7C所示。对负重质量的改变对于跨障腿X方向COP轨迹的影响进行描述与分析。比较图7A-C，可以看出，随着负重质量的增加，高足弓COP轨迹波动变大，同时横向位移增大。对不同负重质量的跨障腿Y方向COP轨迹进行描述与分析，图7D-F为不同负重质量3种足弓跨障腿Y方向COP轨迹周期变化。在0 kg负重质量的范围里，相比于正常足与高足弓，扁平足呈现出更多的纵向COP位移，如图7D所示。在2.5 kg负重质量的范围里，相比于高足弓与扁平足，正常足呈现出更小的纵向COP位移，如图7E所示。在5 kg负重质量的范围里，同2.5 kg相似，正常足的纵向COP位移显著小于高足弓与扁平足，如图7F所示。对负重质量的改变对于跨障腿Y方向COP轨迹的影响进行描述与分析，比较图7D-F可以得出结论，负重质量的改变对于高足弓，扁平足和正常足的COP轨迹影响均显著，COP纵向位移均呈现增大的趋势。 "
