Influence of muscle forces on lumbar internal fixation system using the finite element analysis

doi:10.3969/j.issn.2095-4344.0277

Abstract

Abstract:

BACKGROUND: Internal fixation system is a commonly used method for lumbar spine injury. The role of lumbar muscle strength and choosing a sagittal angle are the main factors affecting the success rate of internal fixation, which should pay much attention.

OBJECTIVE: To explore the influence of muscle forces under different postures on the internal fixation system when the ploy axial pedicle screws were installed in different sagittal angles.
METHODS: A finite element model of lumbar spine (L₃and L₄) was developed based on the L₃and L₄MRI data from a healthy adult man and assembled with ploy axial pedicle screw internal fixation system in different sagittal angles. Then, three loading schemes were designed to study the distribution of stress and displacement in anteflexion, extension and lateral bending: scheme 1: loaded without gravity, following loads, or erector spinae force; scheme 2: loaded with gravity and following loads, without erector spinae force; scheme 3: loaded with gravity, following loads, and erector spinae force. The stress and displacement of each part under different conditions were compared.

RESULTS AND CONCLUSION: (1) In anteflexion, the stress was in a decent tendency in each scheme. In extension, the stress in the schemes 1 and 2 was decreased firstly and then increased, and the stress in the scheme 3 was kept on a descent tendency. In lateral bending, the stress in the scheme 1 was firstly increased and then decreased, and the stress in the schemes 2 and 3 was firstly decreased and then increased. (2) The displacement in the sagittal angles (0°-5°) was on a rise, and then began to decrease. (3) The scheme 1 revealed the lowest displacement. (4) These results indicate that the muscle force can increase the stress of the internal fixation system under each condition and the intradiscal pressure. However, the stress in each part is related to the motion of lumbar spine. Moreover, the effect of muscle force should be taken into account according to the different sagittal angles.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

Key words: Muscle Strength, Biomechanics, Internal Fixators, Tissue Engineering

CLC Number:

R318

Zhao Peng-fei, Chen Ling, Men Yu-tao . Influence of muscle forces on lumbar internal fixation system using the finite element analysis[J]. Chinese Journal of Tissue Engineering Research, 2018, 22(23): 3654-3658.

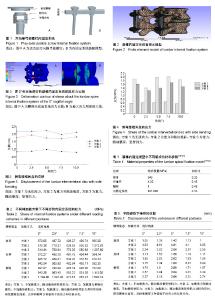

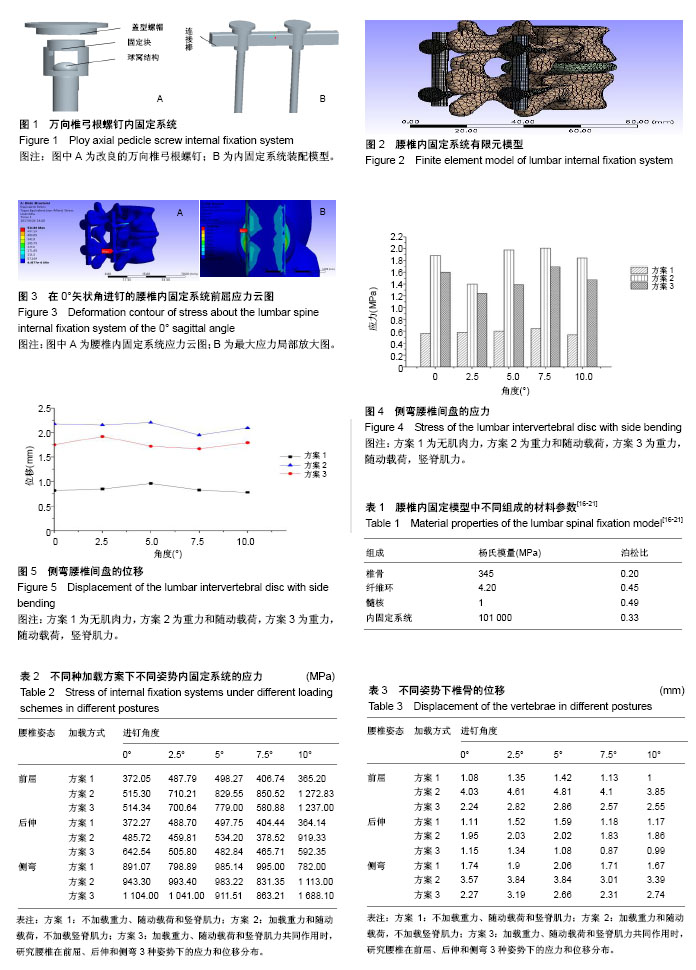

Figures/Tables 1

2.1 前屈、后伸和侧弯姿势内固定系统的应力及椎骨的位移对前屈、后伸和侧弯姿势下的腰椎模型按照上述3种方案加载，观察内固定系统的应力和椎骨位移。前屈姿势下，矢状角为0°腰椎内固定系统的应力云图见图3，其应力主要集中在螺钉尾部连接棒与固定块的接触部位。在肌肉力的作用下，内固定系统所承受的应力最大，这与改进内固定系统的初衷一致。内固定系统在前屈、后伸和侧弯3个姿势下不同进钉角度的应力计算结果见表2。前屈姿势下，无论哪种进钉角度，3种加载方案均是方案2应力最大；而方案1，3应力相对方案2较小；不同的矢状面进钉角度对方案1，3的对应角度的应力差值影响范围在142.29-280.73 MPa之间；而且3种方案内固定系统的应力变化趋势相似。后伸姿势下，进钉角度从0°-7.5°，方案1，2应力趋势都是先上升后下降，在5°时方案1应力值达到最大497.75 MPa，方案2在5°达到小范围内的峰值为 534.2 MPa，方案3的应力值处于下降状态。当进钉角度为10°时，方案1应力值降到最低364.14 MPa，方案2应力值达到最大919.33 MPa，方案3应力值小幅上升到 592.35 MPa。侧弯姿势下，在0°-7.5°方案1的模型应力值基本处于上升趋势，在10°时应力下降。方案2，3的应力趋势在0°-7.5°都呈现下降的态势，在10°时应力上升。尽管内固定系统应力变化较大，而作用在椎骨上的应力都很小，但是椎骨上的最大位移不能忽视。而且椎骨最大位移的部位在3种加载方式下有所不同，有肌肉力加载时在椎骨前缘，在不施加肌肉力的情况下在椎骨的横突部位。为进一步探讨3种加载方案、不同进钉角度对椎骨位移的影响，将计算结果列于表3。可知无论是前屈、后伸还是侧弯，椎骨位移的变化趋势都是在0°-5°增加，之后位移随着角度的增加而减小。方案1的加载方式对3种姿势而言椎骨位移均在5°达到最大值，尤其在侧弯姿势下位移最大为 2.06 mm。方案2椎骨位移变化最为明显，特别是在前屈状态下，矢状面进钉角度为5°时达到最大值4.81 mm。方案3的椎骨位移变化较为平稳，只是在侧弯姿势下椎骨最大值位于2.5°。 2.2 侧弯姿势椎间盘的应力及位移 3种姿势下加载相同的5 N•m的力矩，只有侧弯姿势下椎间盘的应力变化最为明显，见图4。方案3应力在0°达到1.6 MPa，在2.5°时下降到1.24 MPa，当角度继续上升应力也呈上升趋势，在7.5°应力最大为1.69 MPa。选用方案2进行加载，间盘应力在0°达到1.88 MPa，之后的变化趋势与方案3类似，在7.5°应力最大为2.01 MPa。采用方案1加载时腰椎间盘在各个进钉角度之间的应力相差不大，从0°的0.56 MPa上升到7.5°的0.65 MPa，之后呈现下降的趋势。三者在装配角度为5°的时候，应力的趋势有所不同，出现一定的差异性。采用3种加载方案，椎间盘在侧弯姿势下位移随进钉角度变化折线图见图5。方案1加载时，椎间盘位移变化范围很小，基本呈一条水平线，在5°时达到最大位移量为0.96 mm。方案2加载时，在0°时椎间盘的位移量为2.18 mm，当角度增大到5°时，椎间盘位移量最大为2.21 mm，之后随角度增加，位移变化趋于稳定。方案3与方案2趋势相似，间盘位移在0°时为1.75 mm，角度上升到2.5°位移最大为 1.92 mm；随着角度继续增加，位移有下降的趋势。总之，3种加载方案下，方案1位移量最小。"

References

[1] 徐海涛,王文己.胸腰椎骨折的手术治疗进展[J].医学综述,2013,19(7): 1240-1243.

[2] 张晓林,陈长宝,马信龙.胸腰椎骨折的分类系统及后路外科治疗的研究进展[J].天津医药,2013,41(07):733-736.

[3] 彭俊,徐建广.胸腰椎骨折手术研究进展[J].中国修复重建外科杂志,2009, 23(12):1506-1509.

[4] 胡海刚,王清,谭伦.伤椎椎弓根置钉植骨治疗胸腰椎骨折的应用现状及进展[J].中国组织工程研究,2012,16(48):9074-9078.

[5] 傅栋,勒安民,宋磊,等人工髓核置换三维有限元模型的建立[J].中国组织工程研究与临床康复,2008,12(48):9401-9405.

[6] Kazim SF, Enam SA, Hashmi I, et al.Polyaxial screws for lumbo-iliac fixation after sacral tumor resection: experience with a new technique for an old surgical problem.Int J Surg. 2009;7(6):529-533.

[7] Kuklo TR, Potter BK, Polly DW, et al. Monaxial versus multiaxial thoracic pedicle screws in the correction of adolescent idiopathic scoliosis.Spine.2005;30(18):2113-2120.

[8] 宋富立,靳安民,张美超,等.AF 内固定器不同置钉角度的有限元分析[J].临床生物力学,2005,2(33):310-312.

[9] van Dieën J H, Cholewicki J, Radebold A.Trunk muscle recruitment patterns in patientswith low back pain enhance the stability of the lumbar spine.Spine.2003;28(8):834-839.

[10] 滕红林,徐华梓,吴春雷,等.严重下腰椎爆裂性骨折不同程度手术方式的比较[J].中华创伤杂志，2009,25(2):135-137.

[11] 马景新,王祥艳,许国星.短节段非融合椎弓根螺钉内固定修复胸腰椎爆裂骨折:中期随访[J] .中国组织工程研究, 2014,18(44):7088-7093 ．

[12] 贺新宁,欧晔灵,杜志勇,等.经皮椎弓根钉内固定治疗胸腰椎骨折[J].实用骨科杂志,2014,20(06):484-487．

[13] Lindsey C, Deviren V, Xu Z, et al. The effects of rod contouring on spinal construct fatigue strength. Spine.2006;31(15):1680-1702．

[14] 潘显明,谭映军,张波,等.椎弓根螺钉的螺纹形状与拔钉生物力学[J].第四军医大学学报,2002,23(5):447-450.

[15] 汪宇,潘滔,李佛保,等.椎板钩对椎弓根螺钉系统应力影响的有限元分析[J].中国临床解剖学杂志,2006,24(2):209-211.

[16] 余伟波,梁德,叶林强,等.3种不同后路内固定方式及其横连治疗胸腰段骨折的力学性能比较[J].医用生物力学,2016,31(2):142-147.

[17] John K Houten, Rani N. Symptomatic progression of degenerative scoliosis after decompression and limited fusion surgery for lumbar spinal stenosis. Journal of Clinical Neuroscience.2013;20(4):613-615.

[18] Verma K, Boniello A, Rihn J.Emerging Techniques for Posterior Fixation of the Lumbar Spine. J Am Acad Orthop Surg. 2016;24(6): 357-360.

[19] Hrabálek L, Wanek T, Adamus M.Treatment of degenerative spondylolisthesis of the lumbosacral spine by decompression and dynamic transpedicular stabilisation.Acta Chirurgiae Orthopaedicae Et Traumatologiae Cechoslovaca. 2011;78(5):431-436.

[20] 冯西桥,曹艳平,赵红平,等.生物材料力学研究新进展[J].医用生物力学, 2011,26(5):395-401.

[21] 毕大卫,王伟,费骏,等.人体胸腰椎体冲击损伤的生物力学研究[J].中国骨伤,2010,2(10):772-775.

[22] Kasten MD, Rao LA, Priest B. Long-term results of iliac wing fixation below extensive fusions in ambulatory adult patients with spinal disorders. Spinal Disord Tech.2010;23(7):37-42.

[23] 余涛,任家来,黄德宁,等.椎弓根钉佐椎体成形术在胸腰椎骨折中的应用[J].安徽医,2008,29(1):40-41.

[24] Bogduk N, Macintosh JE, Pearcy MJ. A universal model of thelumbar back muscles in the upright position. Spine.1992;17(8): 897- 913.

[25] Wilke HJ, Rohlmann A, Neller S, et al. ISSLS Prize Winner: a novel approach to determine trunk muscle forces during flexion and extension: a comparison of data from an in vitro experiment and in vivo me asurements. Spine. 2003;28:2585-2593．

[26] Rohlmann A, Neller S, Claes L, et al. Influence of a follower load on intradiscal pressure and intersegmental rotation of the lumbar spine. Spine.2001;26:E557-E561．

[27] Foley KT, Gupta SK. Pereutaneous pedicle serew-rod fixation of the lumbar spine.Clin Neurol Neurosurg. 2001; 49(2):536-537.

[28] Shepard MF, Davies MR, Abayan A, et al. Effects of polyaxial pedicle screws on lumbar construct rigidity.Spinal Disord Tech.2002;15(3):233.

[29] Zender T, Rohlmann, Calisse J, et al. Estimation of muscle forces in the lumbar spine during upper bodyinclination. Clin Biomech. 2001; 16:S73-80.

[30] 史可强,雷云霞,王海奎,等.不同矢状角度置入椎弓根螺钉的拔钉生物力学研究[J].中国骨与关节损伤杂志,2009,(4):311-313.
