Influence of arch curvature and all-ceramic materials on fatigue life of fixed bridges:  a finite element analysis

doi:10.3969/j.issn.2095-4344.0778

Abstract

Abstract:

BACKGROUND: The cyclic fatigue finite element method is more useful to study the fatigue life of the prosthesis in accordance with the actual situation of the oral cavity.

OBJECTIVE: To study the all-ceramic fixed bridge fatigue life with different arch curvatures and materials.

METHODS: According to the arch curvature, four sets of models (group I, 0°; group II, 30°; group III, 60°; group IV, 90°) were set up on the basis of a digital model of all-ceramic fixed bridge. Fatigue life of each model was analyzed with different materials (In-Ceram Zirconia, Zenotec, LAVA).

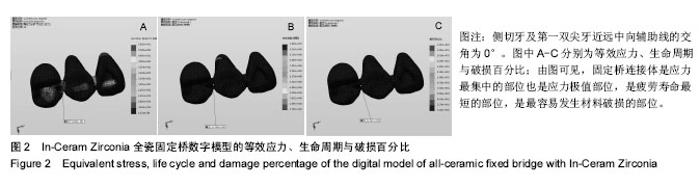

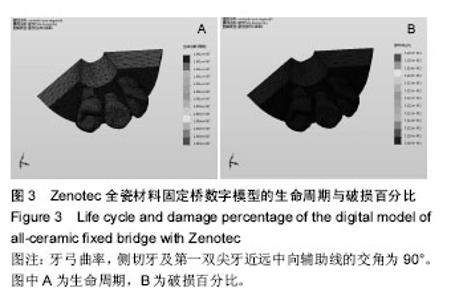

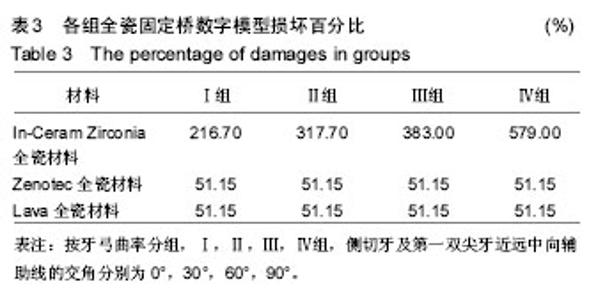

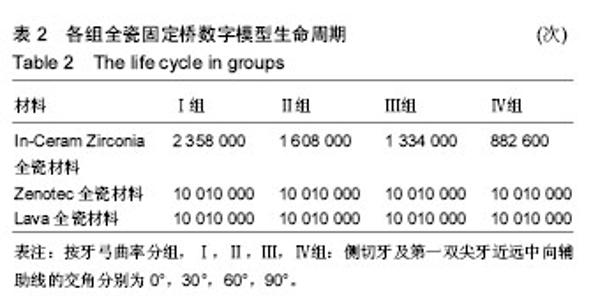

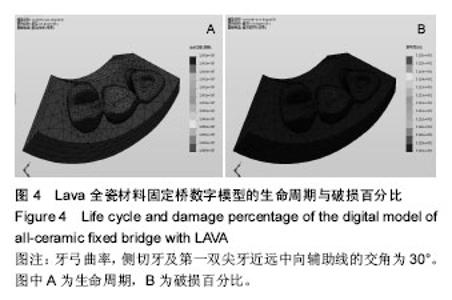

RESULTS AND CONCLUSION: The stress was mostly concentrated at the join of the all-ceramic fixed bridge. It was also the most part of the stress extremum, the shortest part of fatigue life and the most easily damaged part of the material. With the increase of arch curvature, the fatigue life of Group In-Ceram Zirconia dropped from 4.6 to 1.7 years, while both Group Zenotec and Group LAVA had the fatigue life of 19.6 years. The part of minimum life was the join of the fixed bridge. These findings indicate that the expected fatigue life of In-Ceram Zirconia all-ceramic fixed bridge restoration is relatively short, which may be an inappropriate repair material in anterior and posterior positions of canine teeth. All-ceramic materials, Zenotec and Lava, can meet the clinical life expectancy under different curvatures.中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

Key words: Dental Arch, Dental Porcelain, Fatigue, Finite Element Analysis, Tissue Engineering

CLC Number:

R318

Lu Xiao-feng, Ling Li, Dong Ning. Influence of arch curvature and all-ceramic materials on fatigue life of fixed bridges: a finite element analysis[J]. Chinese Journal of Tissue Engineering Research, 2018, 22(14): 2174-2178.

Figures/Tables 5

References

[1] 赵铱民.口腔修复学[M].6版.人民卫生出版社, 2007:87-89,159-164.

[2] Larsson C,Holm L,Lövgren N,et al.Fracture strength of four-unit Y-TZP FPD cores designed with varying connector diameter. An in-vitro study.J Oral Rehabil. 2007;34(9):702-709.

[3] 皮昕.口腔解剖生理学[M].6版.人民卫生出版社, 2007:66-68,292-294.

[4] Lin CL,Chang YH,Liu PR.Multi-factorial analysis of a cusp-replacing adhesive premolar restoration:A finite element syudy.J Dent. 2008; 36(3):194-203.

[5] Studart AR,Filser F,Kocher P,et al. Cyclic fatigue in water of veneer framework composites for all-ceramic dental bridges.Dent Mater.2007;23(2):177-185.

[6] Studart AR,Filser F,Kocher P,et al. Fatigue of zirconia under cyclic loading in water and its implications for the design of dental bridges.Dent Mater.2007;23(1):106-114.

[7] Benazzi S,Nguyen HN,Kullmer O,et al.Exploring the biomechanics of taurodontism.J Anat.2015;226(2):180-188.

[8] Guazzato M,Albakry M,Swain MV,et al.Mechanical properties of In-Ceram Alumina and In-Ceram Zirconia.Int J Prosthodont. 2002; 15(4):339-346.

[9] Dehoff PH,Anusavice KJ,Götzen N.Viscoelastic finite element analysis of an all-ceramic fixed partial denture.J Biomech. 2006; 39(1):40-48.

[10] 王勤琴,赵克,张新平.全瓷冠桥修复体应力分布和疲劳及断裂失效分析的有限元方法[J].国际口腔医学杂志, 2008,35(3):341-343.

[11] 吴玮琦,程绮婷,张骏,等.牙科陶瓷的动疲劳性能研究及循环疲劳寿命数值计算[J].中华口腔医学研究杂志:电子版, 2011,5(1):22-25.

[12] 赵海丹,胡宇平,张春宝,等.牙科氧化锆陶瓷材料循环疲劳性能的实验研究[J].牙体牙髓牙周病学杂志,2013,23(5):344-348.

[13] Phanphet S, Dechjarern S, Jomjanyong S. Above-knee prosthesis design based on fatigue life using finite element method and design of experiment. Med Eng Phys.2017;43:86-91.

[14] 张艺浩,李红霞,高月华,等.血流作用下冠脉支架的疲劳寿命优化[J].医用生物力学,2012,27(5):521-526.

[15] 黄觉辉,赵克,张新平.全瓷冠桥疲劳行为的有限元分析研究进展[J].国际口腔医学杂志,2008, 36(3):347-350.

[16] 辛海涛,郭伟国,李玉龙,等.前牙全瓷冠的循环疲劳特性及寿命分析[J].中华口腔医学杂志,2009, 44(2):101-104.

[17] Stona D,Jr BL,Mota E G,et al.Fracture resistance of computer-aided design and computer-aided manufacturing ceramic crowns cemented on solid abutments. Am Dent Assoc. 2015;146(7):501-507.

[18] 高建明.材料力学性能[M].武汉:武汉理工大学出版社, 2004:46-48,106-121.

[19] Braun S,Hnat WP,Fender DE,et al.The form of the human dental arch. Angle Orthod.1998;68(1):29-36.

[20] 马淑芳,曹军.成人下前牙拥挤病人牙弓形态特征研究[J].牙体牙髓牙周病学杂志,2010,20(1):27-31.

[21] Chaar MS,Passia N,Kern M.Ten-year clinical outcome of three-unit posterior FDPs made from a glass-infiltrated zirconia reinforced alumina ceramic (In-Ceram Zirconia).J Dent.2015;43(5):512-517.

[22] Wang YG,Xing YX,Sun YC,et al.Preliminary evaluation of clinical effect of computer aided design and computer aided manufacture zirconia crown.Zhonghua Kou Qiang Yi Xue Za Zhi.2013;48(6):355-358.

[23] Burke FJT,Crisp RJ,Cowan AJ,et al.Five-year clinical evaluation of zirconia-based bridges in patients in UK general dental practices.J Dent.2013;41(11):992-999.

[24] 张东姣,陈新民.全瓷修复材料的老化性研究[J].生物医学工程学杂志, 2011,28(5):1048-1051.

[25] Molin MK,Karlsson SL.Five-year clinical prospective evaluation of zirconia-based Denzir 3-unit FPDs.Int J Prosthodont. 2008;21(3): 223-227.

[26] Koenig V,Vanheusden AJ,Le Goff SO,et al.Clinical risk factors related to failures with zirconia-based restorations:an up to 9-year retrospective study.J Dent.2013;41(12):1164-1174.

[27] Esquivel-Upshaw JF,Anusavice KJ,Young H,et al.Clinical performance of a lithia disilicate-based core ceramic for three-unit posterior FPDs. Int J Prosthodont.2004;17(4):469-475.

[28] Nomoto S,Matsunaga S,Sato T,et al.Basic Finite Element Analysis of Para-periodontal Ligament in All-ceramic Zirconia Fixed Partial Denture.Bull Tokyo Dent Coll.2015;56(4):215-222.

[29] Modi R,Kohli S,Rajeshwari K,et al.A three-dimension finite element analysis to evaluate the stress distribution in tooth supported 5-unit intermediate abutment prosthesis with rigid and nonrigid connector.Eur J Dent.2015;9(2):255-261.

[30] Kou W,Qiao J,Chen L,et al.Numerical simulation of the fracture process in ceramic FPD frameworks caused by oblique loading.J Mech Behav Biomed Mater.2015;50:206-214.

[31] Wimmer T,Erdelt KJ,Raith S,et al.Effects of differing thickness and mechanical properties of cement on the stress levels and distributions in a three-unit zirconia fixed prosthesis by FEA.J Prosthodont. 2014; 23(5):358-366.

[32] Zheng Z,Lin J,Shinya A,et al.Finite element analysis to compare stress distribution of gold alloy, lithium-disilicate reinforced glass ceramic and zirconia based fixed partial denture.J Investig Clin Dent. 2012;3(4): 291-297.

[33] Murase T,Nomoto S,Sato T,et al.Effect of connector design on fracture resistance in all-ceramic fixed partial dentures for mandibular incisor region.Bull Tokyo Dent Coll.2014;55(3):149-155.

[34] Bahat Z,Mahmood DJ,Vult von Steyern P.Fracture strength of three-unit fixed partial denture cores (Y-TZP) with different connector dimension and design.Swed Dent J.2009;33(3):149-159.

[35] 李晓萌,高平,王永先,等.计算机辅助设计与制造固定桥连接体受力的三维有限元分析[J].中国组织工程研究, 2010,14(9):1559-1562.
