Morphology of intervertebral disc in Chinese adults evaluated using computer tomography three-dimensional imaging

doi:10.3969/j.issn.2095-4344.0174

Abstract

Abstract:

BACKGROUND: The artificial disc requires a height, a width, and a shape as much as possible to be similar to the original intervertebral disc in order to perfectly distribute the load. At present, most of the data are from foreign countries or measured using X-ray and magnetic resonance imaging, but there are some shortcomings.

OBJECTIVE: To diagnose the spinal disease and provide data for the design of a native lumbar disc device by measuring the normal lumbar intervertebral disc using computer tomography (CT).

METHODS: A total of 2 235 patients who underwent lumbar CT examination in Liuzhou Worker’s Hospital from January 2012 to May 2017 were collected and analyzed. There were 62 cases, including 45 males and 17 females, after being strictly met the inclusion and exclusion criteria. From the age of 20, they were divided into four groups: 20-30, 31-40, 41-50 and more than 50 years old. The range was from L₁ to S₁. The measurement index include intervertebral disc anteroposterior diameter, transerverse diameter, disc volume, sagittal anterior, middle and posterior height, coronal left and right height, and interverterbral angle.

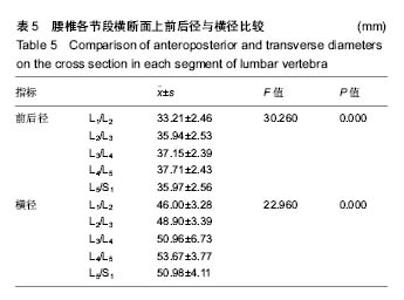

RESULTS AND CONCLUSION: (1) In terms of age, there was a statistically significant difference in measurement indexes between L_1/2, L_2/3 and L_3/4 (P < 0.05). Therefore, the factor of age should be taken into account. However, there was no statistically significant difference between L_4/5and L₅/S₁ segments (P > 0.05). (2) There was a statistical difference between the anterior and middle height of the sagittal position in L_4/5 and L₅/S₁ (P < 0.05). (3) There were statistical differences between the angles of L_2/3, L_3/4, L_4/5, L₅/S₁ intervertebral space (P < 0.05), but the difference of angle between L_4/5 and L₅/S₁ was the most. (4) There was no statistical difference in the height between the left and right sides of the coronal position (P > 0.05). (5) There was statistical difference between the anteroposterior and transverse diameters of the disc on the adjacent cross section (P < 0.05). (6) The results showed that the lower the segment, the smaller the statistical difference between each group. It is indicated that the age difference should be considered on the L_1/2, L_2/3, and L_3/4 segments in the design of lumbar disc or interbody fusion. The lumbar artificial intervertebral disc can be placed in the middle or side. The artificial disc should be designed into the wedge shape instead of a rectangle. These will provide a good anatomical basis for the design of domestic lumbar artificial intervertebral discs.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

Key words: Lumbar Vertebrae, Intervertebral Disk, Spinal Fusion, Internal Fixators, Tissue Engineering

CLC Number:

R318

Xiao Kan-kan, Li Bing, Peng Xiao-zhong, Zhuo Xiang-long, Xie Chao-xian. Morphology of intervertebral disc in Chinese adults evaluated using computer tomography three-dimensional imaging [J]. Chinese Journal of Tissue Engineering Research, 2018, 22(11): 1749-1755.

Figures/Tables 4

References

[1] Natarajan RN, Andersson GB. The infulence of lumbar disc height and cross-sectional area on the mechanical response of the disc to physiologic loading. Spine. 1986;24(18): 1873-1881.

[2] 卢万发,李祥鹏,杜建平,等.腰椎间盘测量及其临床意义[J]. 中国临床解剖学杂志,1999,17(3):42-43.

[3] 王子轩,单涛.中国人腰椎椎间盘结构与人工椎间盘置换相关的参数测量[J]. 中国组织工程研究与临床康复, 2011,15(48): 8973-8976.

[4] 白文媛,顾洪生,廖振华,等.正常成人腰椎间盘相关参数的测量和意义[J]. 中国临床解剖学杂志,2013,31(5):505-510.

[5] Tang RL, Gungor C, Richard F, et al. Morphometry of the lower lumbar intervertebral discs and endplates: comparative analyses of new MRI data with previous findings. Eur Spine. 2016; 25(12):4116-4131.

[6] Tang R, Gungor C, Sesek RF, et al. Morphometric analysis of the human lower lumbar intervertebral discs and vertebral endplates: experimental approach and regression models. Ph.D dissertation, Auburn University, USA. http://etd.auburn.edu/handle/10415/3559.

[7] Pech P, Haughton M. Lumbar intervertebral disk: correlative Mr and anatomic study. Radiology. 1985;156(3): 699-701.

[8] 苏循玉. X线机、CT设备联合应用诊断腰椎间盘突出效果评价[J]. 中国伤残医学,2015,9(17):63-65.

[9] Manchikanti L, Singh V, Falco FJ, et al. An unpdated review of automated percutaneous mechanical lumbar discectomy for the contained herniated lumvardisc. Pain Physician. 2013; 16(22 Suppl):151-154.

[10] 刘伟南,李彬,刘晋波,等.CT测量腰椎间盘突出物面积占椎管面积比值在治疗中的临床效果观察[J].现代医用影像学, 2016, 25(3):531-533.

[11] Brodsky AE. Post-laminectomy and post-fusion stenosis of the lumbar spine. Clin Orthop. 1986;11(5): 130-139.

[12] Lee CK, Langrana NA. Clinical efficacy and outcome in the diagnosis and treatment of low back pain. New York: Raven Press, 1992.

[13] Lehman TR, Spratt KF,Tozzi JE,et al. Long-term follow-up of lower lumbar fusion patients. Spine. 2007;12(11): 97-104.

[14] Harris RI, Wiley JJ.Acquired spondylosis as a sequel to spine fusion. Bone Joint Surg Am. 2003;45(11): 1159-1170.

[15] 海涌,邵楠,赵会,等.腰椎融合术后下腰痛与腰椎矢状位序列的关系[J].中华医学杂志,2013,93(15):1129-1132.

[16] Hioki A,Miyamoto K,Kodama H.et al. Two- level posterior lumbar interbody fusion for degenerative disc disease: improved clinical outcome with restoration of lumbar lordosis. Spine J. 2005;5(6):600-607.

[17] Pimenta L, Oliveria L, Schaffa T, et al. Lumbar total disc replacement from an extreme lateral approach: clinical experience with a minimum of 2 years’s follow-up. Neurosurgery Spine. 2011;14(1):38-45.

[18] Le Huec JC, Basso Y, Mathews H, et al. The effect of single level,total disc arthroplasty on sagittal balance parameters:a prospective study. Eur Spine J. 2005;14(5):480-486.

[19] Wang JC,Arnold PM,Hermsmeyer JT,et al. Do lumbar motion preserving devices reduce the risk of adjacent segment pathology compared with fusion surgery?A systematic review. Spine (Phila Pa 1976). 2012;37(22 Suppl):133-143.

[20] 孙文志,鲁世保,海涌等.腰椎人工椎间盘置换术对腰椎矢状位影响的影像学研究[J].中华外科杂志,2016,54(2):104-107.

[21] Katsimihas M, Bailey CS, Issa K, et al. Prospective clinical and radiographic results of CHARITE III artificial total disc arthroplasty at 2 to 7 year follow-up: a Canadian experience. Can J Surg. 2010;53(6):408-414.

[22] Siepe CJ, Zelenkov P, Sauri-Barraza JC, et al. The fate of facet joint and adjacent level disc degeneration following total lumbar disc replacement: a prospective clinical, X-ray, and magnetic resonance imaging investigation. Spine. 2010; 35(22):1991-2003.

[23] Regan JJ, McAfee PC, Blumenthal SL, et al. Evaluation of surgical volume and the early experience with lumbar total disc replacement as part of the investigational device exemption study of the Charite Artificial Disc. Spine( Phila pa 1976).2006;31(19): 2270-2276.

[24] 肖荣驰.人工椎间盘置入后的生物力学特征[J].中国组织工程研究与临床康复,2008,12(13):2539-2542.

[25] Gordon J,Dmitriev AE, Hu N,et al. Biomechanical evaluation of total disc arthroplasty:an in-vitro human cadaveric model. Am Acad Orthop Surg. 2003;18(8): 265-269.

[26] Bertagnoli R,Kumar S. Indications for full prosthetic disc arthroplasty: a correlation of clinical outcome against a variety of indications. Eur Spine. 2008;11(2): 131-136.

[27] Dooris AP,Goel VK,Grosland NM,et al.Load sharing between anterior and posterior elements in a lumbar motion segment implanted with an artificial disc. Spine. 2001;26(9): 122-129.

[28] Kumar MN, Baklanov A, Chopin D. Correlation between sagittal plane changes and adjacent segment degeneration following lumbar spine fusion. Eur Spine. 2001;10(4): 314-319.

[29] Eskander S, Onyedika I, Eskander P, et al. Revision strategy for posterior extrusion of the CHARITÉ polyethylene core. Spine (Phila Pa 1976). 2010;35(24): E1430-E1434.

[30] Kurtz M, Van Ooij André, Ross Raymond, et al. Polyethylene wear and rim fracture in total disc arthroplasty. Spine J. 2007; 7(1): 12-21.

[31] 田伟,刘波,李勤,等.Bryan人工颈椎间盘置换对颈椎功能影响的临床分析[J].中华外科杂志,2008,46(5):338-341.

[32] Wilke H, Schmidt R, Richter M, et al. The role of prosthesis design on segmental biomechanics:semi-constrained versus unconstrained prostheses and anterior versus posterior centre of rotation. Eur Spine J. 2012;21(5):577-584.

[33] Lee CS, Chung SS, Oh SK, et al. Significance of angular mismatch between vertebral endplate and prosthetic endptate in lumbar total disc replacement. J Spinal Disord Tech. 2011; 24(3):183-188.

[34] Lazennec JY,Even J,Skalli W,et al. Clinical outcomes, radiologic kinematics, and effects on sagittal balance of the 6 df LP-ESP lumbar disc prosthesis. Spine J. 2014;14(9): 1914-1920.

[35] 翟树超,鲁世保,海涌等.健康成年人腰椎终板矢状位形态学研究[J].中华外科杂志,2015,53(3):189-192.
