Reconstruction of three-dimensional models of knee joint using CT image post-processing technique: evaluation of bone tunnel difference after anterior cruciate ligament reconstruction using three-dimensional computed tomography

doi:10.3969/j.issn.2095-4344.2015.40.001

Abstract

Abstract:

BACKGROUND: Studies have shown that factors affecting the outcomes of anterior cruciate ligament reconstruction mainly depend on the position of bone tunnels. However, there still exists certain controversy over the researches on the position of bone tunnels.

OBJECTIVE: To investigate the clinical value of three-dimensional computed tomography on postoperative evaluation of bone tunnel after anterior cruciate ligament reconstruction under arthroscopic assistance.

METHODS: Fifty-eight patients with anterior cruciate ligament injury who received the treatment from January 2014 to August 2014 underwent anterior cruciate ligament reconstruction under arthroscopic assistance. The femoral end was fixed using an Endobutton, and tibial end was fixed using absorbable interference screws. 58 knees from patients were scanned respectively by means of a dual-source CT scanner. A three-dimensional model of knee was rebuilt on a CT image post-processing workstation to reproduce the medial wall of the lateral femoral condyle and reconstruct single-bundle anterior cruciate ligament, tibial plateau and bone tunnel. The cases that had a Lysholm score ≥ 80 points were included in the excellent and good group and those who had a Lysholm score < 80 points in the poor group. The relative position of the center point of the femoral and tibial bone tunnels were marked and measured and the position relation between the two center points was estimated.

RESULTS AND CONCLUSION: Three-dimensional computed tomography reconstruction method clearlyreflected the situation of bone tunnel and its entrance, fixtures and grafts after anterior cruciate ligament reconstruction. There was significant difference in the center point of femoral tunnel of the knee on the operated side between excellent and good group and poor group (P < 0.05). There was significant difference in the center point of the tibial tunnel between these two groups (P > 0.05). These results confirm that three-dimensional computed tomography can help to clearly reconstruct the images of bone tunnel and anterior cruciate ligament grafts after operation, which can be used clinically to assess the relationship between bone tunnel location and graft misshaping.

中国组织工程研究杂志出版内容重点：肾移植；肝移植；移植；心脏移植；组织移植；皮肤移植；皮瓣移植；血管移植；器官移植；组织工程

Key words: Tissue Engineering, Anterior Cruciate Ligament, Arthroscopes, Transplantation

CLC Number:

R318

Gao Guan-qi, Zhang Ke-yuan. Reconstruction of three-dimensional models of knee joint using CT image post-processing technique: evaluation of bone tunnel difference after anterior cruciate ligament reconstruction using three-dimensional computed tomography [J]. Chinese Journal of Tissue Engineering Research, 2015, 19(40): 6397-6401.

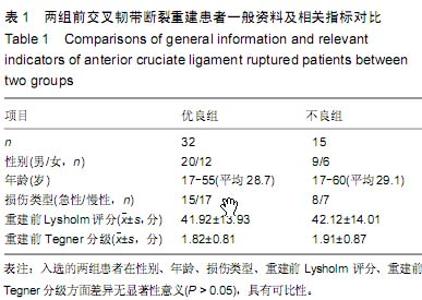

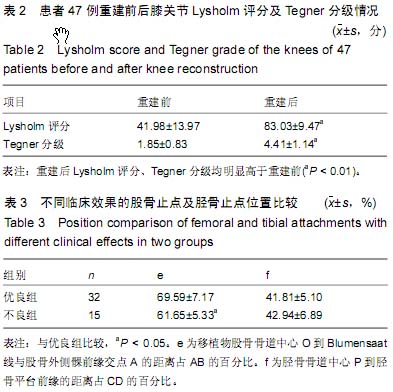

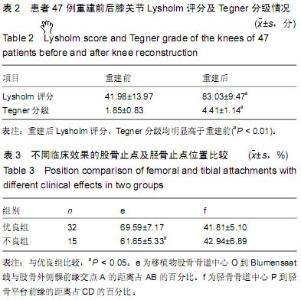

Figures/Tables 2

References

[1] Tashman S, Araki D. Effects of anterior cruciate ligament reconstruction on in vivo, dynamic knee function. Clin Sports Med. 2013;32(1):47-59.
[2] Bull AM, Earnshaw PH, Smith A, et al. Intraoperative measurement of knee kinematics in reconstruction of the anterior cruciate ligament. J Bone Joint Surg Br. 2002;84(7): 1075-1081.
[3] Siegel L, Vandenakker-Albanese C, Siegel D. Anterior cruciate ligament injuries: anatomy, physiology, biomechanics, and management. Clin J Sport Med. 2012;22(4):349-355
[4] 罗浩,敖英芳,王海军,等.膝关节前交叉韧带前内束和后外束股骨止点位置的解剖研究[J].中华关节外科杂志(电子版),2012;6(1): 97-103.
[5] 李丁峰,皇甫小桥,赵金忠.腓骨长肌腱前半部作为自体移植材料的临床研究[J].中华骨科杂志,2014,34(3):285-292.
[6] 王成伟,刘利兵,贾卫东,等.磁共振成像评价膝关节半月板损伤:与关节镜检查的对照分析[J].中国组织工程研究,2014,18(46): 7406-7411.
[7] Ghodadra N, Mall NA, Karas V, et al. Articular and meniscal pathology associated with primary anterior cruciate ligament reconstruction. J Knee Surg. 2013;26(3):185-193.
[8] 范宏斌,张春礼,李明全,等.前交叉韧带断裂后半月板和软骨损伤的临床研究[J].中华创伤杂志,2004,20(2):73-76.
[9] Frank RM, McGill KC, Cole BJ, et al. An institution-specific analysis of ACL reconstruction failure. J Knee Surg. 2012; 25(2): 143-149.
[10] Bourke HE, Gordon DJ, Salmon LJ, et al. The outcome at 15 years of endoscopic anterior cruciate ligament reconstruction using hamstring tendon autograft for 'isolated' anterior cruciate ligament rupture. J Bone Joint Surg Br. 2012;94(5): 630-637.
[11] Davies H, Tietjens B, Van Sterkenburg M, et al. Anterior cruciate ligament injuries in snowboarders: a quadriceps- induced injury. Knee Surg Sports Traumatol Arthrosc. 2009; 17(9):1048-1051.
[12] Prodromos CC, Han Y, Rogowski J, et al. A meta-analysis of the incidence of anterior cruciate ligament tears as a function of gender, sport, and a knee injury-reduction regimen. Arthroscopy. 2007;23(12):1320-1325.
[13] Forsythe B, Kopf S, Wong AK, et al. The location of femoral and tibial tunnels in anatomic double-bundle anterior cruciate ligament reconstruction analyzed by three-dimensional computed tomography models. J Bone Joint Surg Am. 2010; 92(6):1418-1426.
[14] Brown CH Jr, Spalding T, Robb C. Medial portal technique for single-bundle anatomical anterior cruciate ligament (ACL) reconstruction. Int Orthop. 2013;37(2):253-269.
[15] Meuffels DE, Reijman M, Verhaar JA. Computer-assisted surgery is not more accurate or precise than conventional arthroscopic ACL reconstruction: a prospective randomized clinical trial. J Bone Joint Surg Am. 2012;94(17):1538-1545.
[16] Iriuchishima T, Shirakura K, Yorifuji H, et al. Size comparison of ACL footprint and reconstructed auto graft. Knee Surg Sports Traumatol Arthrosc. 2013;21(4):797-803.
[17] 周肇庸,费起礼.现代关节镜外科学[M].天津:天津科学技术出版社,2005.
[18] Bernard M, Hertel P, Hornung H, et al. Femoral insertion of the ACL. Radiographic quadrant method. Am J Knee Surg. 1997;10(1):14-21.
[19] Klos TV, Habets RJ, Banks AZ, et al. Computer assistance in arthroscopic anterior cruciate ligament reconstruction. Clin Orthop Relat Res. 1998;(354):65-69.
[20] Cameron JC, Saha S. Meniscal allograft transplantation for unicompartmental arthritis of the knee. Clin Orthop Relat Res. 1997;(337):164-171.
[21] Wolf BR, Ramme AJ, Wright RW, et al. Variability in ACL tunnel placement: observational clinical study of surgeon ACL tunnel variability. Am J Sports Med. 2013;41(6):1265-1273.
[22] McConkey MO, Amendola A, Ramme AJ, et al. Arthroscopic agreement among surgeons on anterior cruciate ligament tunnel placement. Am J Sports Med. 2012;40(12):2737-2746.
[23] Sullivan JP, Matava MJ, Flanigan DC, et al. Reliability of tunnel measurements and the quadrant method using fluoroscopic radiographs after anterior cruciate ligament reconstruction. Am J Sports Med. 2012;40(10):2236-2241.
[24] Odensten M, Gillquist J. Functional anatomy of the anterior cruciate ligament and a rationale for reconstruction. J Bone Joint Surg Am. 1985;67(2):257-262.
[25] Odensten M, Gillquist J. A modified technique for anterior cruciate ligament (ACL) surgery using a new drill guide for isometric positioning of the ACL. Clin Orthop Relat Res. 1986; (213):154-158.
[26] Zantop T, Petensen W, Fu F. Anatomy of the anterior cruciate ligament. Oper Tech Orthop. 2005;15(1):20-28.
[27] Zavras TD, Race A, Bull AM, et al. A comparative study of 'isometric' points for anterior cruciate ligament graft attachment. Knee Surg Sports Traumatol Arthrosc. 2001;9(1): 28-33.
[28] 徐卿荣,朱振安.前交叉韧带胫、股骨重建位置变化对等距特性的影响[J].中华创伤杂志,2005,21(2):131-133.
[29] Khalfayan EE, Sharkey PF, Alexander AH, et al. The relationship between tunnel placement and clinical results after anterior cruciate ligament reconstruction. Am J Sports Med. 1996;24(3):335-341.
[30] Behrend H, Stutz G, Kessler MA, et al. Tunnel placement in anterior cruciate ligament (ACL) reconstruction: quality control in a teaching hospital. Knee Surg Sports Traumatol Arthrosc. 2006;14(11):1159-1165.
[31] Howell SM, Clark JA. Tibial tunnel placement in anterior cruciate ligament reconstructions and graft impingement. Clin Orthop Relat Res. 1992;(283):187-195.
[32] 郭林,杨柳,王爱民,等.前交叉韧带起止点X射线下定位的研究[J].中华创伤杂志,2006,22(6):443-446.
