Short-term effect of titanium abutment versus zirconia abutment on peri-implant tissues in anterior teeth

doi:10.3969/j.issn.2095-4344.2017.30.010

Abstract

Abstract:

BACKGROUND: With the increasing aesthetic pursuit of patients, an aesthetic abutment with certain strength has aroused people’s attentions either in the anterior or posterior tooth repair.

OBJECTIVE: To evaluate the effects of titanium abutment and zirconia abutment on peri-implant tissue in anterior teeth.

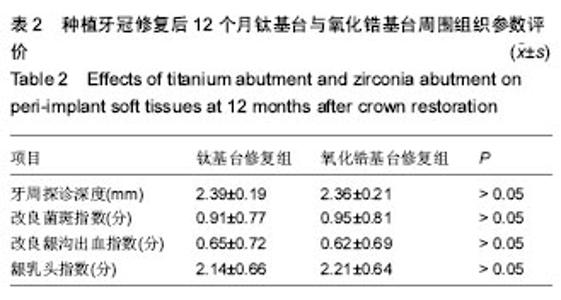

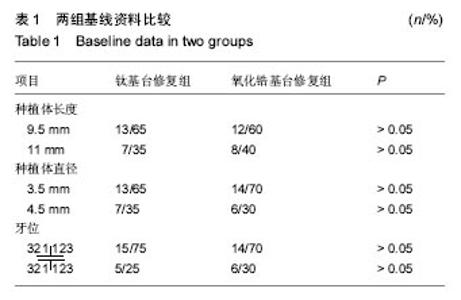

METHODS: A total of 40 anterior teeth from 34 patients were selected and received single crown restoration with Ankylos implants. Among them, titanium abutments were used in 20 teeth, and zirconia abutments in the other 20 teeth. All the patients were re-visited at 12 months after crown restoration. Peri-implant marginal bone resorption length (MBL), periodontal probing depth (PD), modified plaque index (mPLI), modified sulcus bleeding index (mSBI), and papilla index (PP) were detected; patient satisfaction investigation was carried out; and aesthetic assessment was done based on the pink esthetic score (PES).

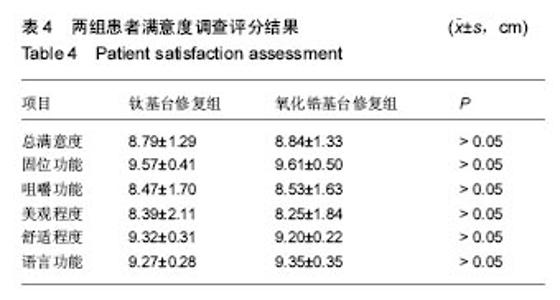

RESULTS AND CONCLUSION: There were no differences between two groups in MBL, PD, mPLI, mSBI, PP. Patients in both groups were satisfied with the treatment outcomes with insignificant difference (P > 0.05). The PES value in the zirconia abutment group was significantly higher than that in the titanium abutment group (P < 0.05). Overall, titanium and zirconia abutments show the similar effects on the peri-implant tissues and both can achieve good clinical outcomes. However, zirconia abutments have certain advantages in the aesthetic restoration for anterior teeth, and further investigation on long-term effects is warranted.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

Key words: Dental Implants, Alveolar Bone Loss, Dental Plaque Index, Tissue Engineering

CLC Number:

R318

Li Gan, Tong Xin, Qin Hai-yan, Wang Peng-lai.

Short-term effect of titanium abutment versus zirconia abutment on peri-implant tissues in anterior teeth

[J]. Chinese Journal of Tissue Engineering Research, 2017, 21(30): 4811-4816.

Figures/Tables 6

References

[1]李智勇,牛薇,方伟,等.瓷基台和钛基台用于种植体支持全瓷单冠修复的临床观察[J].中华口腔医学杂志,2007,42(7):391-394．

[2]刘夏青,李丹,李英.瓷基台与钛基台临床修复效果的Meta分析[J].临床口腔医学杂志,2015,31(4):195-198.

[3]Mombelli A,Lang NP.Antimicrobial treatment of peri-implant infections.Clin Oral Implants Res.1992;3(4):162-168.

[4]刘宝林.口腔种植学[M]. 北京:人民卫生出版社,2011:434.

[5]Muzzi L,Rotundo R,Cairo F.Periodontic- endodontic lesions:diagnostic and therapeutic indications.Minerva Stomatol.2002;51(1/2):41-48．

[6]Furhauser R,Florescu D,Benesch T,et al.Evaluation of soft tissue around single tooth implant crowns:The pink esthetic score.Clin Oral Implants Res.2005;16(6):639-644.

[7]Baldini N,D'Elia C,Clementini M,et al.Esthetic Outcomes of Single-Tooth Implant-Supported Restorations Using Metal-Ceramic Restorations with Zirconia or Titanium Abutments: A Randomized Controlled Clinical Study.Int J Periodontics Restorative Dent.2016;36(4):e59-66.

[8]Bittencourt TC,Ribeiro CG,Devito KL,et al.Zirconia Abutment Supporting All Ceramic Crowns in the Esthetic Zone: Interim Results of a Prospective Study.Eur J Prosthodont Restor Dent. 2016;24(1):23-30.

[9]Zembic A,Sailer I,Jung RE,et al.Randomized-controlled clinical trial of customized zirconia and titanium implant abutments for single-tooth implants in canine and posterior regions：3-year results. Clin Oral Implants Res. 2009;20(8): 802-808．

[10]Bressan E,Paniz G,Lops D,et al.Influence of abutment material on the gingival color of implant-supported all-ceramic restorations: a prospective multicenter study.Clin Oral Implants Res.2011;22(6):631-637．

[11]Prestipino V,Ingber A.Esthetic high-strength implant abutments Part II. J Esthet Dent.1993;5(2): 63-68.

[12]Prestipino V,Ingber A.Esthetic high-strength implant abutments. Part I. J Esthet Dent.1993;5(1): 29-36.

[13]Att W,Kurun S,Gerds T,et al.Fracture resistance of single-tooth implant-supported all-ceramic restorations: an in vitro study.J Prosthet Dent.2006;95(2):111-116.

[14]Hosseini M,Worsaae N,Schiodt M,et al. A 3-year prospective study of implant-supported,single-tooth restorations of all-ceramic and metal-ceramic materials in patients with tooth agenesis.Clin Oral Implants Res.2013;24(10):1078-1087

[15]Paolantoni G,Marenzi G,Blasi A,et al.Findings of a Four-Year Randomized Controlled Clinical Trial Comparing Two-Piece and One-Piece Zirconia Abutments Supporting Single Prosthetic Restorations in Maxillary Anterior Region.Biomed Res Int.2016;2016:8767845.

[16]杨炎忠,田小华,周延民.氧化锆角度基台及种植体周骨壁应力分布的有限元分析[J].上海口腔医学,2015,24(4):447-450.

[17]封伟,张娇,江鹭鹭,等.贵金属烤瓷与氧化锆全瓷修复对种植体周围组织影响的临床比较[J].口腔医学,2013,33(1):5-7,39.

[18]Calvo-Guirado JL,Gómez-Moreno G,Delgado-Ruiz RA,et al.Clinical and radiographic evaluation of osseotite-expanded platform implants related to crestal bone loss: a 10-year study.Clin Oral Implants Res.2014;25(3):352-358.

[19]耿进友,封伟,孙园园.ANKYLOS种植系统临床应用5年效果评价[J].临床口腔医学杂志,2015,31(9):558-560.

[20]Bottino MA,Rocha RFV,Anami LC,et al.Fracture of Zirconia Abutment with Metallic Insertion on Anterior Single Titanium Implant with Internal Hexagon: Retrieval Analysis of a Failure.Eur J Prosthodont Restor Dent.2016;24(3):164-168.

[21]Glauser R,Sailer I,Wohlwend A,et al.Experimental zirconia abutments for implant-supported single-tooth restorations in esthetically demanding regions: 4-year results of a prospective clinical study.Int J Prosthodont. 2004;17(3): 285-290.

[22]Lops D,Bressan E,Chiapasco M,et al.Zirconia and titanium implant abutments for single-tooth implant prostheses after 5 years of function in posterior regions.Int J Oral Maxillofac Implants.2013;28(1):281-287.

[23]Chun HJ,Yeo IS,Lee JH,et alFracture strength study of internally connected zirconia abutments reinforced with titanium inserts.Int J Oral Maxillofac Implants. 2015;30(2): 346-350.

[24]Joda T,Brägger U.Management of a complication with a fractured zirconia implant abutment in the esthetic zone.Int J Oral Maxillofac Implants.2015;30(1):e21-e23.

[25]Scarano A,Piattelli M,Caputi S,et al.Bacterial adhesion on commercially pure titanium and zirconium oxide disks: an in vivo human study.J Periodontol.2004;75(2):292-296.

[26]Rimondini L,Cerroni L,Carrassi A,et al.Bacterial colonization of zirconia ceramic surfaces: an in vitro and in vivo study.Int J Oral Maxillofac Implants.2002;17(6):793-798.

[27]王敏,杨惠,王贻宁,等.软组织在炎症状态下对不同基台材料反应的组织学观察[J].口腔医学研究,2016,32(11):1113-1116.

[28]Ertürk BK,Çömleko?lu ME,Çömleko?lu MDA,et al.A customized zirconia abutment design combined with a CAD/CAM laminate veneer: a clinical report.Int J Periodontics Restorative Dent.2015;35(2):201-209.

[29]Piattelli A,Vrespa G,Petrone G,et al.Role of the microgap between implant and abutment: a retrospective histologic evaluation in monkeys.J Periodontol.2003;74(3):346-352.

[30]Binon PP.Implants and components: entering the new millennium.Int J Oral Maxillofac Implants.2000;15(1):76-94.

[31]Baldassarri M,Hjerppe J,Romeo D,et al.Marginal accuracy of three implant-ceramic abutment configurations.Int J Oral Maxillofac Implants.2012;27(3):537-543.

[32]Zembic A,Bosch A,Jung RE,et al.Five-year results of a randomized controlled clinical trial comparing zirconia and titanium abutments supporting single-implant crowns in canine and posterior regions.Clin Oral Implants Res. 2013; 24(4):384-390．

[33]Bressan E,Paniz G,Lops D,et al.Influence of abutment material on the gingival color of implant-supported all-ceramic restorations: a prospective multicenter study.Clin Oral Implants Res.2011;22(6):631-637.

[34]Jung RE,Sailer I,Hammerle CH,et al.In vitro color changes of soft tissues caused by restorative materials.Int J Periodontics Restorative Dent.2007;27(3):251-257.

[35]Yildirim M,Edelhoff D,Hanisch O,et al.Ceramic abutments-a new era in achieving optimal esthetics in implant dentistry.Int J Periodontics Restorative Dent.2000;20(1):81-91.

[36]Yilmaz B,Salaita LG,Seidt JD,et al.Load to failure of different zirconia abutments for an internal hexagon implant.J Prosthet Dent.2015;114(3):373-377.

[37]Mitsias ME,Thompson VP,Pines M,et al.Reliability and failure modes of two Y-TZP abutment designs.Int J Prosthodont. 2015;28(1):75-78.
