Preparation of porous biodegradable chitosan/berberine hydrochloride composite xerogel and its antibacterial and hemostatic properties

doi:10.3969/j.issn.2095-4344.2017.06.014

Abstract

Abstract:

BACKGROUND: Chitosan (CS) holding a good biocompatibility, biodegradability, antibacterial property and hemostasis effect cannot only promote wound healing and tissue repair, but also exhibit sustained-control release when carrying berberine hydrochloride (Bh). Therefore it functions as an excellent antibacterial and hemostatic material.
OBJECTIVE: To prepare the porous CS/Bh composite xerogel and observe its antibacterial and hemostatic properties.

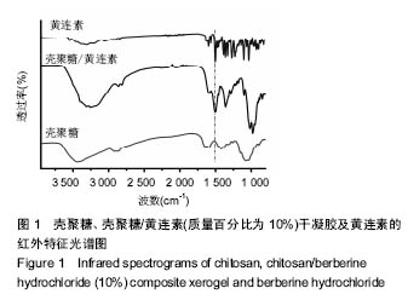

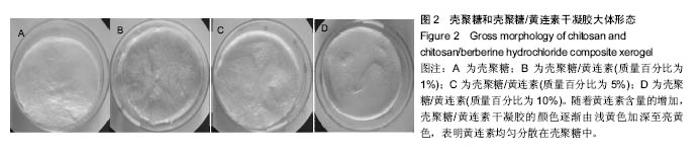

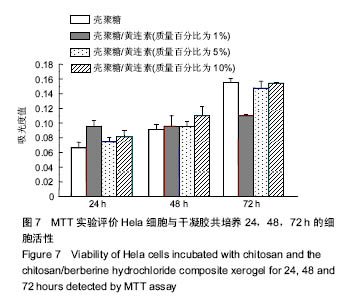

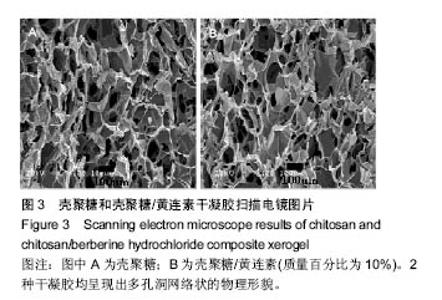

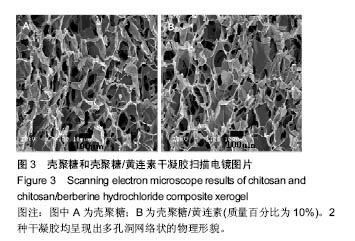

METHODS: The porous CS/Bh composite xerogel was prepared using freeze-drying method, and its microstructure was characterized by scanning electron microscope and Fourier transform infrared spectrometer. The biocompatibility was detected through MTT assay and the in vitro antibacterial and hemostatic properties were observed through antibacterial test and blood clotting index.

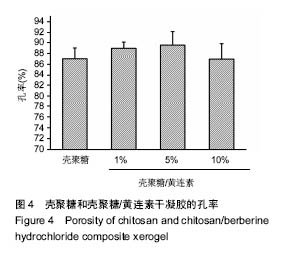

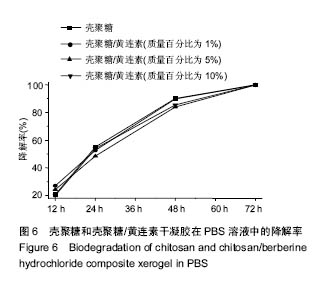

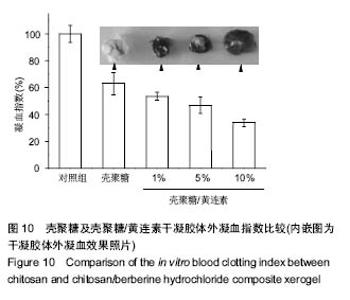

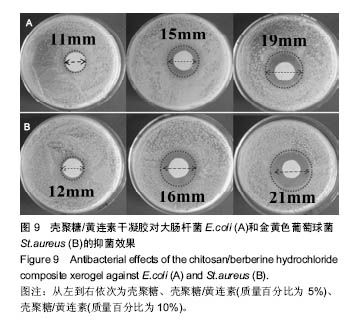

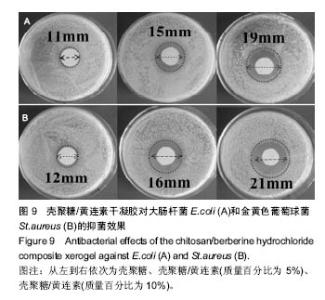

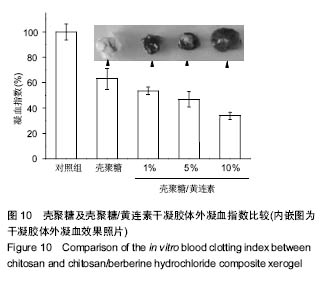

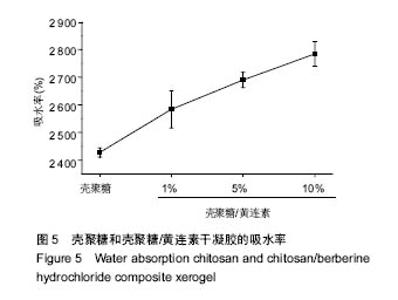

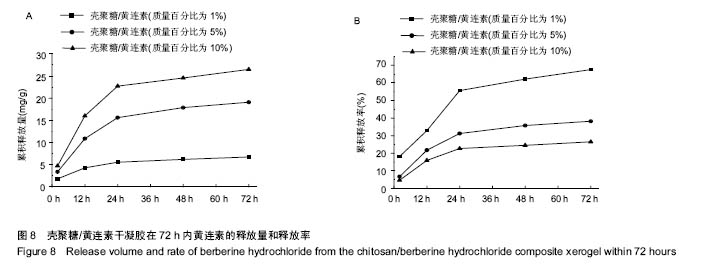

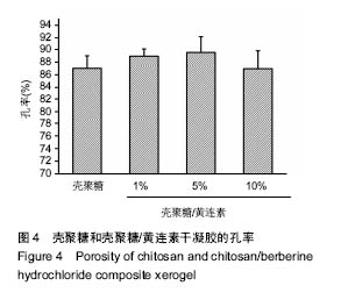

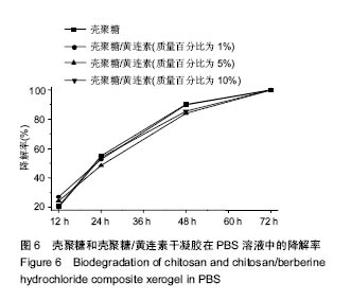

RESULTS AND COCNLUSION: The porosity of the CS/Bh composite xerogel was 83.1%-90.5% and almost degraded after 72 hours of immersion in PBS. The in vitro antibacterial and hemostatic properties of the composite xerogel were significantly better than those of CS, which were enhanced with the Bh content increasing. Additionally, the CS/Bh (10%) composite xerogel showed the best hemostatic and antibacterial abilities in vitro. To conclude, the CS/Bh composite xerogel possesses a good biocompatibility and strong hemostatic and antibacterial abilities, which is a promising postoperative antibacterial and hemostatic material.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

Key words: Chitosan, Berberine, Anti-Bacterial Agents, Blood Coagulation, Tissue Engineering

CLC Number:

R318

Wang Fang, Chen Yun-ping, Su Xiang-ping. Preparation of porous biodegradable chitosan/berberine hydrochloride composite xerogel and its antibacterial and hemostatic properties[J]. Chinese Journal of Tissue Engineering Research, 2017, 21(6): 899-905.

Figures/Tables 10

References

[1]Huang Y, Onyeri S, Siewe M, et al. In vitro characterization of chitosan-gelatin scaffolds for tissue engineering. Biomaterials. 2005;26(36):7616-7627.

[2]Khor E, Lim LY. Implantable applications of chitin and chitosan. Biomaterials. 2003;24(13):2339-2349.

[3]郑允权,郭养浩,饶强,等.纳米氯化银/壳聚糖抗菌敷料的制备及功能评价[J].材料科学与工程学报, 2016, 34(2):188-192.

[4]徐雄立,周美华.含纳米银的明胶/壳聚糖纳米纤维的制备及其抗菌性能研究[J].化工新型材料, 2010, 38(2):23-25.

[5]王晓晨,郈秀菊,韩继超,等.氢键自组装的壳聚糖止血海绵的制备及性能研究[J].生物医学工程研究, 2015, 34(4):248-251.

[6]王少虎,樊明文,边专.中草药抗致龋菌的实验研究[J].中华口腔医学杂志,2001, 36(5):385-387.

[7]李波,朱维良,陈凯先.小檗碱及其衍生物的研究进展[J].药学学报, 2008,43(8):773-787.

[8]Shih MF, Shau MD, Chang MY, et al. Platelet adsorption and hemolytic properties of liquid crystal/composite polymers. Int J Pharm. 2006;327(1-2):117-125.

[9]卢军芳,杨声,冯小强,等.β-环糊精接枝壳聚糖-黄连素包合物抑菌性能的研究[J].化学与生物工程,2011,28(1):46-49.

[10]Freier T, Koh HS, Kazazian K,et al. Controlling cell adhesion and degradation of chitosan films by N-acetylation. Biomaterials. 2005;26(29):5872-5878.

[11]Chen Y, Qi Y, Yan X, et al. Green fabrication of porous chitosan/graphene oxide composite xerogels for drug delivery. Journal of Applied Polymer Science. 2014; 131(6): 596-602.

[12]姜毅,王风华,段蕴铀. 多糖类止血材料的研究及应用进展[J]. 解放军医学杂志, 2014, 39(12):1004-1007.

[13]Malette WG, William G., Quigley J, et al. Method of achieving hemostasis[P]. USA:4394373,1983.

[14]马军阳,陈亦平,李俊杰,等.甲壳素/壳聚糖止血机理及应用[J].北京生物医学工程, 2007,26(4):442-445.

[15]李明春,许涛,辛梅华.壳聚糖及其衍生物的抗菌活性研究进展[J].化工进展,2011,30(1):203-209.

[16]刘萍,向灿辉,邓镇涛,等. 黄连盐酸小檗碱的提取鉴定及抑菌活性研究[J].广西轻工业, 2011,1:3-4.

[17]李冰,封桂英.几丁糖的生物学性能及其在口腔颌面外科领域的应用[J].承德医学院学报,2006,23(1):59-61.

[18]Chen XG, Liu CS, Liu CG, et al. Preparation and biocompatibility of chitosan microcarriers as biomaterial. Biochemical Engineering Journal. 2006;27(3):269-274.

[19]赵玉娟,肖桂勇,黄琳,等. 壳聚糖理化、生物学特性及其产品安全性的研究进展[J].山东医药,2014,54(34):93-97.

[20]姜玲,王耀钟,邓悦.“止泰”胶质银止血明胶海绵预防下颌阻生智齿拔除后干槽症的临床研究[J]. 青岛医药卫生, 2011,43(4):2 63-265.
