Chitosan/hydroxyapatite composite scaffolds for articular cartilage injury

doi:10.3969/j.issn.2095-4344.2017.02.015

Abstract

Abstract:

BACKGROUND: Studies have shown that the chitosan/hydroxyapatite composite scaffold with good biological performance is very similar to natural bone in structure, and plays the performance of different materials.
OBJECTIVE: To observe the repairing effect of chitosan/hydroxyapatite composite scaffold on articular cartilage injury.
METHODS: Thirty New Zealand white rabbits were selected to make articular cartilage injury on the left knee, and then model rabbits were randomly divided into sodium hyaluronate gel group (control group, n=15) and chitosan/hydroxyapatite composite scaffold group (experimental group, n=15). At 4, 8, 12 weeks after scaffold implantation, cartilage tissues were taken out and observed histologically.

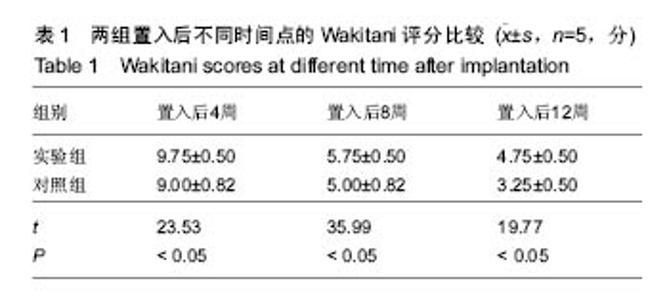

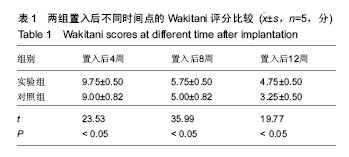

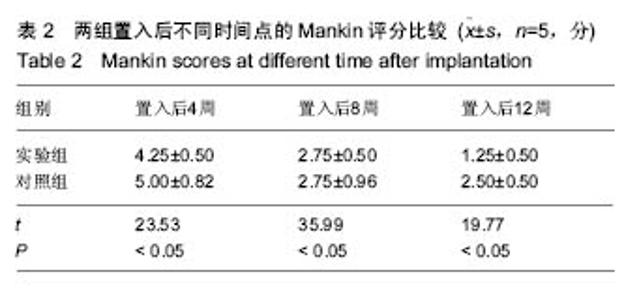

RESULTS AND CONCLUSION: Compared with the control group, the experimental group showed higher Wakitani scores at 4, 8, 12 weeks, but lower Mankin scores at 4 and 12 weeks after implantation (both P < 0.05). Safranin-O staining results showed that at 4 weeks after implantation, chondrocytes arranged relatively in disorder with overt pleated small projections in the control group, while chondrocytes were well aligned with slightly pleated small projections and slightly large nuclei in the experimental group; at 8 weeks, chondrocytes arranged irregularly with pleated small projections in the control group, while in the experimental group, the chondrocytes arranged orderly with pleated small projections and large nuclei; at 12 weeks, the chondrocytes in the control group exhibited a substantially ordered arrangement with pleated small projections and large nuclei, while in the experimental group, the chondrocytes arranged in order with no pleated small projections but with large nuclei. All these findings indicate that chitosan/hydroxyapatite composite scaffold can promote articular cartilage repair.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

Key words: Hydroxyapatites, Chitosan, Tissue Engineering

CLC Number:

R318

Liu Hong-ya. Chitosan/hydroxyapatite composite scaffolds for articular cartilage injury[J]. Chinese Journal of Tissue Engineering Research, 2017, 21(2): 244-248.

Figures/Tables 3

References

[1]Vo N,Niedernhofer LJ,Nasto LA,et al.An overview of underlying causes and animal models for the study of age-related degenerative disorders of the spine and synovial joints.J Orthop Res.2013;31(6):831-837.

[2]张仲文,侯世科,杨造成,等.基质诱导的自体软骨细胞移植术修复膝关节软骨缺损10例术后2年的随访[J].中华关节外科杂志(电子版),2010,4(6):17-21.

[3]Komárek J,Vali P,Repko M,et al.Treatment of deep cartilage defects of the knee with autologous chondrocyte transplantation: long-term results.Acta Chir Orthop Traumatol Cech.2010;77(4):291-295.

[4]Lim HC,Bae JH,Song SH,et al.Current treatments of isolated articular cartilage lesions of the knee achieve similar outcomes.Clin Orthop Relat Res. 2012;470(8):2261-2267.

[5]Kelly TA,Roach BL,Weidner ZD,et al. Tissue-engineered articular cartilage exhibits tension-compression nonlinearity reminiscent of the native cartilage.J Biomech. 2013;46(11):1784-1791.

[6]Schwarz S,Koerber L, Elsaesser AF,et al.Decellularized cartilage matrix as a novel biomatrix for cartilage tissue-engineering applications.Tissue Eng Part A.2012; 18(21-22):2195-2209.

[7]Cheng H,Byrska-Bishop M,Zhang CT,et al.Stem cell membrane engineering for cell rolling using peptide conjugation and tuning of cell-selectin interaction kinetics. Biomaterials.2012;33(20):5004-5012.

[8]刘清宇,王富友,杨柳.关节软骨组织工程支架的研究进展[J].中国修复重建外科杂志,2012,26(10):1247-1250.

[9]李元城,张卫国,秦建华,等.微流控芯片上胰岛素样生长因子1和碱性成纤维细胞生长因子对兔关节软骨细胞增殖的影响[J].解放军医学杂志,2013,38(6):476-480.

[10]伏治国.瞿玉兴.关节镜下自体镶嵌式骨软骨移植修复膝关节股骨髁软骨缺损[J].实用医学杂志. 2011.27(22):4094-4095.

[11]Wood JJ,Malek MA,Frassica FJ,et al. Autologous cultured chondrocytes: adverse events reported to the United States Food and Drug Administration.J Bone Joint Surg Am.2006; 88(3):503-507.

[12]Bentley G,Biant LC,Carrington RW,et al.A prospective，randomised comparison of autologous chondrocyte implantation versus mosaicplasty for osteochondral defects in the knee.J Bone Joint Surg(Br). 2003;85(2):223-230.

[13]Salzmann GM,Sah BR,Schmal H,et al.Microfracture for treatment of knee cartilage defects in children and adolescents. Pediatr Rep.2012;4(2):e21．

[14]Mithoefer K,McAdams T,Williams RJ,et al.Clinical efficacy of the microfracture technique for articular cartilage repair in the knee: an evidence～based systematic analysis.Am Sports Med. 2009;37(10):2053-2063．

[15]Pestka JM,Schma H,Salzmann G,et al.In vitro cell quality of articular chondrocytes assigned for autologous implantation in dependence of specific patient characteristics.Arch Orthop Trauma Surg. 2011;131(6):779-789．

[16]Ebert JR,Robertson WB,Woodhouse J,et al.Clinical and magnetic resonance imaging～based outcomes to 5 years after matrix-induced autologous chondrocyte implantation to address articular cartilage defects in the knee.Am Sports Med.2011;39(4):753-763．

[17]Hirschmuller A,Baur H,Braun S,et al.Rehabilitation after autologous chondrocyte implantation for isolated cartilage defects of the knee.Am J Sports Med.2011;39(12): 2686-2696．

[18]Wondrasch B,Zak L,Welsch GH,et al.Effect of accelerated weight bearing after matrix～associated autologous chondrocyte implantation on the femoral condyleon radiographic and clinical outcome after 2 years: a prospective，randomized controlled pilot study.Am Sports Med.2009;37(Supp1):88S-96S．

[19]钟进聪,王震.大众体育与竞技体育运动损伤的成因及对策[J].广州体育学院学报,2014,34(1):109-111.

[20]张卉,董学君,邵健忠,等.改良人骨髓间充质干细胞分离方法提高细胞定向分化能力[J]．医学研究杂志, 2010,39(9):57-62．

[21]Alves da Silva ML,Martins A,Costa-Pinto AR,et al. Chondrogenic differentiation of human bone marrow mesenchymal stem cells in chitosan-based scaffolds using a flow-perfusion bioreactor.J Tissue Eng Regen Med.2010;12: 29．

[22]朱雷,吕丹.不同环境刺激对骨髓间充质干细胞成软骨分化作用的研究进展[J].中国矫形外科杂志, 2010,18(19):1618-1621．

[23]杨波,胡蕴玉.胶原/羟基磷灰石骨软骨一体化支架的生物学特性研究[J].中国矫形外科杂志,2010,18(4):304-307．

[24]张文元,杨亚冬,房国坚,等.壳聚糖-丝素复合支架材料与骨髓间充质干细胞相容性的研究[J].中国卫生检验杂志, 2010,14(12): 3084-3086．

[25]李海鹏,孙天胜,朱娟丽,等.关节镜检查不同年龄段患者膝关节软骨损伤特点[J].中国骨伤,2012,25(11):903-905.

[26]Menetrey J,Unno-Veith F,Madry H,et al. Epidemiology and imaging of the subchondral bone in articular cartilage repair.Knee Surg Sports Traumatol Arthrosc. 2010;18(4): 463-471.

[27]Knapik DM,Harris JD,Pangrazzi G,et al.The basic science of continuous passive motion in promoting knee health: a systematic review of studies in a rabbit model. Arthroscopy. 2013;29(10):1722-1731.

[28]Gibson M,Li H,Coburn J,et al.Intra-articular delivery of glucosamine for treatment of experimental osteoarthritis created by a medial meniscectomy in a rat model.J Orthop Res.2014;32(2):302-309.

[29]Oliveira P,Santos AA,Rodrigues T,et al.E ects of phototherapy on cartilage structure and in ammatory markers in an experimental model of osteoarthritis.J Biomed Opt.2013; 18(12):128004.

[30]Jang KW,Ding L,Seol D,et al. Low-intensity pulsed ultrasound promotes chondrogenic progenitor cell migration via focal adhesion kinase pathway. Ultrasound Med Biol2014;40(6): 1177-1186.

[31]Mathieu C,Chevrier A, Lascau-Coman V,et al. Stereological analysis of subchondral angiogenesis induced by chitosan and coagulation factors in microdrilled articular cartilage defects.Osteoarthritis Cartilage.2013;21(6):849-859.

[32]Bentley G,Biant LC,Vijayan S,et al.Minimum ten-year results of a prospective randomised study of autologous chondrocyte implantation versus mosaicplasty for symptomatic articular cartilage lesions of the knee.J Bone Joint Surg Br. 2012;94(4): 504-509.

[33]陈敏,徐贤,韩邵军,等.磁共振 T2mapping 成像对移植软骨的评估价值[J].中国医学科学院学报, 2014,36(1):86-91.

[34]陶虹月,王展,李宏,等.兔膝关节剥脱性骨软骨炎微骨折及关节清理术后修复的组织学及 MR 定量对比分析[J].中华放射学杂志, 2013,47(3):255-260.

[35]Tang YH,Xian XU,Jiang B,et al.T2mapping and knee thickness measurement in healthy young adults using quantitative 3.0 T magnetic resonance imaging. Zhongguo Yi Xue Ke Xue Yuan Xue.2013;35(2):131-135.
