Fibula reconstruction and small titanium plate fixation for repair of mandibular body defects: a three-dimensional finite element analysis

doi:10.3969/j.issn.2095-4344.2015.47.002

Abstract

Abstract:

BACKGROUND: In clinic, the mechanical study about fibula reconstruction for the repair of mandibular bone defect is unrealistic; the finite element analysis, however, provides a new approach for the biomechanical study of mandibular reconstruction.

OBJECTIVE: To establish the three-dimensional finite element model of mandibular body defect under fibula reconstruction and small titanium plate fixation, and to analyze the biomechanical features.

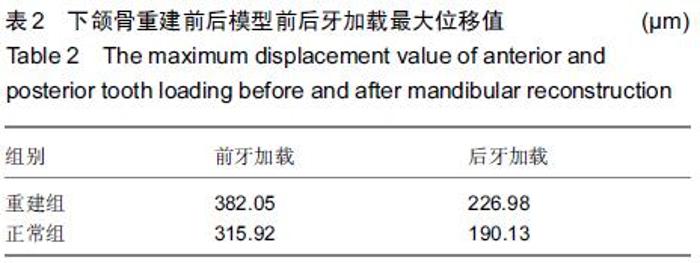

METHODS: The three-dimensional model of mandibular body defect under fibula reconstruction and internal fixation was established. 100 N bite force was loaded on the anterior teeth, contralateral first molar and contralateral second molar, respectively. The maximum stress and maximum displacement before and after model reconstruction, the stress of bone tissues around the titanium plate and titanium screw holes under anterior and posterior loading, and the maximum displacement of the front and rear ends of the fibula under anterior and posterior loading were observed.

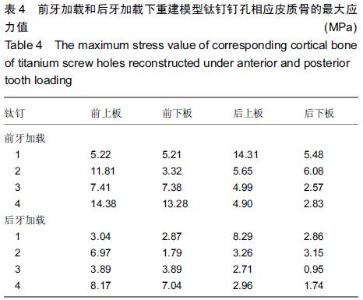

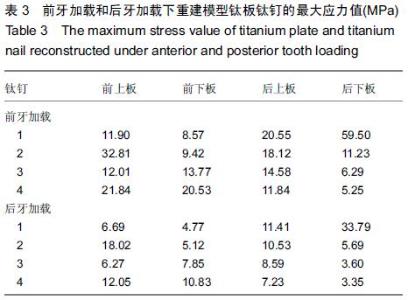

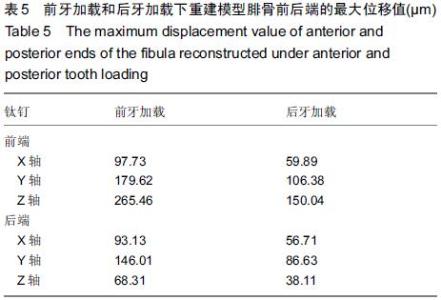

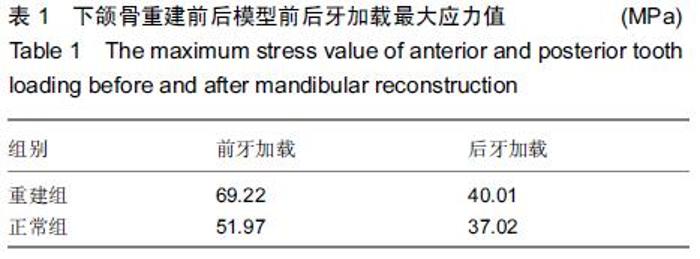

RESULTS AND CONCLUSION: The maximum stress of the normal mandible concentrated in the condylar neck. In the reconstructed models, the maximum stress concentrated in the contralateral condylar neck. Under the same bite force, the maximum stress value of the reconstructed mandibular model was greater than that of the normal mandible. The maximum stress value of the anterior teeth was greater than that of the posterior teeth. The stress value was maximal between two screw holes inside each titanium plate and almost concentrated in the mandibular angle. The maximum stress of the residual titanium screw of the mandible concentrated in the first titanium screw over the mandibular defect under loading, while the maximum stress of the titanium screw of the fibular end concentrated in the titanium screw below the mesial segment of the fibula. The cortical bone around the screw holes located at the residual end of the mandible near the defect area and the upper plate of the mesial segment of the fibula was the maximum stress concentrated site, and the maximum stress of anterior tooth loading was greater than that of the posterior tooth loading. The displacement values of the fibula gradually reduced from the upper edge to the lower edge in the X-axis, from the anterior and posterior ends to the middle part in the Y-axis, as well as from the anterior end to the posterior end in the Z-axis. The maximum displacement values of the anterior and posterior ends of the fibula were at the Z-axis and Y-axis, respectively. The maximum displacement value under anterior tooth loading was greater than that under posterior tooth loading. These results show that the titanium plate over the mandibular angle that is most easy to break should be reinforced. If the stress of titanium screw tip and neck is relatively large, double cortical titanium screw is preferred; if the stress of titanium screw and titanium plate at the fibula end and residual end of the mandible is relatively large, we should pay attention to their stability and fixation; if the stress of anterior tooth occlusion is greater than that of posterior tooth occlusion, anterior tooth occlusion should be avoided after repair.
中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

Key words: Fibula, Mandible, Stress, Physical, Tissue Engineering

Chen Biao, Qu Peng-fei, Liu Yao-qiang, Fan Xu-hui, Liu Ji-lun, Yang Wei . Fibula reconstruction and small titanium plate fixation for repair of mandibular body defects: a three-dimensional finite element analysis[J]. Chinese Journal of Tissue Engineering Research, 2015, 19(47): 7550-7555.

Figures/Tables 5

References

[1] Bilkay U, Tokat C, Helvaci E, et al. Free fibula flap mandible reconstruction in benign mandibular lesions. J Craniofac Surg. 2004;15(6):1002-1009.

[2] Zoumalan RA, Hirsch DL, Levine JP, et al. Plating in microvascular reconstruction of the mandible: can fixation be too rigid? J Craniofac Surg. 2009;20(5):1451-1454.

[3] Strackee SD, Kroon FH, Bos KE. Fixation methods in mandibular reconstruction using fibula grafts: a comparative study into the relative strength of three different types of osteosynthesis. Head Neck. 2001;23(1):1-7.

[4] Benlidayi ME, Gaggl A, Bürger H, et al. Comparative study of the osseointegration of dental implants after different bone augmentation techniques: vascularized femur flap, non-vascularized femur graft and mandibular bone graft. Clin Oral Implants Res. 2011;22(6):594-599.

[5] 林野,王兴,毛驰,等.功能性颌骨重建61例临床分析[J].中国口腔颌面外科杂志,2006,4(1):14-19.

[6] 吴轶群,张志愿,铁瑛,等.颧种植体用于单侧上颌骨缺损修复的生物力学评价[J].上海口腔医学,2008,17(3):250-255.

[7] Miyamoto S, Ujigawa K, Kizu Y, et al. Biomechanical three-dimensional finite-element analysis of maxillary prostheses with implants. Design of number and position of implants for maxillary prostheses after hemimaxillectomy. Int J Oral Maxillofac Surg. 2010;39(11):1120-1126.

[8] 沈毅,孙坚,李军,等.上颌骨功能性重建中用钛植入体重建颧上颌支柱的生物力学研究[J].中国口腔颌面外科杂志,2011,9(3): 198-203.

[9] 孙坚,李军,张志愿,等.上颌骨大型缺损的个体化三维闭合式功能性重建[J].中国口腔颌面外科杂志,2003,1(1):3-8.

[10] Sun J, Shen Y, Weng YQ, et al. Lateral lip-splitting approach for total and subtotal maxillectomy. J Oral Maxillofac Surg. 2009; 67(6):1197-1205.

[11] Sun J, Shen Y, Li J, et al. Reconstruction of high maxillectomy defects with the fibula osteomyocutaneous flap in combination with titanium mesh or a zygomatic implant. Plast Reconstr Surg. 2011;127(1):150-160.

[12] 吴轶群,叶晨,张志愿,等.双侧上颌骨缺损颧种植体修复的有限元分析[J].中国口腔颌面外科杂志,2011,9(4):271-275.

[13] Cuesta Gil M, Bucci T, Ruiz BD, et al. Implant mandibular rehabilitation postoncologic segmental resection: a clinical report. Implant Dent. 2012;21(2):104-107.

[14] He Y, Zhang ZY, Zhu HG, et al. Double-barrel fibula vascularized free flap with dental rehabilitation for mandibular reconstruction. J Oral Maxillofac Surg. 2011;69(10):2663- 2669.

[15] 裘罡,李阳,郭丽盟,等.腓骨肌皮瓣加种植体植入对颌面部软硬组织缺损的功能重建[J].口腔医学研究,2012,28 (7):676-678.

[16] 陈晓军,林艳萍,吴轶群,等.计算机辅助口腔种植手术实时导航系统的研究与实现[J].生物医学工程学杂志,2008,25(2):429-438.

[17] 王培志,夏露,陈宁,等.种植导航模板的计算机辅助设计和制造[J].中国口腔种植学杂志,2010,15(3):128-133.

[18] Yu H, Shen G, Wang X, et al. Navigation-guided reduction and orbital floor reconstruction in the treatment of zygomatic- orbital-maxillary complex fractures. J Oral Maxillofac Surg. 2010;68(1):28-34.

[19] 邱蔚六.口腔颌面部缺损修复重建的现状和展望[J].中国修复重建外科杂志,2005,19(10):769-772.

[20] 陈振光.带血管蒂腓骨瓣移植的研究进展[J].中华显微外科杂志, 2011,34(2):89-91.

[21] Korompilias AV, Paschos NK, Lykissas MG, et al. Recent updates of surgical techniques and applications of free vascularized fibular graft in extremity and trunk reconstruction. Microsurgery. 2011;31(3):171-175.

[22] Soucacos PN, Korompilias AV, Vekris MD, et al. The free vascularized fibular graft for bridging large skeletal defects of the upper extremity. Microsurgery. 2011;31(3):190-197.

[23] 王卫红,刘宗良,邹智荣,等.腓骨瓣的解剖学研究[J].国际口腔医学志,2011,38(5):509-510.

[24] 刘雪涛,张成进,刘勇,等.膝下外侧动脉蒂腓骨头骨骺皮瓣的应用解剖[J].实用医药杂志,2009,26(2):52.

[25] 白石柱,马秦,雷德林,等.CAD/CAM 技术在游离腓骨瓣移植重建下颌骨中的应用[J].实用口腔医学杂志,2010,26(4):486-490.

[26] Lethaus B, Kessler P, Boeckman R, et al. Reconstruction of a maxillary defect with a fibula graft and titanium mesh using CAD/CAM techniques. Head Face Med. 2010;6:16.

[27] 陈巨峰,李金.游离腓骨肌皮瓣在颌骨缺损修复重建中的应用[J].中华口腔医学研究杂志,2010,4(1):52-53.

[28] Tan BK, Wong CH. An anomalous septocutaneous perforator to the skin paddle of the fibula osteocutaneous flap originating from the posterior tibial artery. J Plast Reconstr Aesthet Surg. 2009;62(5):690-692.

[29] 郑晓菊,王保山,李海军,等.多方式腓骨及皮瓣移植修复四肢骨及软组织缺损[J].中华显微外科杂志,2011,34(5):376-378.

[30] 龚志鑫,张英泽,邵新中,等.应用带双皮岛的串式腓骨瓣游离移植修复前臂尺桡骨及皮肤联合缺损[J].中华显微外科杂志,2011, 34(1):25-28.

[31] 芮永军,杨凯.吻合血管游离腓骨瓣移植的临床应用进展[J].实用手外科杂志,2010,24(1):3-6.

[32] 区跃坚,温新凤.80例下颌骨节段性缺损修复的临床分析[J].浙江实用医学,2008,13(5):351-352.

[33] Chim H, Salgado CJ, Mardini S, et al. Reconstruction of mandibular defects. Semin Plast Surg. 2010;24(2):188-197.

[34] Wong RC, Tideman H, Kin L, et al. Biomechanics of mandibular reconstruction: a review. Int J Oral Maxillofac Surg. 2010;39(4):313-319.

[35] Zoumalan RA, Hirsch DL, Levine JP, et al. Plating in microvascular reconstruction of the mandible: can fixation be too rigid? J Craniofac Surg. 2009;20(5):1451-1454.

[36] Anitua E, Tapia R, Luzuriaga F, et al. Influence of implant length, diameter, and geometry on stress distribution: a finite element analysis. Int J Periodontics Restorative Dent. 2010; 30(1):89-95.

[37] Bohluli B, Motamedi MH, Bohluli P, et al. Biomechanical stress distribution on fixation screws used in bilateral sagittal split ramus osteotomy: assessment of 9 methods via finite element method. J Oral Maxillofac Surg. 2010;68(11):2765- 2769.

[38] Nagasao T, Miyamoto J, Tamaki T, et al. A comparison of stresses in implantation for grafted and plate-and-screw mandible reconstruction. Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 2010;109(3):346-356.

[39] 孙健,张富强,王冬梅,等.3种加载方式下正常人下颌骨三维有限元应力分布分析[J].上海口腔医学,2004,13(1):41 -43.

[40] Tie Y, Wang DM, Ji T, et al. Three-dimensional finite-element analysis investigating the biomechanical effects of human mandibular reconstruction with autogenous bone grafts. J Craniomaxillofac Surg. 2006;34(5):290-298.

[41] Nagasao T, Kobayashi M, Tsuchiya Y, et al. Finite element analysis of the stresses around endosseous implants in various reconstructed mandibular models. J Craniomaxillofac Surg. 2002;30(3):170-177.

[42] 殷学民,李燕,张美超,等.下颌骨体部缺损钛板重建的生物力学分析[J].中国口腔颌面外科杂志,2012,10(1):18-22.

[43] 曲行舟,胡永杰,徐立群,等.下颌骨重建术后内固定失败原因的回顾分析[J].中国口腔颁面外科杂志,2007,5(2):155-158.

[44] 邹朝勇,徐金,姜平.不同年龄下颌骨应力分布与骨折发病率的关系[J].法医学杂志,2007,23(6):434-437.
