Autologous skin grafting, vacuum sealing drainage and external fixation for repair of complex and severe open fracture of the elbow joint

doi:10.3969/j.issn.2095-4344.2015.30.030

Abstract

Abstract:

BACKGROUND: The incidence of open fracture of the elbow joint is increased rapidly with an increased number of accidents. Fractures are often accompanied by severe soft tissue injuries. At present, a combined therapy of autologous skin grafting, vacuum sealing drainage and external fixation for the treatment of open fractures has been widely reported.
OBJECTIVE: To investigate the characteristics of the combined therapy of autologous skin grafting, vacuum sealing drainage, and external fixation for repair of complex and severe open fracture of the elbow joint.
METHODS: A total of 41 patients with complex and severe open fracture of the elbow joint who received the combined therapy of autologous skin grafting, vacuum sealing drainage and external fixation during January 2009 to December 2013 in General Hospital of Tianjin Medical University, China were selected. All patients were treated with routine debridement, external fixation and vacuum sealing drainage to cover wound during the first period. During the second period, autologous skin grafting or flap transfer was used to repair wound when the fresh granulation tissue covered the wound.
RESULTS AND CONCLUSION: The postoperative follow-up period of these 41 patients was 8-22 months, with an average period of 13 months. External fixation period was 8-13 months with an average period of 9.8 months. The open wounds were completely healed after autologous skin grafting or skin flaps transfer. Fractures
were healed in 31 patients during the first period. There were 7 cases of delayed union, 3 cases of nonunion. All fractures were completely healed during 8-12 months after iliac bone grafting. The excellent and good rate of limb function recovery was 73.1% among 41 patients with severe open fracture of the elbow joint. The limb function of Gustilo II patients better recovered. These results suggest that the clinical effect of the combined therapy of autologous skin grafting, vacuum sealing drainage and external fixation for the treatment of complex and severe open fractures of the elbow joint is satisfactory.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

Key words: External Fixators, Biocompatible Mateirals, Fractures, Open, Elbow Joint, Soft Tissue Injuries, Skin Transplantation

CLC Number:

R318

Wang Tao, Zhang Tao, Feng Shi-qing, Guo Hong-gang, Zheng Yong-fa. Autologous skin grafting, vacuum sealing drainage and external fixation for repair of complex and severe open fracture of the elbow joint[J]. Chinese Journal of Tissue Engineering Research, 2015, 19(30): 4915-4920.

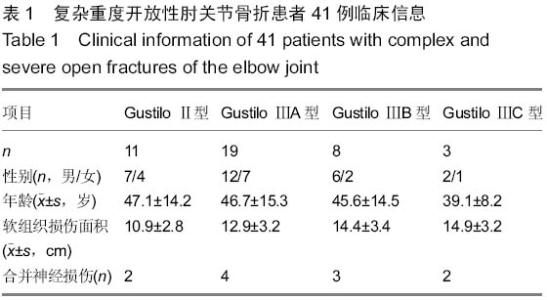

Figures/Tables 2

References

[1] 孙政尧,孙晓雷,贺彩霞,等.外固定架联合负压封闭引流技术治疗GustiloⅢB型骨折及其并发症的临床研究[J].中国医药指南, 2014,12(2):184-185.
[2] Fodor L, Ullmann Y, Soudry M, et al. Long-term results after Ilizarov treatment for severe high-energy injuries of the elbow. J Trauma. 2009;66(6):1647-1652.
[3] 赵继宏,方昕.负压封闭引流及皮片移植修复胫腓骨骨折的皮肤软组织缺损[J].中国组织工程研究,2014,18(20):3246-3251.
[4] Fleischmann W, Strecker W, Bombelli M, et al. Vacuum sealing as treatment of soft tissue damage in open fractures. Unfallchirurg. 1993;96(9):488-492.
[5] Webster J, Scuffham P, Stankiewicz M, et al. Negative pressure wound therapy for skin grafts and surgical wounds healing by primary intention. Cochrane Database Syst Rev. 2014;10:CD009261.
[6] 徐海栋,陈勇,卢俊浩,等.基于生物材料创面敷料封闭负压引流在四肢脱套伤治疗中的应用[J].中国组织工程研究,2012,16(34): 6445-6448.
[7] Ahmed O, Storey CM, Zhang S, et al. Vacuum-assisted closure of necrotic and infected cranial wound with loss of dura mater: A technical note. Surg Neurol Int. 2015;6:11.
[8] Bruhin A, Ferreira F, Chariker M, et al. Systematic review and evidence based recommendations for the use of negative pressure wound therapy in the open abdomen. Int J Surg. 2014;12(10):1105-1114.
[9] 裘华德,宋九宏.负压封闭引流技术[M].北京:人民卫生出版社, 2003:23-83.
[10] 刘剑伟,蒋卫平.单臂微型外固定架治疗GustiloⅢA型粉碎性掌指骨骨折[J].中国骨与关节损伤杂志,2013,28(11):1090-1091.
[11] Bukva B, Vrgoc G, Brdar R, et al. Treatment of congenital leg length discrepancies in children using an Ilizarov external fixator: a comparative study. Coll Antropol. 2014;38(4):1171-1174.
[12] Lavery LA, La Fontaine J, Thakral G, et al. Randomized clinical trial to compare negative-pressure wound therapy approaches with low and high pressure, silicone-coated dressing, and polyurethane foam dressing. Plast Reconstr Surg. 2014;133(3):722-726.
[13] Qu J, Yan R, Wang L, et al. Free dermatoplasty combined with vacuum sealing drainage for the treatment of large-area soft tissue defects accompanied by bone exposure in the lower leg. Exp Ther Med. 2013;5(5):1375-1380.
[14] Deng Z, Cai L, Jin W, et al. One-stage reconstruction with open bone grafting and vacuum-assisted closure for infected tibial non-union. Arch Med Sci. 2014;10(4):764-772.
[15] 肖良宝,胡军,查国庆,等.负压封闭引流技术在急性大面积软组织损伤中的应用[J].中华创伤骨科杂志,2013,15(4):364-366.
[16] 于虎,赵国梁,张中林,等.封闭式负压吸引联合内外固定治疗胫腓骨骨折合并皮肤缺损[J].浙江创伤外科,2012,17(1):52-53.
[17] 郑胜平,王昊.外固定架结合负压封闭引流治疗复杂 Pilon骨折[J].创伤外科杂志,2012,14(1):73.
[18] 丁坚,仲飚,李晓林,等.复杂肘关节骨折脱位的稳定性重建方法与疗效[J].中华创伤骨科杂志,2014,16(1):79-81.
[19] 吴加东,吕成堂,周敦,等.铰链式外固定架在桡骨头骨折伴肘关节不稳定治疗中的应用[J].中国骨与关节损伤杂志,2015,30(1): 98-99.
[20] Morrey BF, Adams RA. Semiconstrained arthroplasty for the treatment of rheumatoid arthritis of the elbow. J Bone Joint Surg Am. 1992;74(4):479-490.
[21] Liu L, Tan G, Luan F, et al. The use of external fixation combined with vacuum sealing drainage to treat open comminuted fractures of tibia in the Wenchuan earthquake. Int Orthop. 2012;36(7):1441-1447.
[22] Ricci WM, Collinge C, Streubel PN, et al. A comparison of more and less aggressive bone debridement protocols for the treatment of open supracondylar femur fractures. J Orthop Trauma. 2013;27(12):722-725.
[23] Ma X, Sun L, Dai J, et al. Mini external fixation device for comminuted open fractures of metacarpal and phalange. Zhongguo Xiu Fu Chong Jian Wai Ke Za Zhi. 2013;27(1): 17-20.
[24] Wei SJ, Cai XH, Wang HS, et al. A comparison of primary and delayed wound closure in severe open tibial fractures initially treated with internal fixation and vacuum-assisted wound coverage: a case-controlled study. Int J Surg. 2014;12(7): 688-694.
[25] Zhang J, Wang X, Wu RH, et al. Comparative evaluation of 2.3 mm locking plate system vs conventional 2.0 mm non locking plate system for mandibular condyle fracture fixation: a seven year retrospective study. Eur Rev Med Pharmacol Sci. 2015;19(5):712-718.
[26] 吴维国,黄斌,罗靖致,等.成人肱骨远端骨折术后肘关节功能恢复的影响因素分析[J].中国现代医生,2013,51(34):53-56.
[27] 林林,耿佳,杨晨雨.VSD结合岛状皮瓣治疗小腿开放骨折皮肤缺损[J].实用骨科杂志,2011,17(3):269-271.
[28] 张琦,卜海富,张复文,等.单边外固定支架治疗 GustiloⅢ 型桡骨远端开放骨折的疗效观察[J].临床骨科杂志,2014,17(3): 285-288.
[29] Tansarli GS, Vardakas KZ, Stratoulias C, et al. Vacuum-assisted closure versus closure without vacuum assistance for preventing surgical site infections and infections of chronic wounds: a meta-analysis of randomized controlled trials. Surg Infect (Larchmt). 2014;15(4):363-367.
[30] Bishay SN. Simultaneous femoral and tibial lengthening in combined congenital complete fibular hemimelia and congenital short femur using Ilizarov ring external fixator. J Orthop. 2014;11(4):183-187.
[31] 程建文,苏伟,谭桢,等.Ilizarov 外固定联合负压封闭引流修复四肢骨折合并骨筋膜室综合征[J].中国组织工程研究,2014,18(44): 7162-7166.
[32] 秦泗河,葛建忠,郭保逢,等.Ilizaro技术在中国大陆20年(1991- 2011年)[J].中国矫形外科杂志,2012,20(7):662-666.
[33] 刘涛,张弢,赵虬,等.负压封闭引流结合外固定架一期治疗重度开放损伤软组织缺损[J].中国矫形外科杂志,2011,19(6):511-512.
[34] Tafazal S, Madan SS, Ali F, et al. Management of paediatric tibial fractures using two types of circular external fixator: Taylor spatial frame and Ilizarov circular fixator. J Child Orthop. 2014;8(3):273-279.
[35] 钟万润,汪春阳,韩培,等.外固定支架骨搬运技术一期治疗胫骨缺损合并软组织缺损[J].中华创伤骨科杂志,2014,16(11):935-938.
[36] Babiak I, Zakiewicz W, Luterek M. Application of negative-pressure wound therapy in complex therapy of open tibia fractures IIIB and IIIC with massive soft tissue loss. Chir Narzadow Ruchu Ortop Pol. 2011;76(3):154-160.
[37] 张伯锋,张英泽,潘进社,等.急诊外固定架治疗胫骨开放骨折[J].中华急诊医学杂志,2011,20(1):90-92.
[38] Qu J, Yan R, Wang L, et al. Free dermatoplasty combined with vacuum sealing drainage for the treatment of large-area soft tissue defects accompanied by bone exposure in the lower leg. Exp Ther Med. 2013;5(5):1375-1380.
[39] 李建伟.封闭负压引流技术在开放骨折合并软组织缺损治疗中的作用[J].临床骨科杂志,2014(5):592-594.
[40] 杜中兴,岳发翔,朱贤久,等.负压封闭引流技术在Gustilo- AndersonⅡ-Ⅲ型开放骨折中的应用[J].临床骨科杂志,2014, 17(2):210-212.
[41] 徐海栋,陈勇,赏后来,等.基于生物材料创面敷料封闭负压引流在骨筋膜室综合征切开减压中的应用[J].中国组织工程研究,2012, 16(8):1505-1508.
[42] Herscovici D Jr, Sanders RW, Scaduto JM, et al. Vacuum- assisted wound closure (VAC therapy) for the management of patients with high-energy soft tissue injuries. J Orthop Trauma. 2003;17(10):683-688.
[43] 汪华侨,常湘珍,朱庆棠,等.负压封闭引流技术专题座谈会专家意见[J].中华显微外科杂志,2014,37(3):209.
[44] 罗建光,陈石玉,戚春潮,等.负压封闭引流技术应用于骨科创伤中的临床疗效分析[J].中国医师进修杂志,2012,8(3):23-24.
[45] 侯勇,冯伯志,任戈亮,等.封闭式负压引流治疗骨外露[J].临床骨科杂志,2011,14(5):582.
