Improvement of osteoblast bioactivity and osteoprotegrin gene expression of titanium surface by anodic oxidation

doi:10.3969/j.issn.2095-4344.2014.39.002

Abstract

Abstract:

BACKGROUND: Nanostructure formation on titanium surface by anodic oxidation has good biocompatibility with bone tissue.
OBJECTIVE: To observe the surface morphology and crystalline constitution of nanopores microstructure on titanium surface formed by anodic oxidation and to further observe its influence on the MC3T3-E1 osteoblast cells’ biological behavior and the gene expression of osteoprotegerin.
METHODS: Nanopores forming on titanium surface by anodic oxidation was prepared as experimental group and polished titanium as control group (12 samples for each group). Mouse MC3T3-E1 osteoblasts were co-cultured with polished pure titanium plate group and anodic oxidation nanopores group. After 7 days of inoculation, cell morphology was observed using scanning electron microscopy, MTT method was used for the cell proliferation test and the growth curve was made. Gene expression of osteoprotegerin was also detected.

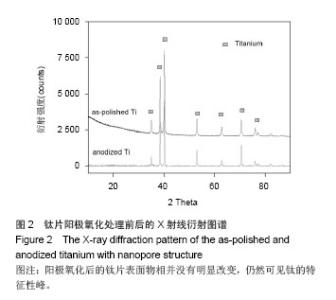

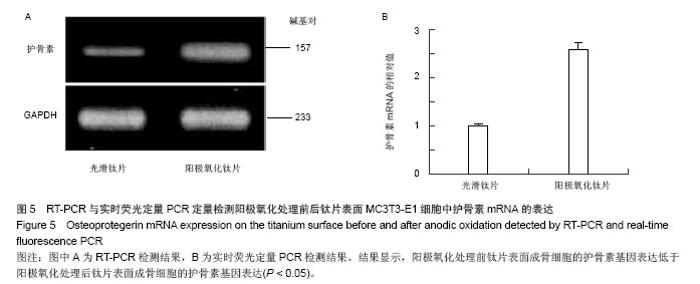

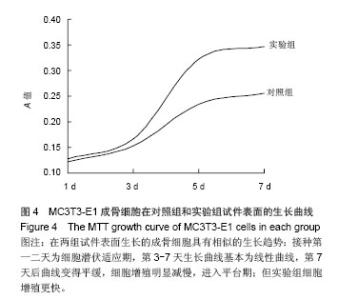

RESULTS AND CONCLUSION: After anodic oxidation, a homogeneous and uniform array of nanopores formed; however it had no significant influence on the crystalline phase of the titanium sample surfaces. Titanium surface with nanopore structure was more favorable than polished titanium surface for cell attachment and spreading. Cells on the anodized surface with nanopores had higher cell density and bigger metal coverage area. Cells on the nanopores surface also exhibited a polygonal shape with many filopodia extending in all directions. MTT method showed that the anodized nanopore surface had higher cell amount than the as-polished titanium, and the former was about 1.4 times of the latter group after 7 days of culture. The gene expression level of osteoprotegerin in the MC3T3-E1 cells cultured on anodized titanium surface with nanopores was significantly higher than that on the as-polished titanium (P < 0.01). The anodic oxidation treatment is more advantageous for the osteoblasts adhesion and gene expression of osteoprotegerin, thereby promoting the growth of osteoblasts.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

全文链接：

Key words: titanium, nanopores, osteoblasts

CLC Number:

R318

Fu Xiao-long, Li Ying, Li Bao-e, Li Chang-yi. Improvement of osteoblast bioactivity and osteoprotegrin gene expression of titanium surface by anodic oxidation[J]. Chinese Journal of Tissue Engineering Research, 2014, 18(39): 6240-6245.

Figures/Tables 5

References

[1]Zhuang LF,Jiang HH,Qiao SC,et al.The roles of extracellular signal-regulated kinase 1/2 pathway in regulating osteogenic differentiation of murine preosteoblasts MC3T3-E1 cells on roughened titanium surfaces.J Biomed Mater Res A. 2012; 100(1):125-133.
[2]Mendonca G,Mendonca DB,Aragao FJ,et al.Advancing dental implant surface technology--from micron- to nanotopography. Biomaterials.2008;29(28):3822-3835.
[3]Liu L,Song LN,Yang GL,et al.Fabrication, characterization, and biological assessment of multilayer DNA coatings on sandblasted-dual acid etched titanium surface.J Biomed Mater Res A.2011;97(3):300-310.
[4]Xue W,Tao S,Liu X,et al.In vivo evaluation of plasma sprayed hydroxyapatite coatings having different crystallinity. Biomaterials.2004;25(3):415-421.
[5]Li B,Liu X,Cao C,et al.Biological and antibacterial properties of plasma sprayed wollastonite/silver coatings. J Biomed Mater Res B Appl Biomater.2009;91(2):596-603.
[6]Wang Y,Wen C,Hodgson P,et al.Biocompatibility of TiO2 nanotubes with different topographies.J Biomed Mater Res A.2014;102(3):743-751.
[7]Gu YX,Du J,Si MS,et al.The roles of PI3K/Akt signaling pathway in regulating MC3T3-E1 preosteoblast proliferation and differentiation on SLA and SLActive titanium surfaces.J Biomed Mater Res A.2013;101(3):748-754.
[8]Balasundaram G,Yao C,Webster TJ.TiO2 nanotubes functionalized with regions of bone morphogenetic protein-2 increases osteoblast adhesion.J Biomed Mater Res A. 2008; 84(2):447-453.
[9]Zhuang XM,Zhou B,Ouyang JL,et al.Enhanced MC3T3-E1 preosteoblast response and bone formation on the addition of nano-needle and nano-porous features to microtopographical titanium surfaces.Biomed Mater.2014;9(4):045001.
[10]Nune KC,Misra RD.Pre-adsorption of protein on electrochemically grooved nanostructured stainless steel implant and relationship to cellular activity.J Biomed Nanotechnol.2014;10(7):1320-1335.
[11]Minagar S,Wang J,Berndt CC,et al.Cell response of anodized nanotubes on titanium and titanium alloys.J Biomed Mater Res A.2013;101(9):2726-2739.
[12]Yu X,Ning C,Li J,et al.In vivo evaluation of novel amine-terminated nanopore Ti surfaces.J Biomed Mater Res A.2012;100(12):3428-3435.
[13]范霞,贾爽,苏剑生.种植体表面粗糙度对成骨细胞增殖及ALP含量的影响[J].口腔颌面外科杂志,2009,19(2):128-131.
[14]Park IS,Lee MH,Bae TS,et al.Effects of anodic oxidation parameters on a modified titanium surface.J Biomed Mater Res B Appl Biomater.2008;84(2):422-429.
[15]Wang YB,Li HF,Cheng Y,et al.In vitro and in vivo studies on Ti-based bulk metallic glass as potential dental implant material.Mater Sci Eng C Mater Biol Appl. 2013;33(6): 3489-3497.
[16]Liang B,Fujibayashi S,Neo M,et al.Histological and mechanical investigation of the bone-bonding ability of anodically oxidized titanium in rabbits. Biomaterials. 2003; 24(27):4959-4966.
[17]Roguska A,Pisarek M,Andrzejczuk M,et al.Surface characterization of Ca-P/Ag/TiO2 nanotube composite layers on Ti intended for biomedical applications. J Biomed Mater Res A.2012;100(8):1954-1962.
[18]Zhang G,Huang C,Zhou L,et al.Enhanced charge storage by the electrocatalytic effect of anodic TiO(2) nanotubes. Nanoscale.2011;3(10):4174-4181.
[19]Portan DV,Kroustalli AA,Deligianni DD,et al.On the biocompatibility between TiO2 nanotubes layer and human osteoblasts.J Biomed Mater Res A.2012;100(10):2546-2553.
[20]Li B,Li Y,Li J,et al.Influence of nanostructures on the biological properties of Ti implants after anodic oxidation.J Mater Sci Mater Med.2014;25(1):199-205.
[21]李朋,赵昆渝,郭军,等.TiO2纳米孔到纳米管结构转变的因素及其机理研究[J].材料工程,2014,59(1):58-63,74.
[22]Macak JM,Ghicov A,Yasuda K,et al.TiO2 nanotubes: self-organized electrochemical formation, properties and applications.Curr Opin Solid State Mater Sci.2007;11:3-18.
[23]Brinkmann J,Hefti T,Schlottig F,et al.Response of osteoclasts to titanium surfaces with increasing surface roughness: an in vitro study. Biointerphases.2012; 7(1-4): 34.
[24]Balasundaram G,Webster TJ.Nanotechnology andbiomaterials for orthopedic medical applications. Nanomedicine (Lond).2006;1(2):169-176.
[25]Zhao J,Watanabe T,Bhawal UK,et al.Transcriptome analysis of beta-TCP implanted in dog mandible. Bone. 2011;48(4): 864-877.
[26]Zhan X,Zhang C,Dissanayaka WL,et al.Storage media enhance osteoclastogenic potential of human periodontal ligament cells via RANKL-independent signaling. Dent Traumatol. 2013;29(1):59-65.
[27]Khosla S.Minireview: the OPG/RANKL/RANK system. Endocrinology. 2001;142(12): 5050-5055.
[28]Kwan Tat S,Padrines M,Theoleyre S,et al.IL-6, RANKL, TNF-alpha/IL-1: interrelations in bone resorption pathophsiology.Cytokine Growth Factor Rev. 2004;15(1): 49-60.
[29]Mizrak S,Turan V,Inan S,et al.Effect of Nicotine on RANKL and OPG and Bone Mineral Density.J Invest Surg.2014.[Epub ahead of print].
