In vivo osteogenic properties of silicon-incorporated titanium dioxide nanotubes on titanium screw surface

doi:10.3969/j.issn.2095-4344.3115

Abstract

Abstract: BACKGROUND: At present, titanium and its alloy materials are mostly used in prosthesis and bone implants. These materials have superior mechanical properties and excellent corrosion resistance, but their bioactivity is insufficient, so it is difficult to form a good chemical bond with bone tissue.
OBJECTIVE: To prepare titanium dioxide nanotube coating containing silicon on the surface of pure titanium screw and observe its osteogenic properties in vivo.
METHODS: Titanium dioxide nanotube layers were prepared on the surface of pure titanium screws by anodic oxidation method (positive control group). Silicon ions were deposited on the surface of titanium nanotube layers by plasma immersion ion implantation and deposition (experimental group). Pure titanium screws were used as negative control group. The morphology of each group was observed by scanning electron microscope. The three kinds of screws were implanted into the femur of SD rats. The femoral specimens were taken out at 2, 4 and 6 weeks after implantation for biomechanical test, and immunofluorescence analysis was performed at 6 weeks after implantation. The animal experiment was approved by the Ethics Committee of Experimental Animal Management and Animal Welfare of Jiangnan University.

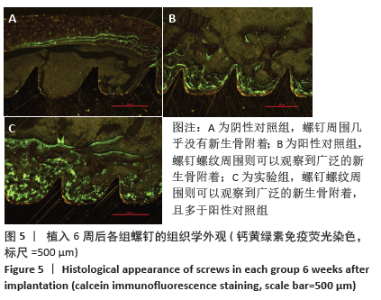

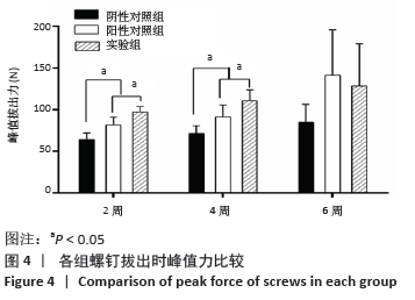

RESULTS AND CONCLUSION: (1) Scanning electron microscopy showed that uniform double-layer nanotube arrays were observed in the experimental group and the positive control group, and there was no significant difference between the two groups. (2) At 2 and 4 weeks after screw implantation, the average peak pullout force of the experimental group was significantly higher than that of the positive control group and the negative control group (P < 0.05), and the positive control group was significantly higher than the negative control group (P < 0.05). At the sixth week, there was no significant difference in pullout force among the three groups (P > 0.05). (3) Immunofluorescence showed that at 6 weeks after implantation, there was almost no new bone attachment around the screw in the negative control group, and extensive new bone attachment was observed around the screw thread in the experimental group and the positive control group, among which the new bone formation was the most in the experimental group. (4) The results showed that the silicon dioxide titanium nanotube layer could significantly promote the formation of new bone around the pure titanium screw and increase the pullout force of screws.

Key words: bone, material, titanium screw, silicon, titanium, nanotube, osteogenesis, coating

CLC Number:

Zhang Xianjun, Zhao Xijiang. In vivo osteogenic properties of silicon-incorporated titanium dioxide nanotubes on titanium screw surface[J]. Chinese Journal of Tissue Engineering Research, 2021, 25(16): 2461-2465.

Figures/Tables 4
