Feasibility of balloon dilation with injectable calcium sulfate cement for tibial plateau fractures

doi:10.3969/j.issn.2095-4344.0867

Abstract

Abstract:

BACKGROUND: The balloon dilatation technique plays an important role in the correction of kyphosis. A balloon catheter can enlarge the spinal cavity in kyphoplasty followed by injection of bone cement under low pressure to lay a foundation for the stability of the spine.

OBJECTIVE: To explore the feasibility of balloon dilation with injectable calcium sulfate cement for tibial plateau fractures and to analyze its clinical effect.

METHODS: Twenty-four upper tibia specimens of the adults were taken to make the Schatzker III collapsed fracture model of the tibial plateau. Then, these specimens were randomized into three groups: the standard group was subjected to poking reduction with autologus bone grafting and screw internal fixation, the bone cement group was inflated with balloon dilatation followed by calcium sulfate cement injection, and the combined group was treated with fixation with cancellous bone screws and balloon dilatation followed by injection of calcium sulfate cement. The general situation of reduction and fixation was observed and the reduction effect was measured.

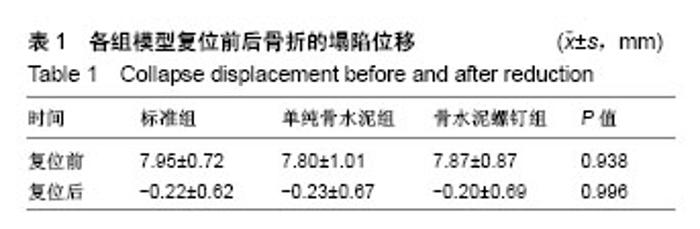

RESULTS AND CONCLUSION: (1) Fixation effect in the model: All three models were well reset, and the average displacement of the standard group, the simple bone cement group and the bone cement screw group was (-0.22±0.62), (-0.23±0.67), and (-0.20±0.69) mm, respectively. There was no significant difference in the displacement between the three groups (P > 0.05). (2) Clinical application: One case of Schatzker type II fracture of the left tibial plateau was treated with cancellous bone screw fixation and balloon dilatation followed by injection of calcium sulfate cement. X-ray results showed calcium sulfate cement was visible at 3 postoperative days. At 30 postoperative days, the patient presented with good joint range of motion, and the calcium sulfate was partially absorbed on the X-ray film. At 60 postoperative days, the patient appeared to have no joint extension disorder, and fracture healing and absorption of calcium sulfate as shown by X-rays. To conclude, the balloon dilation with injectable calcium sulfate cement for the treatment of tibial plateau fracture is feasible and has clinical value.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

Key words: Calcium Sulfate, Tibial Fractures, Tissue Engineering

CLC Number:

R318

Chen Jin-min, Chen Sui-sheng, Ding Jing, Xia Bao-quan, Luo Xiao-jia, Lu Cheng-hai, Yang Zhen-keng. Feasibility of balloon dilation with injectable calcium sulfate cement for tibial plateau fractures[J]. Chinese Journal of Tissue Engineering Research, doi: 10.3969/j.issn.2095-4344.0867.

Figures/Tables 4

References

[1] Lee MH,Hsu CJ,Lin KC,et al.Comparison of outcome of unilateral locking plate and dual plating in the treatment of bicondylar tibial plateau fractures.J Orthop Surg Res. 2014; 9:62.

[2] Yang G,Zhu Y,Luo C,et al.Morphological characteristics of Schatzker type Ⅳtibial plateau fractures: a computer tomography based study.Int Orthop.2012;36(11):2355-2360.

[3] Haider SJ,Pean CA,Davidovitch RI,et al.Functional Outcomes of Isolated Medial Tibial Plateau Fractures.J Knee Surg. 2016; 29(5):414-422.

[4] Sciadini MF,Sims SH.Proximal tibial intra-articular osteotomy for treatment of complex Schatzker type Ⅳ tibial plateau fractures with lateral joint line impaction: description of surgical technique and report of nine cases.J Orthop Trauma. 2013;27(1):e18-23.

[5] Wahlquist M,Iaguilli N,Ebraheim N,et al.Medial tibial plateau fractures: a new classification system. J Trauma. 2007;63(6): 1418-1421.

[6] Chang SM,Wang X,Zhou JQ,et al.Posterior coronal plating of bicondylar tibial plateau fractures through posteromedial and anterolateral approaches in a healthy floating supine position. Orthopedics. 2012;35(7):583-588.

[7] 陈文龙,张英琪,张世民.Schatzker Ⅳ型胫骨平台骨折及手术入路研究[J].国际骨科学杂志,2014,35(2): 97-99.

[8] 王军,赵春鹏,李庭,等.骨折脱位型胫骨平台骨折发生率及内侧和后内侧骨块影像学特点[J].中华创伤杂志, 2015,31(5):427-430.

[9] 胡孙君,张世民,张英琪,等.胫骨平台后外侧象限骨折手术入路的深层解剖及后外侧与后内侧比较[J].中国临床解剖学杂志, 2015, 33(5):497-501.

[10] Berkes MB,Little MT,Schottel PC,et al.Outcomes of Schatzker II tibial plateau fracture open reduction internal fixation using structural bone allograft.J Orthop Trauma.2014;28(2):97-102.

[11] 胡勇,尹宗生,张辉,等.累及后柱的胫骨平台骨折的手术治疗[J].中华骨科杂志,2012,32(12):1138-1144.

[12] Hoekstra H,Rosseels W,Luo CF,et al.A combined posterior reversed L-shaped and anterolateral approach for two column tibial plateau fractures in Caucasians: A technical note. Injury. 2015;46(12): 2516-2519.

[13] Brunner A,Horisberger M,Ulmar B,et al.Classi?cation systems for tibial plateau fractures; Does computed tomography scanning improve their reliability? Injury.2010;41:173-178.

[14] Luo CF,Sun H,Zhang B,et al.Three-column fixation for complex tibial plateau fractures.J Orthop Trauma.2010;24(11): 683-692.

[15] Chang SM,Zhang YQ,Yao MW,et al.Schatzker type Ⅳ medial tibial plateau fractures: a computed tomography- based morphological subclassification. Orthopedics.2014; 37(8):e699-706.

[16] Ruffolo MR,Gettys FK,Montijo HE,et al.Complications of highenergy bicondylar tibial plateau fractures treated with dual plating through 2 incisions.J Orthop Trauma. 2015; 29(2):85-90.

[17] Bagherifard A,Jabalameli M,Hadi H,et al.Surgical Management of Tibial Plateau Fractures With 3.5 mm Simple Plates.Trauma Mon.2016;21(2):e26733.

[18] Qiu WJ,Zhan Y,Sun H,et al.A posterior reversed L-shaped approach for the tibial plateau fractures-A prospective study of complications (95 cases).Injury.2015;46(8):1613-1618.
