Mechanical stability after plating ankle arthrodesis based on three-dimensional finite element analysis

doi:10.3969/j.issn.2095-4344.0036

Abstract

Abstract:

BACKGROUND: Plating ankle arthrodesis includes anterior and lateral plating methods, but there is some lack of knowledge about their differences in biomechanics.

OBJECTIVE: To establish the three-dimensional models of anterior and lateral plating ankle arthrodesis through three-dimensional finite element technique, simulate human gait, and to analyze its biomechanical stability and safety.

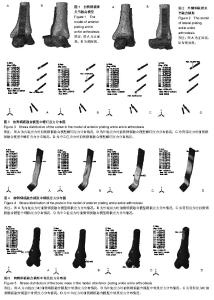

METHODS: The geometrical morphology of ankle joint was reconstructed based on the normal human ankle CT data. The models of anterior and lateral plating ankle arthrodesis were established using finite element analysis software Abaqus 2016, and the biomechanical changes after exerting stress at the positions of intorsion, extorsion, dorsiflexion, and neutral were analyzed.

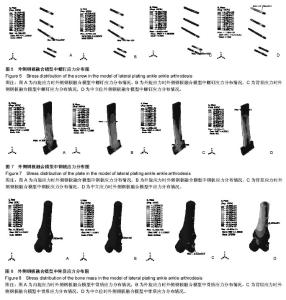

RESULTS AND CONCLUSION: (1) The maximal displacement and stress distribution under different stress were compared between two models by three-dimensional element analysis, and there was no significant difference in the stability between two models. (2) The abilities of resistance to intorsion and dorsiflexion stresses of the lateral plating model were slightly better than those of the anterior plating model, but the resistance to extorsion stress of the lateral plating model was lower than that of the anterior plating model; the stress peak both concentrated on the plate-screw connections. (3) The plate, screw and bone mass of the anterior plating model showed the maximum stress peak under intorsion stress, and broken plates and nails usually occur. (4) The lateral plating presented with peak stress under extorsion stress.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

Key words: Ankle Joint, Finite Element Analysis, Biomechanics, Tissue Engineering

CLC Number:

R318

Xie Qiang, Wang Zhi-hui, Liu Wen-yi, Gao Yun-feng, Xue Xin-xin. Mechanical stability after plating ankle arthrodesis based on three-dimensional finite element analysis[J]. Chinese Journal of Tissue Engineering Research, 2018, 22(3): 392-397.

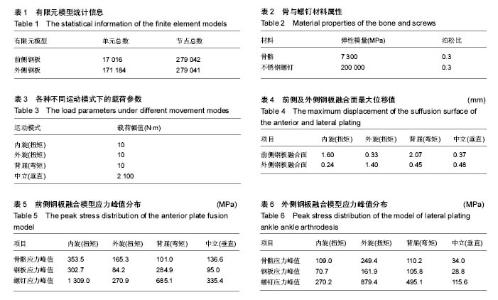

Figures/Tables 3

References

[1] 施忠民,张驰,顾文奇,等.经外踝截骨锁定钢板内固定行踝关节融合[J].中国修复重建外科杂志,2011,25(7):781-784.

[2] Colman AB, Pomeroy GC. Transfibular ankle arthrodesis with rigid internal fixation: an assessment of outcome. Foot Ankle Int. 2007;28(3): 303-307.

[3] Nickisch F, Avilucea FR, Beals T, et al. Open posterior approach for tibiotalar arthrodesis. Foot Ankle Clin. 2011; 16(1):103-114.

[4] Torudom Y. The results of ankle arthrodesis with screws for end stage ankle arthrosis. J Med Assoc Thai. 2010;93 Suppl 2: S50-54.

[5] Clare MP, Sanders RW. The anatomic compression arthrodesis technique with anterior plate augmentation for ankle arthrodesis. Foot Ankle Clin. 2011;16(1): 91-101.

[6] Yasui Y, Takao M, Miyamoto W, et al. Technique tip: open ankle athrodesis using locking compression plate combined with anterior sliding bone graft. Foot Ankle Int. 2010;31(12): 1125-1128.

[7] Gessmann J, Ozokyay L, Fehmer T, et al. Arthrodesis of the infected ankle joint: results with the Ilizarov External Fixator. Z Orthop Unfall. 2011;149(2): 212-218.

[8] Zwipp H, Rammelt S, Endres T, et al. High union rates and function scores at midterm follow-up with ankle arthrodesis using a four screw technique. Clin Orthop Relat Res.2010; 468(4): 958-968.

[9] Glenn D, John K. Tibiotal ararthrodesis using acustom blade plate. J Trauma. 2007;63:1279-1282.

[10] Ahmad J，Pour AE，Raikin SM. The modified use of a proximal humeral Locking plate for tibiotalocalcaneal arthrodesis.Foot Ankle Int. 2007;9:977-983.

[11] Tarkin IS, Mormino MA, Clare MP. Anterior plate supplementation increases ankle arthrodesis construct rigidity. Foot AnkleInt. 2007;2:219-223.

[12] Kakarala G, Rajan DT. Comparative study of ankle arthrodesis using Cross screw fixation versus anterior contoured plate plus cross screw fixation. Acta Orthop Belg. 2006;6:716-721.

[13] Alonso VA, Lauge PH, Lidgren L, et al. Initial stability of ankle arthrodesis with three-screw fixation. A finite element analysis. Clin Biomech(Bristol,Avon). 2004;7: 751-759.

[14] ThordarsonDB，Markolf K，Cracchiolo AR. Stability of an ankle arthrodesis fixed by cancellous-bone screws compared with that fixed by an external fixator. A biomechanical study. J Bone Joint Surg Am. 1992;7: 1050-1055.

[15] 桂忠山,徐晓峰,李桓毅. 无头加压螺钉和锁定加压钢板在踝关节融合固定中的对比[J].中国组织工程研究,2016,20(31): 4623-4629.

[16] 卢昌怀,余斌,陈辉强,等. 正常步态下距骨三维有限元模型的建立及应力分析[J]. 南方医科大学学报,2010,10: 2273-2276.

[17] 杨成伟,李全,孙伟,等.内收型股骨颈骨折多根空心螺钉固定的三维有限元分析[J].中国矫形外科杂志,2009,17(14):1077-1080.

[18] Thordarson DB,Markolf K,Cracchiolo AR. Stability of an ankle arthrodesis fixed by cancellous-bone screws compared with that fixed by anexternal fixator. Abiomechanical study. J Bone Joint Surg Am. 1992;7: 1050-1055.

[19] Huiskes R, Chao EY. A survey of fininte element analysis in orthopaedic biomechanics:the first decade. J Biomechanics. 1983;16(6):365-400.

[20] Spyrou LA, Aravas N. Muscle-driven fininte element simulation of human foot movements. Comput Methods Biomech Biomed Engin. 2011;29(7):267-271.

[21] Albert E. Zur resection des kniegelenkes. Wien Med Press, 1879.

[22] TarkinI S,Mormino MA,Clare MP,et al .Anterior plates upple mentation increases ankle arthrodesi construct rigidity. Foot Ankle Int. 2007;28(2):219-223.

[23] Gharehdaghi M,Rahimi H,Mousavian A.Anterior ankle arthrodesis with molde dplate:technique and outcomes.Arch Bone Jt Surg. 2014;2(3):203-209.

[24] Clifford C,Berg S,McCann K,et al. A biomechanical comparison of internal fixation techniques for ankle arthrodesis. J Foot Ankle Surg. 2015;54(2):188-191.
