A modified working tube can reduce bone cement leakage in the treatment of osteoporotic vertebral compression fracture

doi:10.3969/j.issn.2095-4344.0001

Abstract

Abstract:

BACKGROUND: Vertebroplasty is an effective treatment for osteoporotic vertebral compression fractures (OVCF), but it is nagged by bone cement leakage.

OBJECTIVE: To summarize the clinical outcome of modified self-making working tube in percutaneous vertebroplasty (PVP) for treatment of thoracolumbar OVCF.

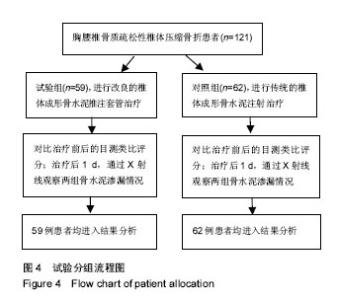

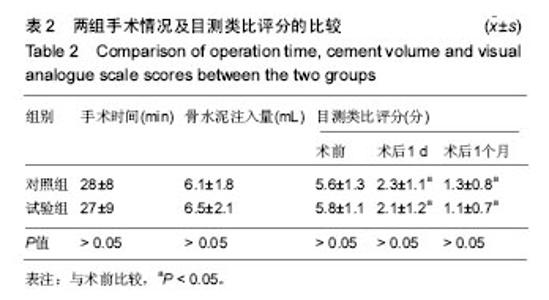

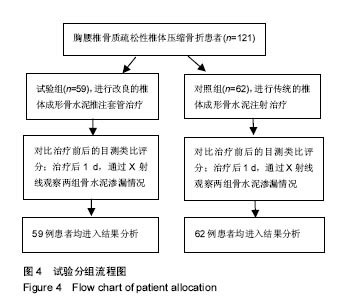

METHODS: Modified PVP working tube was designed to have a lateral gap at the sleeve tail, which could control the cement diffuse direction though rotating the working tube. Totally 121 thoracolumbar OVCF patients were enrolled, including 49 males and 72 females, aged 62-90 years, and then divided into two groups: 59 patients were treated with modified PVP in test group, and the other 62 patients experienced conventional PVP in control group. In the test group, a lateral gap instead of the conventional gap at the sleeve tail was made to control the direction of bone cement injection by rotating the sleeve. The visual analogue scale scores were compared before and after operation; radiographic examination was performed to detect bone cement leakage at 1 day postoperatively.

RESULTS AND CONCLUSION: There were significant differences between the preoperative and postoperative visual analogue scale scores in the two groups (P < 0.05), but there was no significant difference between the two groups. There were 3 cases of bone cement leakage in the test group and 10 cases of bone cement leakage in the control group. Modified PVP working tube had significant lower rate of bone cement leakage than traditional PVP (14.9% vs. 4.6%, P < 0.05). Therefore, the modified PVP working tube is an effective tool to decrease the incidence of bone cement leakage in the treatment of thoracolumbar OVCF.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

Key words: Vertebroplasty, Osteoporotic Fractures, Tissue Engineering

CLC Number:

R318

Zhang Zhi-qiang, Yang Jian-dong, Feng Xin-min, Wang Yong-xiang, Tao Yu-ping, Cai Jun, Zhang Liang. A modified working tube can reduce bone cement leakage in the treatment of osteoporotic vertebral compression fracture [J]. Chinese Journal of Tissue Engineering Research, 2018, 22(2): 165-170.

Figures/Tables 3

References

[1]Nakamae T,Fujimoto Y,Yamada K,et al.Efficacy of Percutaneous Vertebroplasty in the Treatment of Osteoporotic Vertebral Compression Fractures with Intravertebral Cleft.Open Orthop J.2015;9:107-113.

[2]Rho YJ,Choe WJ,Chun YI.Risk factors predicting the new symptomatic vertebral compression fractures after percutaneous vertebroplasty or kyphoplasty.Eur Spine J. 2012;21(5):905-911.

[3]冯新民,王静成,张亮,等.高黏度骨水泥在修复骨质疏松性胸腰椎骨折中的应用[J].中国组织工程研究, 2014,17(30):4757-4763.

[4]Sun K,Liu Y,Peng H,et al.A comparative study of high-viscosity cement percutaneous vertebroplasty vs. low-viscosity cement percutaneous kyphoplasty for treatment of osteoporotic vertebral compression fractures.J Huazhong Univ Sci Technolog Med Sci. 2016;36(3):389-394.

[5]Yeom JS,Kim WJ,Choy WS,et al.Leakage of cement inpercutaneous transpedicular vertebroplasty for painful osteoporoticcompression fractures.J Bone Joint Surg.2003; 85(1):83-89.

[6]Saracen A, Kotwica Z.Complications of percutaneous vertebroplasty: An analysis of 1100 procedures performed in 616 patients. Medicine(Baltimore).2016;95(24):e3850.

[7]Galibert P,Deramond H,Rosat P,et a1. Preliminary note on thetreatment of vertebral angioma by percutaneous acrylic vertebroplasty.Neuroehirurgie.1987;33:166-168．

[8]郑毓嵩,张勇,林金丁,等.椎体成形术骨水泥渗漏的相关危险因素分析[J].中华创伤杂志,2015,31(4): 312-316.

[9]Chen C,Li D,Wang Z,et al.Safety and Efficacy Studies of Vertebroplasty, Kyphoplasty, and Mesh-Container-Plasty for the Treatment of Vertebral Compression Fractures: Preliminary Report.PLoS One.2016;11(3):e0151492.

[10]Wang Y,Liu H,Pi B,et al.Clinical evaluation of percutaneous kyphoplasty in the treatment of osteolytic and osteoblastic metastatic vertebral lesions.Int J Surg. 2016;30:161-165.

[11]Zhang GQ,Gao YZ,Chen SL,et al.Comparison of percutaneous vertebroplasty and percutaneous kyphoplasty for the management of Kümmell's disease: A retrospective study.Indian J Orthop. 2015;49(6):577-582.

[12]Kim JH,Yoo SH,Kim JH.Long-term Follow-up of Percutaneous Vertebroplasty in Osteoporotic Compression Fracture: Minimum of 5 Years Follow-up.Asian Spine J. 2012;6(1):6-14.

[13]Nieuwenhuijse MJ,Bollen L,van Erkel AR,et al.Optimal intravertebral cement volume in percutaneous vertebroplasty for painful osteoporotic vertebral compression fractures.Spine(Phila Pa 1976). 2012;37(20): 1747-1755.

[14]Nieuwenhuijse MJ,Muijs SP,van Erkel AR,et al.A clinical comparative study on low versus medium viscosity polymethylmetacrylate bone cement in percutaneous vertebroplasty: viscosity associated with cement leakage. Spine(Phila Pa 1976).2010;35(20):E1037-1044.

[15]马志锋,凌云,王延涛.经皮椎体成形术和保守疗法治疗老年骨质疏松性胸腰椎压缩性骨折的效果对比[J]. 中国医学创新, 2016, 13(18):19-22.

[16]Stevenson M,Gomersall T,Lloyd Jones M,et al.Percutaneous vertebroplasty and percutaneous balloon kyphoplasty for the treatment of osteoporotic vertebral fractures: a systematic review and cost-effectiveness analysis.Health Technol Assess. 2014;18(17):1-290.

[17]徐沁.椎体骨质疏松性压缩性骨折患者行椎体成形术后发生骨水泥渗漏的相关因素研究[D].苏州大学,2016.

[18]李自强,杜科伟,杜夏铭,等.椎体成形术与椎体后凸成形术治疗骨质疏松性椎体压缩性骨折发生骨水泥渗漏的相关临床评价[J].解放军医药杂志,2016,28(5):54-58.

[19]Nieuwenhuijse MJ,Putter H,van Erkel AR,et al.New vertebral fractures after percutaneous vertebroplasty for painful osteoporotic vertebral compression fractures: a clustered analysis and the relevance of intradiskal cement leakage. Radiology.2013;266(3):862-870.

[20]Svedbom A,Alvares L,Cooper C,et al.Balloon kyphoplasty compared to vertebroplasty and nonsurgical management in patients hospitalised with acute osteoporotic vertebral compression fracture: a UK cost-effectiveness analysis. Osteoporos Int.2013;24(1):355-367.

[21]Hu YM,Pang QJ.Effectiveness of manipulative reduction combined with minimally invasive surgery in the treatment of osteoporotic vertebral compression fracture: a meta-analysis. Zhongguo Gu Shang. 2015;28(11):1042-1047.

[22]Chen H,Jia P,Bao L,et al.Depression of the Thoracolumbar Posterior Vertebral Body on the Estimation of Cement Leakage in Vertebroplasty and Kyphoplasty Operations.Chin Med J(Engl). 2015;128(23):3158-3162.

[23]Wang H,Sribastav SS,Ye F,et al.Comparison of Percutaneous Vertebroplasty and Balloon Kyphoplasty for the Treatment of Single Level Vertebral Compression Fractures: A Meta-analysis of the Literature.Pain Physician. 2015;18(3): 209-222.

[24]张愈峰,龚辉,侍德.过伸体位复位联合Confidence高黏度椎体骨水泥椎体成形术治疗椎体骨质疏松压缩性骨折[J].中国矫形外科杂志,2016,24(2):110-113.

[25]Gu YT,Zhu DH,Liu HF,et al.Minimally invasive pedicle screw fixation combined with percutaneous vertebroplasty for preventing secondary fracture after vertebroplasty.J Orthop Surg Res.2015;10:31.

[26]付国勇,耿晓鹏,王霞,等.骨填充网袋与球囊椎体后凸成形修复骨质疏松性椎体压缩性骨折[J].中国组织工程研究, 2016,20(52): 7858-7864.

[27]祁振良,李为勇,于永刚,等.单侧和双侧经皮椎体成形术治疗胸腰椎骨质疏松性压缩性骨折的疗效比较[J].颈腰痛杂志, 2016, 37(6):501-503.

[28]Sun HL,Li CD,Zhu JL,et al.Clinical research of percutaneous vertebroplasty or percutaneous kyphoplasty for treating osteoporotic vertebral compression fractures induced by glucocorticosteroid.Beijing Da Xue Xue Bao. 2015;47(2): 242-247.

[29]Huang TJ,Kou YH,Yin XF,et al.Clinical characteristics and risk factors of newly developed vertebral fractures after vertebral augmentation.Beijing Da Xue Xue Bao. 2015;47(2):237-241.

[30]Zhao DH,Chen K,Zhu J,et al.Postoperative Functional Evaluation of Percutaneous Vertebroplasty Compared With Percutaneous Kyphoplasty for Vertebral Compression Fractures. Am J Ther.2016;23(6):e1381-e1390.

[31]Niu J,Song D,Zhou H,et al.Percutaneous Kyphoplasty for the Treatment of Osteoporotic Vertebral Fractures with Intravertebral Fluid or Air: A Comparative Study.Clin Spine Surg.2016.[Epub ahead of print]

[32]Chang X,Lv YF,Chen B,et al.Vertebroplasty versus kyphoplasty in osteoporotic vertebral compression fracture: a meta-analysis of prospective comparative studies.Int Orthop. 2015;39(3):491-500.

[33]Zhang YL,Shi LT,Tang PF,et al.Correlation analysis of osteoporotic vertebral compression fractures and spinal sagittal imbalance.Orthopade.2017;46(3):249-255.

[34]Alacreu E,Moratal D,Arana E.Opportunistic screening for osteoporosis by routine CT in Southern Europe.Osteoporos Int.2017;28(3):983-990.

[35]林森,陈小强,周涛,等.骨质疏松性椎体压缩性骨折椎体成形术后再骨折的影响因素分析[J].中华临床医师杂志(电子版), 2016, 10(12):1670-1673.

[36]高梁斌,陈嘉裕,张亮,等.经皮椎体成形术中骨水泥注射量与疗效和并发症的相关性研究[J].中华创伤骨科杂志, 2009,11(6): 532-536.

[37]Zhang H,Xu C,Zhang T,et al.Does Percutaneous Vertebroplasty or Balloon Kyphoplasty for Osteoporotic VertebralCompression Fractures Increase the Incidence of New Vertebral Fractures? A Meta-Analysis.Pain Physician. 2017;20(1):E13-E28.

[38]吴叶,卜国云,卢祥,等.单椎体压缩骨折PKP术后原椎体引起背痛复发因素的探讨[J].中国骨与关节杂志,2016,5(1):62-67.

[39]Hosseini HS,Dünki A,Fabech J,et al.Fast estimation of Colles' fracture load of the distal section of the radius by homogenized finite element analysis based on HR-pQCT. Bone.2017;97:65-75.

[40]Bae JS,Park JH,Kim KJ,et al.Analysis of Risk Factors for Secondary New Vertebral Compression Fracture Following Percutaneous Vertebroplasty in Patients with Osteoporosis. World Neurosurg.2017;99:387-394.
