Biocompatibility of electrospun poly(lactide-co-glycolide)/polyethylene glycol nanofibrous scaffold with mouse neural stem cells

doi:10.3969/j.issn.2095-4344.2014.47.008

Abstract

Abstract:

BACKGROUND: Poly(lactide-co-glycolide) (PLGA) scaffold is widely used in tissue engineering, but its poor cell adhesion ability and strong hydrophobicity limit its further development and application.
OBJECTIVE: To study the biocompatibility of electrospun poly (lactide-co-glycolide)/polyethylene glycol (PLGA-PEG) nanofibrous scaffolds with mouse neural stem cells in vitro.
METHODS: Neural stem cells were isolated from embryos of CD-1 mice at 15 embryonic days. Electrospinning was used to prepare PLGA and PLGA-PEG nanofibrous scaffolds. Scanning electron microscope was used for scanning observation of scaffolds. The 5th passage neural stem cells were seeded onto PLGA and PLGA-PEG scaffolds respectively, and cultured in vitro.

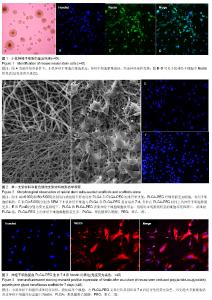

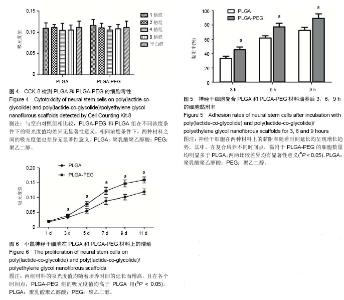

RESULTS AND CONCLUSION: Interconnected porous network structure was observed in both two kinds of scaffolds under the scanning electron microscope. Fiber diameters and porosities of PLGA and PLGA-PEG scaffolds showed no significant differences (P > 0.05). Cell Counting Kit-8 detection showed neural stem cells grew well on both two kinds of scaffolds and the absorbance value of two groups increased continuously with incubation time (1, 3, 5, 7, 9, 11 days). And there were statistically significant differences in the absorbance values between two groups at each time point (P < 0.05). Moreover, the cell adhesion rate was significantly higher in the PLGA-PEG group than in the PLGA group at 3, 6, 9 hours of culture (P < 0.05). Hoechst 33342 staining showed normal morphology and quality of the nuclei, and significantly more cells were observed in the PLGA-PEG group than the PLGA group (P < 0.05). Under the scanning electron microscope, compared with the PLGA scaffold, the PLGA-PEG scaffold was better for growth and matrix secretion of neural stem cells. In conclusion, PLGA-PEG nanofibrous scaffolds prepared by electrospinning are safe, non-toxic and suitable for neural stem cells growth with well biocompatibility, appropriate aperture and porosity.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

全文链接：

Key words: biocompatible materials, neural stem cells, mice, cell proliferation

CLC Number:

R318

Liu Chang, Rong Li-min, Li Shang-fu, Pang Mao, Yang Yang, Liu Bin. Biocompatibility of electrospun poly(lactide-co-glycolide)/polyethylene glycol nanofibrous scaffold with mouse neural stem cells[J]. Chinese Journal of Tissue Engineering Research, 2014, 18(47): 7585-7590.

Figures/Tables 2

References

[1] Zhu T, Tang Q, Gao H, et al. Current status of cell-mediated regenerative therapies for human spinal cord injury. Neurosci Bull. 2014;30(4):671-682.
[2] Bonfield W. Designing porous scaffolds for tissue engineering. Philos Trans A Math Phys Eng Sci. 2006;364(1838):227-232.
[3] Evans N R, Davies E M, Dare C J, et al. Tissue engineering strategies in spinal arthrodesis: the clinical imperative and challenges to clinical translation. Regen Med. 2013;8(1):49-64.
[4] Houle J D, Tessler A. Repair of chronic spinal cord injury. Exp Neurol. 2003;182(2):247-260.
[5] Ji W, Hu S, Zhou J, et al. Tissue engineering is a promising method for the repair of spinal cord injuries (Review). Exp Ther Med. 2014;7(3):523-528.
[6] Lai BQ, Wang JM, Ling EA, et al. Graft of a tissue-engineered neural scaffold serves as a promising strategy to restore myelination after rat spinal cord transection. Stem Cells Dev. 2014;23(8):910-921.
[7] Luo J, Borgens R, Shi R. Polyethylene glycol improves function and reduces oxidative stress in synaptosomal preparations following spinal cord injury. J Neurotrauma. 2004; 21(8):994-1007.
[8] 李森,史晓远,林卫,等.静电纺丝聚乳酸聚乙醇酸共聚物-丝素-胶原神经导管修复大鼠周围神经缺损[J].中国组织工程研究, 2012, 16(38):7087-7091.
[9] Chen SJ, Lin CC, Tuan WC, et al. Effect of recombinant galectin-1 on the growth of immortal rat chondrocyte on chitosan-coated PLGA scaffold. J Biomed Mater Res A. 2010; 93(4):1482-1492.
[10] Lu JM, Wang X, Marin-Muller C, et al. Current advances in research and clinical applications of PLGA-based nanotechnology. Expert Rev Mol Diagn. 2009;9(4):325-341.
[11] Park BH, Zhou L, Jang KY, et al. Enhancement of tibial regeneration in a rat model by adipose-derived stromal cells in a PLGA scaffold. Bone. 2012;51(3):313-323.
[12] Wattendorf U, Merkle HP. PEGylation as a tool for the biomedical engineering of surface modified microparticles. J Pharm Sci. 2008;97(11):4655-4669.
[13] 李晓然,袁晓燕.聚乙二醇-聚乳酸共聚物药物载体[J].化学进展, 2007,19(6):973-981.
[14] 路娟,刘清飞,罗国安,等.药物的聚乙二醇修饰研究进展[J].有机化学,2009,29(8):1167-1174.
[15] Sharma H S. Post-traumatic application of brain-derived neurotrophic factor and glia-derived neurotrophic factor on the rat spinal cord enhances neuroprotection and improves motor function. Acta Neurochir Suppl. 2006;96:329-334.
[16] 叶川,马敏先,张弢,等.Ⅰ型胶原修饰纯钛片促进人脂肪间充质干细胞增殖[J].中国组织工程研究,2014,18(25):4032-4037.
[17] 倪石磊,齐宏旭,鲍圣德,等.组织工程支架在犬急性脊髓损伤修复中应用的初步研究[J].中国微侵袭神经外科杂志,2005,10(9): 404-407.
[18] 王北岳,赵建宁.组织工程支架材料在脊髓损伤中的应用[J].医学研究生学报,2008,21(5):547-552.
[19] Mikami Y, Okano H, Sakaguchi M, et al. Implantation of dendritic cells in injured adult spinal cord results in activation of endogenous neural stem/progenitor cells leading to de novo neurogenesis and functional recovery. J Neurosci Res. 2004;76(4):453-465.
[20] Tavares I. Human neural stem cell transplantation in spinal cord injury models: how far from clinical application. Stem Cell Res Ther. 2013;4(3):61.
[21] Ogawa Y, Sawamoto K, Miyata T, et al. Transplantation of in vitro-expanded fetal neural progenitor cells results in neurogenesis and functional recovery after spinal cord contusion injury in adult rats. J Neurosci Res. 2002;69(6): 925-933.
[22] 庞丽云,王海,陈永霞,等.载紫杉醇聚乳酸聚乙醇酸共聚物纳米粒抑制人肝癌细胞HepG2的作用[J].中国组织工程研究, 2013,17(3):412-418.
[23] Ghasemi-Mobarakeh L, Prabhakaran M P, Morshed M, et al. Electrospun poly(epsilon-caprolactone)/gelatin nanofibrous scaffolds for nerve tissue engineering. Biomaterials. 2008; 29(34):4532-4539.
[24] Lim SH, Mao HQ. Electrospun scaffolds for stem cell engineering. Adv Drug Deliv Rev. 2009;61(12):1084-1096.
[25] Liu J, Bauer AJ, Li B. Solvent vapor annealing: an efficient approach for inscribing secondary nanostructures onto electrospun fibers. Macromol Rapid Commun. 2014;35(17): 1503-1508.
[26] Xu L, Sheybani N, Ren S, et al. Semi-Interpenetrating Network (sIPN) Co-Electrospun Gelatin/Insulin Fiber Formulation for Transbuccal Insulin Delivery. Pharm Res. 2014 [Epub ahead of print].
[27] 谭迎赟,白石,廖运茂.双相钙磷生物陶瓷/硫酸钙骨水泥多孔三维支架的生物性能[J].中国组织工程研究,2014,18(8):1161-1164.
[28] 李卫东,崔志明,徐冠华,等.壳聚糖增强型左旋聚乳酸与嗅鞘细胞的生物相容性[J].中国组织工程研究,2013,17(29):5316-5322.
