Effects of strontium-doped calcium polyphosphate on behavior and angiogenic growth factors expression of co-cultured osteoblasts and endothelial cells

doi:10.3969/j.issn.2095-4344.2014.03.006

Abstract

Abstract:

BACKGROUND: Our previous studies have shown that strontium-doped calcium polyphosphate containing low-dose strontium appears to have a significant effect on angiogenesis-related behaviors of monocultured umbilical vein endothelial cells and osteoblasts.
OBJECTIVE: To investigate the effect of strontium-doped calcium polyphosphate on angiogenesis-related behaviors of umbilical vein endothelial cells and osteoblasts co-cultured, including cell adhesion, spreading, proliferation, as well as the protein secretion of vascular endothelial growth factor and basic fibroblast growth factor from co-culture system in vitro.
METHODS: Human umbilical vein endothelial cells and osteoblastic cells (MG63) were utilized in this study. Cells from passage 3 were used for preparation of the cell-scaffold constructs. After placed in 24-well plate at a ratio of 2:1, human umbilical vein endothelial cells and MG63 cells were seeded onto strontium-doped calcium polyphosphate, calcium polyphosphate and hydroxyapatite scaffolds and co-cultured for 7 days. The vascular endothelial growth factor and basic fibroblast growth factor protein levels were determined through a double ligand enzyme-linked immunosorbent assay. The colorimetric 3-[4,5-dimethylthiazol-2-yl]-2,5- diphenyltetrazolium bromide assay was performed to quantify the effect of scaffolds on cell proliferation.
RESULTS AND CONCLUSION: Compared with those on calcium polyphosphate and hydroxyapatite scaffolds, cells on strontium-doped calcium polyphosphate scaffolds attached and spread better with a significantly improved cell proliferation. More importantly, the vascular endothelial growth factor and basic fibroblast growth factor expressions were significantly higher in the strontium-doped calcium polyphosphate group than the other two groups (P < 0.05), indicating strontium-doped calcium polyphosphate can up-regulate levels of vascular endothelial growth factor and basic fibroblast growth factor proteins.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

全文链接：

Key words: biocompatible materials, calcium phosphates, strontium, endothelial cells, osteoblasts

CLC Number:

R318

Peng Hong, Gu Zhi-peng, Huang Cheng-cheng, Xu Yuan-ting, Yu Xi-xun. Effects of strontium-doped calcium polyphosphate on behavior and angiogenic growth factors expression of co-cultured osteoblasts and endothelial cells[J]. Chinese Journal of Tissue Engineering Research, 2014, 18(3): 365-370.

Figures/Tables 3

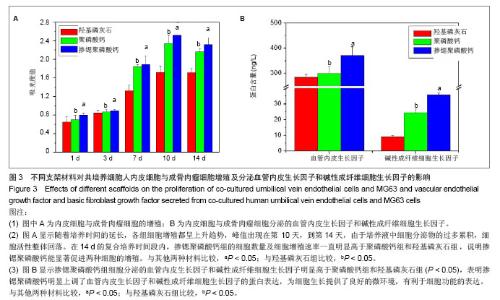

2.3 共培养的细胞与支架材料复合培养的生长曲线图3A为共培养的成骨肉瘤细胞和内皮细胞与3种支架材料复合培养不同时间的细胞增殖情况。随着培养时间的延长，各组细胞增殖都呈上升趋势，峰值出现在第10天，到第14天，由于培养液中细胞分泌物的过多累积，细胞活性整体回落。在14 d的复合培养时间段内，掺锶聚磷酸钙组的细胞数量一直明显高于聚磷酸钙组和羟基磷灰石组，细胞增殖速率也一直明显高于聚磷酸钙组和羟基磷灰石组。另外，聚磷酸钙组细胞增殖速率也一直明显高于羟基磷灰石组。相比于聚磷酸钙和羟基磷灰石，在掺锶聚磷酸钙表面共培养细胞可更好地黏附和生长，可能是因为培养液中同时有释放出的锶元素能进一步刺激促进细胞的生长行为，使得掺锶聚磷酸钙能显著促进细胞的增殖。 2.4 不同支架材料上细胞血管内皮生长因子和碱性成纤维细胞生长因子的蛋白分泌量图3B显示了共培养的成骨细胞和内皮细胞与不同支架材料复合培养7 d后，细胞培养上清液中血管内皮生长因子和碱性成纤维细胞生长因子蛋白分泌量的检测情况。由图可见，掺锶聚磷酸钙组细胞分泌的血管内皮生长因子和碱性成纤维细胞生长因子明显高于聚磷酸钙组和羟基磷灰石组(P < 0.05)。另外，聚磷酸钙组细胞分泌的血管内皮生长因子和碱性成纤维细胞生长因子也要高于羟基磷灰石组(P < 0.05)。ELISA实验结果表明掺锶聚磷酸钙明显上调了血管内皮生长因子和碱性成纤维细胞生长因子的蛋白表达，原因可能是掺锶聚磷酸钙降解释放出锶元素，同时材料优良的三维结构和表面形貌为细胞生长提供了良好的微环境，有利于细胞功能的表达。"

References

[1]Mao ZW,Shi HF,Guo R,et al.Enhanced angiogenesis of porous collagen scaolds by incorporation of TMC/DNA complexes encoding vascular endothelial growth factor.Acta Biomater.2009;5:2983.

[2]Yu H,VandeVord PJ,Mao L,et al.Improved tissue-engineered bone regeneration by endothelial cell mediated vascularization. Biomaterials. 2009;30(4):508.

[3]Leung KS,Sber AH,Lam TS,et al.Energy metabolism in fracture healing. Measurement of adenosine triphosphate in callus to monitor progress. J Bone Joint Surg.1989;71B (4):657.

[4]Barralet J,Gbureck U,Habibovic P,et al.Angiogenesis in calcium phosphate scaffolds by inorganic copper ion release.Tissue Eng Part A.2009; 15(7):1601.

[5]Yoshida T,Kikuchi M,Koyama Y,et al.Osteogenic activity of MG63 cells on bone-like hydroxyapatite/collagen nanocomposite sponges.J Mater Sci Mater Med.2010;21(4): 1263.

[6]Gorustovich AA,Roether JA,Boccaccini AR.Effect of bioactive glasses on angiogenesis: a review of in vitro and in vivo evidences.Tissue Eng Part B Rev.2010;16(2):199.

[7]Hirschi KK,D'Amore PA.Control of angiogenesis by the pericyte: molecular mechanisms and significance.EXS. 1997;79:419.

[8]Bottcher RT,Niehrs C.Fibroblast growth factor signaling during early vertebrate development.Endocrine Rev.2005;26:63.

[9]Kanczler JM,Oreffo RO.Osteogenesis and angiogenesis: the potential for engineering bone.Eur Cell Mater.2008;15:100.

[10]Lovett M,Lee K,Edwards A,et al.Vascularization strategies for tissue engineering.Tissue Eng Part B Rev.2009;15(3):353.

[11]Pacicca DM,Patel N,Lee C,et al.Expression of angiogenic factors during distraction osteogenesis.Bone.2003;33:889.

[12]Hofmann A,Ritz U,Verrier S,et al.The effect of human osteoblasts on proliferation and neo-vessel formation of human umbilical vein endothelial cells in a long-term 3D co-culture on polyurethane scaffolds. Biomaterials. 2008; 29(31):4217.

[13]Santos MI,Unger RE,Sousa RA,et al.Crosstalk between osteoblasts and endothelial cells co-cultured on a polycaprolactone-starch scaffold and the in vitro development of vascularization.Biomaterials.2009;30(26):4407.

[14]Deb S,Mandegaran R,Di Silvio L.A porous scaffold for bone tissue engineering/45S5 Bioglass derived porous scaffolds for co-culturing osteoblasts and endothelial cells.J Mater Sci Mater Med.2010;21(3):893.

[15]Zhang WB,Shen YH,Pan HB,et al.Effects of strontium in modi?ed biomaterials.Acta Biomater.2011;7:800.

[16]Xie H,Wang Q,Ye Q,et al.Application of K/Sr co-doped calcium polyphosphate bioceramic as scaffolds for bone substitutes.J Mater Sci Mater Med.2012;23(4):1033.

[17]Zreiqat H,Ramaswamy Y,Wu C,et al.The incorporation of strontium and zinc into a calcium-silicon ceramic for bone tissue engineering.Biomaterials. 2010;31(12):3175.

[18]Qianbin W,Qiguang W,Changxiu W.The effect of porosity on the structure and properties of calcium polyphosphate bioceramics.Ceramics Silikáty. 2011;55(1):43.

[19]Qianbin W,Qiguang W,Changxiu W.Effect of sintering time on the microstructure and properties of inorganic polyphosphate bioceramics. Science Sintering.2010;42:337.

[20]Liu F,Zhang X,Yu XX,et al.In vitro study in stimulating the secretion of angiogenic growth factors of strontium-doped calcium polyphosphate for bone tissue engineering.J Mater Sci Mater Med.2011;22:683.

[21]余喜讯,顾志鹏,任大伟,等.新型骨科材料SCPP 对成骨细胞促血管化生长因子表达影响的研究[J].四川大学学报,2011,43(1): 219.

[22]Soker S,Machado M,Atala A.Systems for therapeutic angiogenesis in tissue engineering.World J Urol.2000;18:10.

[23]Zhang J,Hu M,Zhang WY.Influence of vascular cell co-cultured with osteoblast in vitro on ability of osteoblast.Hua Xi Kou Qiang Yi Xue Za Zhi. 2005;23:325.

[24]Boden SD.Bioactive factor for bone tissue engineering.Clin Orthop Relat Res.1999;(367 Suppl):84.

[25]Holliinger JO,Brekke J,Graskin E,el a1.Role of bone substitutes. Clin Orthop.1996;324:55.

[26]Coulonbe J,Faure H,Robin B,el a1.In vitro effects of strontium ranelate on the extraccllular calcium sensing receptor. Biochem Biophys Res Commun. 2004;323:1184.

[27]Tokuda H,Hirade K,Wang X,et al.Involvement of SAPK/JNK in basic fibroblast growth factor-induced vascular endothelial growth factor release in osteoblasts.J Endocrino1.2003; 177(1): 101.

[28]傅德皓.骨形态发生蛋白-2诱导成骨过程中血管内皮生长因子的表达及意义[D].华中科技大学博士学位论文,2006.

[29]贾健.掺锶硫酸钙复合骨修复材料的体外实验研究[D].四川大学博士学位论文,2007.

[30]Jaebong K,Jihjng L,Renhe X,et al.Mesoderm induction by heterodimeric AP-1(c-fos,c-jun) and its involvement in mesoderm formation through the embryonic fibroblast growth factor/xbra autocatalytic loop during the early development of Xenopus embroes.J Biol Chem.1998;272:1542.

[31]Galoforo SS,Bernslm,Erdos G,et al.Hypoglycemia-induced AP-1 transcription factor and basic fibriblast growth factor gene expression in multidrug resistant human breast carcinoma MCF-7/ADR. Cells Mol Cell Biochem,1996;155: 163.
