Precise mechanical analysis on the femoral three-dimensional finite element model constructed based on DICOM data

doi:10.3969/j.issn.2095-4344.2013.30.011

Abstract

Abstract:

BACKGROUND: The finite element model has been developed from two-dimensional model to three-dimensional model, from linear model to nonlinear model. As the advantage of this method in the analysis of mechanical characteristics of the irregular objects, the finite element model has been widely used in the research of orthopedic biomechanics, especially in the research of hip joint.
OBJECTIVE: To analyze the stress state of human femur with finite element analysis method and to investigate a method that can rapidly construct femoral finite element model and precisely analyze the biomechanics.
METHODS: Normal male femur was used as specimen for CT scan to obtain cross-sectional images of femur in each slice. Three-dimensional reconstruction was performed with DICOM data and MIMICS software, then the femoral three-dimensional finite element model was established with the finite element analysis ABQUS 6.8 software, and the stress distribution of the model was analyzed under loading condition.

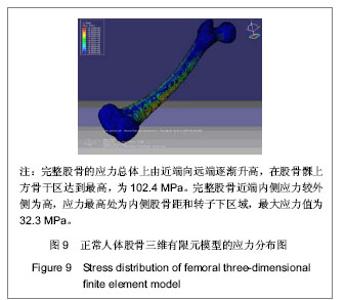

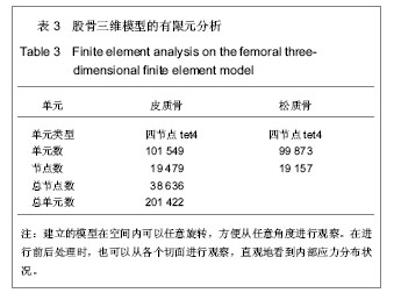

RESULTS AND CONCLUSION: Based on DICOM data, three-dimensional finite element model of femur was constructed more quickly and precisely. The models were divided into 38 636 nodes and 201 422 units. The model included the parts of cortical and cancellous bone. The biomechanical test results were accorded with the previous results, so the model could objectively reflect the real femur shape and biomechanical behavior with high precision. The Mimics software provided a simpler and effective method for the construction of femur model and improved the efficiency of modeling, and the three-dimensional finite element model based on DICOM data was accurate in shape and can be used for the normal research on biomechanical behavior of femur. The stress distribution analyzed with ABQUS 6.8 software is consistent with the clinical observation.

Key words: bone and joint implants, digital orthopedics, femur, three-dimensional finite element, DICOM, MIMICS, ABQUS 6.8, stress, biomechanics

CLC Number:

R318

Li Feng, Wu Hua. Precise mechanical analysis on the femoral three-dimensional finite element model constructed based on DICOM data[J]. Chinese Journal of Tissue Engineering Research, 2013, 17(30): 5483-5489.

Figures/Tables 2

References

[1] Brekelmans WA,Poort HW,Slooff TJ.A new method to analyse the mechanical behaviour of skeletal parts.Acta Orthop Scand. 1972;43(5):301-317.

[2] King AI. A review of biomechanical models. J Biomech Eng. 1984;106(2):97-104.

[3] Blemker SS, Asakawa DS, Gold GE, et al. Image-based musculoskeletal modeling: applications, advances, and future opportunities. J Magn Reson Imaging. 2007;25(2):441-451.

[4] Stolk J,Verdonschot N,Cristofolini L,et al.Finite element and experimental models of cemented hip joint reconstruction can produce similar bone and cement strains in pre-clinical tests.J Biomech. 2002;35:499-510.

[5] Bergmann G, Graichen F, Rohlmann A. Hip joint loading during walking and running,measured in two patients. J Biomech. 1993;26(8):969-990.

[6] 钟世镇.数字化虚拟中国人研究动态[J].医学研究通讯,2004, 33(6): 5-6.

[7] 魏斌.牙颌系统三维有限元建模方法的进展[J].口腔材料器械杂志,2002,11(2):86-87.

[8] Kuroda T,Motohashi N,Tominaga R, et al. Three-dimensional dental cast analyzing system using laser scanning. Am J Orthod Dentofacial Orthop. 1996;110:365-369.

[9] Song HF, Zhang QM,Liu ZH. A establishment of three--dimensional finite element model of proximal femur based on CT scan data. J Inform Med Equip. 2006;21(12): 1-3.

[10] National Electric Manufacturers Association. Digital Imaging and Communications in Medicine(DICOM protocolpart 2,3,5,6,7,8,10,11,12). National Electrical Manufacturers Association,2003.

[11] 张美超,刘阳,刘则玉,等.利用Mimics和Freeform建立中国数字人上颌第一磨牙三维有限元模型[J].医用生物力学,2006,24(3): 208-211.

[12] Visuri T,Hietaniemi K．Displaced stress fracture of the femoral shaft:a report of three cases. Mil Med. 1992;157(6):325-327.

[13] Lennon AB , Britton JR, MacNiocaill RF. Predicting revision risk for aseptic loosening of femoral components in total hip arthroplasty in individual patients-a finite element study. J Orthop Res.2007;25(6):779-788.
