Characterization and photothermal effect of indocyanine green encapsulated poly lactic acid-co-glycolic acid microspheres

Abstract

Abstract: BACKGROUND: Indocyanine green, an efficient photothermal conversion agent, can be used for photothermal therapy of oral squamous cell carcinoma, but it has some shortcomings such as water instability and photodegradation. Using carrier to encapsulate indocyanine green to improve its stability was of great significance for exploring photothermal therapy of oral squamous cell carcinoma.
Objective: Indocyanine green encapsulated poly lactic acid-co-glycolic acid microspheres were fabricated to delay the photodegradation of indocyanine green and improve its photothermal stability to develop reagents for photothermal treatment of oral squamous cell carcinoma.

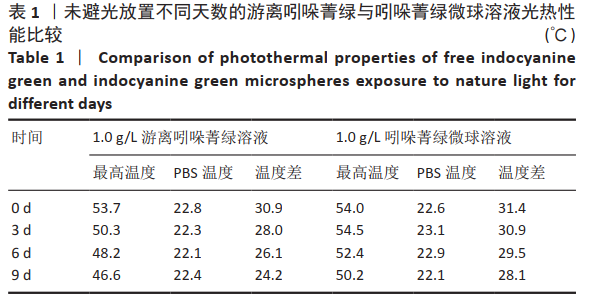

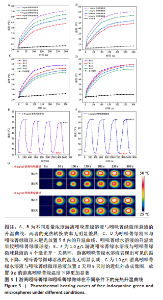

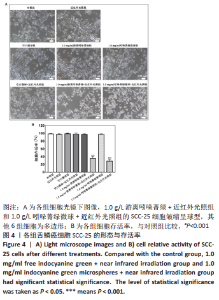

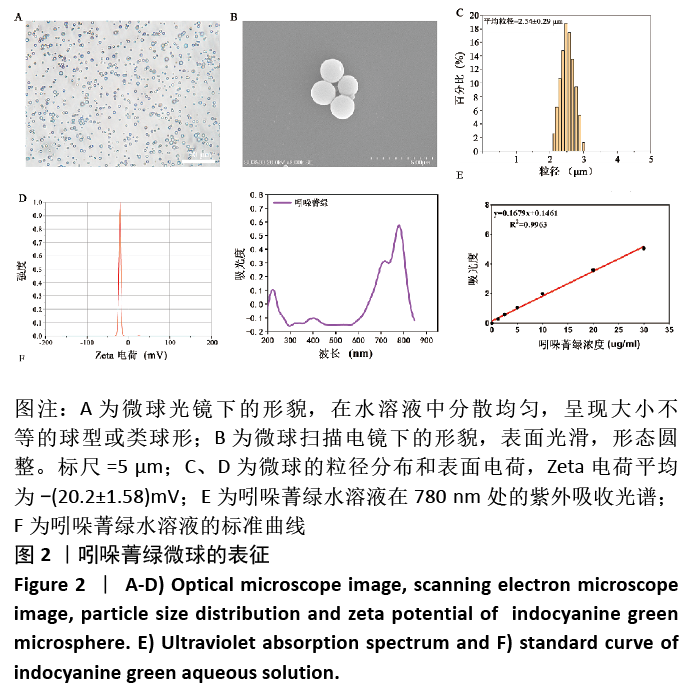

Methods: The microspheres were prepared by emulsion-solvent evaporation method. The morphology, particle size distribution, surface charge, drug loading and encapsulation efficiency were characterized. The photothermal effect of free indocyanine green and microspheres were investigated at different concentrations, four laser on/off cycles, and left exposed to light for 0, 3, 6 and 9 days. Morphological changes of SCC-25 cells after different treatments were observed under light microscope, and in vitro photothermal anti-tumor effect of microspheres were evaluated by CCK8.
Results: The microspheres had smooth surfaces with particle sizes of (2.54±0.29)μm, zeta potential of -(20.2±1.58)mV, encapsulation efficiency and loading efficiency were (69.24±1.29) % and (4.87±0.15) %, respectively. Compared with free indocyanine green, microspheres have more stable photothermal properties, and tumor cells shrink to spherical shape after photothermal, which can effectively reduce the viability of SCC-25 cells.
Conclusion: Indocyanine green encapsulated poly lactic acid-co-glycolic acid microspheres possessed efficient photothermal conversion ability and can obviously delay photobleaching and photodegradation of indocyanine green. Poly lactic acid-co-glycolic acid is a suitable vehicle of indocyanine green and can be used for photothermal therapy of oral squamous cell carcinoma.

Key words: poly lactic acid-co-glycolic acid, indocyanine green, microsphere, oral squamous cell carcinoma , photothermal therapy, SCC-25 cell, near-infrared, emulsion-solvent evaporation method

CLC Number:

FAN Yaru, LI Ruixin , LI Fengji, LUO Rui, LIU Hao, YAN Yingbin. Characterization and photothermal effect of indocyanine green encapsulated poly lactic acid-co-glycolic acid microspheres[J]. Chinese Journal of Tissue Engineering Research, 2022, 26(在线): 1-6.

Figures/Tables 4

References

[1] YANAMOTO S, DENDA Y, OTA Y, et al. Postoperative adjuvant therapy for patients with loco-regionally advanced oral squamous cell carcinoma who are at high risk of recurrence. Int J Oral Maxillofac Surg. 2020;49(7):848-853.
[2] LIU Y, BHATTARAI P, DAI Z, et al. Photothermal therapy and photoacoustic imaging via nanotheranostics in fighting cancer. Chem Soc Rev. 2019;48(7):2053-2108.
[3] LONG S, XU Y, ZHOU F, et al. Characteristics of temperature changes in photothermal therapy induced by combined application of indocyanine green and laser. Oncol Lett. 2019;17(4):3952-3959.
[4] LAU CT, AU DM, WONG K. Application of indocyanine green in pediatric surgery. Pediatr Surg Int. 2019;35(10):1035-1041.
[5] HIROHASHI K, ANAYAMA T, WADA H, et al. Lung cancer photothermal ablation by low-power near-infrared laser and topical injection of indocyanine green. Interact Cardiovasc Thorac Surg. 2019;29(5):693-698.
[6] SAXENA V, SADOQI M, SHAO J. Degradation kinetics of indocyanine green in aqueous solution[J]. J Pharm Sci. 2003;92(10):2090-2097.
[7] OTT P. Hepatic elimination of indocyanine green with special reference to distribution kinetics and the influence of plasma protein binding. Pharmacol Toxicol. 1998;83 Suppl 2:1-48.
[8] WU L, FANG S, SHI S, et al. Hybrid polypeptide micelles loading indocyanine green for tumor imaging and photothermal effect study. Biomacromolecules. 2013;14(9):3027-3033.
[9] MIRANDA D, WAN C, KILIAN HI, et al. Indocyanine green binds to DOTAP liposomes for enhanced optical properties and tumor photoablation. Biomater Sci. 2019;7(8):3158-3164.
[10] WANG Y, NIU C, FAN S, et al. Indocyanine Green Loaded Modified Mesoporous Silica Nanoparticles as an Effective Photothermal Nanoplatform. Int J Mol Sci. 2020;21(13):4789.
[11] MAKADIA HK, SIEGEL SJ. Poly Lactic-co-Glycolic Acid (PLGA) as Biodegradable Controlled Drug Delivery Carrier. Polymers (Basel). 2011;3(3):1377-1397.
[12] TAN H, HUANG D, LAO L, et al. RGD modified PLGA/gelatin microspheres as microcarriers for chondrocyte delivery. J Biomed Mater Res B Appl Biomater. 2009;91(1):228-238.
[13] RAFIEI P, HADDADI A. Docetaxel-loaded PLGA and PLGA-PEG nanoparticles for intravenous application: pharmacokinetics and biodistribution profile. Int J Nanomedicine. 2017;12:935-947.
[14] SAXENA V, SADOQI M, SHAO J. Indocyanine green-loaded biodegradable nanoparticles: preparation, physicochemical characterization and in vitro release. Int J Pharm. 2004;278(2):293-301.
[15] LI Y, PEI Y, ZHANG X, et al. PEGylated PLGA nanoparticles as protein carriers: synthesis, preparation and biodistribution in rats. J Control Release. 2001;71(2):203-211.
[16] LAN M, ZHU L, WANG Y, et al. Multifunctional nanobubbles carrying indocyanine green and paclitaxel for molecular imaging and the treatment of prostate cancer. J Nanobiotechnology. 2020;18(1):121.
[17] HOUTHOOFD S, VUYLSTEKE M, MORDON S, et al. Photodynamic therapy for atherosclerosis. The potential of indocyanine green. Photodiagnosis Photodyn Ther. 2020;29:101568.
[18] YOON HJ, LEE HS, LIM JY, et al. Liposomal Indocyanine Green for Enhanced Photothermal Therapy. ACS Appl Mater Interfaces. 2017;9(7):5683-5691.
[19] SAXENA V, SADOQI M, SHAO J. Enhanced photo-stability, thermal-stability and aqueous-stability of indocyanine green in polymeric nanoparticulate systems. J Photochem Photobiol B. 2004;74(1):29-38.
[20] Reinhart M B, Huntington C R, Blair L J, et al. Indocyanine Green: Historical Context, Current Applications, and Future Considerations[J]. Surg Innov, 2016,23(2):166-175.
[21] 余柳丹,罗一帆,陈小菊,等.吲哚菁绿稳定性及光敏性和声敏性研究[J].化学研究与应用, 2016,28(3):400-403.
[22] WANG Q, SHEN M, LI W, et al. Controlled-release of fluazinam from biodegradable PLGA-based microspheres. J Environ Sci Health B. 2019;54(10):810-816.
[23] LIU Z, YE W, ZHENG J, et al. Hierarchically electrospraying a PLGA@chitosan sphere-in-sphere composite microsphere for multi-drug-controlled release. Regen Biomater. 2020;7(4):381-390.
[24] GAIGNAUX A, REEFF J, DE VRIESE C, et al. Evaluation of the degradation of clonidine-loaded PLGA microspheres. J Microencapsul. 2013;30(7):681-691.
[25] HAN S, ZHANG X, LI M. Progress in research and application of PLGA embolic microspheres[J]. Front Biosci (Landmark Ed). 2016;21:931-940.
[26] ZHAI P, CHEN XB, SCHREYER DJ. PLGA/alginate composite microspheres for hydrophilic protein delivery[J]. Mater Sci Eng C Mater Biol Appl. 2015;56:251-259.
[27] PARK JS, YANG HN, JEON SY, et al. The use of anti-COX2 siRNA coated onto PLGA nanoparticles loading dexamethasone in the treatment of rheumatoid arthritis. Biomaterials. 2012;33(33):8600-8612.
[28] LIU R, MA GH, WAN YH, et al. Influence of process parameters on the size distribution of PLA microcapsules prepared by combining membrane emulsification technique and double emulsion-solvent evaporation method. Colloids Surf B Biointerfaces. 2005;45(3-4):144-153.
[29] KONAN YN, CERNY R, FAVET J, et al. Preparation and characterization of sterile sub-200 nm meso-tetra(4-hydroxylphenyl)porphyrin-loaded nanoparticles for photodynamic therapy. Eur J Pharm Biopharm. 2003;55(1):115-124.
[30] JAQUE D, MARTINEZ ML, DEL RB, et al. Nanoparticles for photothermal therapies. Nanoscale. 2014;6(16):9494-9530.
