Study on mechanism of radix angelicae pubescentis in the treatment of osteoarthritis based on network pharmacology

doi:10.3969/j.issn.2095-4344.1060

Abstract

Abstract:

BACKGROUND: Angelicae pubescentis radix has been extensively applied in the treatment of osteoarthritis, but the underlying molecular mechanism remains unclear.
OBJECTIVE: To construct the active ingredient-target network through screening the chemical ingredients of angelicae pubescentis radix based on network pharmacology, and to explore the mechanism underlying the treatment of osteoarthritis.

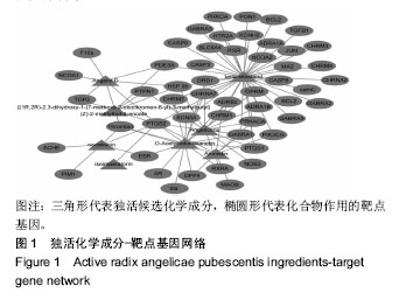

METHODS: The main active ingredients of angelicae pubescentis radix were obtained by Traditional Chinese Medicine Systems Pharmacology Database and the targets of osteoarthritis were retrieved from OMIM, TTD, pharmGKB Database. The “active ingredient-target” and “target-related diseases” network were constructed by the Cytoscape3.6.1 software. The biological functions and related pathways were analyzed by GlueGO and KEGG plugin.

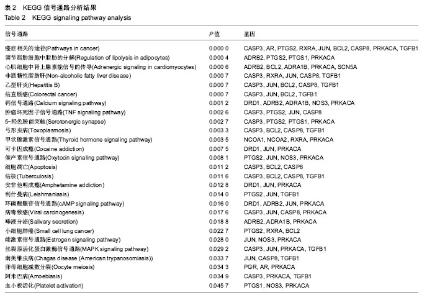

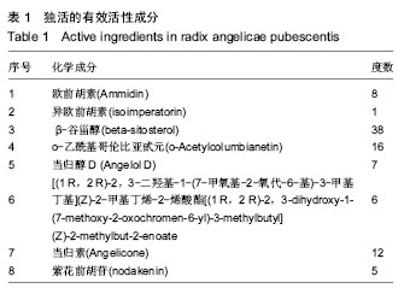

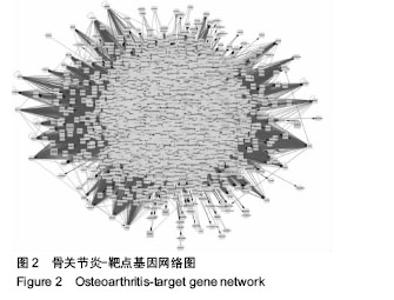

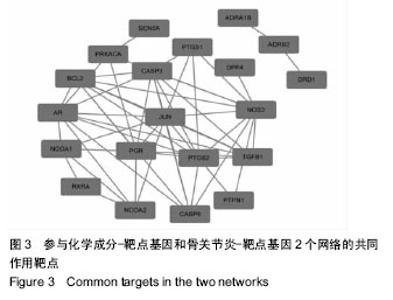

RESULTS AND CONCLUSION: A total of 8 active ingredients and 52 targets were screened in angelicae pubescentis radix from Traditional Chinese Medicine Systems Pharmacology Database. A total of 120 target-related to osteoarthritis were got from OMIM, TTD, pharmGKB Database. Twenty common targets were found in “active ingredient-target” and “target-related diseases” network. The analysis of GlueGO and KEGG showed the radix angelicae pubescentis not only involved in the biological functions of lipolysis, calcium transport, T cell stabilization, embryonic cell differentiation, and cell apoptosis, but also modulated the signaling pathways of calcium, tumor necrosis factor, oxytocin, cyclic adenosine monophosphate, mitogen-activated protein kinase, and apoptosis. This study reveals that the potential active ingredients and possible mechanism of angelicae pubescentis radix for osteoarthritis, provides a basis for the development of new drugs in the treatment of osteoarthritis.

中国组织工程研究杂志出版内容重点：组织构建；骨细胞；软骨细胞；细胞培养；成纤维细胞；血管内皮细胞；骨质疏松；组织工程

Key words: Heracleum, Computational Biology, Tissue Engineering

CLC Number:

R453
R285

Cheng Xiaoping1, Zheng Wenwei2, Ni Guoxin1. Study on mechanism of radix angelicae pubescentis in the treatment of osteoarthritis based on network pharmacology[J]. Chinese Journal of Tissue Engineering Research, 2019, 23(11): 1641-1646.

Figures/Tables 5

References

[1] Yan M, Zhang J, Yang H, et al. The role of leptin in osteoarthritis. Medicine (Baltimore). 2018;97(14):e0257.

[2] Wei Y, Zheng D, Guo X, et al. Transient Receptor Potential Channel, Vanilloid 5, Induces Chondrocyte Apoptosis in a Rat Osteoarthritis Model Through the Mediation of Ca2+ Influx. Cell Physiol Biochem. 2018;46(2):687-698.

[3] Urban H, Little CB. The role of fat and inflammation in the pathogenesis and management of osteoarthritis. Rheumatology (Oxford). 2018;57(suppl_4):iv10-iv21.

[4] Gao J, Ceglia SS, Jones MD, et al. A novel compact mass detection platform for the open access (OA) environment in drug discovery and early development. J Pharm Biomed Anal. 2016;122:1-8.

[5] Bay-Jensen AC, Thudium CS, Gualillo O, et al. Biochemical marker discovery, testing and evaluation for facilitating OA drug discovery and development. Drug Discov Today. 2018; 23(2):349-358.

[6] 周刚,马宝花.中药独活的研究进展[J].中国当代医药, 2012, 19(16): 15-16.

[7] Tian S, Li Y, Wang J, et al. ADME evaluation in drug discovery. 9. Prediction of oral bioavailability in humans based on molecular properties and structural fingerprints. Mol Pharm. 2011;8(3):841-851.

[8] Tian S, Wang J, Li Y, et al. Drug-likeness analysis of traditional Chinese medicines: prediction of drug-likeness using machine learning approaches. Mol Pharm. 2012;9(10): 2875-2886.

[9] Ru J, Li P, Wang J, et al. TCMSP: a database of systems pharmacology for drug discovery from herbal medicines. J Cheminform. 2014;6:13.

[10] 章亮,陈泽慧,陈韩英,等.基于网络药理学的白屈菜抗肿瘤分子机制研究[J].中草药,2018,49(3):646-657.

[11] 孙雨辉,陆景坤,王健,等.基于网络药理学的三味檀香散治疗冠心病的机制初探[J].中国新药与临床杂志, 2018,37(5): 272-289.

[12] 吴丹,高耀,向欢,等.基于网络药理学的柴胡抗抑郁作用机制研究[J].药学学报,2018,53(2):210-219.

[13] 袁芳,何晓瑾,石俊,等.骨痹方治疗膝骨关节炎肾虚络痹证临床观察[J].中国实验方剂学杂志,2018,24(7):207-211.

[14] 黄育生,袁贤琳,钟瑜,等.HPLC法测定羌活中紫花前胡苷的含量[J].中国民族民间医药,2013,22(10):14-15.

[15] 张素清,李敏,虞立,等.半夏3种不同炮制品中β-谷甾醇含量的比较[J].中华中医药学刊,2018,36(1):42-44.

[16] 李昌勤,彭琳娜,姚辰,等.加热处理对白芷中欧前胡素、异欧前胡素稳定性及酪氨酸酶活性的影响[J].中国中药杂志, 2016,41(5): 845-849.

[17] 熊友谊,时维静,俞浩,等.紫花前胡苷抑制哮喘小鼠气道炎性反应和NF-κB信号传导通路[J].基础医学与临床, 2014,34(5): 690-694.

[18] Visser AW, de Mutsert R, Bloem JL, et al. Do knee osteoarthritis and fat-free mass interact in their impact on health-related quality of life in men? Results from a population-based cohort. Arthritis Care Res (Hoboken). 2015;67(7):981-988.

[19] Santangelo KS, Radakovich LB, Fouts J, et al. Pathophysiology of obesity on knee joint homeostasis: contributions of the infrapatellar fat pad. Horm Mol Biol Clin Investig. 2016;26(2):97-108.

[20] 王飞,薛庆云.代谢综合征与骨关节炎发生、发展相关性的研究进展[J].中华骨科杂志,2016,36(4):248-256.

[21] Xin L, Wu Z, Qu Q, et al. Comparative study of CTX-II, Zn2+, and Ca2+ from the urine for knee osteoarthritis patients and healthy individuals. Medicine (Baltimore). 2017;96(32):e7593.

[22] Faour WH, Mancini A, He QW, et al. T-cell-derived interleukin-17 regulates the level and stability of cyclooxygenase-2 (COX-2) mRNA through restricted activation of the p38 mitogen-activated protein kinase cascade: role of distal sequences in the 3'-untranslated region of COX-2 mRNA. J Biol Chem. 2003;278(29):26897-26907

[23] Yang D, Chen S, Gao C, et al. Chemically defined serum-free conditions for cartilage regeneration from human embryonic stem cells. Life Sci. 2016;164:9-14.

[24] 史继德,冯海军,耿喜林,等.α-倒捻子素调节骨关节炎软骨细胞的增殖和凋亡[J].中成药,2018,40(1):8-13.

[25] Zhao J, Li S, Trilok S, et al. Small molecule-directed specification of sclerotome-like chondroprogenitors and induction of a somitic chondrogenesis program from embryonic stem cells. Development. 2014;141(20): 3848-3858.

[26] 苏宁,赵丹,杨丽,等.应用基因芯片技术检测SDS对人表皮细胞TNF信号通路基因差异表达的影响[J].生物技术通讯, 2016, 27(3): 386-390.

[27] Li X, Wu D, Hu Z, et al. The Protective Effect of Ligustilide in Osteoarthritis: An in Vitro and in Vivo Study. Cell Physiol Biochem. 2018;48(6):2583-2595.

[28] Barrachina L, Remacha AR, Romero A, et al. Assessment of effectiveness and safety of repeat administration of proinflammatory primed allogeneic mesenchymal stem cells in an equine model of chemically induced osteoarthritis. BMC Vet Res. 2018;14(1):241.

[29] Wu Y, Wu T, Xu B, et al. Oxytocin prevents cartilage matrix destruction via regulating matrix metalloproteinases. Biochem Biophys Res Commun. 2017;486(3):601-606.

[30] Kong D, Guan Q, Li G, et al. Expression of FSHR in chondrocytes and the effect of FSH on chondrocytes. Biochem Biophys Res Commun. 2018;495(1):587-593.

[31] 王涛,殷红,廖江龙,等.骨关节炎与MAPK信号通路关系的研究概况[J].中国民族民间医药,2017,26(19):27-29.

[32] 窦天旭,李旭.MAPK信号通路与骨关节炎[J].解剖科学进展, 2017,23(6):649-652.

[33] Xu K, Ma C, Xu L, et al. Polygalacic acid inhibits MMPs expression and osteoarthritis via Wnt/β-catenin and MAPK signal pathways suppression. Int Immunopharmacol. 2018; 63:246-252.

[34] Huang X, Xi Y, Pan Q, et al. Caffeic acid protects against IL-1β-induced inflammatory responses and cartilage degradation in articular chondrocytes. Biomed Pharmacother. 2018;107:433-439.

[35] Zhao P, Cheng J, Geng J, et al. Curcumin protects rabbit articular chondrocytes against sodium nitroprusside-induced apoptosis in vitro. Eur J Pharmacol. 2018;828:146-153.

[36] Ye D, Jian W, Feng J, et al. Role of long noncoding RNA ZFAS1 in proliferation, apoptosis and migration of chondrocytes in osteoarthritis. Biomed Pharmacother. 2018;104:825-831.

[37] Qi X, Zhu L, Yang B, et al. Mitigation of cell apoptosis induced by ochratoxin A (OTA) is possibly through organic cation transport 2 (OCT2) knockout. Food Chem Toxicol. 2018; 121:15-23.

[38] Seo SU, Min KJ, Woo SM, et al. Z-FL-COCHO, a cathepsin S inhibitor, enhances oxaliplatin-mediated apoptosis through the induction of endoplasmic reticulum stress. Exp Mol Med. 2018;50(8):107.

[39] Nasser MW, Datta J, Nuovo G, et al. Down-regulation of micro-RNA-1 (miR-1) in lung cancer. Suppression of tumorigenic property of lung cancer cells and their sensitization to doxorubicin-induced apoptosis by miR-1. J Biol Chem. 2018;293(33):12945.

[40] Huang Z, Zhou M, Wang Q, et al. Mechanical and hypoxia stress can cause chondrocytes apoptosis through over-activation of endoplasmic reticulum stress. Arch Oral Biol. 2017;84:125-132.

[41] Gu Y, Chen J, Meng Z, et al. Diazoxide prevents H2O2-induced chondrocyte apoptosis and cartilage degeneration in a rat model of osteoarthritis by reducing endoplasmic reticulum stress. Biomed Pharmacother. 2017; 95:1886-1894.

[42] Zhang Q, Lai S, Hou X, et al. Protective effects of PI3K/Akt signal pathway induced cell autophagy in rat knee joint cartilage injury. Am J Transl Res. 2018;10(3):762-770.

[43] Yang Y, Wang Y, Zhao M, et al. Tormentic acid inhibits IL-1β-induced chondrocyte apoptosis by activating the PI3K/Akt signaling pathway. Mol Med Rep. 2018;17(3): 4753-4758.

[44] Li L, Lv G, Wang B, et al. The role of lncRNA XIST/miR-211 axis in modulating the proliferation and apoptosis of osteoarthritis chondrocytes through CXCR4 and MAPK signaling. Biochem Biophys Res Commun. 2018;503(4): 2555-2562.
