Imaging types of double-column die-punch fracture of the distal radius: fracture classification and mechanical mechanism

doi:10.3969/j.issn.2095-4344.0358

Abstract

Abstract:

BACKGROUND: According to the three-column theory, there are single-column and double-column die-punch fractures of the distal radius. The single-column die-punch fracture has been reported, but there is a lack of study on double-column die-punch fracture.

OBJECTIVE: To explore the characteristics and imaging types of double-column die-punch fracture of the distal radius as well as the value of the new classification.

METHODS: A retrospective analysis of imaging data was made in 498 cases of double-column die-punch fracture of the distal radius between June 2007 and June 2017. According to the imaging characteristics of the fracture, the patients were divided into types of metaphysis, articular surface and mixed. Two radiologists were chosen and independently typed the fractures in 100 cases of double-column die-punch fracture of the distal radius, and agreement was analyzed with Kappa statistics.

RESULTS AND CONCLUSION: (1) In 498 cases of double-column die-punch fracture of the distal radius, type of metaphysis was found in 130 cases, type of articular surface in 156 cases and mixed type in 212 cases, and all were categorized. (2) The inter-observer Kappa coefficient was 0.823-0.868 and the intra-observer Kappa coefficient was 0.868-0.900, showing high consistency. (3) According to AO classification of fracture, the type of articular surface belonged to type B or type C, type of metaphysis and the mixed type belonged to type C. (4) These results suggest that the new imaging typing of double-column die-punch fracture of the distal radius well reflects the mechanical characteristics and fracture site, meets the principle of AO classification, has high consistency and provides reference for clinical treatment and prognosis judgment.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

Key words: Radius Fractures, Biomechanics, Tissue Engineering

CLC Number:

R318

Xi Bin, Yang Ying, Li Dong-cheng, Ding Yan-ping, Yin Qu-dong. Imaging types of double-column die-punch fracture of the distal radius: fracture classification and mechanical mechanism [J]. Chinese Journal of Tissue Engineering Research, 2018, 22(27): 4405-4409.

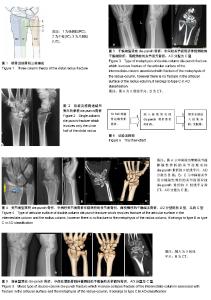

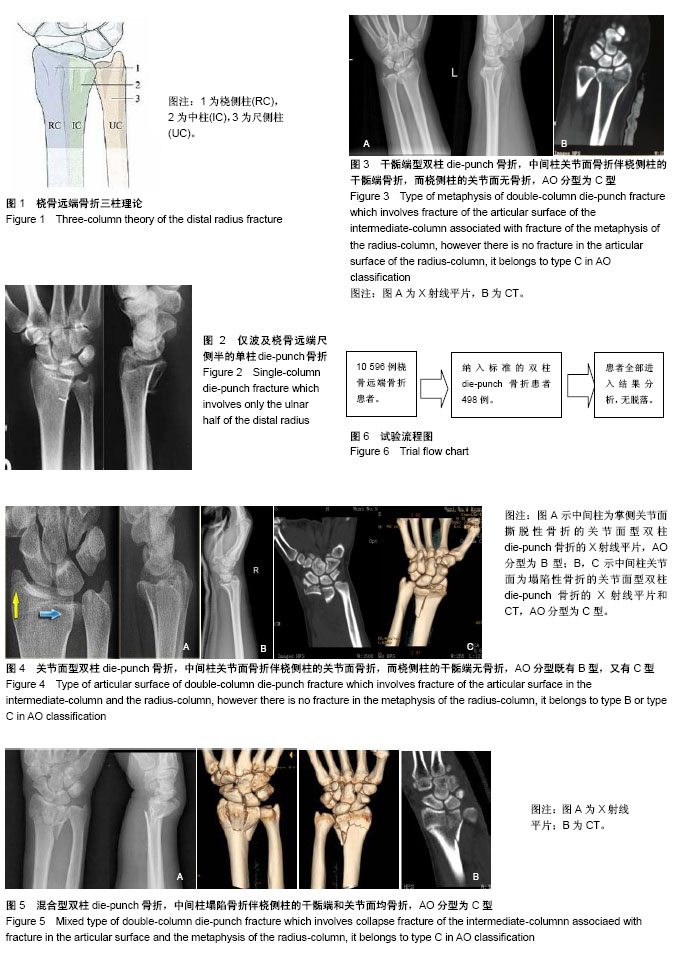

Figures/Tables 1

References

[1] Scheck M.Long-term follow-up of treatment of comminuted fractures of the distal end of the radius by transfixation with Kirschner wires and cast.J Bone Joint Surg Am. 1962;44:337-351.

[2] 周孜辉,王秋根,高伟,等.桡骨远端die-punch骨折的手术治疗[J].中华创伤骨科杂志,2009,11(8):718-721.

[3] 徐林,张咸中,李黎明,等.切开复位内固定治疗桡骨远端Die-punch骨折[J].中国矫形外科杂志,2008,16(14):29-31.

[4] 陈永志,陈瑜,钟永翔.桡骨远端B1.3型骨折的诊治[J].中医正骨,2011, 23(11):42-44.

[5] 殷渠东,孙振中,顾三军,等.桡骨远端Die-punch骨折的分型分类和临床特点[J].中国矫形外科杂志,2013,21(22):2236-2240.

[6] 杨莹,陈鸿伟,李冬成,等.桡骨远端die-punch骨折的CT表现及影像学分型[J].中华放射学杂志,2016,50(11):57-62.

[7] Ma YH,Yin QD,Rui YJ,et al.Image classification for die-punch fracture of intermediate column of the distal radius.Radiol Med.2017;122(12):928-933.

[8] 施忠民.Pilon骨折治疗难点及解决方法[J].国际骨科学杂志,2009, 30(6):399-400.

[9] 张建政,王浩,商洪涛,等.后pilon骨折AGH分型及对手术的指导意义[J].中华骨科杂志,2017,37(5):284-290.

[10] 孙春光,周其佳,等.手术治疗跟骨骨折合并Die-punch骨块的中期疗效[J].中国矫形外科杂志,2015,23(20):1901-1904.

[11] Falcochio DF,Crepaldi BE,Trindade CA,et al.What is the best radiographic view for “die-punch” distal radius fractures? A cadaver model study. Revista Brasileira de Ortopedia. 2012; 47(1):27-30.

[12] Sun YQ,Stephen M,Meinhard BP.Surgical treatment of comminuted die-punch patellar fracture.Orthopedics.2001; 24(10):947-950.

[13] Rikli DA,Regazzoni P.Fractures of the distal end of the radius treated by internal fixation and early function.A preliminary report of 20 cases. J Bone Joint Surg Br. 1996;78(4):588-591.

[14] Anderson DD,Deshpande BR,Daniel TE,et al.A three-dimensional finite element model of the radiocarpal joint:distal radius fracture step-off and stress transfer. Iowa Orthop J. 2005;25:108-117.

[15] Chen C,Cai L,Zhang C,et al.Treatment of die-punch fractures with 3D printing technology.J Invest Surg. 2017:1-8.

[16] Rhee SK,Song SW,Chung YG,et al.Treatment of die-punch fractures in unstable distal radius fractures.J Korean Soc Fract. 1999;12(4): 1012-1020.

[17] Melone CP.Distal radius fractures:patterns of articular Fragmentation. Orthop Clin North Am. 1993;24(2):239-253.

[18] Fernandez DL.Fractuers of the distal radius:operative treatmen. Instr Course Lect. 1993;42:73-88.

[19] Burnier M,Herzberg G, Izem Y. Patient-Accident-Fracture(PAF) classification of distal radius fractures.Hand Surg Rehabil. 2016;5S: S34.

[20] 朱学敏,唐三元,杨辉.桡骨远端骨折分型研究进展[J].中国矫形外科杂志,2013,21(22):2264-2270.

[21] 李小泉.桡骨远端骨折分型概述及临床意义[J].医药前沿,2013, 10(21):395-396.

[22] 张世明,李海丰,黄轶刚.骨折分类与功能评定[M].北京:人民军医出版社,2008:137.

[23] Chung KC,Mathews AL.Mnagement of complications of distal radius fractures.Hand Clin. 2015;31(2):205-215.

[24] Mulders MA,Rikli D,Goslings JC,et al.Classification and treatment of distal radius fractures:a survey among orthopaedic trauma surgeons and residents. Eur J Trauma Emerg Surg. 2017;43(2): 239-248.

[25] 叶永杰,阳波,罗斌,等.外固定支架与锁定加压钢板治疗桡骨远端die-punch骨折[J].华西医学,2012,27(8):1157-1161.

[26] Yamamoto K,Masaoka T,Shishido T,et al.Clinical results of external fixation for unstable Colles' fractures. Hand Surg. 2003; 8(2):193-200.

[27] Randsborg PH, Sivertsen EA.Classification of distal radius fractures in children: good inter- and intraobserver reliability, which improves with clinical experience. BMC Musculoskeletal Disorders. 2012;13(1):1-8.

[28] Kamphaus A, Rapp M, Wessel LM, et al. LiLa classification for paediatric long bone fractures:Intraobserver and interobserver reliability. Unfallchirurg. 2015;118(4):326-335.

[29] 殷渠东,孙振中,顾三军,等.桡骨远端die-punch骨折的分型分类和临床特点[J].中国矫形外科杂志,2013,21(22):2236-2240.

[30] 殷渠东,顾三军,芮永军,等.不同类型桡骨远端Die-punch骨折的治疗效果分析[J].中华手外科杂志,2015,31(6):445-447.

[31] 王古衡,谢仁国,茅天,等.掌侧接骨板治疗桡骨远端die—punch骨折疗效分析[J].中华手外科杂志,2016,32(3):214-216.

[32] Sonderegger J,Schindele S,Rau M,et al.Palmar multidirectional fixed-angle plate fixation in distal radius fractures:do intraarticular fractures have a worse outcome than extraarticular fractures? Arch Orthop Trauma Surg. 2010;130(10):1263-1268.

[33] 郑一舟,李唯.掌侧锁定钢板加横向克氏针内固定治疗桡尺远侧关节失稳型桡骨远端骨折[J].中华手外科杂志,2014,30(5):327-329.

[34] 张屹,杨拓,李辉,等.掌侧与背侧入路钢板置入固定修复桡骨远端骨折并发症的Meta分析[J].中国组织工程研究, 2014,18(22):3560-3566.

[35] Christoph B,Dirk S,Thomas B, et al. The treatment of displaced intra-articular distal radius fractures in elderly patients. Dtsch Arztebl Int. 2014;111(46):779-787.

[36] Nemeth N,Bindra RR.Fixation of distal ulna fractures associated with distal radius fractures using intrafocal pin plate.J Wrist Surg. 2014;3(1):55-59.

[37] Sonderegger J,Schindele S,Rau M,et al.Palmar multidirectional fixed-angle plate fixation in distal radius fractures:do intraarticular fractures have a worse outcome than extraarticular fractures? Arch Orthop Trauma Surg. 2010;130(10):1263-1268.

[38] 吴永伟,殷渠东,孙振中,等.桡骨远端Die-punch骨折的手术治疗[J].中华手外科杂志,2014,30(2):121-123.
