Improved performance of glass ionomer cement with nano-hydroxyapatite

doi:10.3969/j.issn.2095-4344.2013.42.007

Abstract

Abstract:

BACKGROUND: The glass ionomer cement has good biological stability and can sustain the release of fluoride, which has been used as dental repair materials. But because of its low mechanical strength, the glass ionomer cement is confined to the front teeth and other parts with smaller force.
OBJECTIVE: To analyze the compressive strength, microleakage and other physical performances of Fuji IX glass ionomer cement after the addition of 8% modified nano-hydroxyapatite.

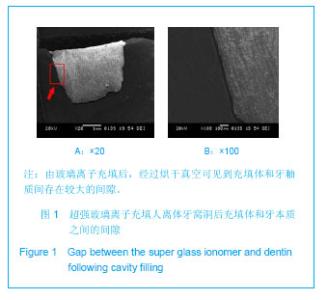

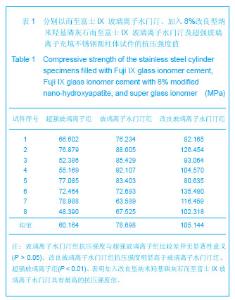

METHODS: (1) Universal testing machine was applied to detect the compressive strength of Fuji IX glass ionomer cement, Fuji IX glass ionomer cement added with 8% modified nano-hydroxyapatite, and super glass ionomer to fill the stainless steel cylinder. (2) Fuji IX glass ionomer cement, Fuji IX glass ionomer cement with 8% modified nano-hydroxyapatite and super glass ionomer were used to fill the tooth cavity; then, the microleakage was detected. (3) Fuji IX glass ionomer cement, Fuji IX glass ionomer cement added with 8% modified nano-hydroxyapatite, and super glass ionomer were used to fill stainless steel rectangular specimens. Then, universal material testing machine was applied to detect the bending strength value.
RESULTS AND CONCLUSION: The compressive strength, microleakage, and bending strength of specimens filled with Fuji IX glass ionomer cement the addition of 8% modified nano-hydroxyapatite were better than the other two groups, and Fuji IX glass ionomer cement was superior to the super glass ionomer in the compressive strength, microleakage and bending strength of filled specimens. It is shown that Fuji IX glass ionomer cement after addition of 8% improved nano-hydroxyapatite can improve the compressive strength and microleakage.

Key words: glass, mouth, hydroxyapatites, nanoparticles

CLC Number:

R318

Feng Yao, Feng Si-cong, Wang Jian-ping, Yang Yu-juan. Improved performance of glass ionomer cement with nano-hydroxyapatite[J]. Chinese Journal of Tissue Engineering Research, 2013, 17(42): 7382-7388.

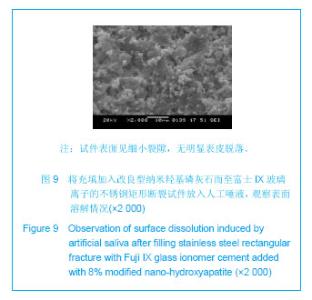

Figures/Tables 6

References

[1] 张志愿.口腔科学[M].6版.北京:人民卫生出版社,2004.
[2] 岳松龄.现代龋病学[M].6版.北京:北京医科大学中国协和医科大学联合出版社,1993.
[3] 章非敏,徐丽娜,孙卫斌,等.纳米增韧牙科复合树脂显微结构的研究[J].南京医科大学学报,2005,25(3):154-156.
[4] 陈旭,魏秀兰.FX玻璃离子水门汀修复乳磨牙的临床疗效[J].牙体牙髓牙周病学杂志,2001,11(5):326-327.
[5] 张军,彭彬.不同类型玻璃离子水门汀氟离子体外释放的比较[J].牙体牙髓牙周病学杂志,2008,18(1):28-30.
[6] Grobler SR,Rossouw RJ,Van Wyk Kotze TJ. A comparison of fluoride release from various dental materials.J Dent.1998; 26(3): 259-265.
[7] Freedman R,Diefenderfer KE.Effects of daily fluoride exposures on fluoride release by glass ionomer-based restoratives. Oper Dent.2003;28(2):178-185.
[8] 彭儒,罗廉明.磷矿选矿[M].武汉:武汉测绘科技大学出版社, 1992：14-16.
[9] 李世普.生物医用材料导论[M].武汉:武汉工业大学出版社,2000: 48-49,120-123.
[10] 张士成,李世普,陈芳.磷灰石超微粉对癌细胞作用的初步研究[J].武汉工业大学学报,1996,18(1):5-8.
[11] Mendez-Gonzalez M,Cauich-Rodriguez JV.Preparation of porous hydroxyapatite tablets and porous hydroxyapatite coat- ing for orthopaedic use.Key Eng Mater.2001;192: 259-261.
[12] 郑岳华,侯小妹,杨兆雄.多孔羟基磷灰石生物陶瓷的进展[J].硅酸盐通报,1995,14(3):20-24.
[13] International Organization for Standardization. ISO 7489. Dental glass polyalkenoate cements. Genebra; 1986.
[14] Mjor IA,Toffenetti F.Secondary caries: a literature review with case reports.Quintessence Int.2000;31(3):165-179.
[15] 莫思溯,刘正,李鸣宇.继发龋的诊断和预防[J].牙体牙髓牙周病学杂志,2006,16(1):55-58.
[16] 吴清柱.三种牙体充填材料边缘封闭性的实验研究[J].现代口腔医学杂志,2005,19(1):82-83.
[17] Sallsten G,Thoren J,Barregard L,et al.Long-term use of nicotine chewing gum and mercury exposure from dental amalgam fillings.Dent Res.1996;75:594-598.
[18] Wilson AD,Kent BE.A new translucent cement for dentistry.Br Dent J.1972;15:132-133.
[19] Christensen GJ.Why is glass ionomer cement so popular? J Am Dent Assoc.1994;125(9): 1257-1258.
[20] 梁桂香.三种方法修复楔形缺损疗效对比[J].牙体牙髓牙周病学杂志,2004,14(3): 450.
[21] Heintze SD,Cavalleri A,Forjanic M,et al.Wear of ceramic and antagonist-a systematic evaluation of influencing factors in vitro.Dent Mater. 2008;2(44):433-449.
[22] 张之南.血液病诊断及疗效标准[M].2版.北京:北京科技出版社, 1998:168-236.
[23] Grimwade D,Walker H,Oliver F,et al.The importance of diagnostic cytogenetics on outcome in AML: analysis of 1612 patients entered into the MRC AML 10 Trial.Blood.1998;92(7): 2322-2333.
[24] 史宇,刘鲁川,温秀杰,等.几种银汞合金替代材料微渗漏的体外实验研究[J].第三军医大学学报,2004,26(16):1496-1498.
[25] 周瑞庆,蒋丽萍,钱家生,等.三种黏接材料的体外微渗漏研究[J].上海交通大学学报:医学版,2008,28(10):254-1257.
