Stability of the femoral neck and internal fixation with bone
cement and steel plate after curettage for benign proximal femoral lesions

doi:10.3969/j.issn.2095-4344.2501

Abstract

Abstract:

BACKGROUND: For benign bone tumor patients, the life cycle is long. To reduce the incidence of complications and improve the quality of life after surgery through surgery is the common goal of physicians. The quality of life of patients can be increased through discussing the operation mode and prognosis of benign tumor patients, choosing the reasonable operation mode, predicting and reducing the risk of secondary fracture.

OBJECTIVE: To analyze the femoral neck force after different surgical methods using finite element technique in the analysis of benign proximal femoral lesions, and to assess the stability of the femoral neck and the risk of fracture after different surgical procedures for cases with a wide range of lesions.

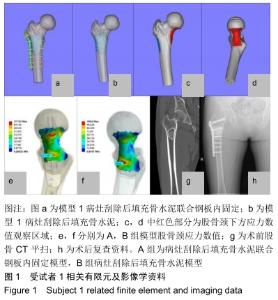

METHODS: According to preoperative CT data of lesion sites in 10 subjects with benign tumor of proximal femur, three-dimensional model of internal fixation with bone cement and steel plate after focal curettage (group A) and three-dimensional model of treating with bone cement after focal curettage (group B) were set in this study. Finite element technique was used to simulate the maximum force of the femoral neck when walking. The stress peaks of the femoral neck were compared after surgery between the two groups. The risk of fracture at this location was assessed. Patients signed the informed consent. This study was approved by the Ethics Committee of Chengde Medical College.

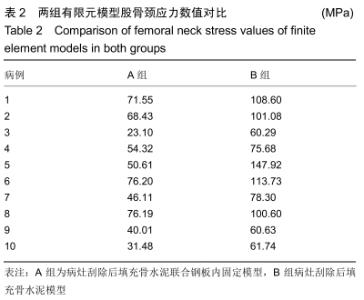

RESULTS AND CONCLUSION: (1) The stress was significantly lower in the group A than in the group B (P=0.007 < 0.05). (2) The local stress of the model was reasonable in the group A. Ten patients were operated with the protocol of the group A. An additional 17 patients with proximal femur benign lesions who met the requirements but refused to enter the finite element experiment were treated with the surgical program of the group A. (3) The patients were followed up for 14-42 months. During the follow-up, no new fracture was found in the operation area, and the internal fixation device was firm without fracture. At 12 months postoperatively, the mean Musculoskeletal Tumor Society score of all patients was (26.12±2.28). (4) The finite element technology for simulating the stress evaluation and postoperative follow-up verified that the treatment of proximal femur benign tumor with bone cement and steel plate internal fixation after curettage is more reasonable and effective. The scheme can effectively reduce the risk of secondary fracture and enhance the stability in the surgical area.

Key words: proximal femur, benign lesion, defect, steel plate, finite element, curettage, mechanical analysis

CLC Number:

Yang Zhaoxin, Niu Mengye, Liu Yuexing, Cao Haiying, Kong Lingwei, Zhao Jingxin, Jin Yu. Stability of the femoral neck and internal fixation with bone cement and steel plate after curettage for benign proximal femoral lesions [J]. Chinese Journal of Tissue Engineering Research, 2020, 24(12): 1841-1846.

Figures/Tables 5

References

[1] MOZAFFARIAN K, MODJALLAL M, VOSOUGHI AR. Treatment of giant cell tumor of distal radius with limited soft tissue invasion: Curettage and cementing versus wide excision. J Orthop Sci. 2018;23:174-179.
[2] MONTGOMERY C, COUCH C, EMORY CL, et al. Giant Cell Tumor of Bone: Review of Current Literature, Evaluation, and Treatment Options. J Knee Surg. 2019;32: 331-336.
[3] SAIZ P, VIRKUS W, PIASECKI P, et al. Results of giant cell tumor of bone treated with intralesional excision. Clin Orthop Relat Res. 2004;(424):221-226.
[4] MALEK F, KRUEGER P, HATMI ZN, et al. Local control of long bone giant cell tumour using curettage, burring and bone grafting without adjuvant therapy. Int Orthop. 2006;30(6): 495-498.
[5] YACOB O, UMER M, GUL M, et al. Segmental excision versus intralesional curettage with adjuvant therapy for giant cell tumour of bone. J Orthop Surg (Hong Kong). 2016; 24: 88-91.
[6] ERRANI C, RUGGIERI P, ASENZIO MA, et al. Giant cell tumor of the extremity: A review of 349 cases from a single institution. Cancer Treat Rev. 2010; 36(1): 1-7.
[7] KLENKE FM, WENGER DE, INWARDS CY, et al. Giant cell tumor of bone: risk factors for recurrence. Clin Orthop Relat Res. 2011; 469(2): 591-599.
[8] XU S, YU X, XU M, et al. Limb function and quality of life after various reconstruction methods according to tumor location following resection of osteosarcoma in distal femur. BMC Musculoskelet Disord. 2014;15:453.
[9] TAKEUCHI A, SUWANPRAMOTE P, YAMAMOTO N, et al. Mid- to long-term clinical outcome of giant cell tumor of bone treated with calcium phosphate cement following thorough curettage and phenolization. J Surg Oncol. 2018; 117: 1232-1238.
[10] PROSSER GH, BALOCH KG, TILLMAN RM, et al. Does curettage without adjuvant therapy provide low recurrence rates in giant- cell tumors of bone? Clin Orthop Relat Res. 2005; (435): 211-218.
[11] VAN DER HEIJDEN L, DIJKSTRA PD, VAN DE SANDE MA, et al. The clinical approach toward giant cell tumor of bone. Oncologist. 2014;19(5): 550-561.
[12] TANG HJ,MORO A,FENG WY, et al. Giant cell tumors combined with secondary aneurysmal bone cysts are more likely to develop postoperative recurrence: A retrospective study of 256 cases. J Surg Oncol. 2019; 120: 359-365.
[13] MALAWER MM, BICKELS J, MELLER I, et al. Cryosurgery in the treatment of giant cell tumor. A long-term followup study. Clin Orthop Relat Res. 1999; (359): 176-188.
[14] TSUKAMOTO S, MAVROGENIS AF, TANZI P, et al. Similar local recurrence but better function with curettage versus resection for bone giant cell tumor and pathological fracture at presentation. J Surg Oncol. 2019;119: 864-872.
[15] CANALE ST, BEATY JH, 原著. 坎贝尔骨科手术学[M].11版. 北京:人民军医出版社,2009:937.
[16] ZHAO S, ARNOLD M, MA S, et al. Standardizing compression testing for measuring the stiffness of human bone. Bone Joint Res. 2018;7:524-538.
[17] ZHU ZJ, ZHU Y, LIU JF, et al. Posterolateral ankle ligament injuries affect ankle stability: a finite element study. BMC Musculoskelet Disord. 2016;17: 96.
[18] ENNEKING WF, DUNHAM W, GEBHARDT MC, et al. A system for the functional evaluation of reconstructive procedures after surgical treatment of tumors of the musculoskeletal system. Clin Orthop Relat Res.1993;286: 241-246.
[19] 中华医学会骨科学分会骨肿瘤学组.中国骨巨细胞瘤临床诊疗指南[J].中华骨科杂志,2018,38(14):833-840.
[20] REILLY DT, BURSTEIN AH. The elastic and ultimate properties of compact bone tissue. J Biomech.1975;8:393.
[21] NAWATHE S, NGUYEN BP, BARZANIAN N, et al. Cortical and trabecular load sharing in the human femoral neck. J Biomech. 2015;48(5):816-822.
[22] MARTENS M, VAN AUDEKERCKE R, DELPORT P, et al. The mechanical characteristics of cancellous bone at the upper femoral region. J Biomech. 1983;16:971-983.
[23] 杨正明,陶惠民,杨迪生,等.邻膝关节骨巨细胞瘤外科治疗的选择[J].中华外科杂志,2006,44(24):1693-1698.
[24] LUN DX, HU YC, YANG XG, et al. Development and proposal of a scoring system for giant cell tumor of the bone around knee. Int Orthop. 2018;42:203-213.
[25] YU X, XU M, XU S, et al. Clinical outcomes of giant cell tumor of bone treated with bone cement filling and internal fixation,and oral bisphosphonates. Oncol Lett. 2013;5(2): 447-451.
[26] ZHENG K, YU XC, HU YC, et al. How to fill the cavity after curettage of giant cell tumors around the knee?a muhicenter analysis. Chin Med J. 2017;130:2541-2546.
[27] JONES RE, BARRACK RL, SKEDROS J. Modular mobile-bearing hinge total knee arthroplasty. Clin Orthop. 2001; (392): 306-314.
[28] 张帅,屠重棋,段宏,等.股骨近端骨缺损与骨折相关性的有限元分析[J].四川大学学报(医学版),2011,42(2):273-276+279.
