Chondrogenesis of chondrocyte cell sheets

doi:10.3969/j.issn.2095-4344.2017.12.007

Abstract

Abstract:

BACKGROUND: The cell-sheet technology, based on a temperature-responsive culture, has been drawing more and more attention; however, the temperature-responsive culture dish is quite expensive. Therefore, it is imperative to develop a substitutive technique.
OBJECTIVE: To study the feasibility of cell-sheet culturing using common culture dish, and investigate the chondrogenesis of the cell sheet.
METHODS: A piece of nasal septal cartilage was adopted from a patient with deviation of nasal septum to extract primary chondrocytes that were then cultured and amplified. The passage 3 chondrocytes were used to construct cell sheets. Monolayer cell sheet was formed by intensive culturing and allowing the extracellular matrix secretion. Bilayer cell sheet was constructed by seeding passage 2 chondrocytes on the monolayer cell sheet. The cell sheets were harvested using cell scraper, their properties were investigated prior to implantation into nude mice to construct the tissue-engineered cartilage.
RESULTS AND CONCLUSION: Both bilayer and monolayer cell sheets with soft tremellose structures showed no significant difference through naked eyes. The newly harvested cell sheets appeared to have good fluidity and gelation. Eight weeks after implantation into the nude mice, mature cartilage blocks were obtained. Histologically, the cell sheets were thin films composed by layered chondrocytes and extracellular matrix. Glycosaminoglycan formation and type II collagen expressions were observed in the cell sheets cultured in vitro. The explanted samples exhibited mature cartilaginous tissue at 8 weeks after implantation. Biochemical analysis showed that the DNA contents of the neocartilages were higher than those of native human costal cartilage, while the contents of glycosaminoglycan and hydroxyproline were similar to native human nasal septal cartilage. To conclude, the chondrocyte cell sheets are likely to be constructed and harvested successfully using common culture dish, and the cell sheets exhibit favourable chondrogenesis.

中国组织工程研究杂志出版内容重点：组织构建；骨细胞；软骨细胞；细胞培养；成纤维细胞；血管内皮细胞；骨质疏松；组织工程

Key words: Cartilage, Culture Techniques, Collage Type II, Tissue Engineering

CLC Number:

R318

Zhou Li-bin, Wu Wei, Ding Rui-ying, Xu Bing-xin, Han Hao-lun, Wang Gang, Li Bao-wei, Wang Hong-nan. Chondrogenesis of chondrocyte cell sheets[J]. Chinese Journal of Tissue Engineering Research, 2017, 21(12): 1843-1848.

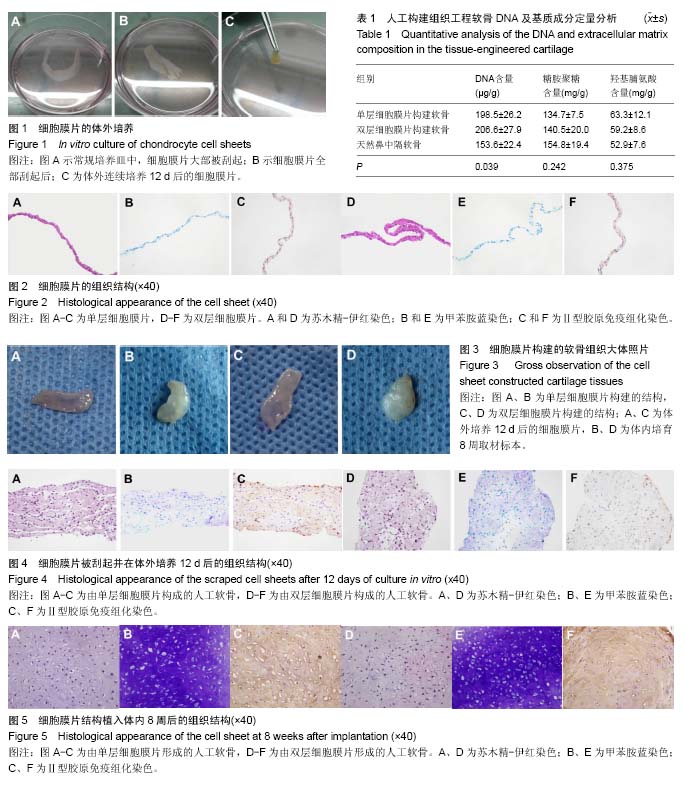

Figures/Tables 1

References

[1] Nagata S. Modification of the stages in total reconstruction of the auricle: Part Ⅰ. Grafting the three dimensional costal cartilage framework for lobule type microtia.Plast Reconstr Surg. 1994;93(2): 221-230.

[2] Nagata S. Modification of the stages in total reconstruction of the auricle: Part Ⅱ. Grafting the three dimensional costal cartilage framework for concha type microtia. Plast Reconstr Surg. 1994;93(2): 231-242.

[3] Nagata S. Modification of the stages in total reconstruction of the auricle: Part Ⅲ. Grafting the three dimensional costal cartilage framework for small concha-type microtia. Plast Reconstr Surg. 1994;93(2): 243-253.

[4] Han H, Wang H, Zhou L, et al. One-stage reconstruction of two atypical small concha-type microtic ears. Int J Pediatr Otorhinolaryngol. 2014;78(4):693-696.

[5] Wellisz T. Reconstruction of the burned external ear using a Medpor porous polyethylene pivoting helix framework. Plast Reconstr Surg.1993;91(5): 811-818．

[6] Baluch N, Nagata S, Park C, et al. Auricular reconstruction for microtia: A review of available methods. Plast Surg (Oakv) 2014;22(1): 39-43.

[7] Gandy JR, Lemieux B, Foulad A, et al. Conserving Cartilage In Microtia Repair: The Modular Component Assembly Approach To Rebuilding A Human Ear. JAMA Facial Plast Surg. 2016;18(2): 120-127.

[8] Anghinoni M, Bailleul C, Magri AS. Auricular reconstruction of congenital microtia: personal experience in 225 cases. Acta Otorhinolaryngol Ital. 2015;35(3): 191-197.

[9] Peiró Ibánez JL, García-Vaquero JA, Acosta Farina D, et al. Auricular alloplastic reconstruction with osteointegrated implants: a new therapy option in microtia. Cir Pediatr. 2000;13(1): 25-29.

[10] Mevio E, Facca L, Mullace M, et al. Osseointegrated implants in patients with auricular defects: a case series study. Acta Otorhinolaryngol Ital. 2015;35(3):186-190.

[11] Lovely M, Dathan PC, Gopal D, et al. Implant Retained Auricular Prosthesis with a Modified Hader Bar: A Case Report. J Indian Prosthodont Soc. 2014;14(2): 187-190.

[12] Guttal SS, Shanbhag S, Kulkarni SS, et al. Rehabilitation of a missing ear with an implant retained auricular prosthesis. J Indian Prosthodont Soc. 2015;15(1): 70-75.

[13] Cao Y, Vacanti JP, Paige KT, et al. Transplantation of chondrocytes utilizing a polymercell construct to produce tissue-engineered cartilage in the shape of a human ear. Plast Reconstr Surg. 1997;100(2):297-302.

[14] Vacanti CA, Cima LG, Ratkowski D, et al. Tissue engineered growth of new cartilage in the shape of a human ear using synthetic polymers seeded with chondrocytes. Mater Res Soc Symp Proc. 1992;252:367-374.

[15] Kasir R, Vernekar VN, Laurencin CT, et al. Regenerative Engineering of Cartilage Using Adipose-Derived Stem Cells. Regen Eng Transl Med. 2015;1(1): 42-49.

[16] Green JD, Tollemar V, Dougherty M, et al. Multifaceted signaling regulators of chondrogenesis: Implications in cartilage regeneration and tissue engineering. Genes Dis. 2015;2(4): 307-327.

[17] Stubbs AJ, Howse EA, Mannava S. Tissue engineering and the future of hip cartilage, labrum and ligamentum teres. J Hip Preserv Surg. 2016;3(1): 23-29.

[18] Phull AR, Eo SH, Abbas Q, et al. Applications of Chondrocyte-Based Cartilage Engineering: An Overview. Biomed Res Int. 2016; 2016: 1879837.

[19] Steele J, McCullen S, Callanan A, et al. Combinatorial scaffold morphologies for zonal articular cartilage engineering. Acta Biomater. 2014;10(5): 2065-2075.

[20] Okano T, Yamada N, Sakai H, et al. A novel recovery system for cultured cells using plasma-treated polystyrene dishes grafted with poly(N-isopropylacrylamide). J Biomed Mater Res. 1993;27(10):1243-1251.

[21] Sawa Y, Cherian KM, Mohanty S, et al. An invention of thermo-responsive polymer surface, yielding cell sheet based regenerative therapies in cardiology and ophthalmology. J Stem Cells Regen Med. 2015;11(2): 51-53.

[22] Du C, Yao C, Li N, et al. Cell sheet-engineered bones used for the reconstruction of mandibular defects in an animal model. Exp Ther Med. 2015;10(6): 2216-2220.

[23] Chen G, Qi Y, Niu L, et al. Application of the cell sheet technique in tissue engineering. Biomed Rep. 2015;3(6): 749–757.

[24] Zhou L, Ding R, Li B, et al. Cartilage engineering using chondrocyte cell sheets and its application in reconstruction of microtia. Int J Clin Exp Pathol. 2015; 8(1): 73-80.

[25] Lima LH, Morales Y, Cabral T. Ocular Biocompatibility of Poly-N-Isopropylacrylamide (pNIPAM). J Ophthalmol. 2016; 2016: 5356371.

[26] Bichara DA, O'Sullivan NA, Pomerantseva I, et al. The tissue-engineered auricle: past, present, and future. Tissue Eng Part B Rev. 2012;18(1):51-61.

[27] Chen CH, Kuo CY, Wang YJ, et al. Dual Function of Glucosamine in Gelatin/Hyaluronic Acid Cryogel to Modulate Scaffold Mechanical Properties and to Maintain Chondrogenic Phenotype for Cartilage Tissue Engineering. Int J Mol Sci. 2016;17(11): 1957.

[28] Wang S, Xia J, Chen J, et al. Influence of biological scaffold regulation on the proliferation of chondrocytes and the repair of articular cartilage. Am J Transl Res. 2016; 8(11): 4564-4573.

[29] Calabrese G, Giuffrida R, Forte S, et al. Bone augmentation after ectopic implantation of a cell-free collagen-hydroxyapatite scaffold in the mouse. Sci Rep. 2016; 6: 36399.

[30] Dan Y, Liu O, Liu Y, et al. Development of Novel Biocomposite Scaffold of Chitosan-Gelatin/Nanohydroxyapatite for Potential Bone Tissue Engineering Applications. Nanoscale Res Lett. 2016; 11: 487.

[31] Syed-Picard FN, Du Y, Hertsenberg AJ, et al. Scaffold-free tissue engineering of functional corneal stromal tissue. J Tissue Eng Regen Med. 2016. doi: 10.1002/term.2363. [Epub ahead of print]

[32] Neo PY, Teh TK, Tay AS, et al. Stem cell-derived cell-sheets for connective tissue engineering. Connect Tissue Res. 2016; 57(6):428-442.

[33] Shimizu T, Yamato M, Kikuchi A, et al. Cell sheet engineering for myocardial tissue reconstruction. Biomaterials. 2003;24 (13): 2309-2316.

[34] Vacanti CA, Vacanti JP. Bone and cartilage reconstruction with tissue engineering approaches. Otolaryngol Clin North Am. 1994;27(1):263-276.

[35] Langer R, Vacanti JP. Tissue engineering. Science. 1993; 260(5110):920-926.

[36] Hubbell JA. Biomaterials in tissue engineering. Biotechnology (N Y). 1995;13(6):565-576.

[37] Kanai N, Yamato M, Okano T. Cell sheets engineering for esophageal regenerative medicine. Ann Transl Med. 2014; 2(3):28.

[38] Matsuura K, Utoh R, Nagase K, et al. Cell sheet approach for tissue engineering and regenerative medicine. J Control Release. 2014;190:228-239.

[39] Shimizu T. Cell sheet-based tissue engineering for fabricating 3-dimensional heart tissues. Circ J. 2014;78(11):2594-2603.

[40] Sato M. Articular cartilage therapy using cell sheet. Clin Calcium. 2013;23(12):1751-1757.
