Anatomical study of plate invention for acetabular anterior column and baffle plate for acetabular quadrilateral body

Chen Hui-wen1, Zhou Zheng-zhen1, Wang Chao-jun1, Zuo Rui1, Guo Chun-yun1, Huang Feng1, Feng Ying-dong1, Wei Bo2, Kong Zhen3, Chang Si-ling3, Sun Yong-jian3

  1. 1Guangdong Medical University, Zhanjiang 524023, Guangdong Province, China; 2Orthopedics Center, Affiliated Hospital of Guangdong Medical University, Zhanjiang 524001, Guangdong Province, China; 3Department of Orthopedics, Fifth Affiliated Hospital of Southern Medical University, Guangzhou 510900, Guangdong Province, China
  • Revised:2016-12-22 Online:2017-04-18 Published:2017-05-06
  • Contact: Sun Yong-jian, M.D., Chief physician, Master’s supervisor, Department of Orthopedics, Fifth Affiliated Hospital of Southern Medical University, Guangzhou 510900, Guangdong Province, China Wei Bo, M.D., Chief physician, Master’s supervisor, Orthopedics Center, Affiliated Hospital of Guangdong Medical University, Zhanjiang 524001, Guangdong Province, China
  • About author:Chen Hui-wen, Studying for master’s degree, Guangdong Medical University, Zhanjiang 524023, Guangdong Province, China
  • Supported by:

    the Special Funds for the Cultivation of Guangdong College Students’ Scientific and Technological Innovation (“Climbing Program” Special Funds, No. pdjh2016b0215; the Scientific Research Project of Southern Medical University, No. CX2015N010

PDF

245

Abstract:

BACKGROUND: It remains poorly understood whether anterior column quadrilateral wing plate exists to solve intraoperative multiple plastic and quadrilateral in vivo shift for treating acetabular anterior column and acetabular quadrilateral body fractures.

OBJECTIVE: To figure out the promising application on measurement of anatomical character parameters when designing acetabular anterior column and acetabular quadrilateral body using Mimics software.

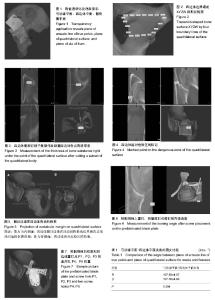

METHODS: 60 pelvic CT scan data were collected and three-dimensionally reconstructed by Mimics software. The following anatomical character parameters were measured, including the angle between plane of arcuate line of true pelvis and plane of quadrilateral surface, the four boundary lines of quadrilateral body, and the thickness of substance of bone in quadrilateral region. The projection curve on quadrilateral surface of acetabular margin and dangerous zone for screw placement were both drew. Above all, the study attempted to find out the proper safe entry point of quadrilateral screw and to measure their leaning inside angles.

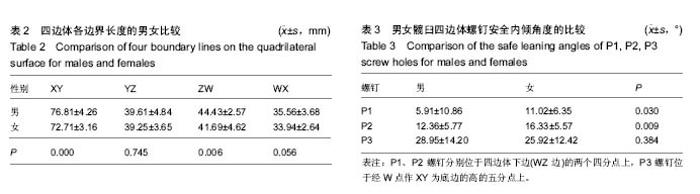

RESULTS AND CONCLUSION: (1) The angle between plane of arcuate line of true pelvis and plane of quadrilateral surface was not significantly different between males and females. (2) The minimum thickness of quadrilateral body in males was larger than that in females. (3) The maximum leaning angle flapper plate screw P1 and P2 for quadrilateral body was significantly smaller in males than in females, but that of screw P3 was not significantly different between males and females. (4) The application of Mimics software made it easier, more intuitive and more practical for the design or development of new plate for acetabular anterior column and acetabular quadrilateral body. The common points and difference between acetabular anterior column and acetabular quadrilateral body could be specifically described by the new anatomical character parameters, which are defined by bone surface features of pelvis.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

Key words: Acetabulum, Dissection, Three-Dimensional Reconstruction, Tissue Engineering
