Simultaneous determination of three main bioactive constituents in the in vitro fertilization medium by UHPLC-MSMS

doi:10.3969/j.issn.2095-4344.2017.02.023

Abstract

Abstract:

BACKGROUND: In the present quality control file or technique standards of in vitro fertilization medium, the indicators of the component contents and detection methods have not been clearly defined. To ensure the safety and effectiveness of these products, we should establish the quality standards as early as possible.
OBJECTIVE: To establish a method for determining the three main bioactive constituents of in vitro fertilization
medium including glucose, lactic acid sodium salt, pyruvic acid sodium salt by ultra-high performance liquid chromatography tandem mass spectrometric method (UHPLC-MSMS), and to analyze the content of each constituent.
METHODS: The UHPLC-MSMS was used, and UHPLC separation was performed on a SUPELCO Discovery HS F5-3 column (15 cm × 2.1 mm, 3 μm) in a gradient elute mode with acetonitrile and water (both containing 0.1% formic acid) as the mobile phase at a flow rate of 0.35 mL/min. The column temperature was 40℃. Mass spectrometry detection was performed with multi-reaction monitoring mode using negative electro spray ionization.

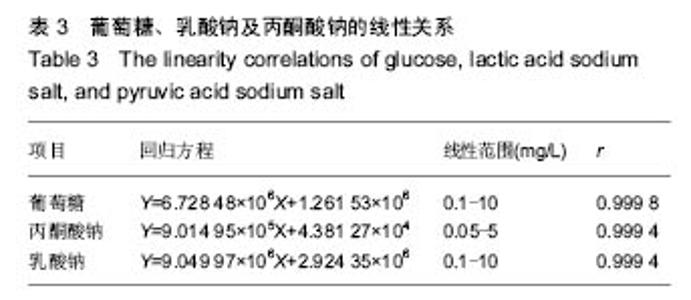

RESULTS AND CONCLUSION: The linearity was achieved in the range of 0.1-10 μg/mL (r=0.999 8) for glucose, 0.05-5 μg/mL (r=0.999 4) for lactic acid sodium salt, and 0.1-10 μg/mL (r=0.999 4) for pyruvic acid sodium salt. The recoveries were 96.4%-98.1% with relative standard deviation less than 2.8%. To conclude, the UHPLC-MSMS method is sensitive, rapid, accurate and specific, thus providing a basis for the quality standard study of in vitro fertilization medium.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

Key words: Glucose, Sodium Lactate, Quality Control, Tissue Engineering

CLC Number:

R318

Huang Yuan-li, Ke Lin-nan, Wang Chun-ren, Yang Zhao-peng.

Simultaneous determination of three main bioactive constituents in the in vitro fertilization medium by UHPLC-MSMS

[J]. Chinese Journal of Tissue Engineering Research, 2017, 21(2): 291-295.

Figures/Tables 3

References

[1]况花荣,陈同强,刘波兰.体外受精-胚胎移植技术及其进展[J].科技信息,2010(21):555.

[2]郑文东.人类辅助生育技术的回顾与展望[J].中国计划生育学志,2002,10(6):378-381.

[3]庄广伦,卢光琇,石一复,等.辅助生育技术进展[J].中国实用妇科与产科杂志,2001,17(1):6-31.

[4]韩堃,郑源强,石艳春.人类辅助生殖技术研究进展[J].中国妇幼健康研究,2008,19(6):606-609.

[5]彭靖,卢大儒.试管婴儿技术的发展与探讨[J].自然杂志, 2010, 32(6):338-343.

[6]丁萍,张爱青,孟凡会,等.影响助生殖技术的因素分析[J].青岛大学医学院学报,2001,37(4):277-278.

[7]梅志强.人类辅助生殖技术的发展历史与现状[J].中国计划生育学杂志,2008,16(10):584-586.

[8]庄广伦.辅助生殖技术的发展历程[J].中国实用妇科与产科杂志,2010,26(10):729-731.

[9]陈贵安.北京大学第三医院开展辅助生育技术近10年回顾[J].北京大学学报:医学版,2002,34(5):623-626.

[10]张婷,王晓民.体外受精与试管婴儿—2010年诺贝尔生理学或医学奖简介[J].首都医科大学学报,2010,31(5):678-682.

[11]乔杰,马彩虹.中国辅助生殖技术发展现状[J].国际生殖健康/计划生育杂志,2012,31(5):332-333.

[12]王巍,马海兰.人类辅助生殖技术的应用现状[J].右江民族医学院学报,2011,33(3):353-355.

[13]Quinn P. The development and impact of culture media for assisted reproductive technologies. Fertil Steril. 2004;81(1): 27-29.

[14]Gardner DK, Vella P, Lane M, et al. Culture and transfer of human blastocysts increases implantation rates and reduces the need for multiple embryo transfers. Fertil Steril. 1998; 69(1):84-88.

[15]赵杰,陈秀娟,范文斌.鼠胚在人类辅助生殖培养环境质量控制的作用研究[J].内蒙古医学院学报,2009,31(1):49-51.

[16]Thompson JG, Bell AC, Tervit HR. Partitioning of glucose carbon in post-compaction ovine embryos. Anim Reprod Sci. 1995;38(1-2):119-126.

[17]Biggers JD, Whittingham DG, Donahue RP. The pattern of energy metabolism in the mouse oöcyte and zygote. Proc Natl Acad Sci U S A. 1967;58(2):560-567.

[18]Downs SM, Utecht AM. Metabolism of radiolabeled glucose by mouse oocytes and oocyte-cumulus cell complexes. Biol Reprod. 1999;60(6):1446-1452.

[19]Eppig JJ, Hosoe M, O'Brien MJ, et al. Conditions that affect acquisition of developmental competence by mouse oocytes in vitro: FSH, insulin, glucose and ascorbic acid. Mol Cell Endocrinol. 2000;163(1-2):109-116.

[20]Khurana NK, Niemann H. Effects of oocyte quality, oxygen tension, embryo density, cumulus cells and energy substrates on cleavage and morula/blastocyst formation of bovine embryos. Theriogenology. 2000;54(5):741-756.

[21]Cetica P, Pintos L, Dalvit G, et al. Activity of key enzymes involved in glucose and triglyceride catabolism during bovine oocyte maturation in vitro. Reproduction. 2002;124(5): 675-681.

[22]Steeves TE, Gardner DK. Metabolism of glucose, pyruvate, and glutamine during the maturation of oocytes derived from pre-pubertal and adult cows. Mol Reprod Dev. 1999;54(1): 92-101.

[23]Gardner DK, Lane M, Calderon I, et al. Environment of the preimplantation human embryo in vivo: metabolite analysis of oviduct and uterine fluids and metabolism of cumulus cells. Fertil Steril. 1996;65(2):349-353.

[24]吴正三.猪胚胎体外培养影响因素的研究[D].南宁:广西大学, 2006.

[25]Houghton FD, Thompson JG, Kennedy CJ, et al. Oxygen consumption and energy metabolism of the early mouse embryo. Mol Reprod Dev. 1996;44(4):476-485.

[26]Thompson JG, Partridge RJ, Houghton FD, et al. Oxygen uptake and carbohydrate metabolism by in vitro derived bovine embryos. J Reprod Fertil. 1996;106(2):299-306.

[27]Martin KL, Leese HJ. Role of glucose in mouse preimplantation embryo development. Mol Reprod Dev. 1995;40(4):436-443.

[28]Martin KL, Leese HJ. Role of developmental factors in the switch from pyruvate to glucose as the major exogenous energy substrate in the preimplantation mouse embryo. Reprod Fertil Dev. 1999;11(7-8):425-433.

[29]Harris SE, Leese HJ, Gosden RG, et al. Pyruvate and oxygen consumption throughout the growth and development of murine oocytes. Mol Reprod Dev. 2009;76(3):231-238.

[30]Gardner DK, Lane M, Batt P. Uptake and metabolism of pyruvate and glucose by individual sheep preattachment embryos developed in vivo. Mol Reprod Dev. 1993;36(3): 313-319.

[31]Brown JJ, Whittingham DG. The dynamic provision of different energy substrates improves development of one-cell random-bred mouse embryos in vitro. J Reprod Fertil. 1992; 95(2):503-511.

[32]Gardner DK, Clarke RN, Lechene CP, et al. Development of a noninvasive ultramicrofluorometric method for measuring net uptake of glutamine by single preimplantation mouse embryos. Gamete Res. 1989;24(4):427-438.

[33]Downs SM, Houghton FD, Humpherson PG, et al. Substrate utilization and maturation of cumulus cell-enclosed mouse oocytes: evidence that pyruvate oxidation does not mediate meiotic induction. J Reprod Fertil. 1997;110(1):1-10.

[34]吴嫦丽,张守全,高淑静,等.不同培养液对昆明小鼠体外受精率及早期胚胎体外发育的影响[J].华南农业大学学报, 2006,27(1): 107-109.

[35]Leppens-Luisier G, Sakkas D. Development, glycolytic activity, and viability of preimplantation mouse embryos subjected to different periods of glucose starvation. Biol Reprod. 1997; 56(3):589-596.

[36]邓彬,李予,王文军,等.胚胎培养液氨基酸浓度与体外受精-胚胎移植妊娠结局的关系[J].中山大学学报:医学科学版,2013, 34(6): 900-905.

[37]王增艳,何方方,孙正怡,等.冷冻环玻璃化法冷冻小鼠卵母细胞的效果评价[J].生殖医学杂志,2008,17(1):38-42.

[38]李宗武,朱传金,刘庆勇.人血浆及精浆中钙、镁、锌、铜对精液成分的影响[J].国外医学:医学地理分册,2004,25(3):124-126.
